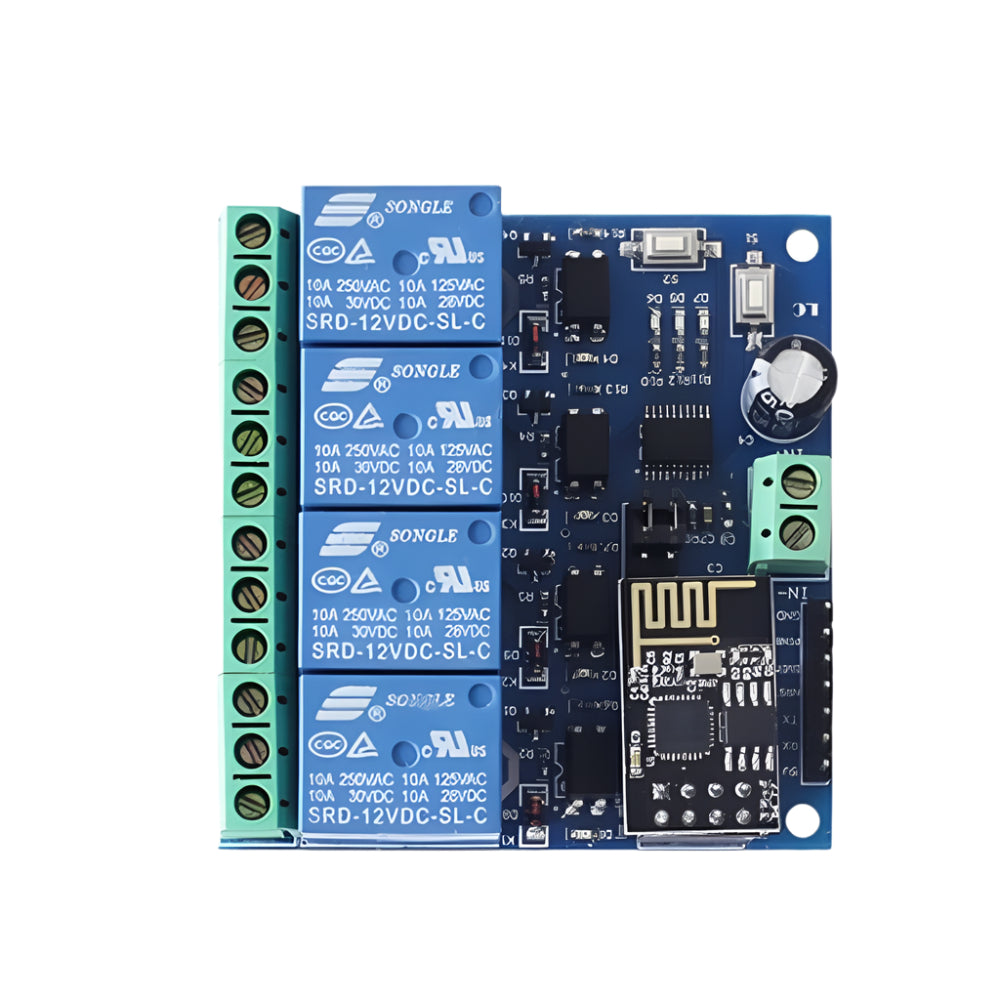

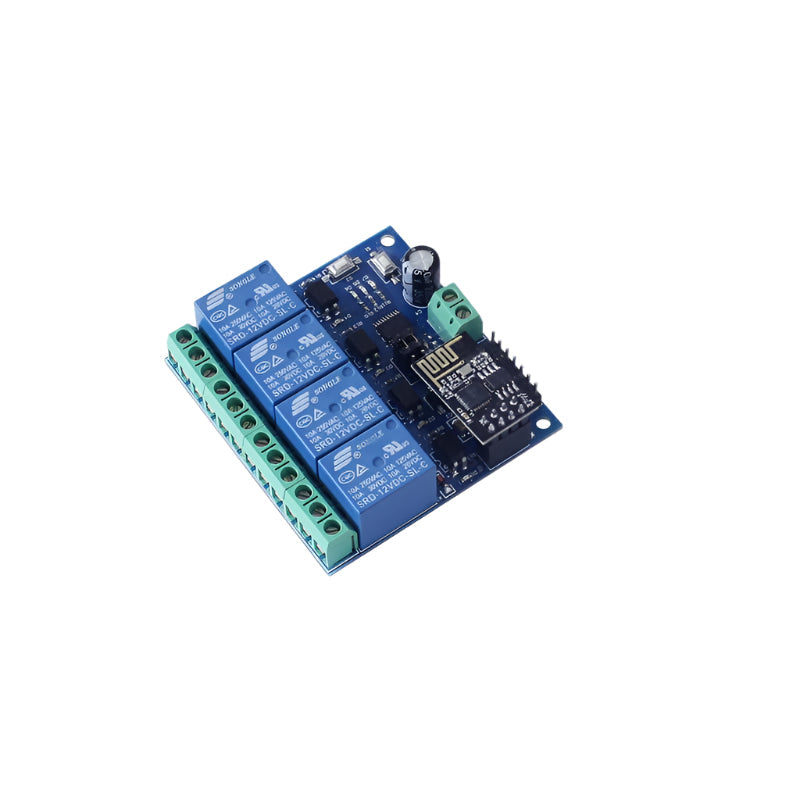

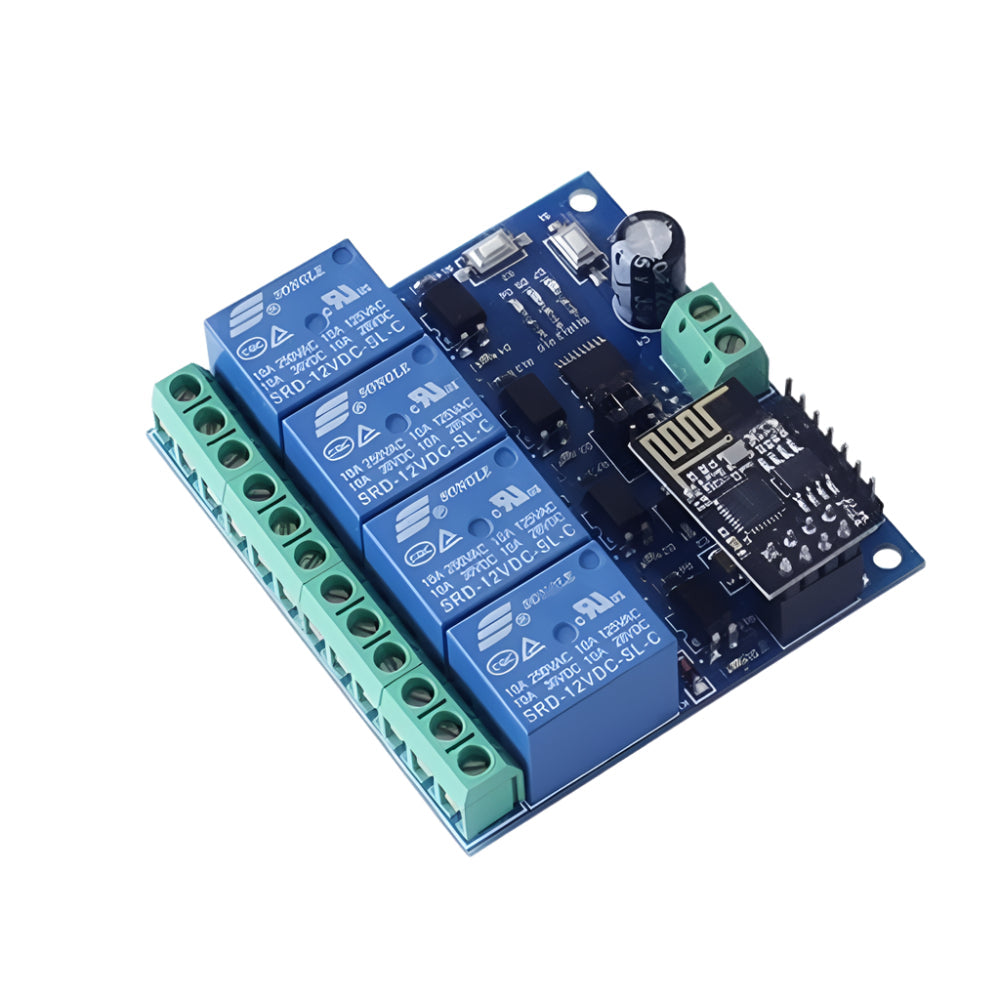

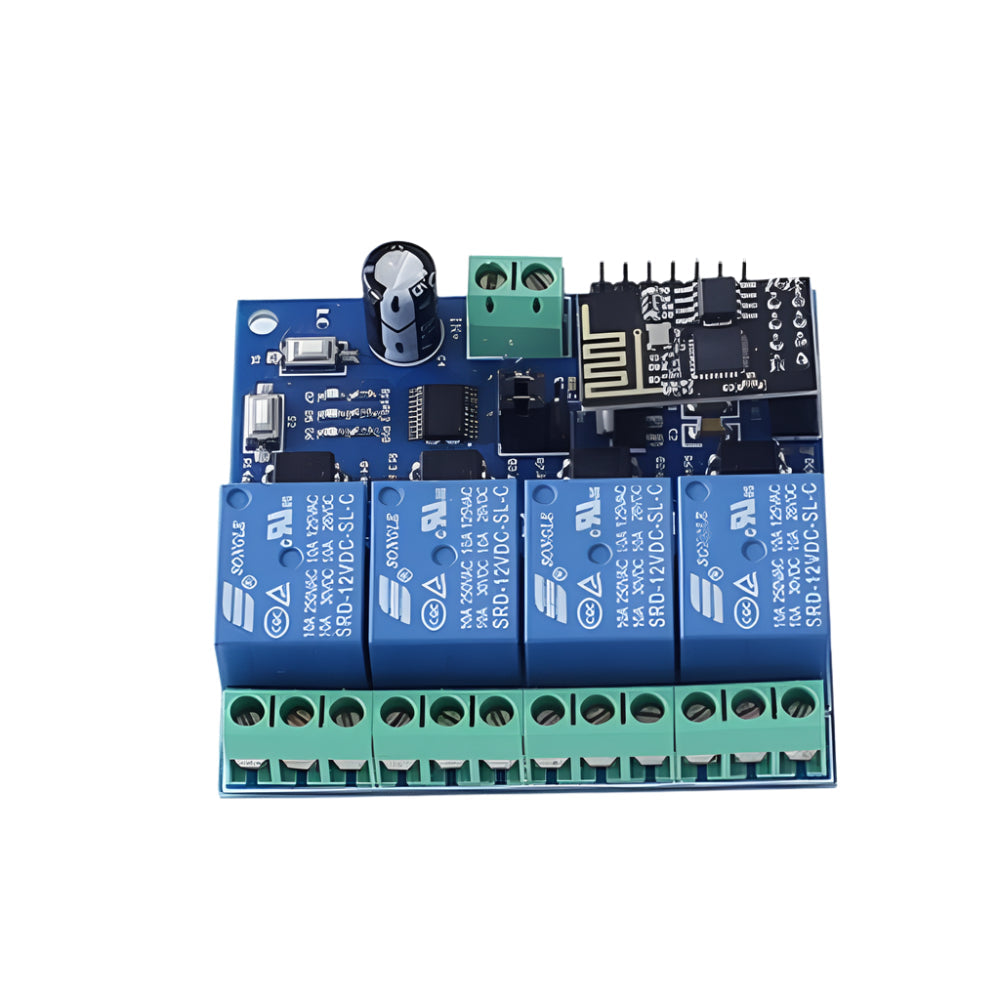

ESP8266 ESP-01 12V 4 Channels WiFi Relay Module Home Remote Control Switch

Experience seamless wireless control with the WiFi Relay Module, featuring an integrated ESP8266 WiFi module and microcontroller. This module enables relay control via serial port instructions sent to the cell phone APP within the local area network (LAN), offering convenient wireless control over connected devices.

Technical Details

  • Transmission Distance: 400m
  • Relay Channels: 4
  • Trigger Voltage: 12V DC
  • Switching Voltage: 250V AC @ 10A, 30V DC @ 10A
  • Baud Rate: 9600

Features

  • ESP8266 WiFi Module: Enables wireless relay control via mobile app within LAN.
  • 4-Channel Relay: Supports devices up to 250V AC, 30V DC.
  • LED Indicator: Red power LED lights up on signal reception.
  • Audible Feedback: Click the sound when the relay triggers.
  • Easy Configuration: Set up via UART, then operates autonomously.
  • Power Connection: Connect 12V/1A adapter to IN and IN- pins.
  • Android APP: Use “ESP Touch-Demo” for WiFi setup and “Easy TCP-20” for relay control.
  • Transmission Distance: 100m max in open space, varies with router signal.
  • Smart Config: Auto config and password memory via mobile app.
  • Relay Rating: 12V relay, 10A @ 250V AC or 30V DC, 100,000 cycles.
  • Board Indicators: Mode and status LEDs for monitoring.
  • UART Debug Interface: For debugging and program development.

Applications :

  • Home Automation: Remotely control household appliances such as lighting, fans, and air conditioning via a mobile app.
  • Security Systems: Control security devices, such as alarms and cameras, enabling remote activation and deactivation.
  • Industrial Applications: Control machinery or other industrial devices remotely from a central location.
  • IoT Projects: Integrate the module into IoT projects for remote automation of devices.

Physical Attributes

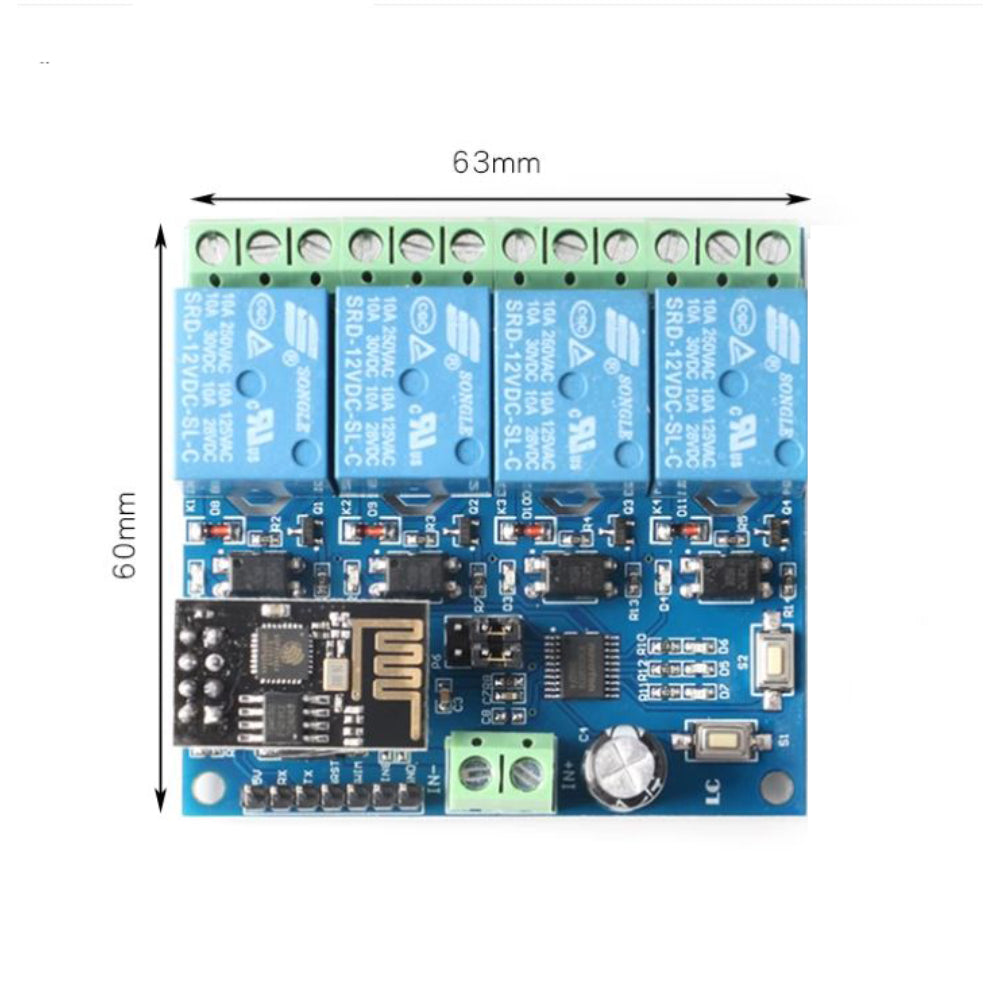

  • Dimensions(mm): 60 x 63
  • Weight: 63 g

Package Includes

  • 1 x ESP8266 ESP-01 12V 4 Channels WiFi Relay Module Home Remote Control Switch
