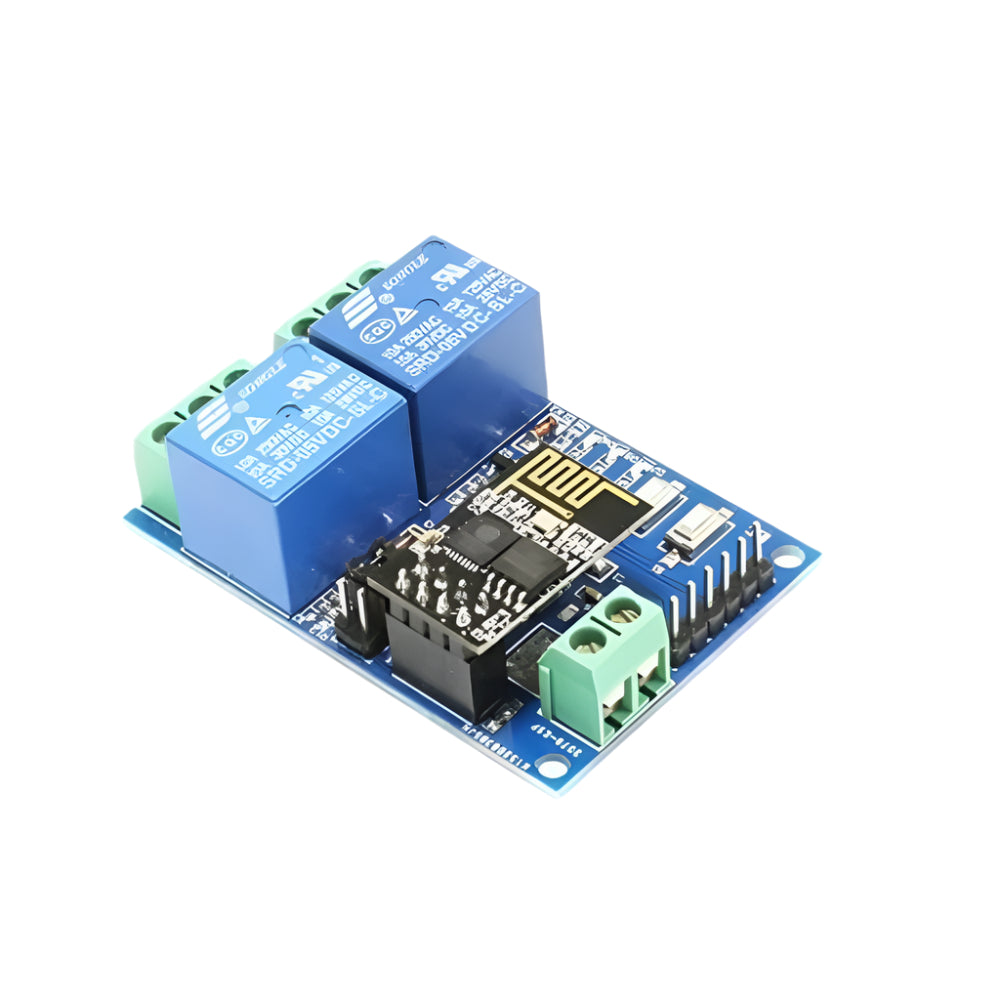

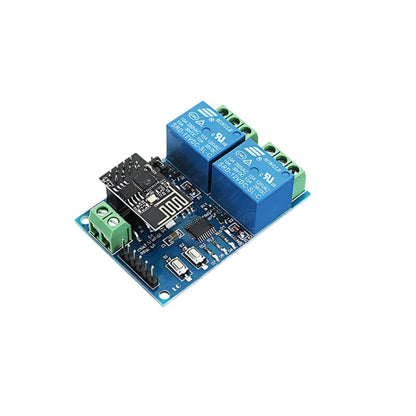

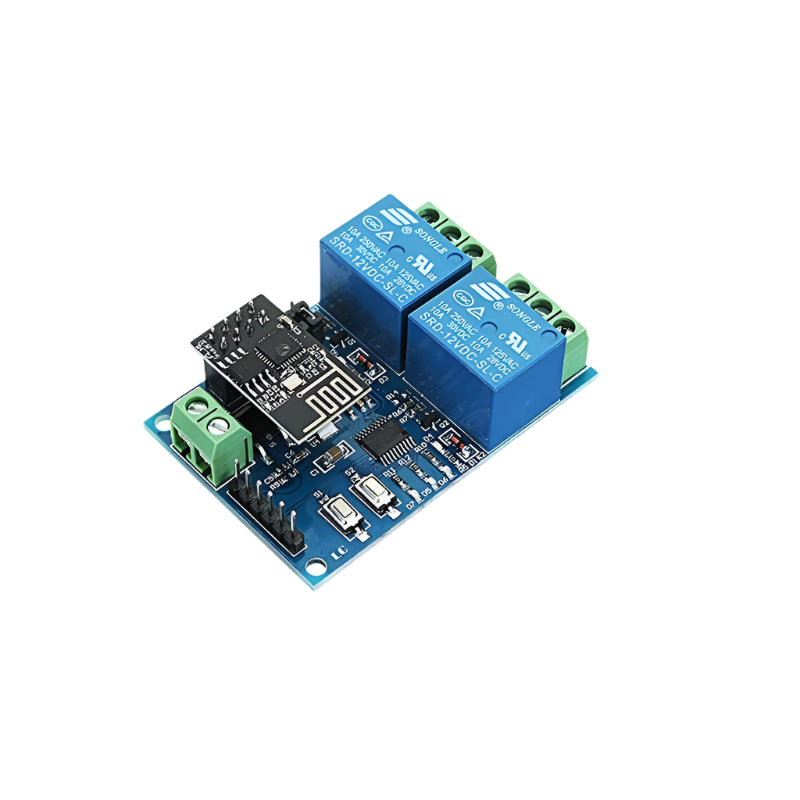

ESP8266 ESP-01 12V 2 Channels WiFi Relay Module Home Remote Control Switch

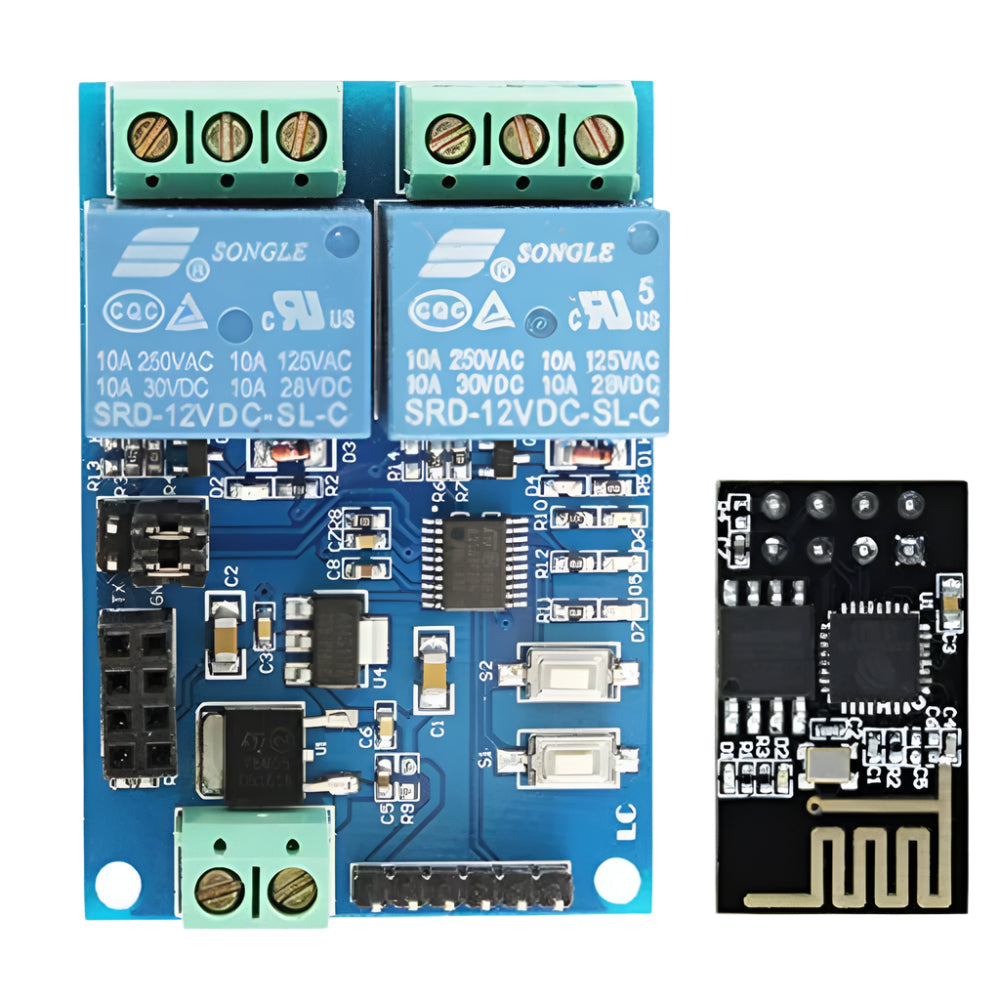

His WiFi relay module carries an ESP8266 WiFi module and microcontroller. It will send the serial port instructions to the cell phone APP and Implementation within the local area network (LAN) for wireless control relay.

This module is ideally suited to controlling larger voltages in your project through WIFI. This is a 2 channel relay module that can be used to activate up to 250V AC and 30V DC. This allows you to build in device control, operating remote lights, or triggering systems when the module is supplied with a signal from an ESP8266 module.

The module has an LED that lights relative to the state of the module. A red power activation LED that lights when a signal is received on the IN pin. When a signal is received an audible click can be heard as the relay triggers, connecting the output pins. The relay is controlled via the included ESP8266. This will require configuration via UART prior to full operation. Once it is programmed and powered it will look after itself, making it ideal for use in internet of things “IOT” based projects.

How to Use: 5V/1A power adapter and APP “ESP Touch–Demo”
Step 1: The 12V/1A power adapter, the positive and negative poles of the power are connected to IN+ and IN- of the module respectively.
Step 2: Android mobile terminal installation APP”Esp Touch–Demo”, for the first use of work mode 2 to ESP-01 module configuration WiFi account number and password.
Step 3: Android mobile terminal to install APP “Easy TCP–20”, TCP transmission tool, used to send relay control instructions. Click on “SWITCH”, and then enter the 2 relay control instructions and names and contents (instruction form HEX) by the gray blocks in the interface.

Technical Details

  • Model Type: WiFi Relay Module
  • No. of Channels: 2
  • Model No.: ESP8266 ESP-01
  • Transmission Distance: 400m (max)
  • Trigger Voltage: 12V DC
  • Switching Voltage (VAC): 250V @10A
  • Switching Voltage (VDC): 30V @10A
  • Baud Rate: 9600 bps

Features

  • Transmission distance: 100m max (in open environment, with mobile phone mounted on the WiFi module).
  • When both WiFi module and mobile phone are connected to a router, transmission distance depends on router signal strength.
  • Supports Smart Config technology for account and password setup via mobile app, with memory for username and password.
  • Onboard 12V, 10A / 250V AC & 10A / 30V DC relay with diode discharge protection and short response time, rated for 100,000 pull cycles.
  • Board mode selection and real-time working status indicator.
  • Reserved UART debug interface and STM8 SWIM program download interface.

Applications :

  • WiFi Control: Operate devices remotely via your smartphone or computer using the built-in WiFi module.
  • Dual Relays: Control two devices simultaneously, ideal for applications like controlling lights, fans, or small appliances.
  • High Load Handling: Each relay supports 10A at 250V AC or 10A at 30V DC for reliable performance in various environments.
  • Easy Setup: Using SmartConfig technology, the module can be easily configured via a mobile app, and user credentials are saved even after power-off.
  • Long Transmission Range: The WiFi module offers a stable transmission distance of up to 400 meters in an open environment.

Physical Attributes

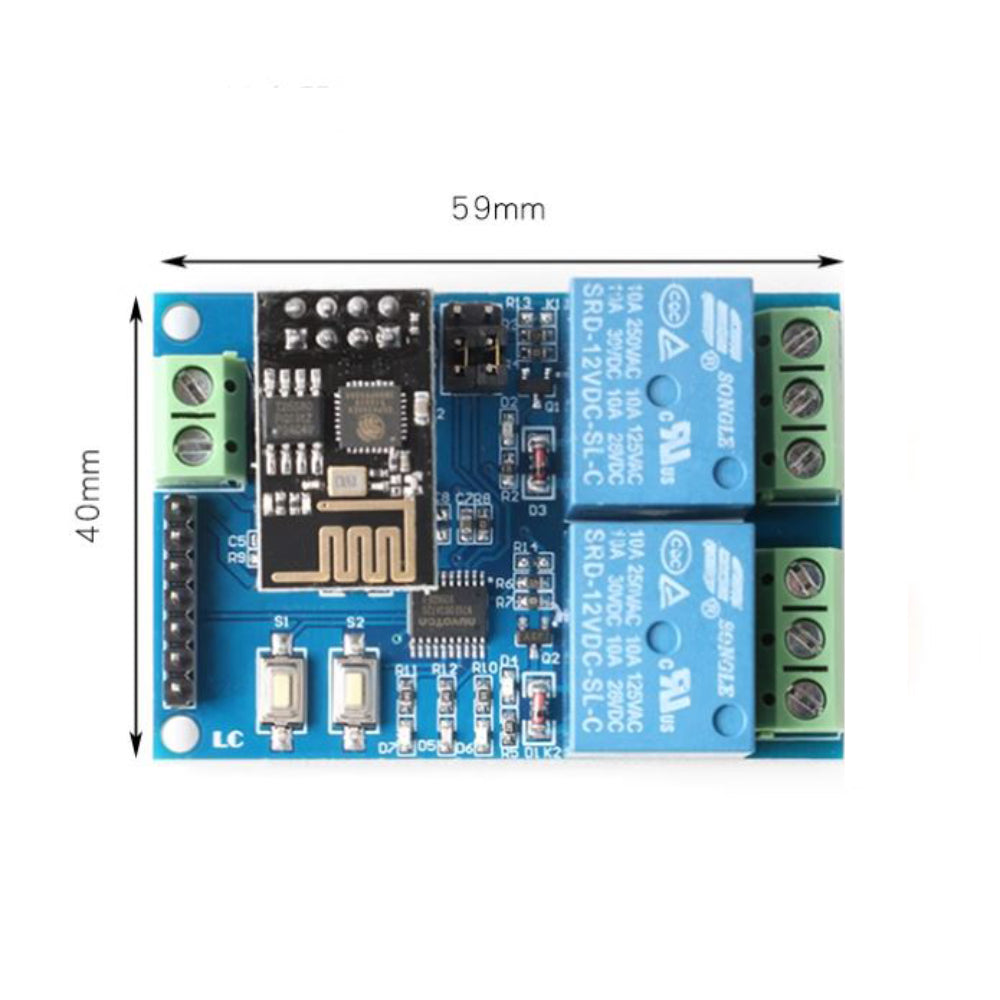

  • Dimensions(mm): 59 x 40
  • Weight: 37 g

Package Includes

  • 1 x ESP8266 ESP-01 12V 2 Channels WiFi Relay Module Home Remote Control Switch
