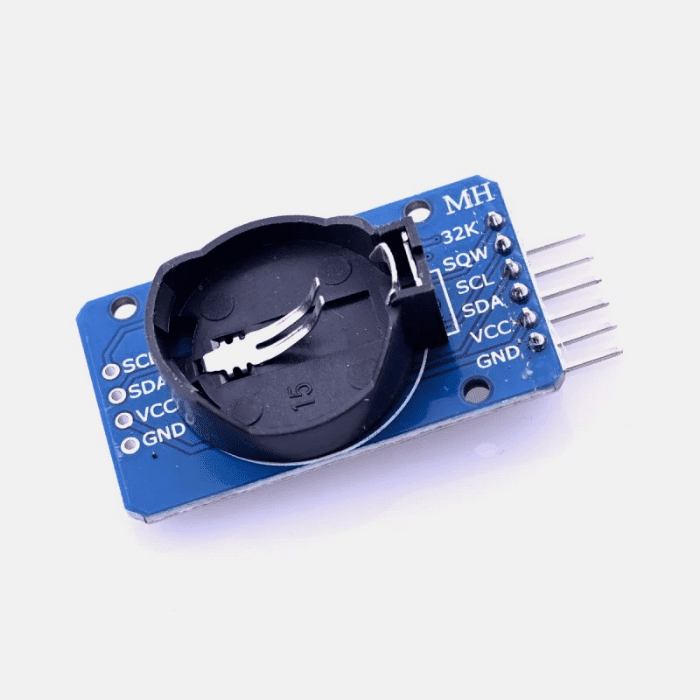

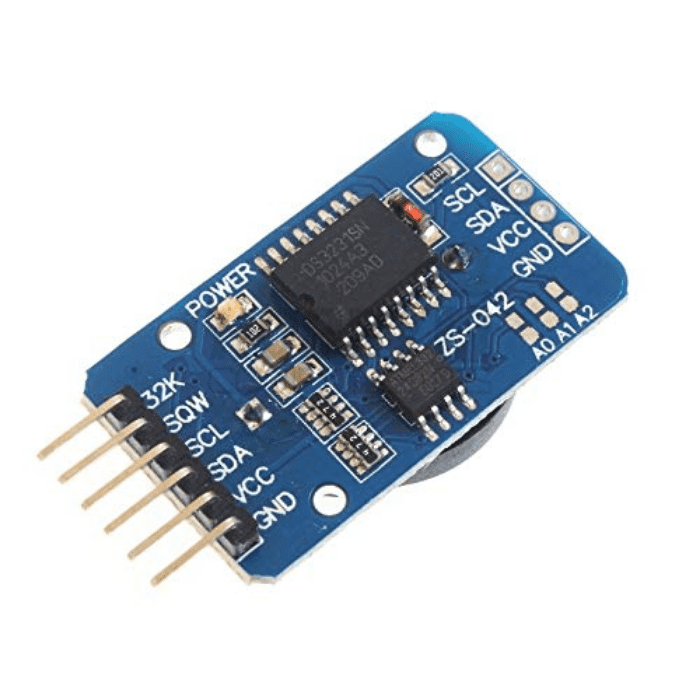

DS3231 Real Time Clock Memory Module with out Battery

DS3231 Real Time Clock Memory Module with out Battery

First Come First Serve Offer (T&C Apply )

121.52
0.00 121.52
Sale Sold out
Shipping calculated at checkout.

DS3231 Real Time Clock Memory Module with out Battery

DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. Real-time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation DS3231 available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.

DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Features:

  • Supports 2.2 to 5.5 V for the Real-Time Clock (RTC).
  • Equipped with a fast 400kHz I2C interface.
  • It's an extremely accurate I2C real-time clock (RTC).
  • Has an inbuilt temperature-compensated crystal oscillator (TCXO) and crystal.
  • Capable of tracking seconds, minutes, hours, day, date, month, and year.
  • Features a built-in 32Kbit EEPROM and a 10-bit temperature sensor with 0.25°C resolution.

Applications:

  • Robotics
  • Data Loggers
  • Servers
  • Computer Peripherals
  • GPS Modules
  • Utility power meters

Package Includes:

  • 1 x DS3231 Real Time Clock Memory Module

Specifications:

Operating Voltage (VDC) 2.7 ~ 5.5
Voltage Supply for RTC 2.2 V ~ 5.5 V
Battery Holder 2032 Coin Battery
I2C interface Fast (400kHz) I2C Interface.
Time and Date Format Time: HH: MM: SS (12/24 hr).
Date Format: YY-MM-DD-dd.
Dimensions in mm (LxWxH) 38 x 22 x 14
Weight(gm) 8
