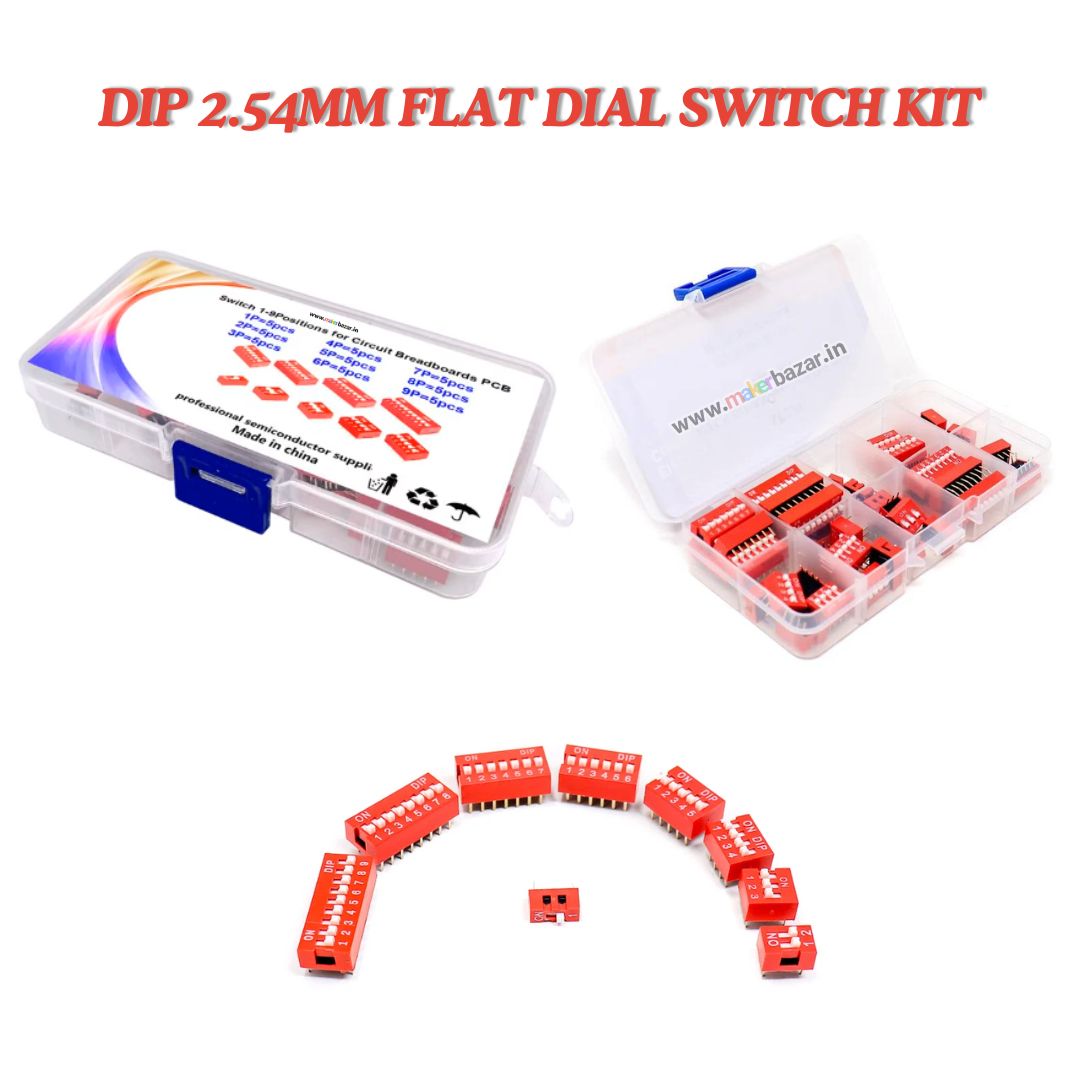

DIP 2.54MM Flat Dial Switch Kit

DIP 2.54MM Flat Dial Switch Kit

First Come First Serve Offer (T&C Apply )

636.02
636.02
Sale Sold out
Shipping calculated at checkout.
Model

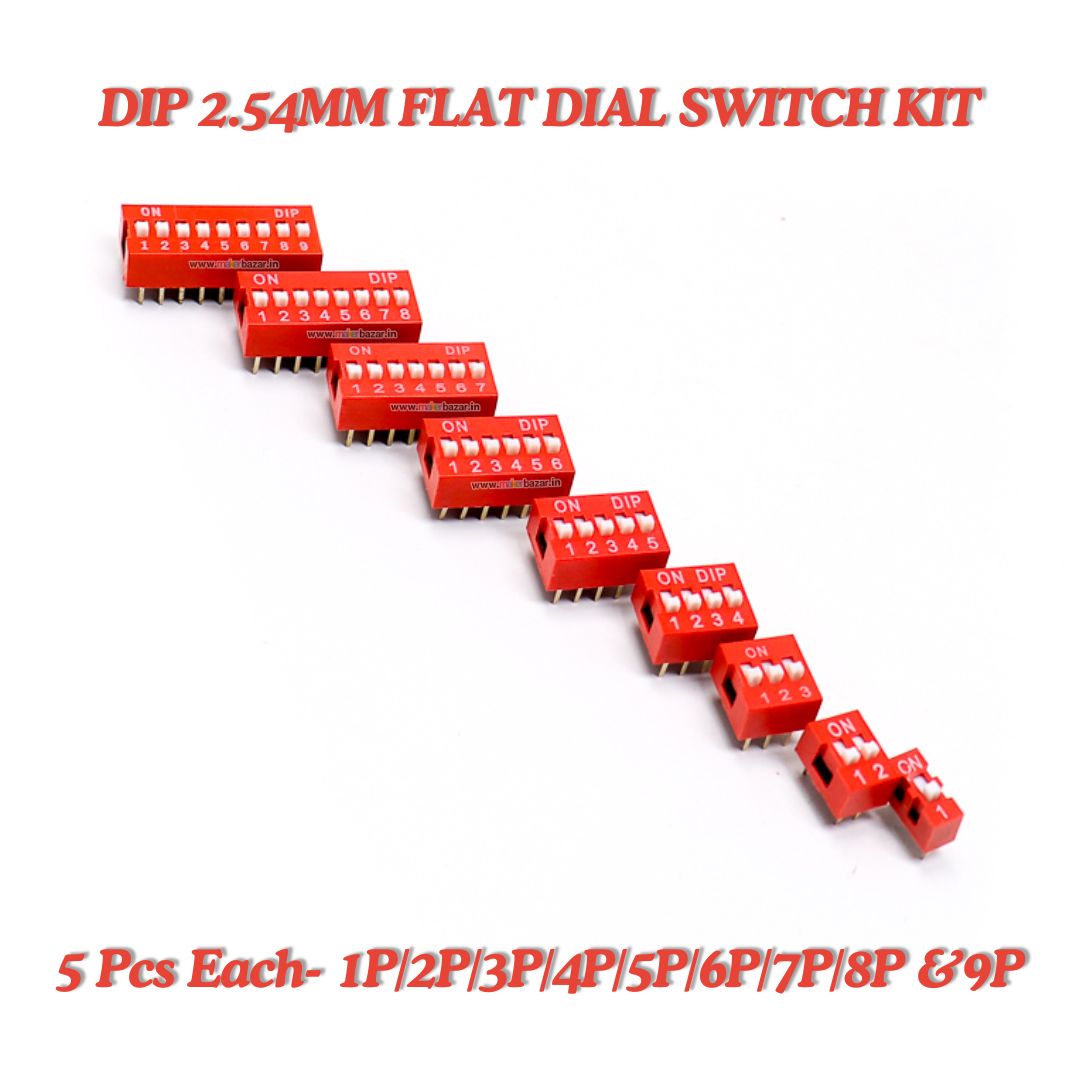

Switch 1-9 Position for Circuit Breadboard PCB- Thru Hole Kit

Note- You can also purchase single pieces based on your needs- DIP Slide Switch 2.54mm Straight

A DIP (Dual Inline Package) 2.54mm Flat Dial Switch Kit typically refers to a kit containing a flat dial switch that fits a 2.54mm (0.1 inch) pin spacing, which is standard for breadboards and PCBs.

Features:

  1. Pin Spacing:

    • The 2.54mm pin spacing is the standard distance between pins in DIP switches and many other electronic components, making it easy to use on standard breadboards and thru-hole PCBs.

  2. Flat Dial Style:

    • The flat dial refers to the style of the switch actuator, where the dial is flat, and it can be rotated or switched between different positions.
    • Each position can correspond to a unique configuration, often binary or decimal in digital circuits.

  3. Thru-Hole Kit:

    • The kit usually includes a thru-hole version of the switch, meaning it has long leads that go through the holes of a PCB or can be used on a breadboard.
    • Soldering may be required if you're mounting the switch on a PCB.

  4. Typical Applications:

    • These switches are frequently used in configuration settings for circuits, such as setting addresses, selecting functions, or choosing modes in microcontroller projects.
    • Commonly found in DIP switch arrays for binary inputs in computers or as selectors for settings in communication or control circuits.

  5. Flat Dial Switch:

    • This type of switch is easy to adjust manually and is often used when a user needs to frequently change the configuration without tools.
    • The positions of the dial can be numbered from 0-9, representing different circuit connections or modes.

Uses in a Kit:

  • A DIP switch kit might include not only the switch but also other components, such as resistors, capacitors, and a PCB for easy integration into a project.
  • It’s perfect for prototyping circuits where multiple settings need to be tested or frequently changed, such as addressable devices, binary counter configurations.
