DC12-80V 600W High Power Adjustable Voltage Constant Current Boost DC-DC Converter Module Standard Quality

DC12-80V 600W High Power Adjustable Voltage Constant Current Boost DC-DC Converter Module Standard Quality

First Come First Serve Offer (T&C Apply )

783.02
1,199.00 783.02
Sale Sold out
Shipping calculated at checkout.

DC12-80V 600W High Power Adjustable Voltage Constant Current Boost DC-DC Converter Module Standard Quality

Product This is a DC12-80V 600W High Power Adjustable Voltage Constant Current Module.

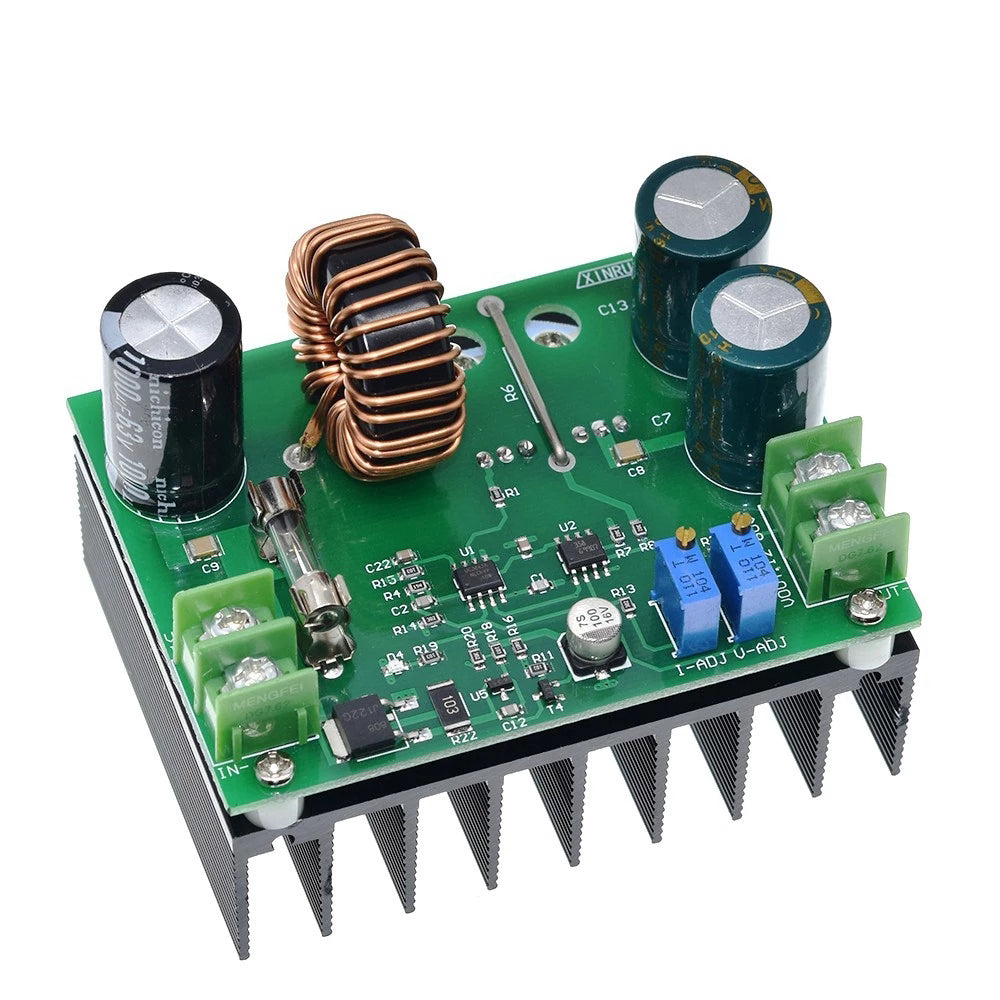

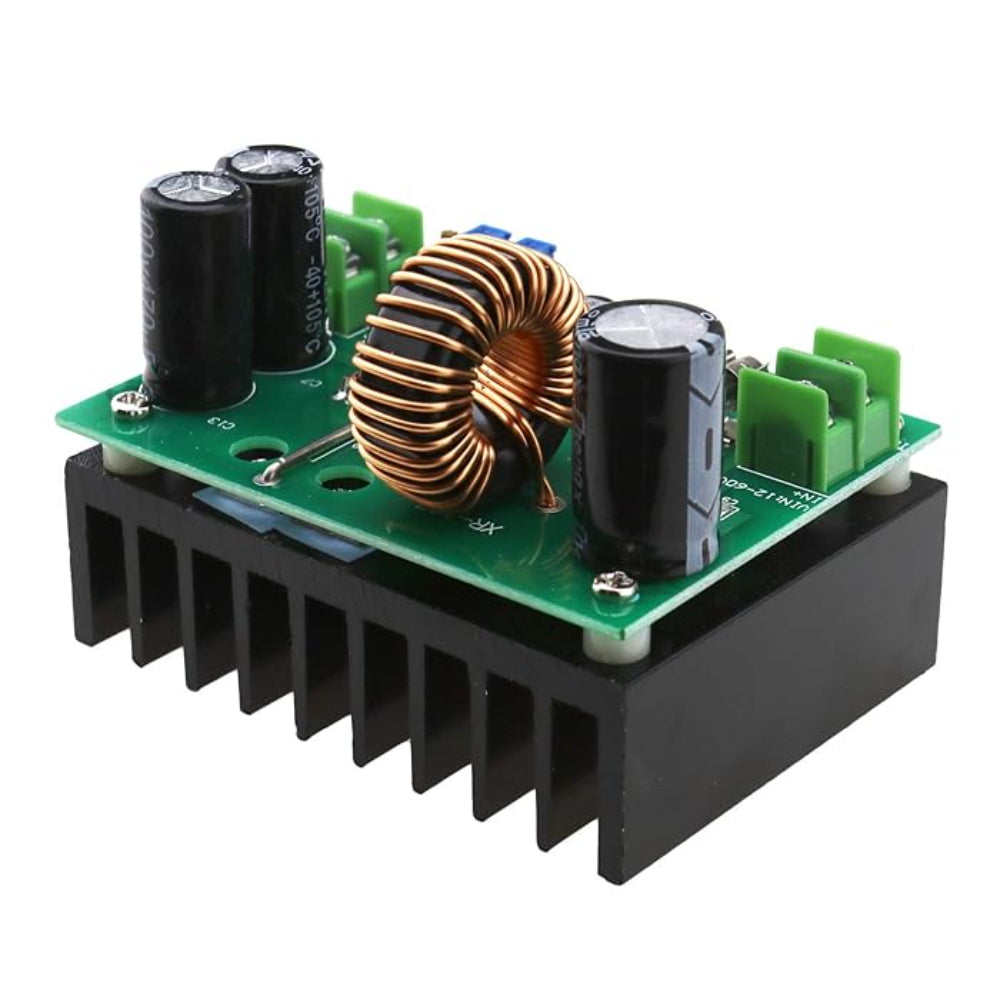

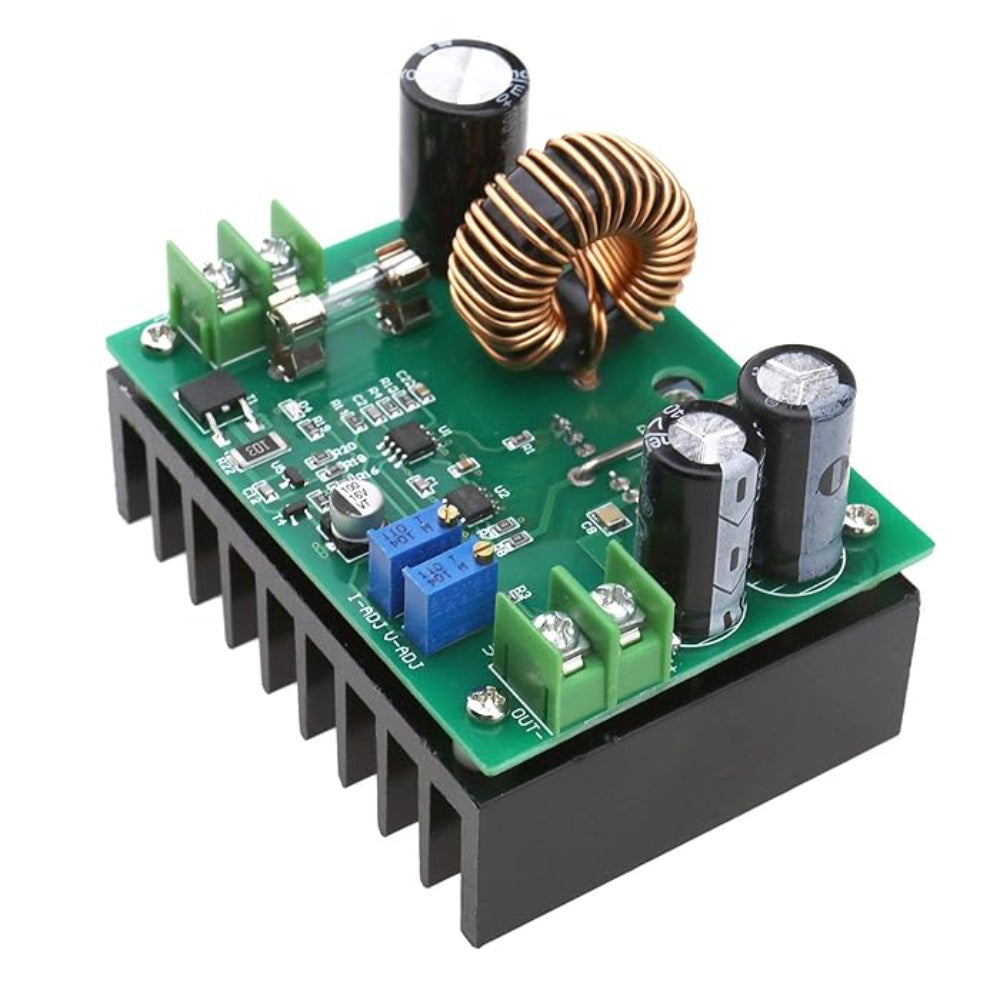

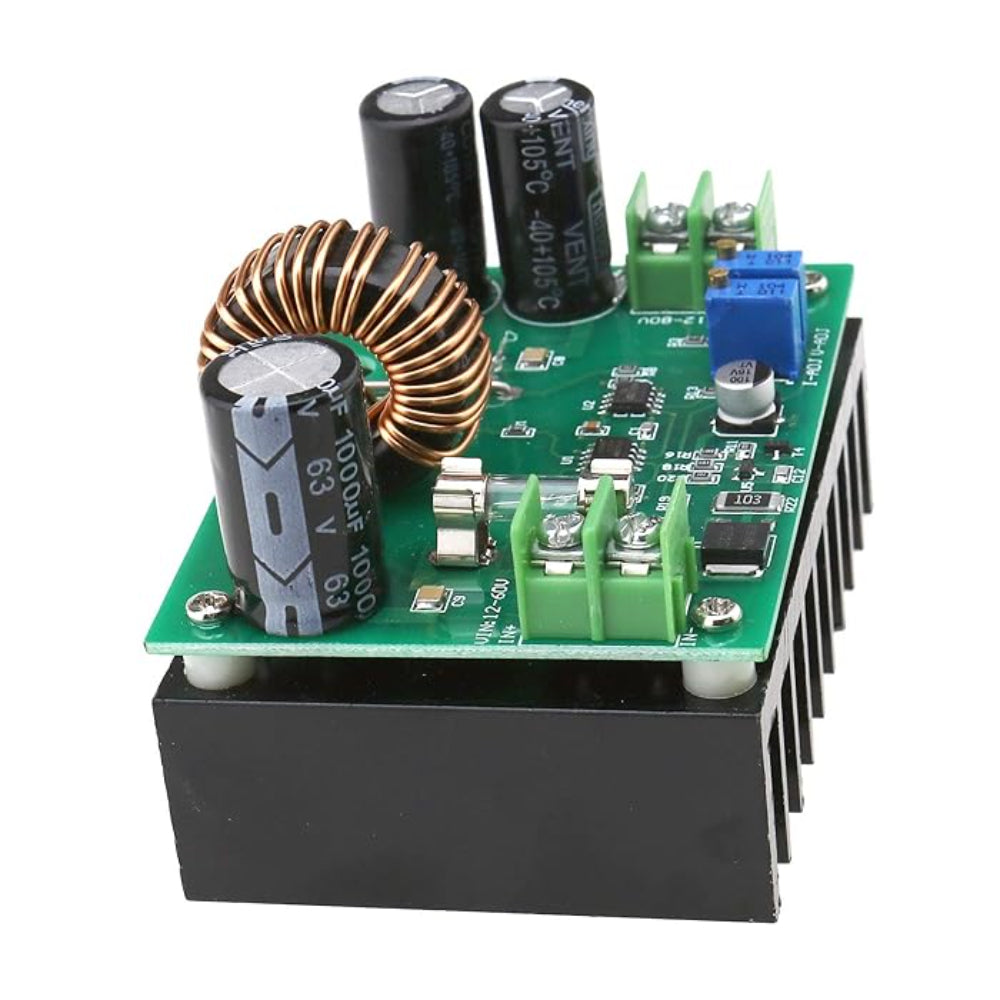

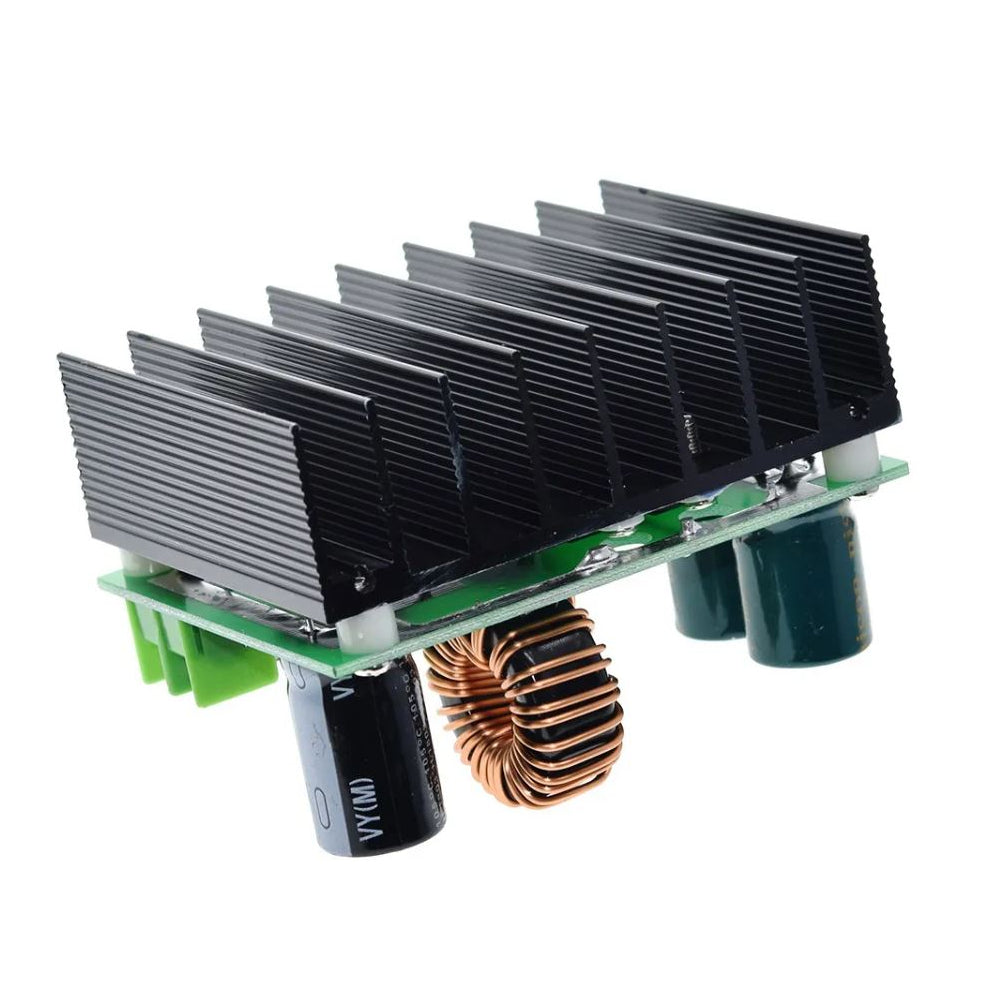

DC-DC 600W 10-60V to 12-80V Step-up Boost Converter Module is a robust, DC to DC, Step-up Boost Converter which includes a large heatsink on the bottom and use a a boost converter for large DC Voltage.

Note:

This point to note, our nominal 600W maximum power of the module under certain conditions, in the case of different input voltage, maximum output power by the input maximum current limit decline. For instance, at

The input voltage is 12V: maximum output power P = 12V * 10A = 120W

The input voltage is 24V: maximum output power P = 24V * 10A = 240W

The input voltage to 60 V: maximum output power P = 60V * 10A = 600W

How it Works:

First, the input voltage range options: the default setting is 12-60V input, when you use the 12V battery or three strings, four strings of lithium, can put on the map with a jumper jumpered choose 9-16V input.

Second, the output current adjustment method:

adjust CV potentiometer, according to your battery or LED, the output voltage is set to your desired voltage value. Such as 10 string LED voltage adjustment 37V, four strings of 55V and other adjustable battery.

counterclockwise CC potentiometer set around 30 laps, the output current is set to the minimum, connected to the LED, adjust the CC device to your desired current. For the battery charge, the battery discharge after power, and then received the output, adjust the CC to your current, (must be used to charge the battery when you want to put the battery to adjust the prospective, because the battery remaining in the more power More, the smaller the charge current.) Please do not use short-circuit way to adjust the current, boost the circuit structure of the module can not be short-circuited way.

Technical Details

  • Model Type: Current Module
  • Output Current: 10000mA (10A)
  • Output Power: 600W
  • Input Voltage: 12V to 60V
  • Maximum Input Current: 15A
  • Output Voltage: 12V to 80V (adjustable)
  • Short Circuit Protection: 20A Fuse (Input)
  • Overcurrent Protection: Yes
  • Operating Frequency: 150kHz
  • Minimum Voltage Difference: 2V
  • Conversion Efficiency: Up to 95%
  • Dimensions: 76mm x 60mm x 56mm (L x W x H)
  • Weight: 183g

Features

  • High-Power Output: 600W
  • Wide Input Voltage: 12V to 60V
  • Adjustable Output: 12V to 80V
  • Adjustable Output Current: Customize output based on needs
  • Ultra-Low Dropout Voltage: Ensures efficient power conversion

Applications :

  • High-Power LED Driving: Provides adjustable voltage and current for high-power LED applications.
  • Battery Charging: Can be used for charging high-voltage battery systems with adjustable voltage settings.
  • Solar Power Systems: Boosts voltage from solar panels to charge batteries or power equipment.
  • Electric Vehicles: Powers electric vehicles or electric bikes by converting and regulating voltage.
  • Industrial Power Supplies: Used in industrial systems requiring high power and adjustable output voltage.
  • Power Backup Systems: Ideal for providing stable power to backup systems with high power needs.
  • DIY Projects: Used in custom DIY power supply circuits that require adjustable and stable output voltage/current.

Physical Attributes

  • Dimensions: 76mm x 60mm x 56mm (L x W x H)
  • Weight: 183g

Package Includes

  • 1 x DC12-80V 600W High Power Adjustable Voltage Constant Current Boost DC-DC Converter Module Standard Quality
