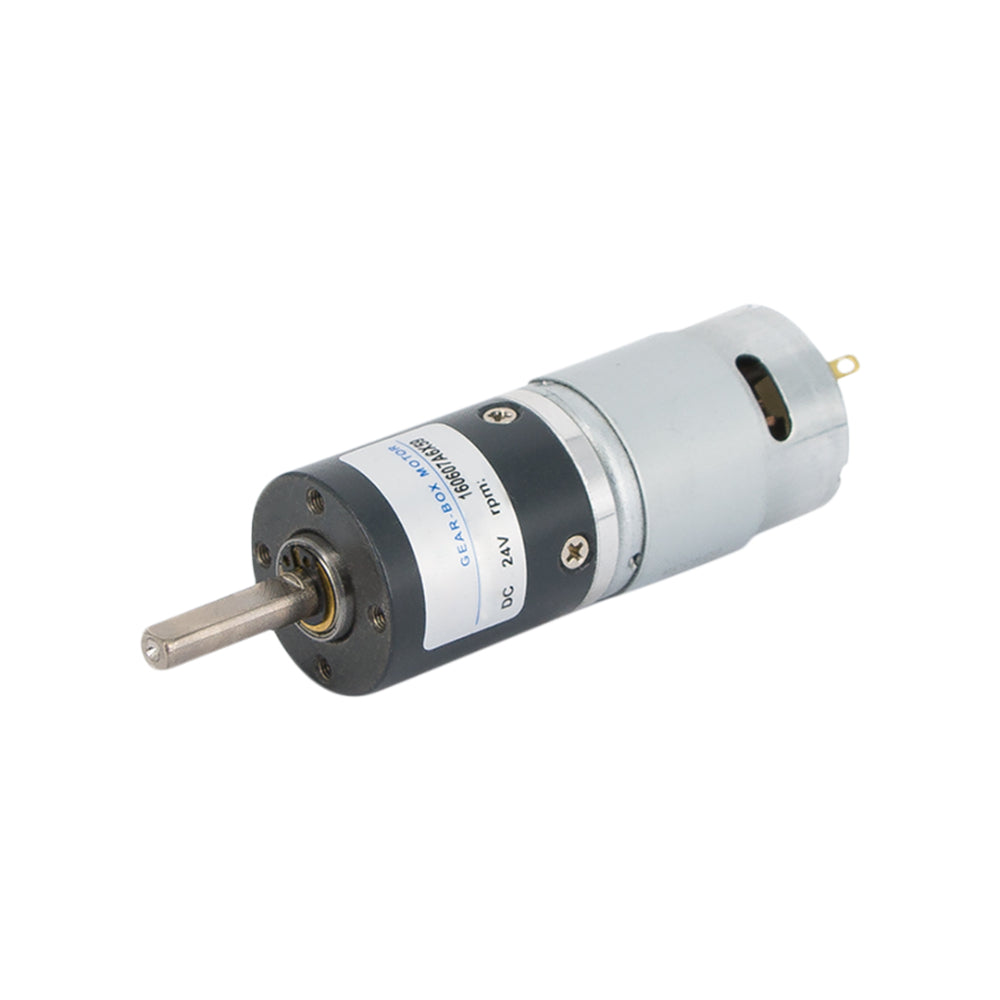

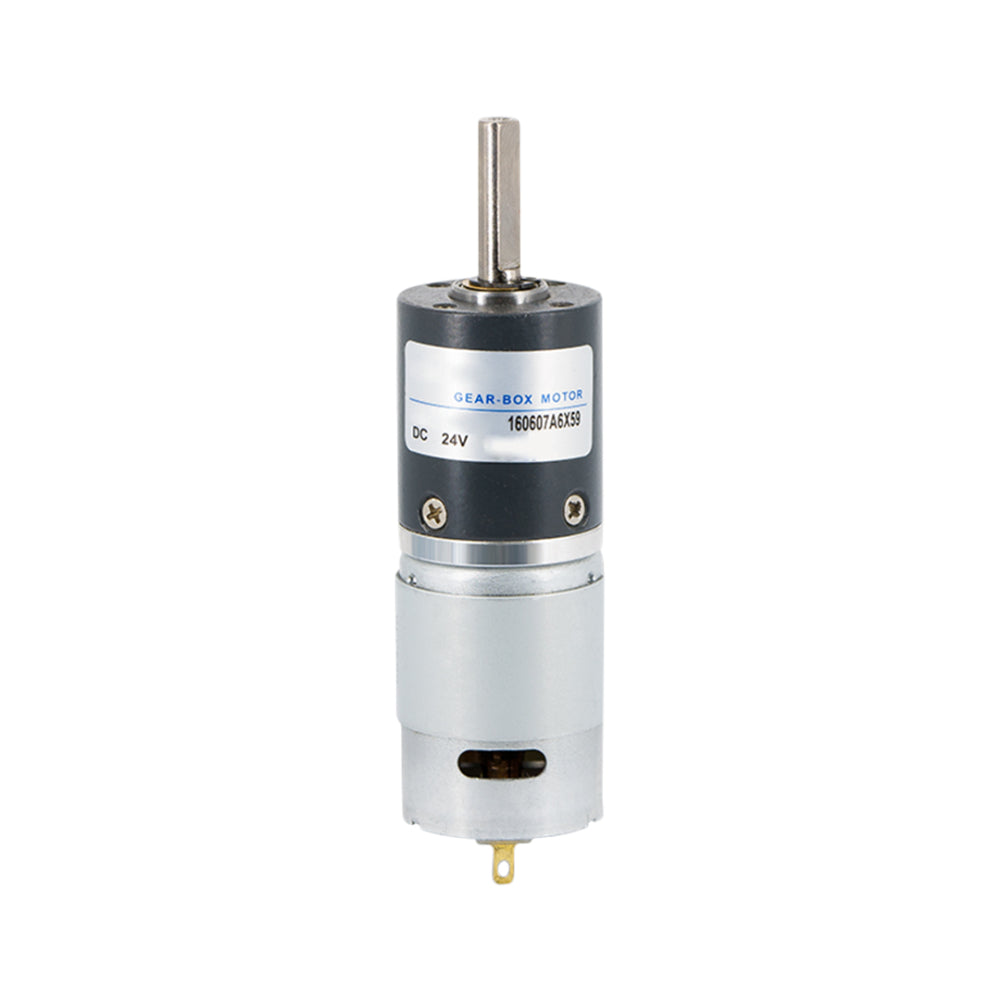

DC 24V 45RPM 28mm Diameter 28GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
DC 24V 45RPM 28mm Diameter 28GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The DC 24V 45RPM 28GX Planetary Geared Motor is designed for applications requiring low speed, high torque, and reliable performance in a compact form. This motor features a planetary gearbox with a high reduction ratio of i107, delivering a load speed of 37 RPM and a rated torque of 4 KGF.CM. Its full copper construction ensures durability and superior heat dissipation, making it ideal for continuous industrial use. The motor’s 28mm diameter and 41.6mm gearbox length make it well-suited for precision tasks requiring controlled speed and power.
Key Features:
Planetary Gearbox Design: The i107 gearbox offers high torque output and precise speed control, perfect for demanding applications.Compact Efficient: Despite its small 28mm diameter, this motor delivers powerful torque with a compact planetary gearbox.
Full Copper Windings: Ensures long-term durability and excellent heat management for extended motor life.
High Torque: Delivers 4 KGF.CM of rated torque, ideal for industrial tasks requiring reliable power and control.

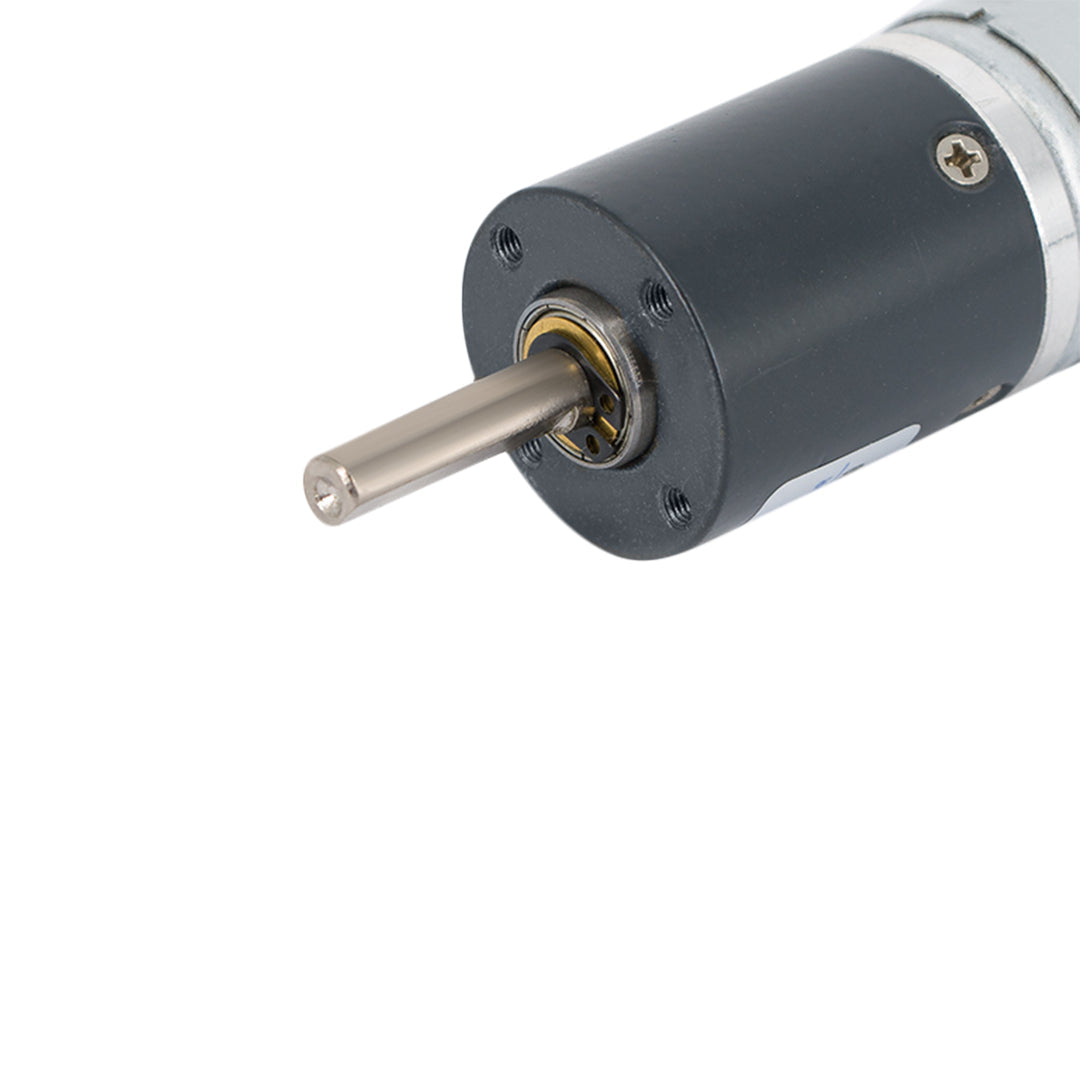

D-Type Center Shaft: The 6mm D-type shaft ensures secure attachment to mechanical systems, providing ease of integration.
Reliable 775 Motor: Equipped with a 775 motor known for its industrial-grade performance and consistency.
Mounting Flexibility: M3*4 mounting holes make installation straightforward for various mechanical configurations.
Applications:
Robotics Automation: Suitable for robotics and automated systems requiring low-speed, high-torque motors.Industrial Machinery: Perfect for industrial automation, conveyor systems, and other machinery that require controlled speed and reliable torque.
Medical Devices: Well-suited for medical equipment where precise control of movement is essential.
CNC Machining Tools: Ideal for precision machining tasks that require consistent, controlled torque output.
Specifications
- Operating Voltage: 24V DC
- No-Load Speed: 47 RPM
- Load Speed: 37 RPM
- Rated Torque: 4 KGF.CM
- Gearbox Ratio: i107
- Motor Diameter: 28mm
- Gearbox Length: 41.6mm
- Motor Length: 37.5mm
- Shaft Type: Center Shaft (D-Type), M3*4 Mounting
- Shaft Diameter: 6mm

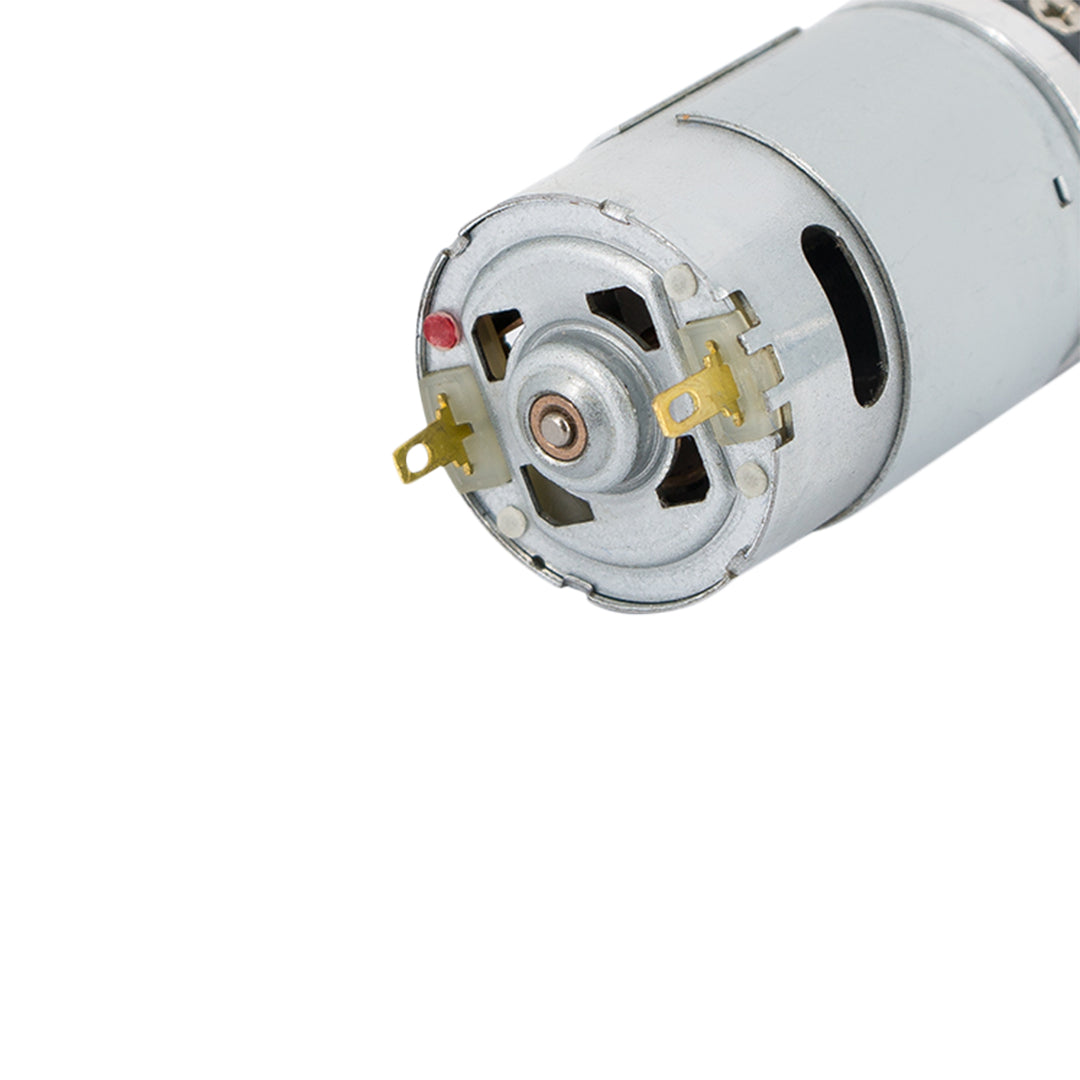

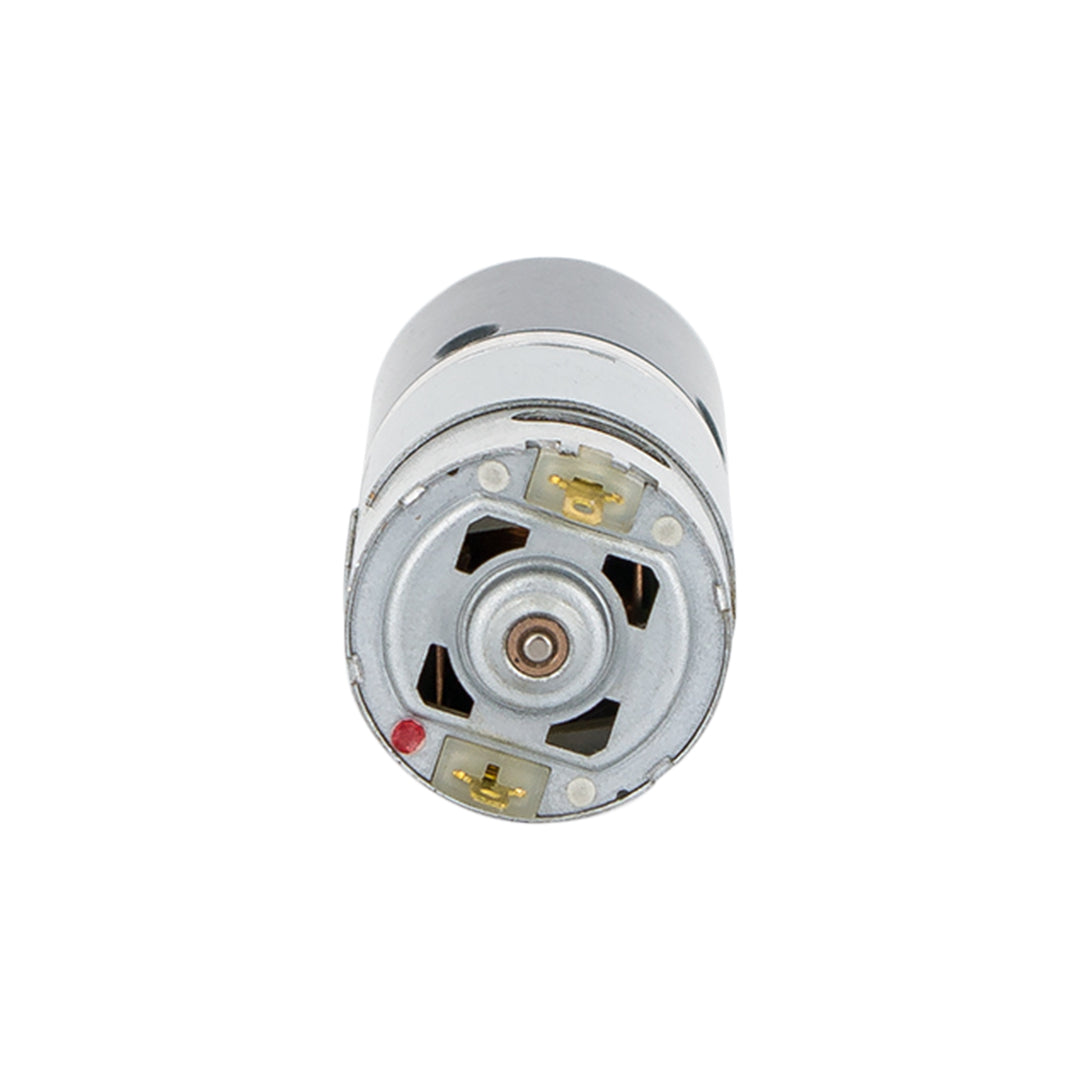

- Motor Type: 385 motor
Dimensional Drawing
Package Includes
- 1 x DC 24V 45RPM 28mm Diameter 28GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
