DC 24V 190RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
DC 24V 190RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

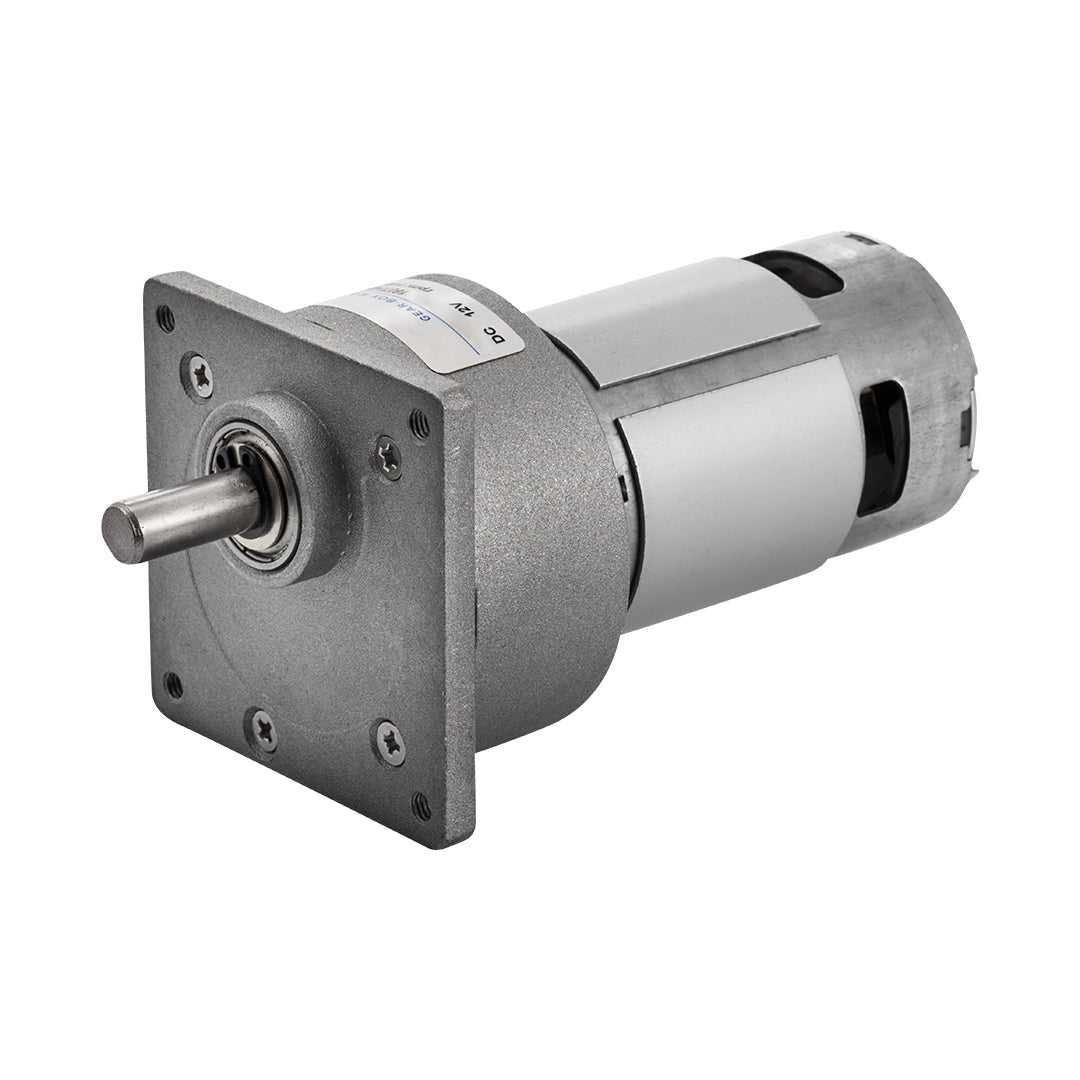

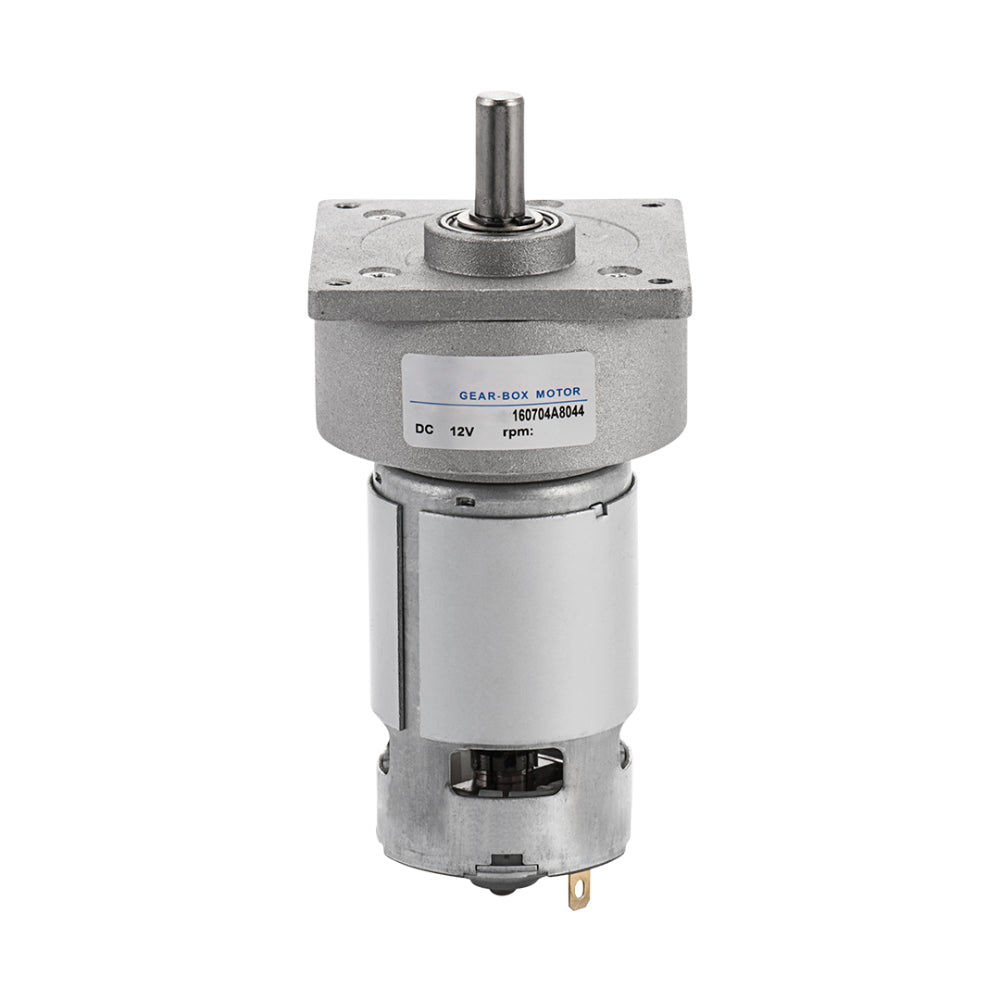

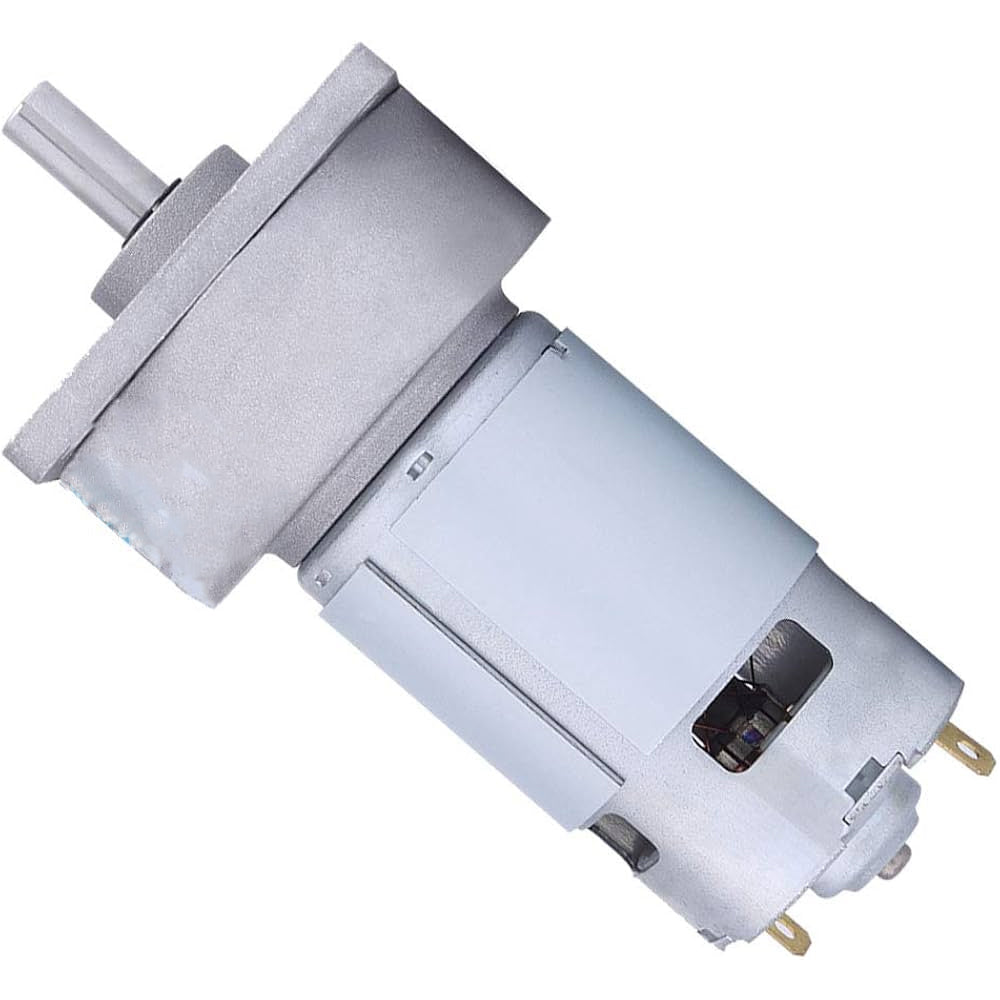

The DC 24V 190RPM GB60 Geared Motor is a high-performance, industrial-grade motor designed for heavy-duty applications. With a compact 60mm diameter and durable construction, the motor integrates full copper windings for efficient power transmission and long-lasting reliability. It delivers a no-load speed of 190 RPM and a load speed of 156 RPM, with a 7mm D-type side shaft, making it suitable for precision setups and confined spaces.
Key Features:
Industrial Grade Construction: Full copper windings for enhanced durability, improved heat resistance, and superior longevity.High Torque Performance: Capable of delivering 7.5 KGF.CM of torque, ideal for applications requiring precision and power.
Precision Gearbox: Ensures precise speed control and high torque output even under load conditions with a 23.6 gear ratio.
Compact Design: The motor’s 60mm diameter and 34mm gearbox length make it compact and efficient for its size.
Side Shaft D-Type: The 7mm D-type side shaft allows for easy mechanical integration with stable connections.
Applications:
Industrial Automation Machinery: Ideal for automated production lines and heavy-duty industrial tasks.Robotics Precision Tools: Used in robotic systems requiring controlled movements and precise operations.
Conveyor Belts Packaging Systems: Suited for systems demanding consistent speed and torque.
Medical Devices: Applicable in medical equipment where precision control is essential.
Technical Details
- Operating Voltage: 24V DC
- No-Load Speed: 190 RPM
- Load Speed: 156 RPM
- Rated Torque: 7.5 KGF.CM
- Gearbox Ratio: i23.6
- Motor Diameter: 60mm
- Gearbox Length: 34mm
- Shaft Type: Side Shaft (D-Type)
- Shaft Diameter: 7mm
- Motor Type: 380 motor
Dimensional Drawing
Package Includes
- 1 x DC 24V 190RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
