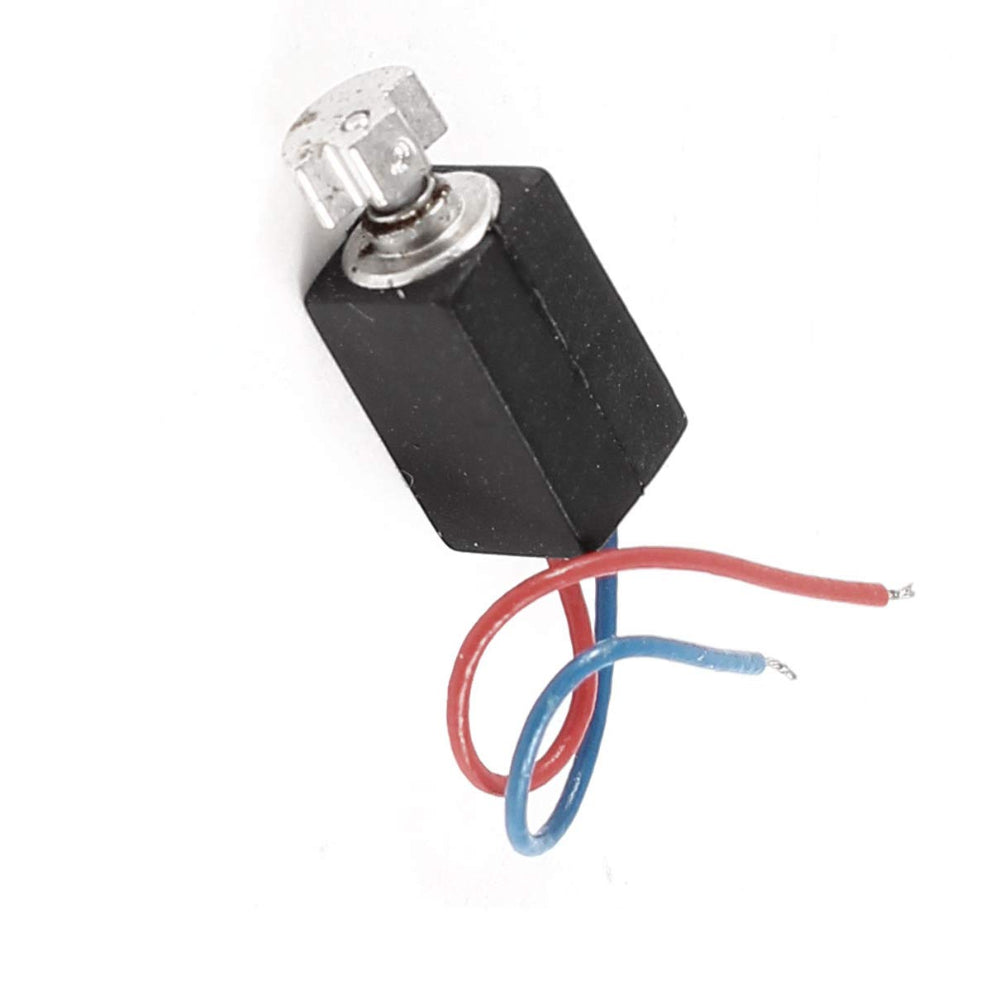

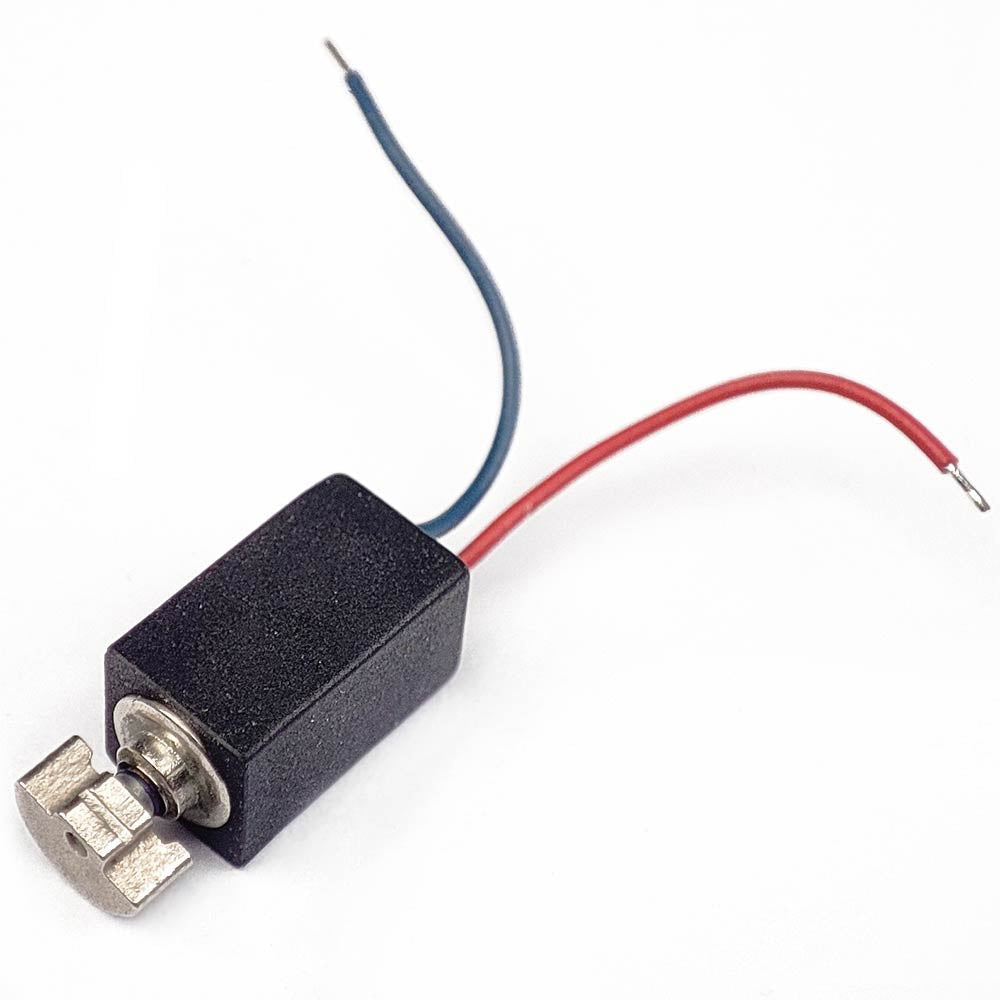

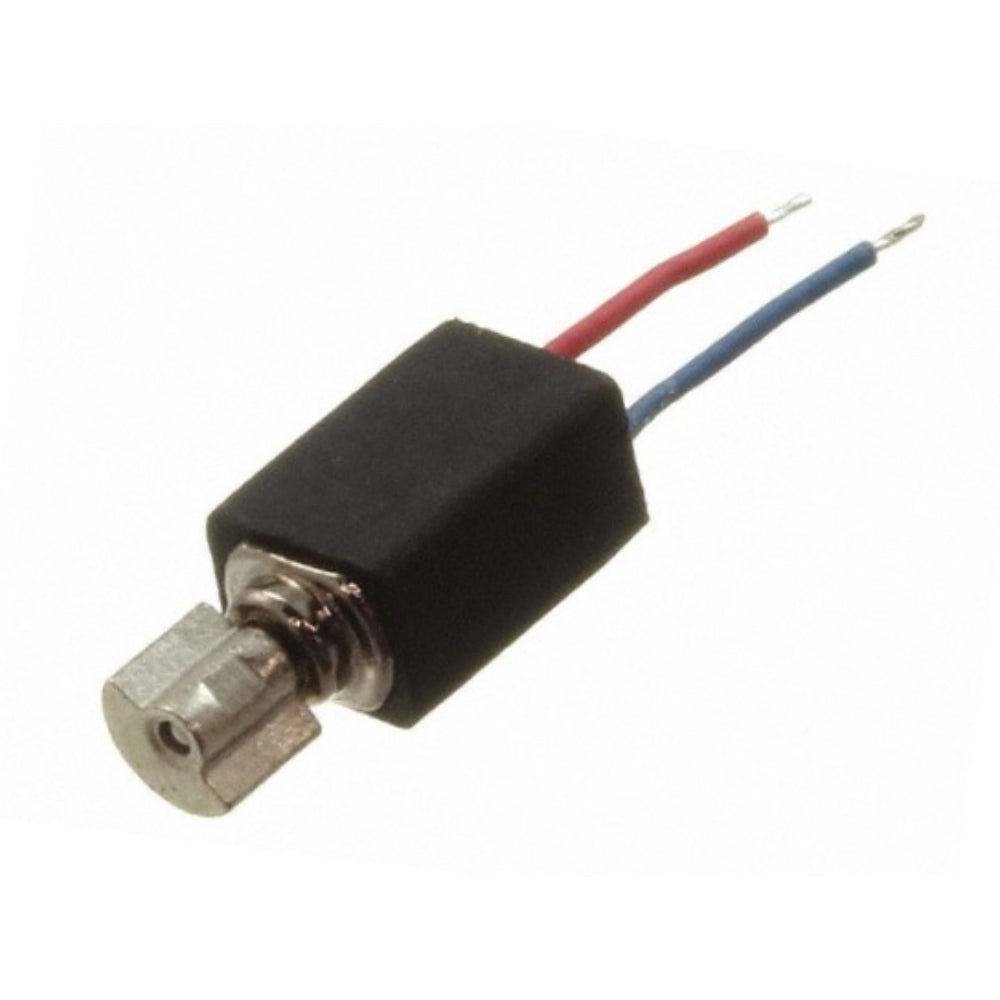

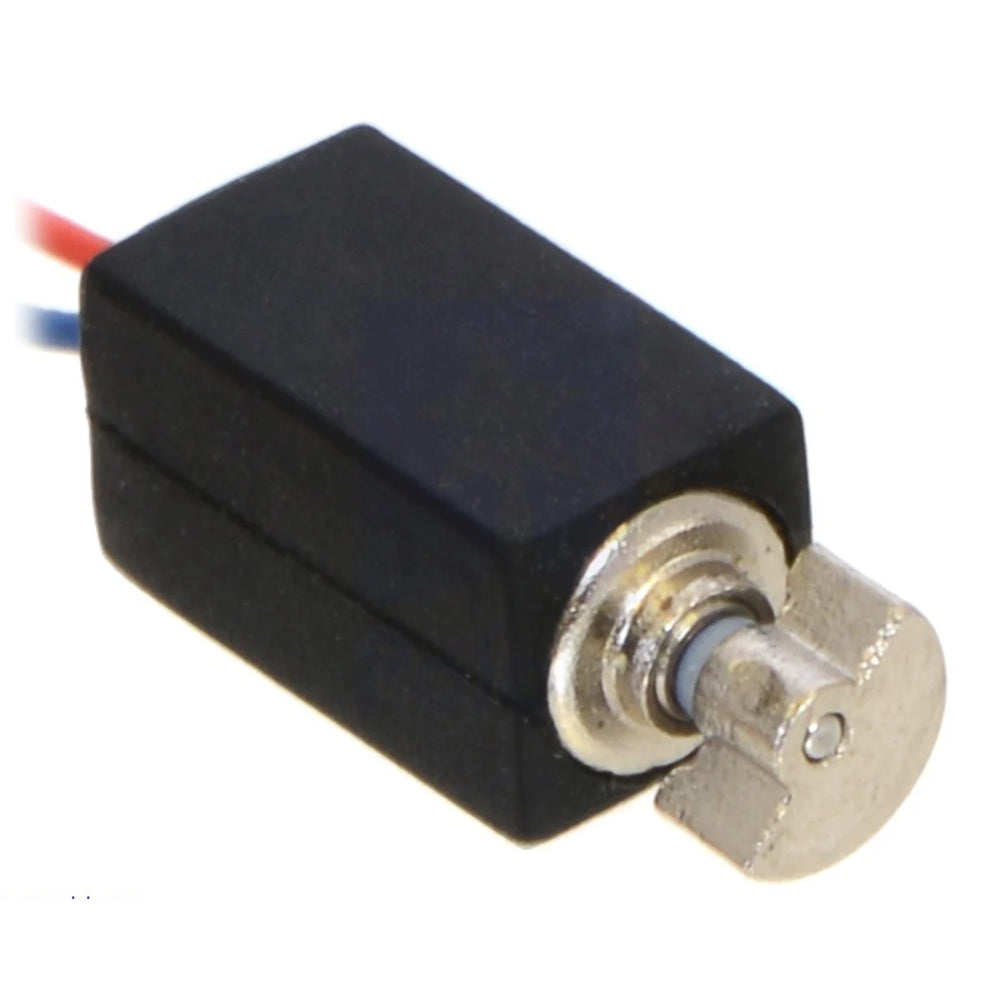

DC 3V-3.7V Coreless 0408 Hollow Cup Vibration Motor

The 0408 3V Hollow Cup Vibration Motor is a compact, lightweight motor designed for applications requiring subtle vibrations. With a 3V operating voltage, it offers low power consumption, making it ideal for handheld devices, wearables, and tactile feedback systems. The motor's hollow cup design ensures smooth and consistent vibrations while maintaining quiet operation. Its small size (4mm diameter and 8mm length) allows easy integration into tight spaces. Durable and efficient, this motor is perfect for miniaturized electronics. Commonly used in mobile phones, health monitors, and electronic toys.

Technical Details

  • Nominal Voltage: 3.0V DC
  • Operating Voltage Range: 2.5-4.0V DC
  • Rotation Direction: CW/CCW
  • Operating Environment: -20 °C to + 60 °C
  • Storage Environment: -30 °C to + 70 °C
  • Rated Speed: 11000 ± 3000 RPM
  • Min Rated Current: 90mA max
  • Stall Current: 120mA max
  • Starting Voltage: 2.4V DC
  • Max Insulation Resistance: 10MΩ
  • Min Termination Impedance: 30Ω ± 15% (single phase), 60Ω ± 15% (duplex)
  • Motor Size: 4mm x 8mm

Features

  • Nominal Voltage: 3.0V DC for reliable performance.
  • Operating Voltage Range: 2.5V to 4.0V DC for versatile use.
  • Bidirectional rotation: CW and CCW directions.
  • Wide temperature tolerance: Operates in -20°C to +60°C range.
  • Storage Temperature: -30°C to +70°C for safe storage.
  • High-Speed Performance: Rated speed of 11000 ± 3000 RPM.
  • Low Startup Voltage: Starts at 2.4V DC for quick activation.
  • Compact Design: Small size of 4mm x 8mm, ideal for tight spaces.
  • Max Insulation Resistance: 10MΩ for high durability and safety.
  • Impedance: 30Ω ± 15% (single phase), 60Ω ± 15% (duplex).

Applications :

  • Mobile Devices: Used in smartphones, tablets, and wearables for haptic feedback.
  • Health and Wellness Devices: Ideal for vibration in massage equipment and fitness trackers.
  • Toys and Gadgets: Incorporated in toys, mini robots, and novelty gadgets for added functionality.
  • Medical Equipment: Suitable for compact medical instruments requiring vibration alerts.
  • Gaming Accessories: Provides tactile feedback in gaming controllers and VR accessories.

Drawing

DC 3V-3.7V Coreless 0408 Hollow Cup Vibration Motor

Physical Attributes

  • Motor Size: 4mm x 8mm
  • Weight: 2 g

Package Includes

  • 1 x DC 3V-3.7V Coreless 0408 Hollow Cup Vibration Motor
