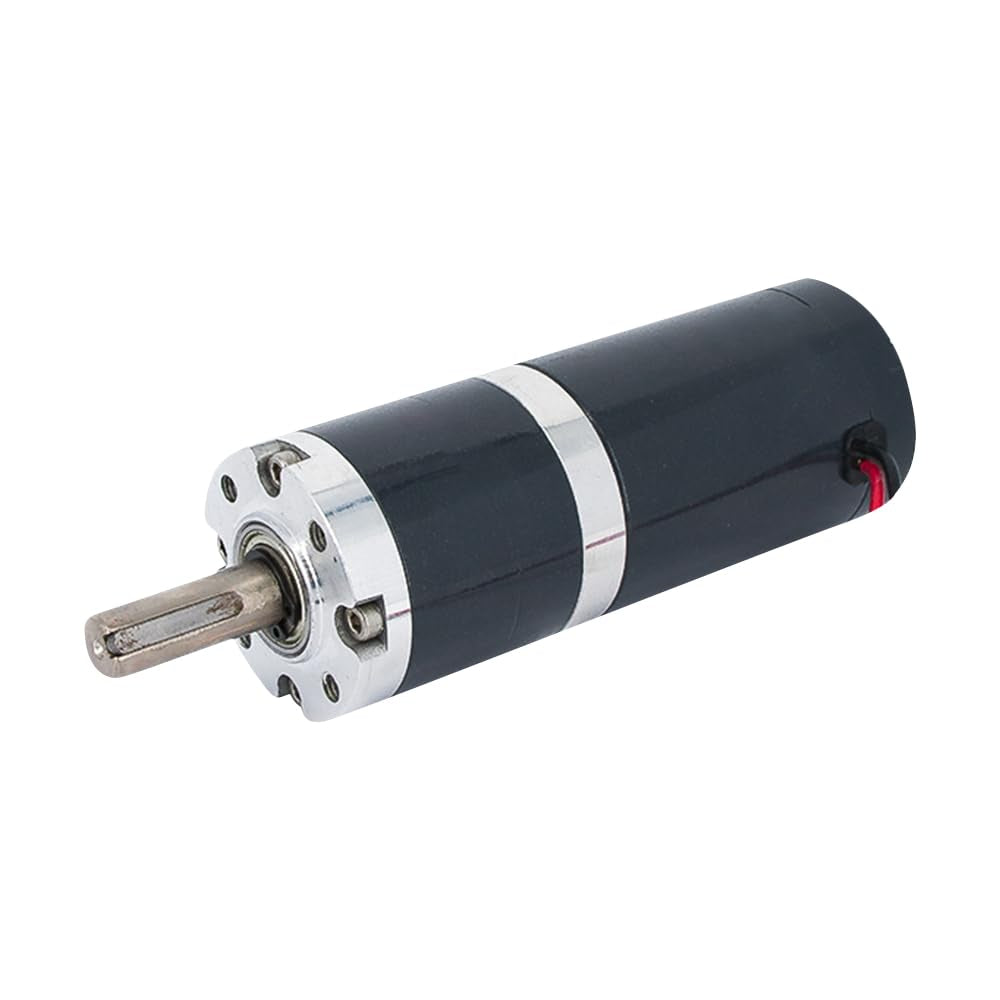

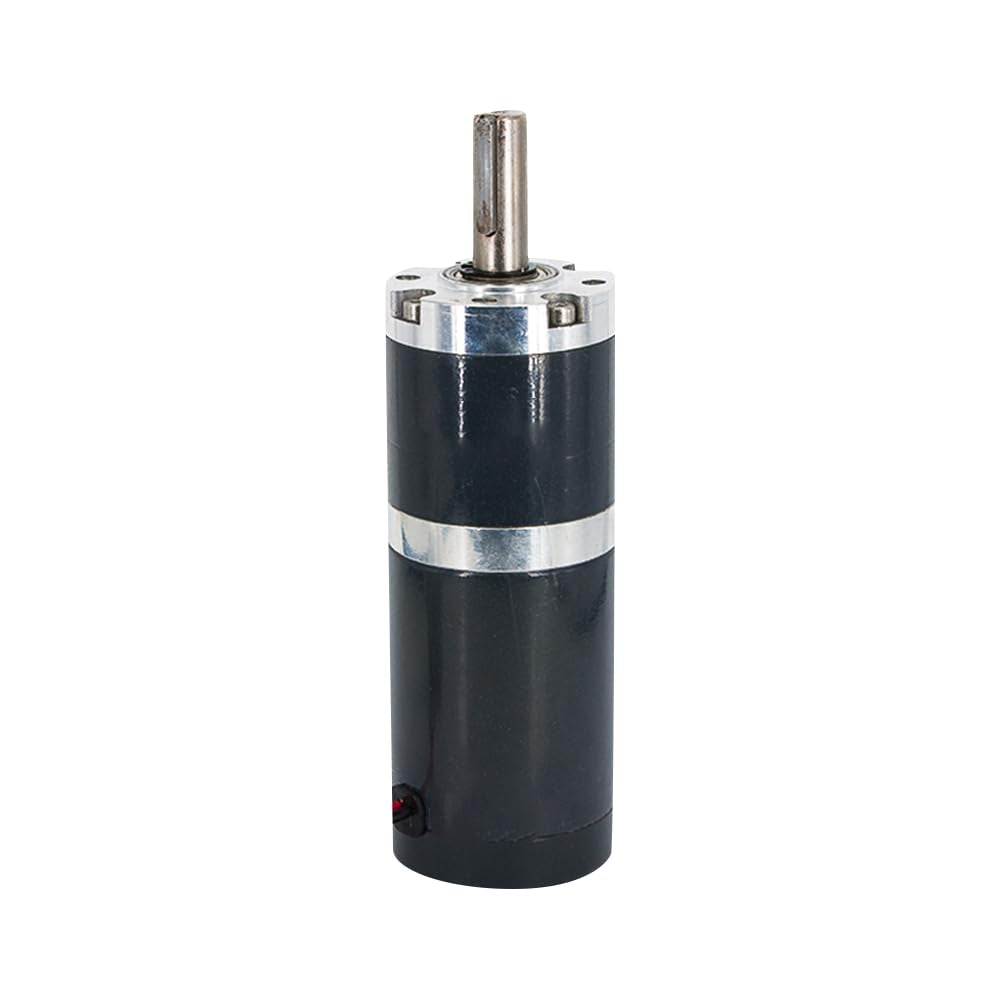

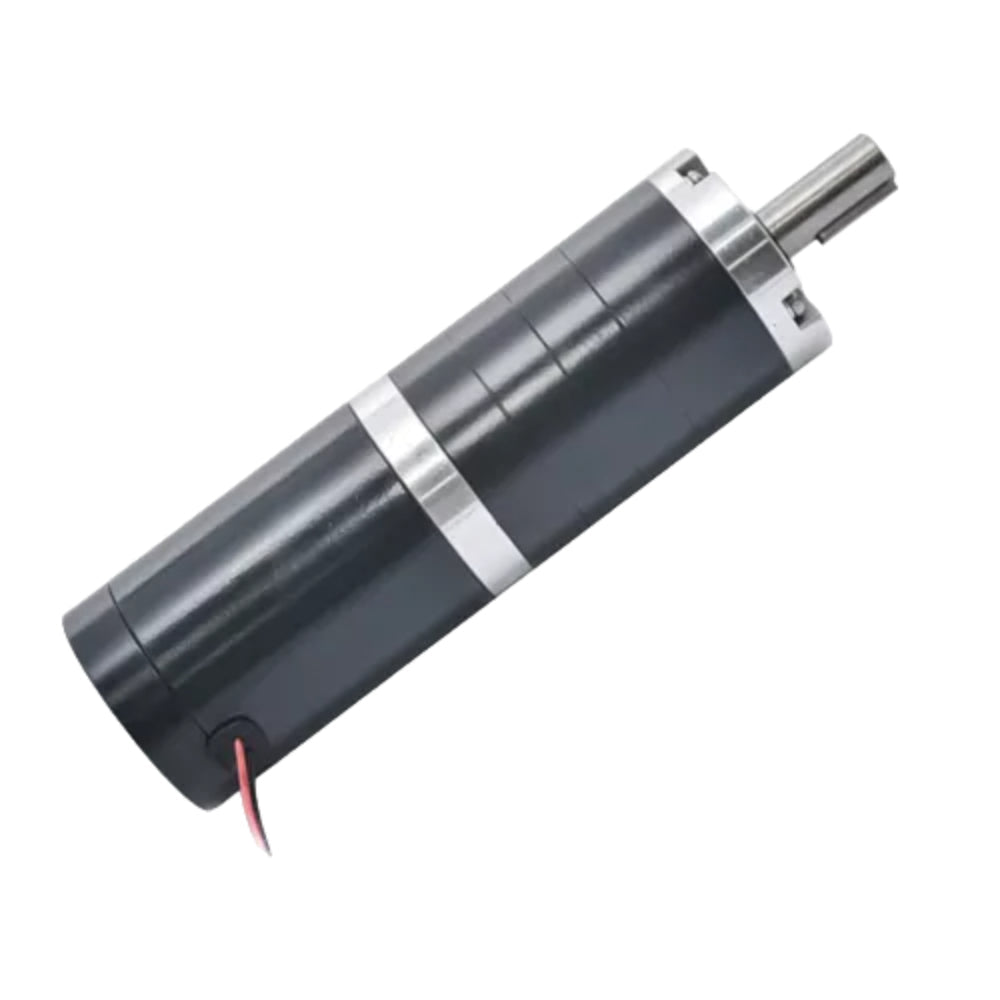

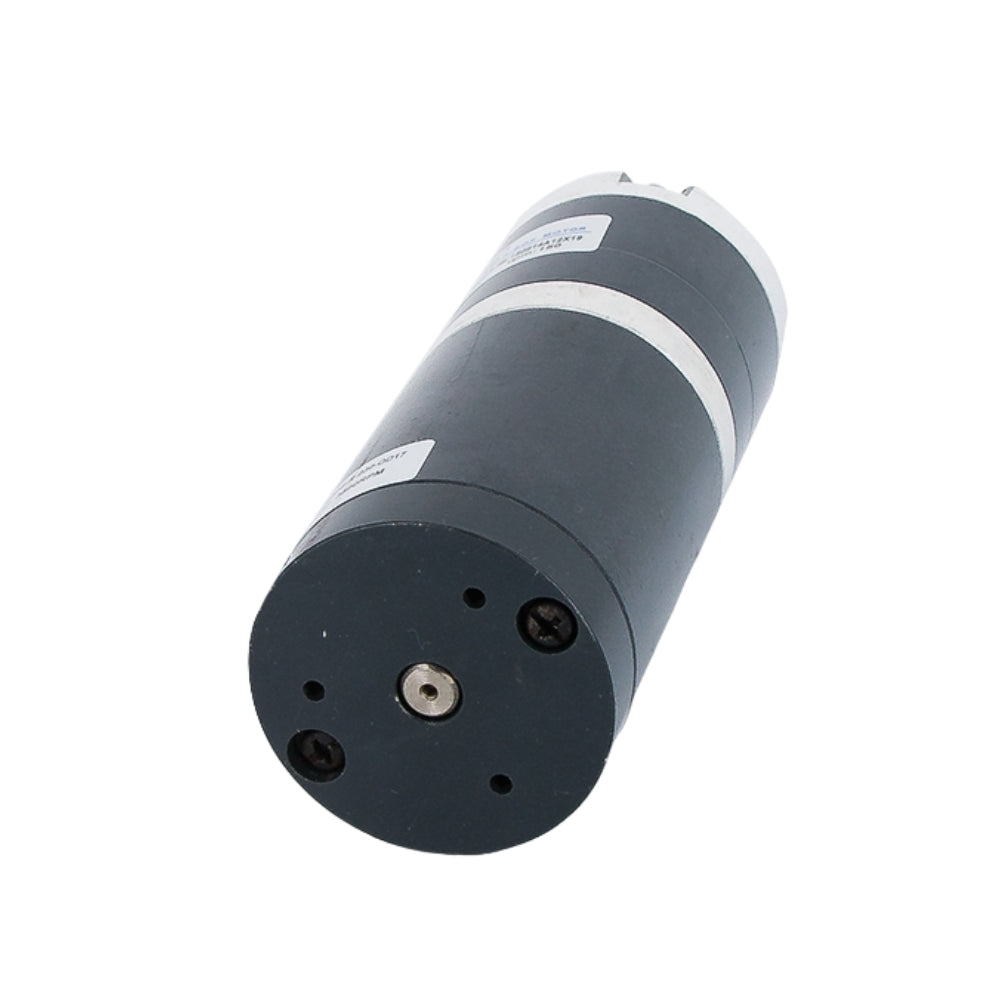

DC 24V 6RPM 50mm Diameter 50GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
DC 24V 6RPM 50mm Diameter 50GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The DC 24V 6RPM 50GX Planetary Geared Motor is engineered for applications requiring low-speed, high-torque performance. This motor is ideal for heavy-duty tasks where precise control of motion is necessary.
Key Features:
Low-Speed Operation: With a no-load speed of 6 RPM and a load speed of 5.5 RPM, this motor is perfect for applications needing slow and controlled movement.High Torque Output: Rated at 50 KGF.CM can handle significant loads, making it suitable for demanding tasks.
Impressive Gearbox Ratio: The gearbox ratio of 497:1 enhances torque capabilities while maintaining low speeds, ideal for applications such as lifts or heavy machinery.
Robust Design: Constructed with full copper windings, ensuring durability and efficient operation.
Compact Dimensions: The motor diameter of 50mm and a gearbox length of 75.2mm allows for easy integration into various systems without occupying much space.
Secure Mounting: Features M6*4 mounting with a center shaft design for stable installation and operation.
Sturdy Shaft Connection: The 12mm diameter shaft ensures reliable connection and strength during operation.
Applications:
Heavy Machinery: Ideal for cranes, hoists, or other equipment requiring high torque and low-speed operation.Conveyor Systems: Suitable for heavy-duty conveyors needing controlled speeds for transporting large items.
Robotic Arms: Excellent for robotics where precise and slow movement is crucial.
Industrial Equipment: Perfect for applications involving heavy loads that require reliable performance at low speeds.
Specifications
- Operating Voltage: 24V DC
- No-Load Speed: 6 RPM
- Load Speed: 5.5 RPM
- Rated Torque: 50 KGF.CM
- Gearbox Ratio: 497:1
- Motor Diameter: 50mm
- Gearbox Length: 75.2mm
- Motor Length: 82mm
- Shaft Type: Center Shaft
- Mounting: M6*4
- Shaft Diameter: 12mm
- Motor Type: 50S motor
Dimensional Drawing
Package Includes
- 1 x DC 24V 6RPM 50mm Diameter 50GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
