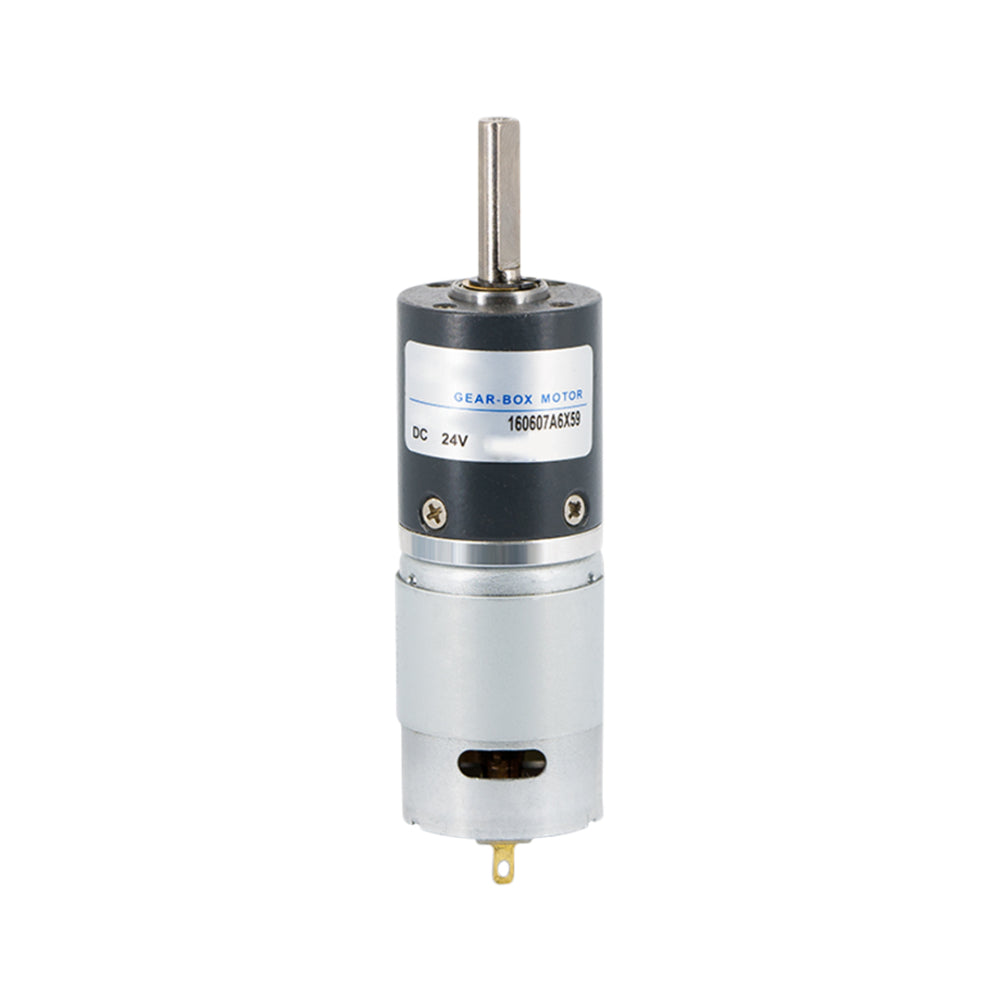

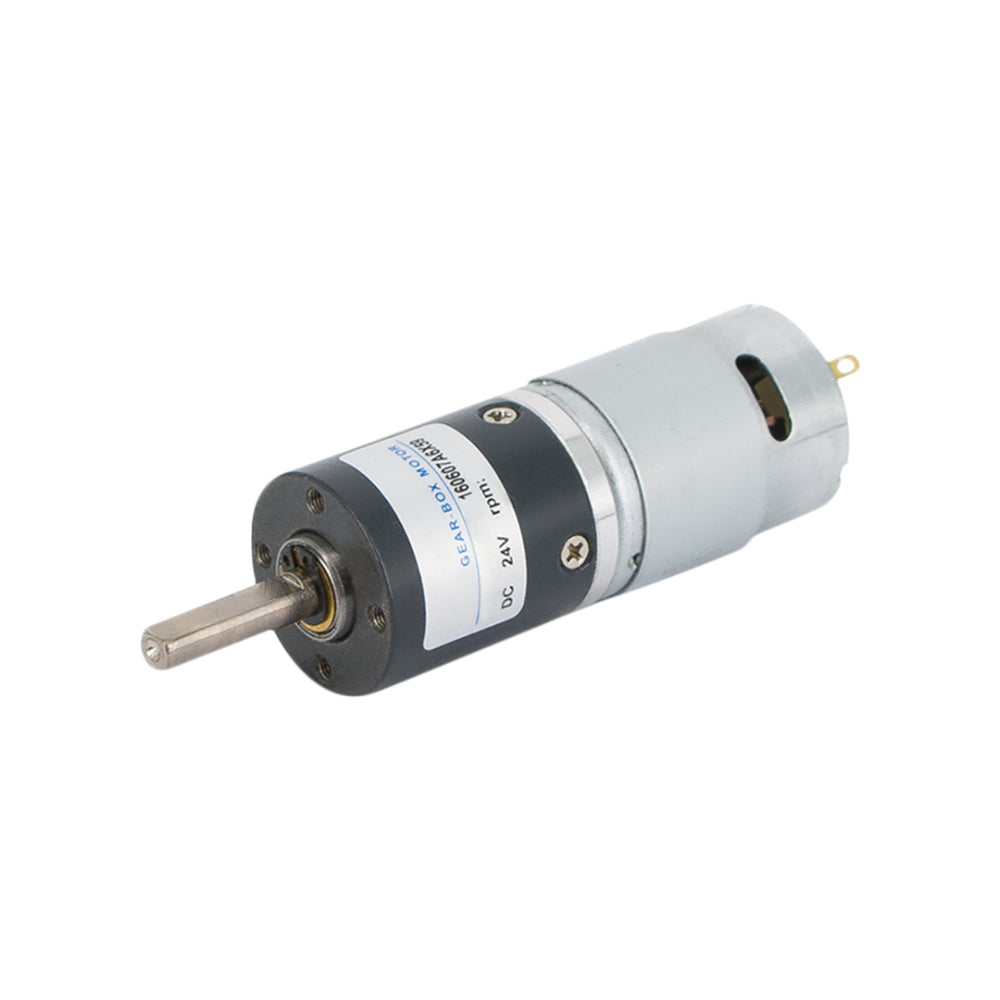

DC 24V 440RPM 28mm Diameter 28GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
DC 24V 440RPM 28mm Diameter 28GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The DC 24V 440RPM 28GX Planetary Geared Motor is designed for applications requiring high speed and efficient performance in a compact form factor. With a no-load speed of 440 RPM and a load speed of 380 RPM, this motor excels in tasks that demand rapid movement. The gearbox features a reduction ratio of i22.6, which allows for efficient power transmission and speed control. Constructed with full copper windings, this motor ensures durability and heat management, making it suitable for industrial-grade applications.
Key Features:
High-Speed Operation: Delivers a no-load speed of 440 RPM, ideal for applications needing quick responses.Efficient Gearbox Design: The i22.6 gearbox ratio balances speed and torque, facilitating smooth and controlled operation.
Compact Size: With a diameter of 28mm and a gearbox length of 34.6mm, it fits easily into tight spaces.
Full Copper Construction: Provides enhanced durability and heat dissipation for long-term reliability.
Low Torque Output: Rated torque of 0.10 KGF.CM, is suited for applications where speed is prioritized over high torque.

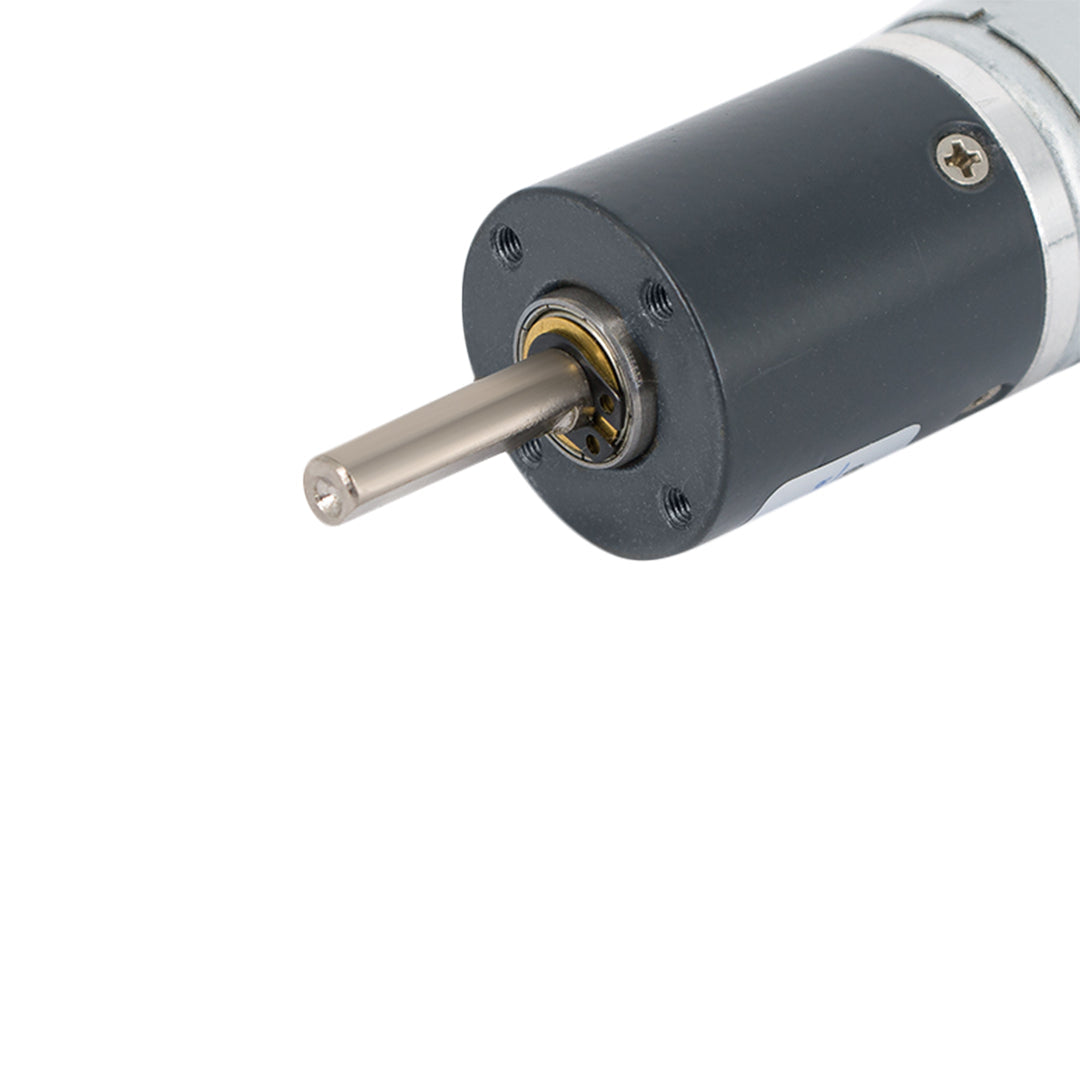

D-Type Center Shaft: The 6mm D-type shaft ensures a secure connection in various mechanical assemblies.

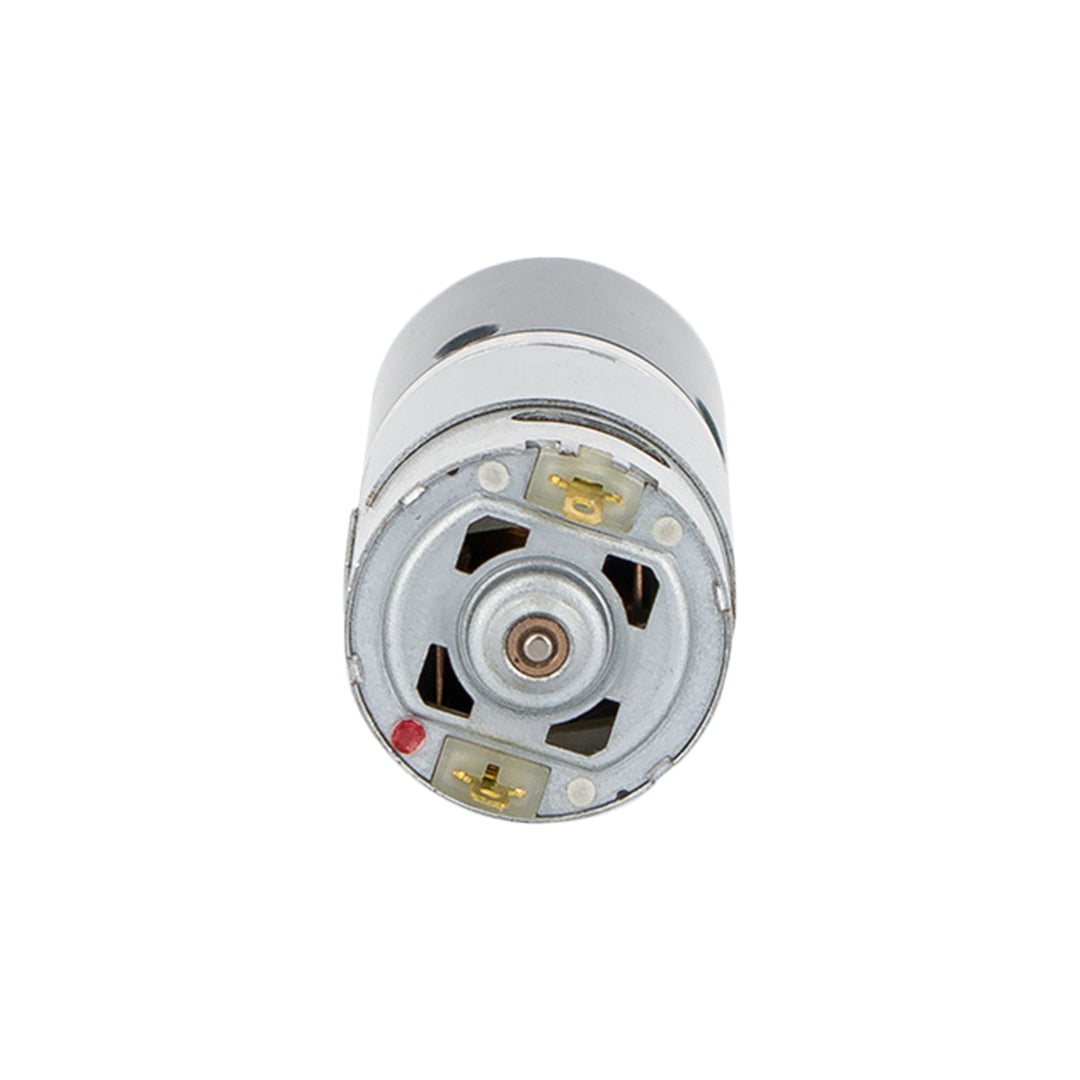

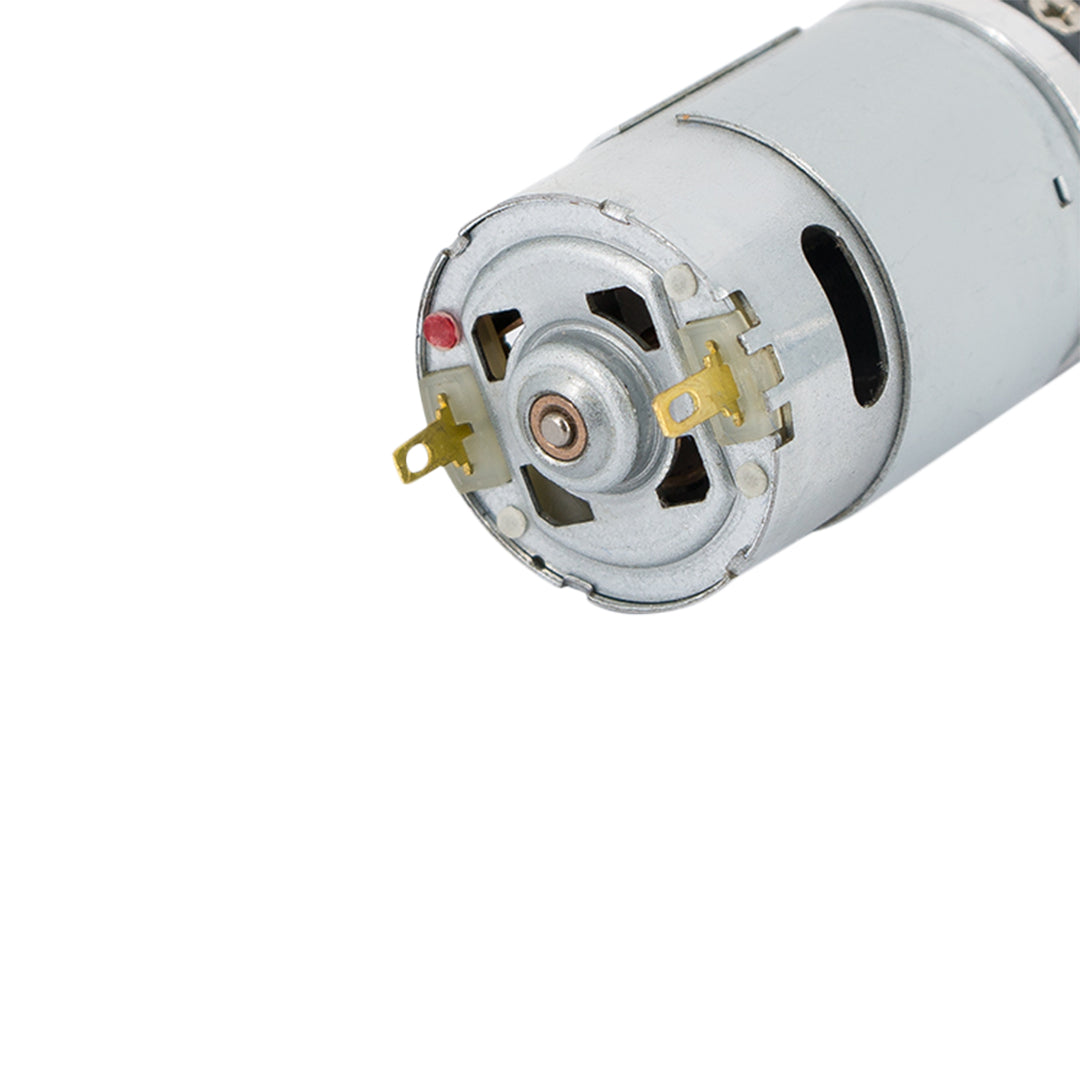

Reliable 385 Motor: Features a robust 385 motor known for its efficiency in industrial settings.
Mounting Flexibility: Includes M3*4 mounting holes for easy installation in diverse configurations.
Applications:
Robotics: Perfect for high-speed robotic applications where quick movement is essential.Conveyor Systems: Ideal for fast-paced conveyor belts and sorting systems.
Specifications
- Operating Voltage: 24V DC
- No-Load Speed: 440 RPM
- Load Speed: 380 RPM
- Rated Torque: 0.10 KGF.CM
- Gearbox Ratio: i22.6
- Motor Diameter: 28mm
- Gearbox Length: 34.6mm
- Motor Length: 37.5mm
- Shaft Type: Center Shaft (D-Type), M3*4 Mounting
- Shaft Diameter: 6mm
- Motor Type: 385 motor
Dimensional Drawing
Package Includes
- 1 x DC 24V 440RPM 28mm Diameter 28GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
