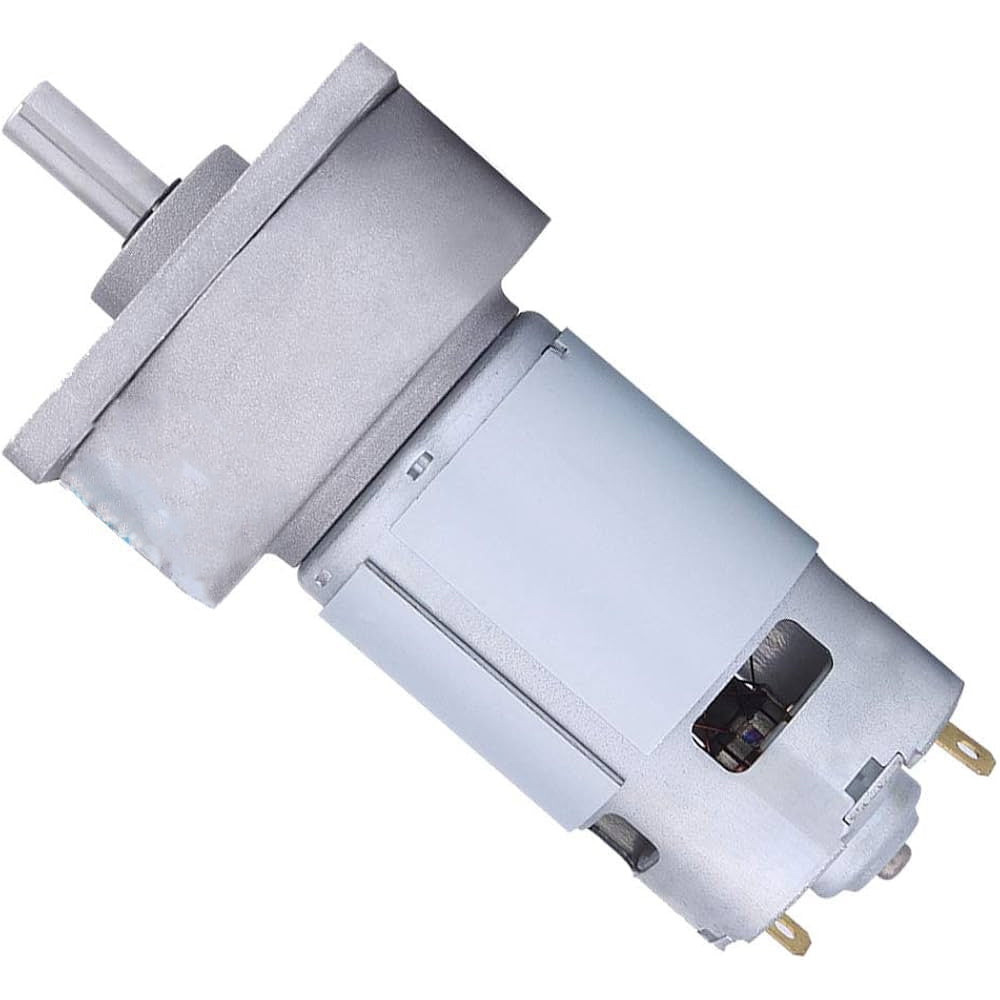

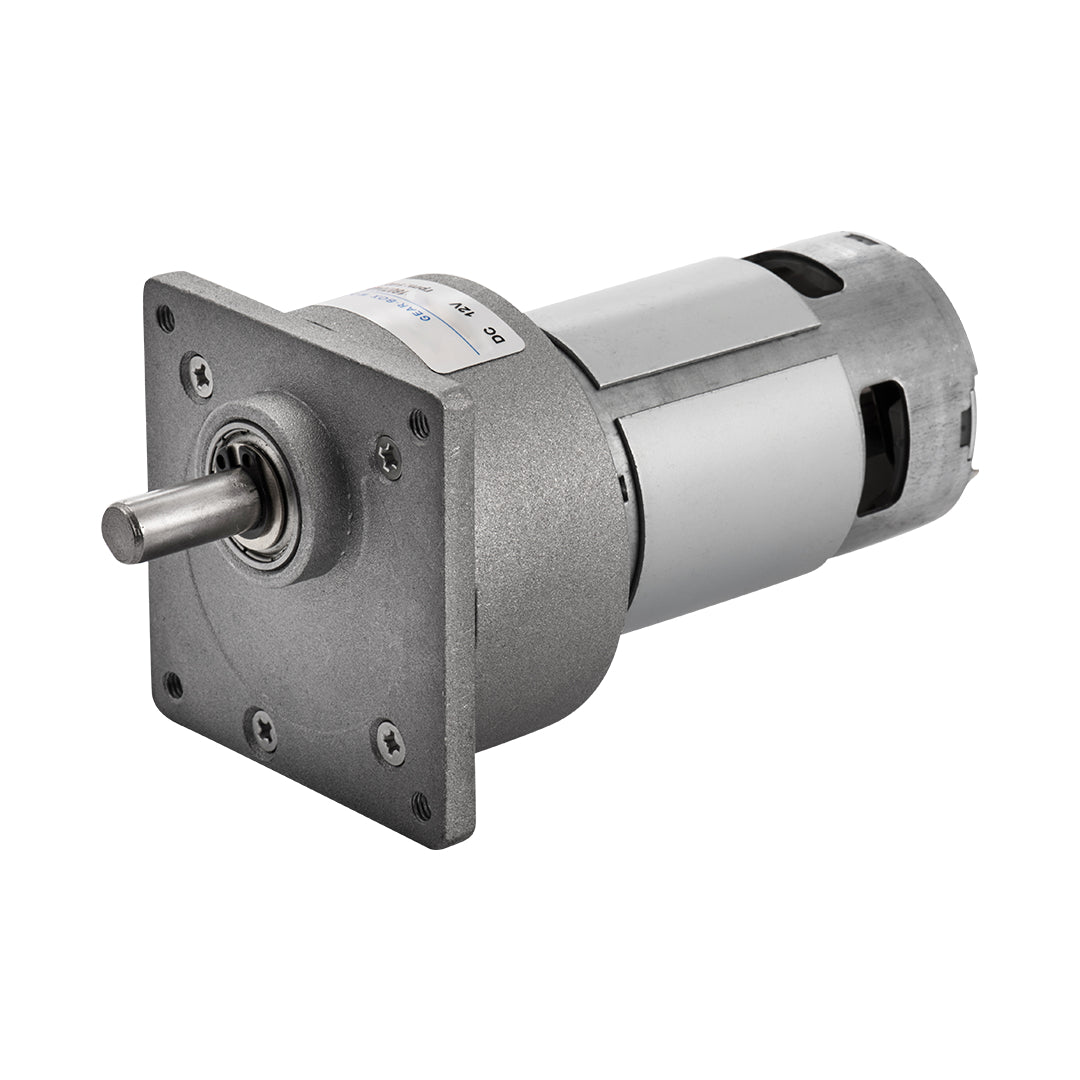

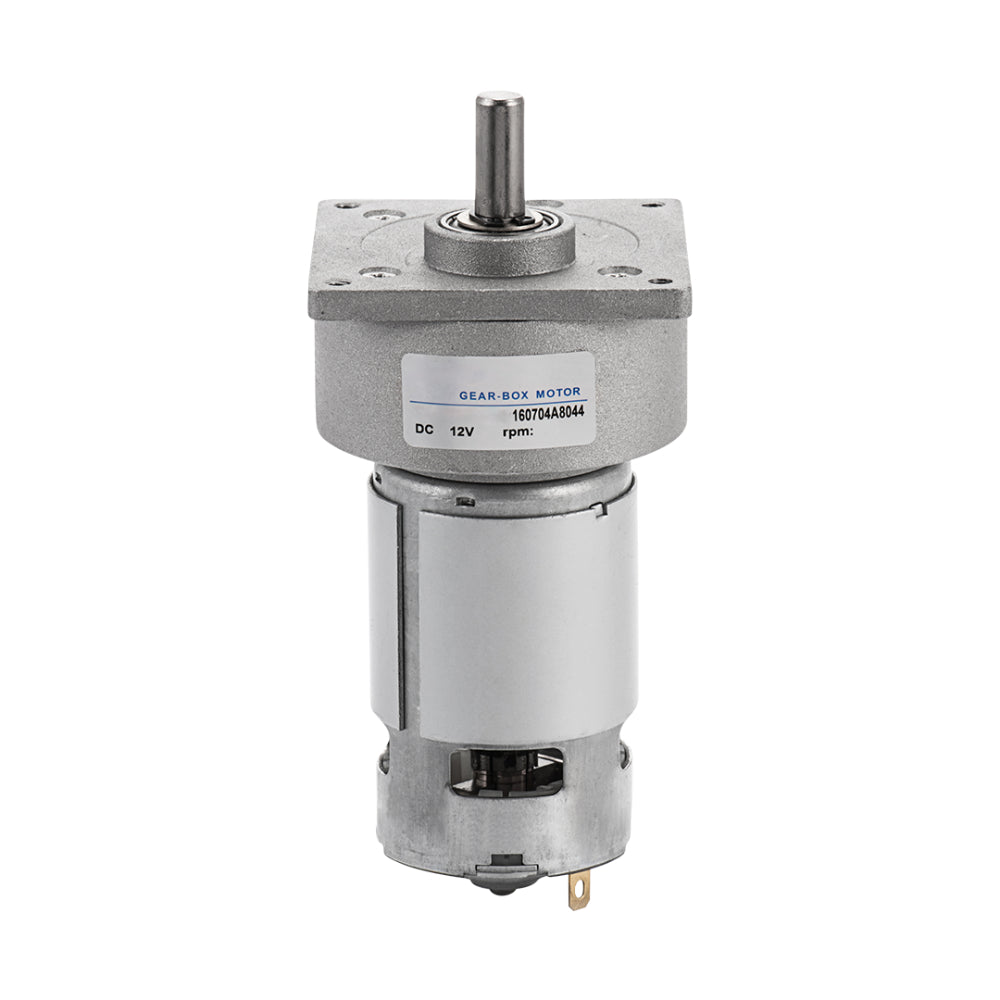

DC 24V 38RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor

DC 24V 38RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor

First Come First Serve Offer (T&C Apply )

2,743.02
3,499.00 2,743.02
Sale Sold out
Shipping calculated at checkout.

The DC 24V 38RPM GB60 Geared Motor is a robust, industrial-grade motor designed to deliver high torque and reliability for demanding applications. With a no-load speed of 38 RPM and a load speed of 34 RPM, it combines slow rotation with high torque output, making it ideal for tasks requiring precision and force. The full copper windings ensure excellent heat dissipation and efficiency, while the D-type side shaft allows for secure attachment in various mechanical systems. This motor is equipped with a 91.9:1 gearbox ratio, providing significant torque multiplication.

Key Features:

High Torque Performance: Delivers 15 KGF.CM of rated torque, making it ideal for high-force applications.

Durable Construction: Full copper windings enhance durability, efficiency, and heat resistance for long-lasting performance.

Precision Gearbox: The 91.9:1 gearbox ratio ensures precise control of speed and torque, particularly in low-speed, high-torque scenarios.

Compact and Sturdy Design: With a motor diameter of 66mm and a gearbox length of 36.5mm, it provides a powerful yet compact solution.

D-Type Side Shaft: The 7mm diameter D-type side shaft allows for stable and secure mechanical connections.

Reliable 775 Motor: Known for its reliability and industrial-grade performance, the 775 motor ensures long-term operation in demanding environments.

Applications:

Industrial Automation: Ideal for automating heavy machinery and production systems requiring slow, powerful movements.

Robotics Precision Tools: Suitable for applications requiring high torque with controlled low-speed movement, such as robotic arms or heavy-duty precision tools.

Conveyor Systems: Perfect for driving conveyor belts where low-speed, high-torque output is essential.

Medical Equipment: Used in devices requiring consistent, controlled motion.

Specifications

  • Operating Voltage: 24V DC
  • No-Load Speed: 38 RPM
  • Load Speed: 34 RPM
  • Rated Torque: 15 KGF.CM
  • Gearbox Ratio: i91.9
  • Motor Diameter: 66mm
  • Gearbox Length: 36.5mm
  • Shaft Type: Side Shaft (D-Type)
  • Shaft Diameter: 7mm
  • Motor Type: 775 motor

Dimensional Drawing

Package Includes

  • 1 x DC 24V 38RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
