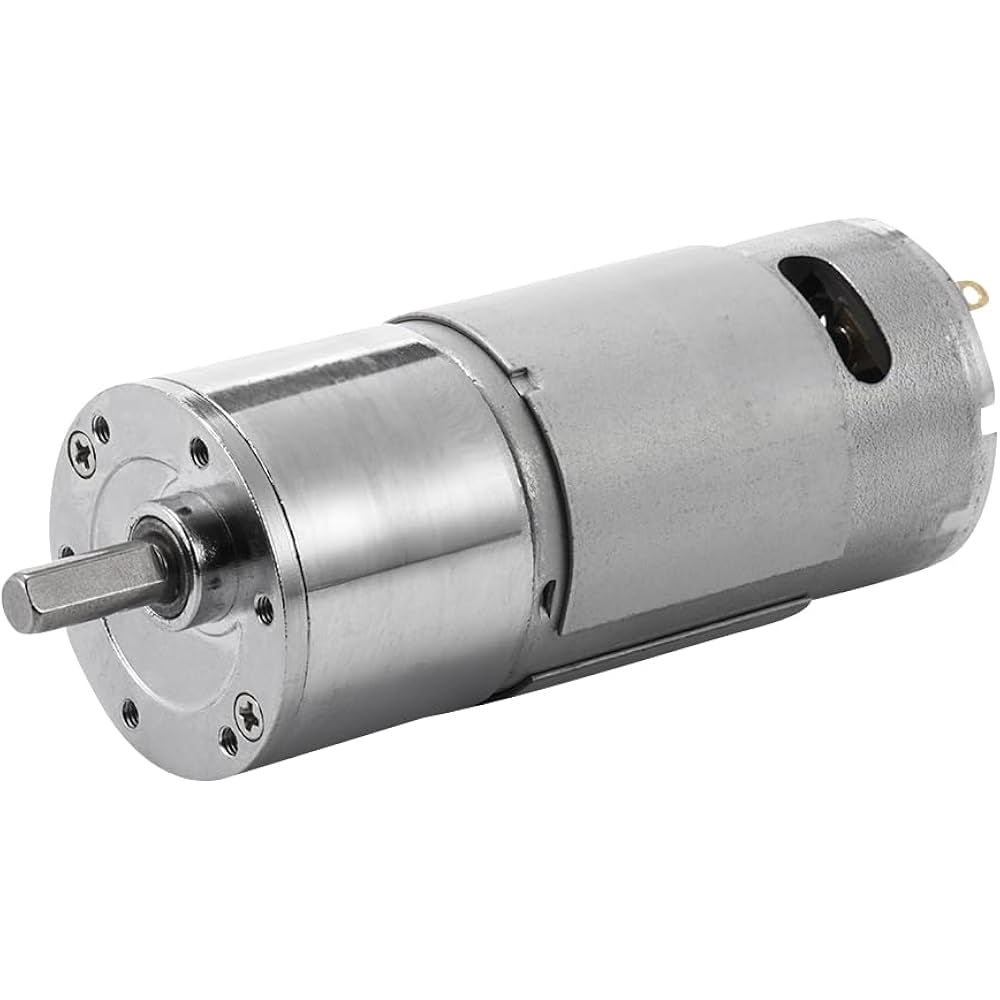

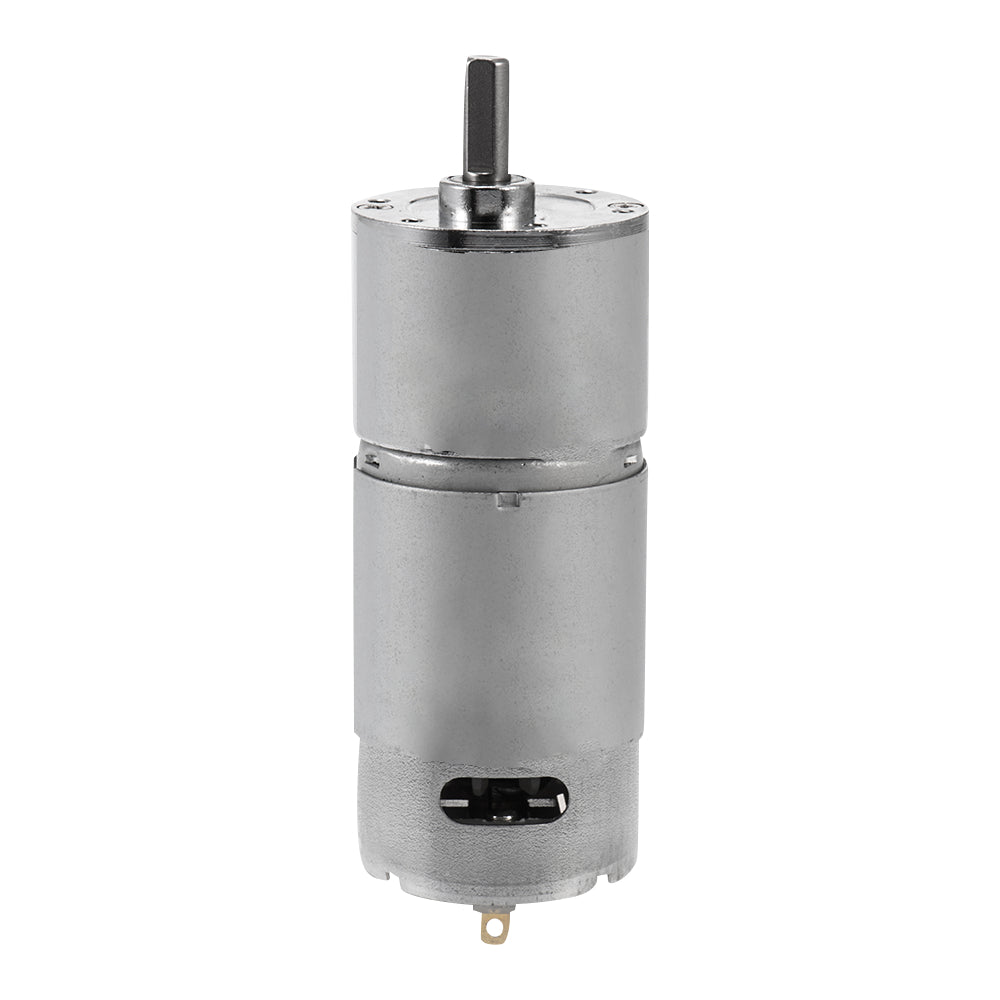

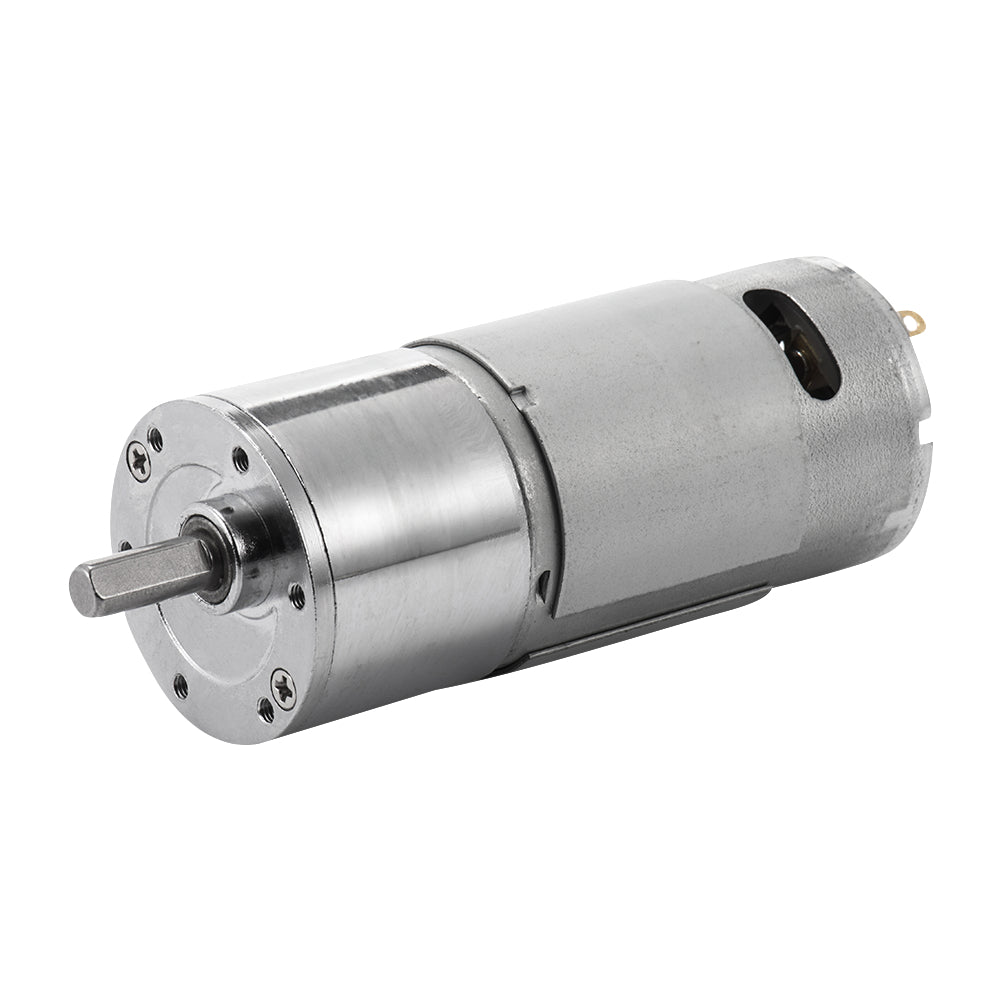

DC 24V 200RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 24V 200RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

930.02
1,299.00 930.02
Sale Sold out
Shipping calculated at checkout.
The DC 24V 200RPM 37mm GB37 Eccentric Shaft Geared Motor is a high-performance, industrial-grade motor engineered for reliability and efficiency. Constructed entirely of copper, this motor ensures durability and effective heat dissipation. With a gearbox ratio of 31:1, it delivers a solid torque output of 3 kg. cm, making it suitable for a variety of applications that require a blend of speed and torque. The 6mm D-type eccentric side shaft design provides secure coupling for precise operation.

Key Features:

Full Copper Construction: Ensures long-lasting durability and optimal heat management, ideal for continuous use in industrial settings.

Balanced Torque and Speed: Provides a balance of speed (200 RPM) and torque (3 Kgf. cm), making it versatile for different applications.

31:1 Gearbox Ratio: This ratio enhances torque output while maintaining reasonable speed, perfect for applications requiring both.

Eccentric Shaft Design: The 6mm D-type shaft allows for secure and precise coupling, minimizing slippage and enhancing operational stability.

Compact Dimensions: With a diameter of 37mm, this motor is designed to fit in tight spaces while delivering powerful performance.

Applications:

Automated Machinery: Ideal for use in conveyor systems, packaging machines, and production lines requiring reliable speed and torque.Suitable for robotic applications where moderate speed and accurate positioning are essential.

Actuation Systems: Effective in various actuation systems, including gates, doors, and other mechanical devices.

Precision Control Equipment: Works well in precision equipment that demands consistent speed and torque control, such as CNC machinery.

Material Handling: Excellent for applications in material handling where controlled motion and reliable torque are necessary.


Technical Details

  • Operating Voltage: 24V DC
  • No-Load Speed: 200 RPM
  • Load Speed: 174 RPM
  • Rated Torque: 3 kg.cm (Kilogram-force centimeter)
  • Gearbox Ratio: 31:1
  • Gearbox Length: 28mm
  • Motor Diameter: 37mm
  • Shaft Type: 6mm D-Type (Eccentric side shaft for secure attachment)
  • Rotation Direction: CW (Clockwise)
  • Current Rating: Approx. 1.2A under load

Dimensional Drawing

DC 12V 200RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

Package Includes

  • 1 x DC 24V 200RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor
