DC 24V 160RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
DC 24V 160RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability

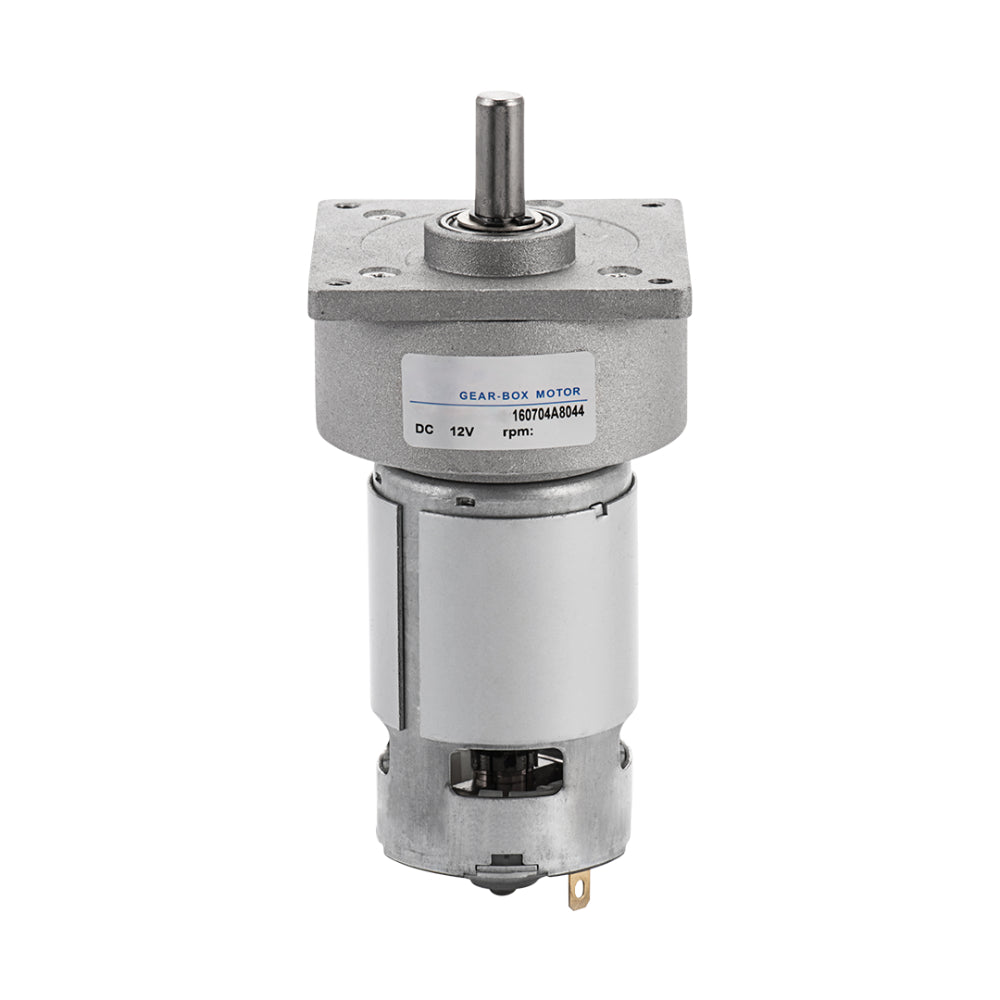

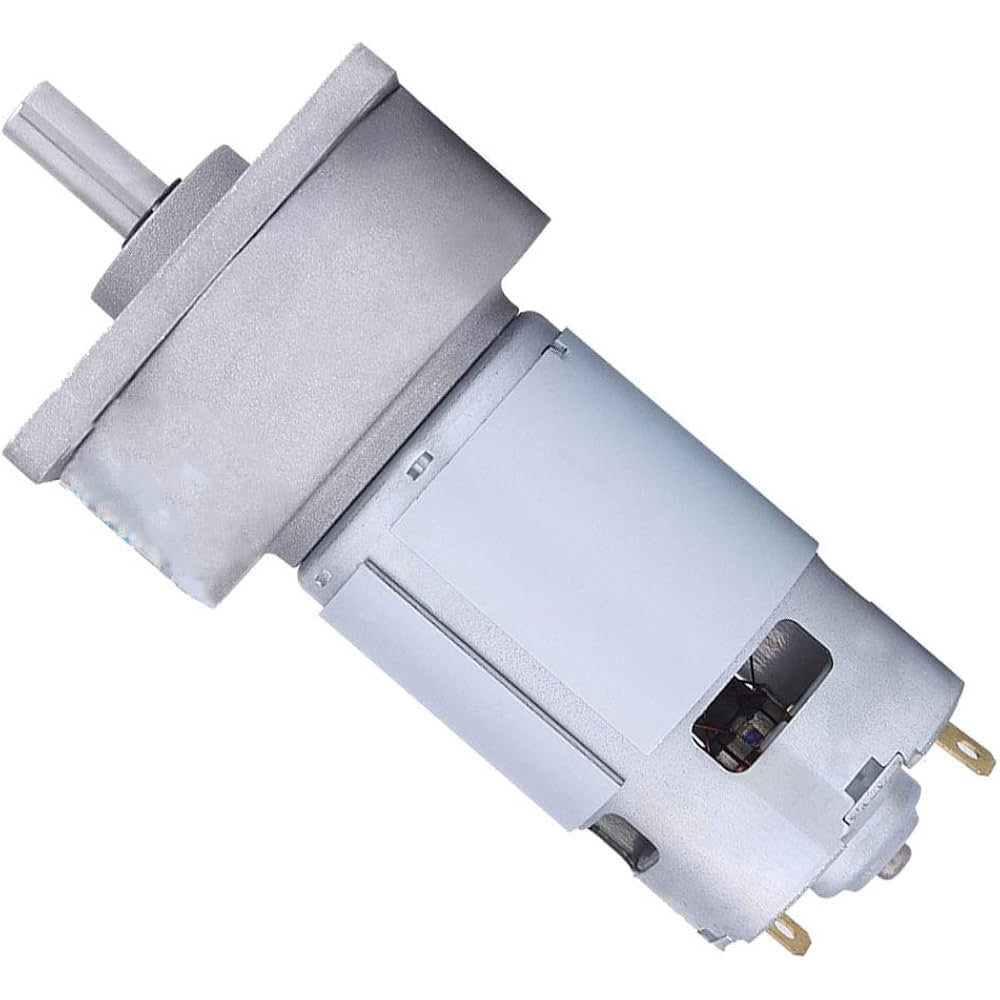

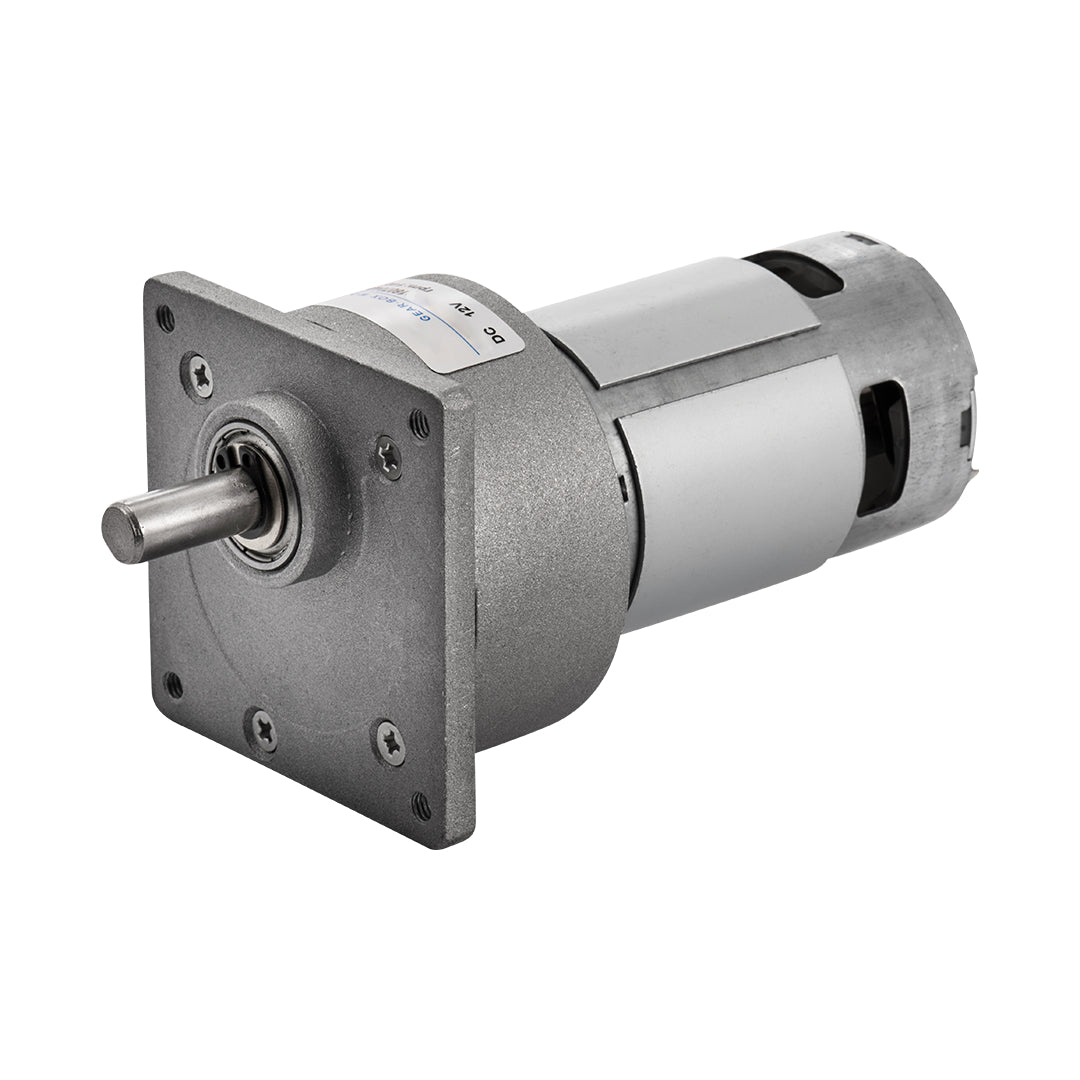

The DC 24V 160RPM GB60 Geared Motor is an industrial-grade motor engineered for high reliability and durability in demanding applications. With a 60mm diameter and full copper windings, it delivers excellent heat dissipation and efficient power transmission. The motor features a 27.8:1 gearbox ratio, providing a precise balance between speed and torque, and it is built with a D-type side shaft for easy and secure mounting. The 775 motor ensures high performance and long-lasting operation.
Key Features:
Industrial Grade Construction: Full copper windings for enhanced durability, superior conductivity, and heat dissipation.High Torque Performance: Delivers a rated torque of 10 KGF.CM, making it suitable for applications requiring significant power.
Precision Gearbox: With a 27.8:1 gear ratio, it provides efficient speed control and high torque output under load.
Compact and Powerful: The 60mm diameter and 34mm gearbox length offer a compact solution for powerful performance.
D-Type Side Shaft: The 7mm diameter D-type shaft ensures secure mechanical integration with ease of installation.
775 Motor Type: A robust motor known for reliability and long-term performance in industrial applications.
Applications:
Industrial Automation Machinery: Suitable for driving automated systems in factories and production lines.Robotics Precision Tools: Ideal for robotics applications requiring controlled movements and accurate operations.
Conveyor Systems: Perfect for use in conveyor systems where high torque and consistent speed are needed.
Medical Equipment: Applicable in devices that require precise motion control and reliability.
CNC Machines Machining Tools: Suited for power-hungry tasks requiring fine control.
Technical Details
- Operating Voltage: 24V DC
- No-Load Speed: 160 RPM
- Load Speed: 140 RPM
- Rated Torque: 10 KGF.CM
- Gearbox Ratio: i27.8
- Motor Diameter: 60mm
- Gearbox Length: 34mm
- Shaft Type: Side Shaft (D-Type)
- Shaft Diameter: 7mm
- Motor Type: 775 motor
Dimensional Drawing
Package Includes
- 1 x DC 24V 160RPM 60mm Diameter GB60 Geared Industrial Grade Highly Reliable and Full Copper Side Shaft motor
