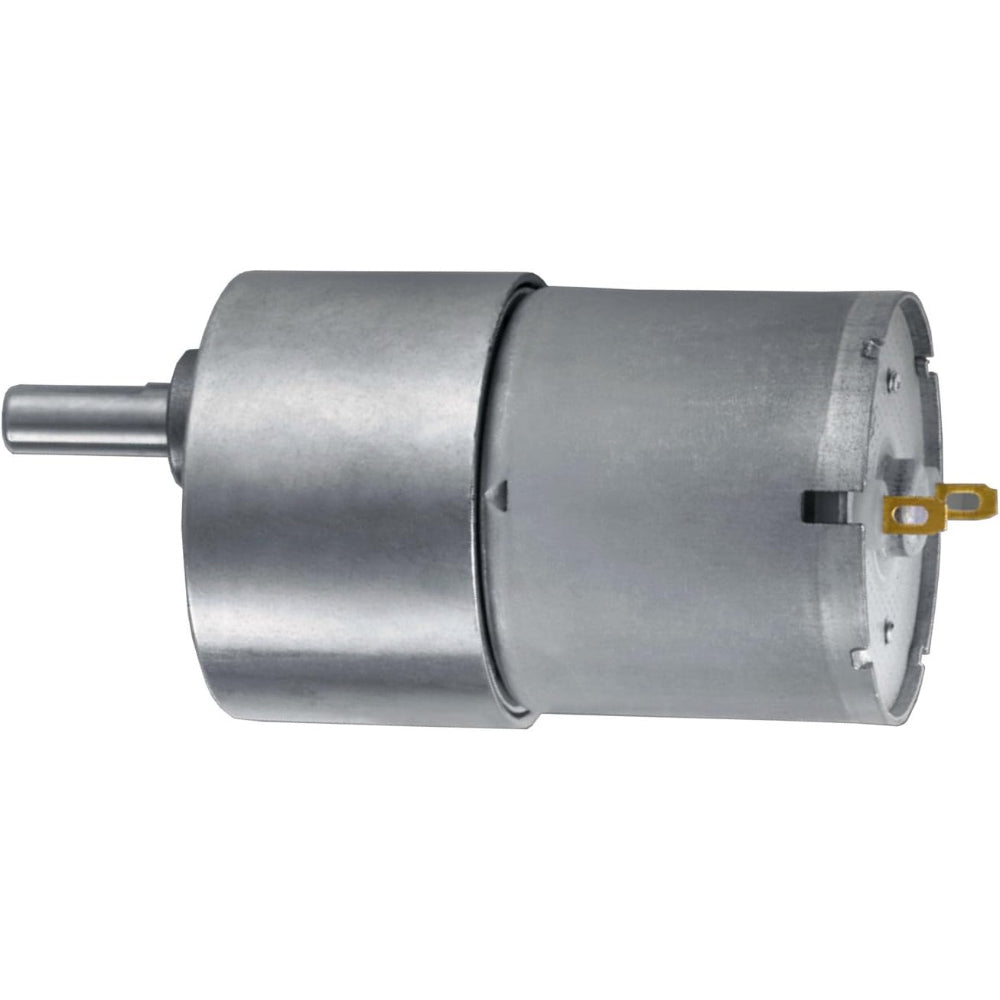

DC 24V 160RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 24V 160RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

832.02
1,199.00 832.02
Sale Sold out
Shipping calculated at checkout.
The DC 24V 160RPM GB37 Eccentric Shaft Geared Motor is engineered for high-performance applications where efficiency and reliability are paramount. Operating at a voltage of 24V DC, this motor achieves a no-load speed of 160 RPM, which decreases to 135 RPM under load, ensuring optimal performance in various operational contexts. The gearbox features a ratio of i31, effectively balancing speed and torque with a rated torque of 1.15 KGF.CM. The motor is equipped with a D-Type eccentric side shaft for easy integration into machinery. Its construction utilizes full copper windings and robust metal housing, enhancing durability and heat dissipation, making it suitable for industrial-grade applications. The motor operates with a clockwise (CW) rotation, allowing it to fulfill a wide range of mechanical requirements.

Features:

High Efficiency: With a gearbox ratio of i31, this motor effectively translates input speed into usable torque, suitable for various applications requiring controlled motion.

Robust Construction: Full copper windings and durable metal housing ensure longevity and reliable performance in demanding environments.

Versatile Shaft Design: The D-Type eccentric side shaft allows for seamless integration into various mechanical setups.

Compact Form Factor: The motor's 37mm diameter makes it easy to fit in tight spaces without sacrificing power.

Clockwise Rotation: Specifically designed for applications requiring clockwise motion, providing flexibility for diverse uses.

Applications:

Automation Systems: Ideal for use in robotic arms, conveyor belts, and other automated machinery requiring consistent and reliable motion.

Industrial Machinery: Suitable for applications in manufacturing, packaging, and assembly where torque and speed control are crucial.

Model Building: Great for hobbyists and engineers creating custom models or machinery that necessitate dependable motor performance.

Home Appliances: These can be used in various household devices that require controlled rotary motion.

Transportation Equipment: Useful in motorized carts or platforms where a steady and reliable torque is necessary.


Technical Details

  • Voltage: 24V DC
  • No-Load Speed: 160 RPM
  • Load Speed: 135 RPM
  • Rated Torque: 1.15 KGF.CM
  • Gearbox Ratio: i31
  • Gearbox Length: 25mm
  • Motor Diameter: 37mm
  • Shaft Type: D-Type Eccentric Side Shaft (typically 6mm diameter)
  • Motor Type: 520 Motor
  • Brush Type: Metal Carbon Brushes
  • Rotation: Clockwise (CW)
  • Weight: Approximately 300g
  • Current Draw (No Load): Approximately 150-200mA
  • Current Draw (Max Load): Approximately 1.5A under heavy load

Dimensional Drawing

DC 24V 160RPM 37mm Diameter GB37 eccentric Shaft Geared full copper industrial grade motor

Package Includes

  • 1 x DC 24V 160RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor
