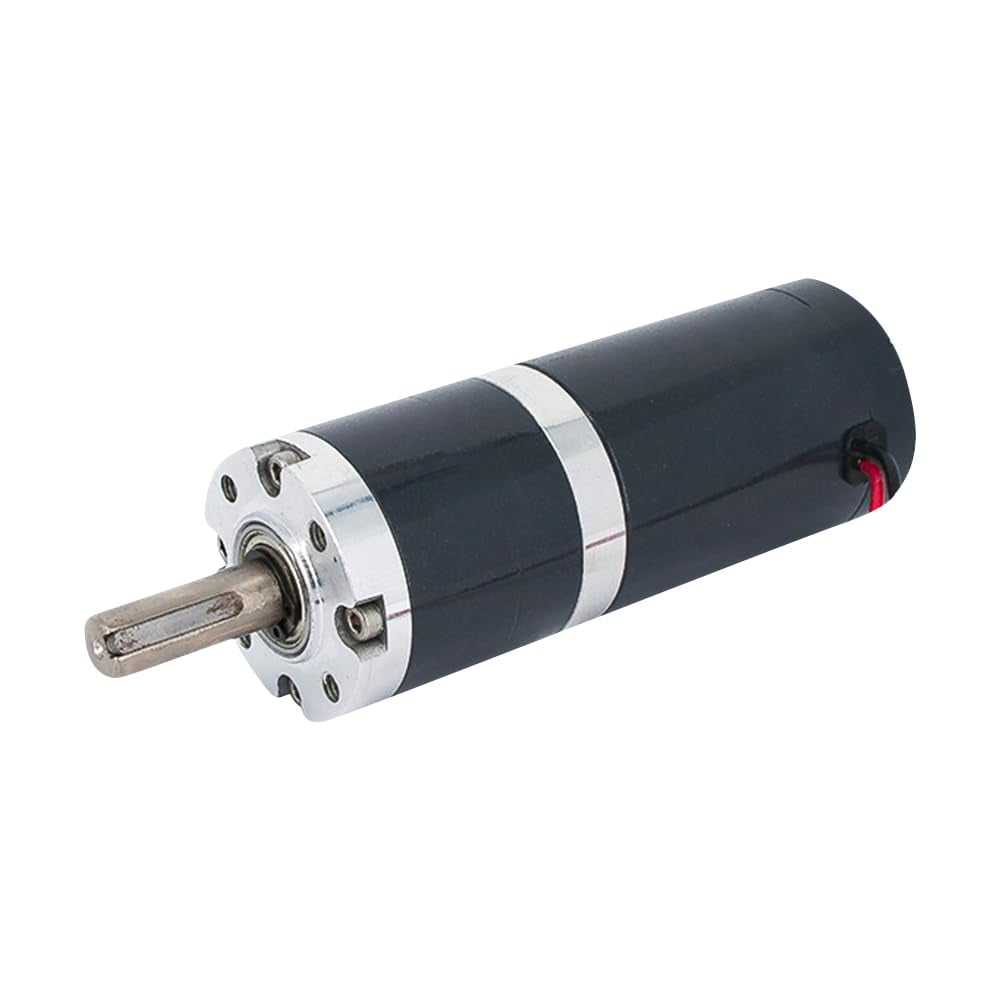

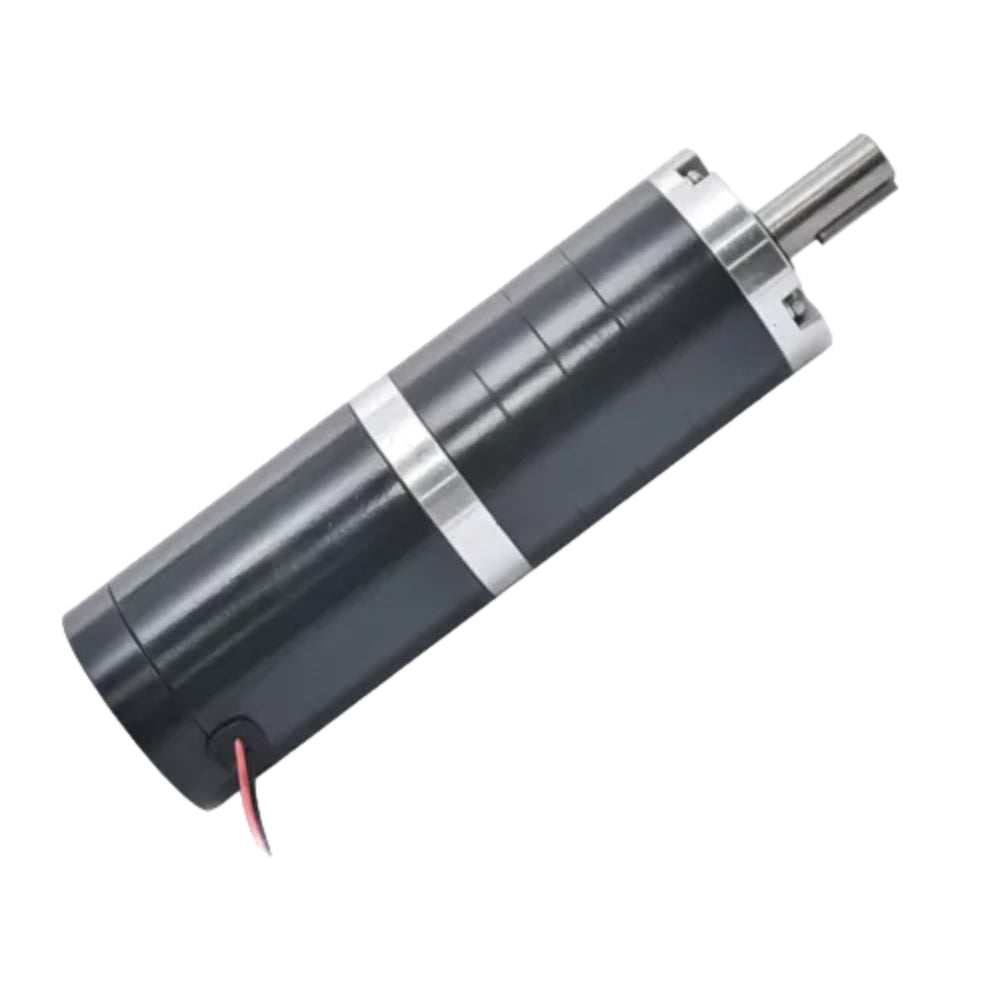

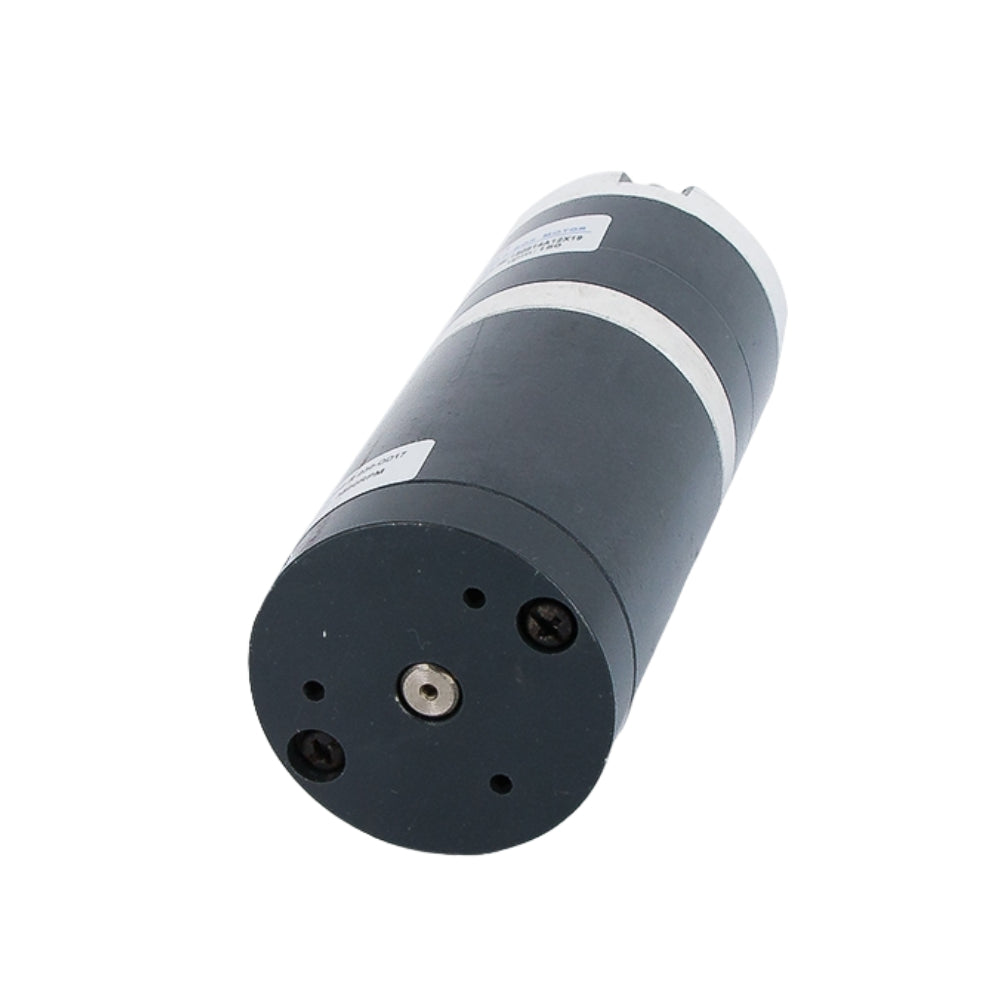

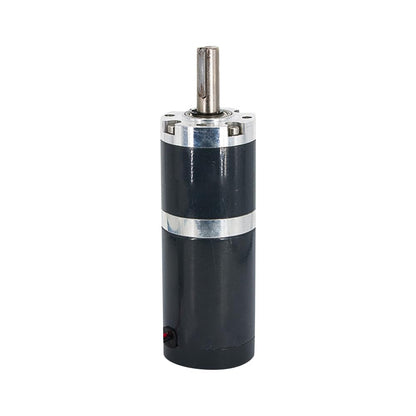

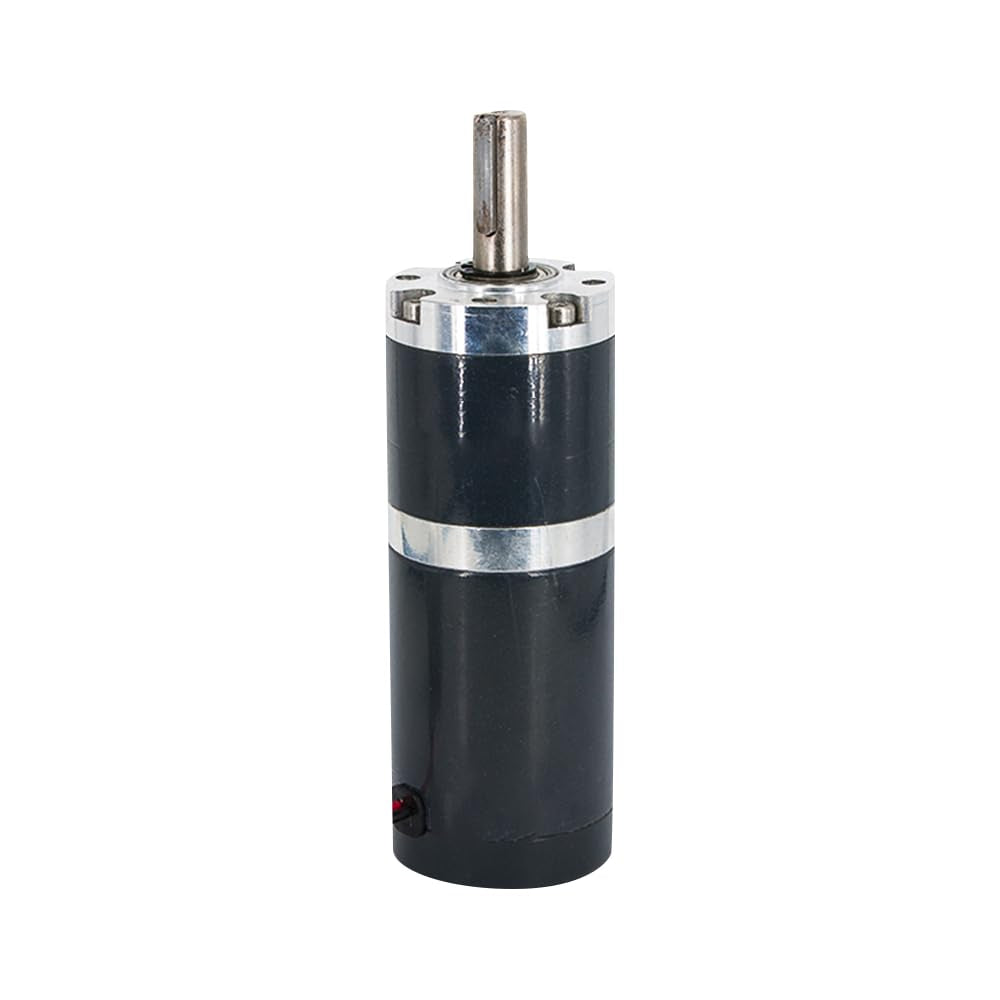

DC 24V 150RPM 50mm Diameter 50GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
DC 24V 150RPM 50mm Diameter 50GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
The DC 24V 150RPM 50GX Planetary Geared Motor is designed for industrial applications where reliability and efficient performance are crucial. With a no-load speed of 150 RPM and a load speed of 142 RPM, this motor is well-suited for tasks requiring controlled and consistent motion.
Key Features:
Moderate Speed Operation: The no-load speed of 150 RPM provides a good balance between speed and torque for various applications.Reliable Torque Output: Rated at 9 KGF.CM, the motor can handle moderate loads efficiently.
Efficient Gearbox Ratio: The gearbox ratio of 23:1 optimizes torque and speed, making it versatile for different operational needs.
Robust Construction: Featuring full copper windings, this motor promises durability and high efficiency.
Compact Size: The 50mm diameter and 47.2mm gearbox length allow for easy integration into various systems.
Secure Mounting: With M6*4 mounting and a center shaft design, installation is straightforward and secure.
Sturdy Shaft Connection: The 12mm diameter shaft ensures stability and strength during operation.
Applications:
Automation Systems: Ideal for automated machinery requiring reliable and controlled motion.Conveyor Systems: Suitable for conveyor applications that need a steady speed for material transport.
Robotic Systems: Excellent for robotics where precision and moderate speed are needed.
Industrial Equipment: Perfect for various industrial machines requiring efficient performance.
Specifications
- Operating Voltage: 24V DC
- No-Load Speed: 150 RPM
- Load Speed: 142 RPM
- Rated Torque: 9 KGF.CM
- Gearbox Ratio: 23:1
- Motor Diameter: 50mm
- Gearbox Length: 47.2mm
- Motor Length: 82mm
- Shaft Type: Center Shaft
- Mounting: M6*4
- Shaft Diameter: 12mm
- Motor Type: 50S motor
Dimensional Drawing
Package Includes
- 1 x DC 24V 150RPM 50mm Diameter 50GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
