DC 24V 150RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 24V 150RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

930.02
1,299.00 930.02
Sale Sold out
Shipping calculated at checkout.

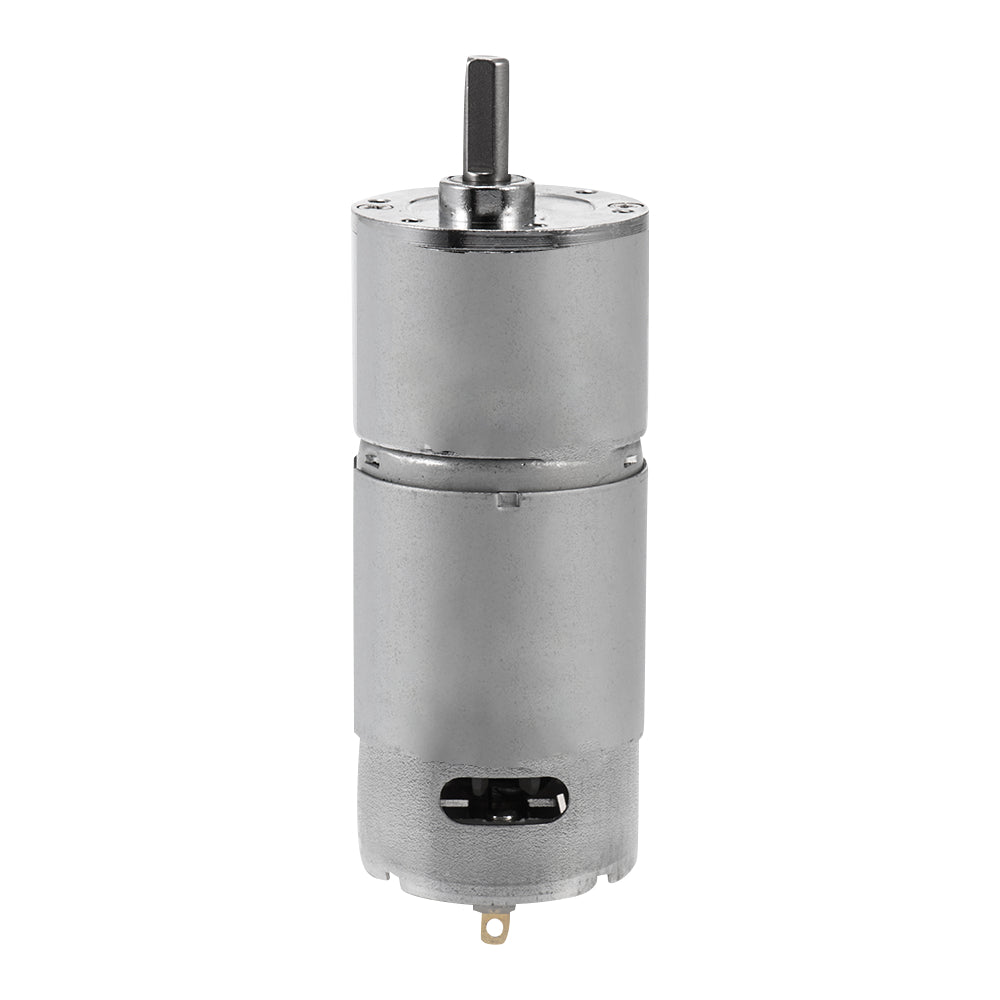

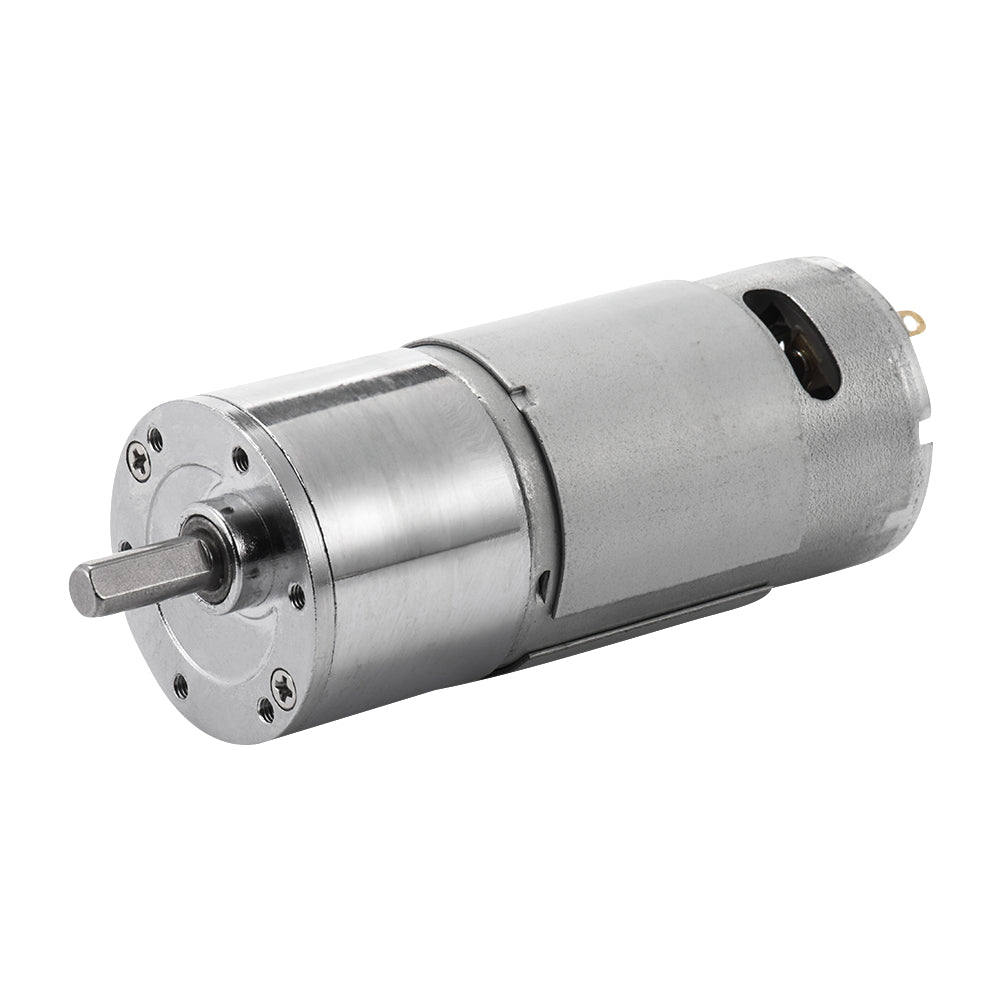

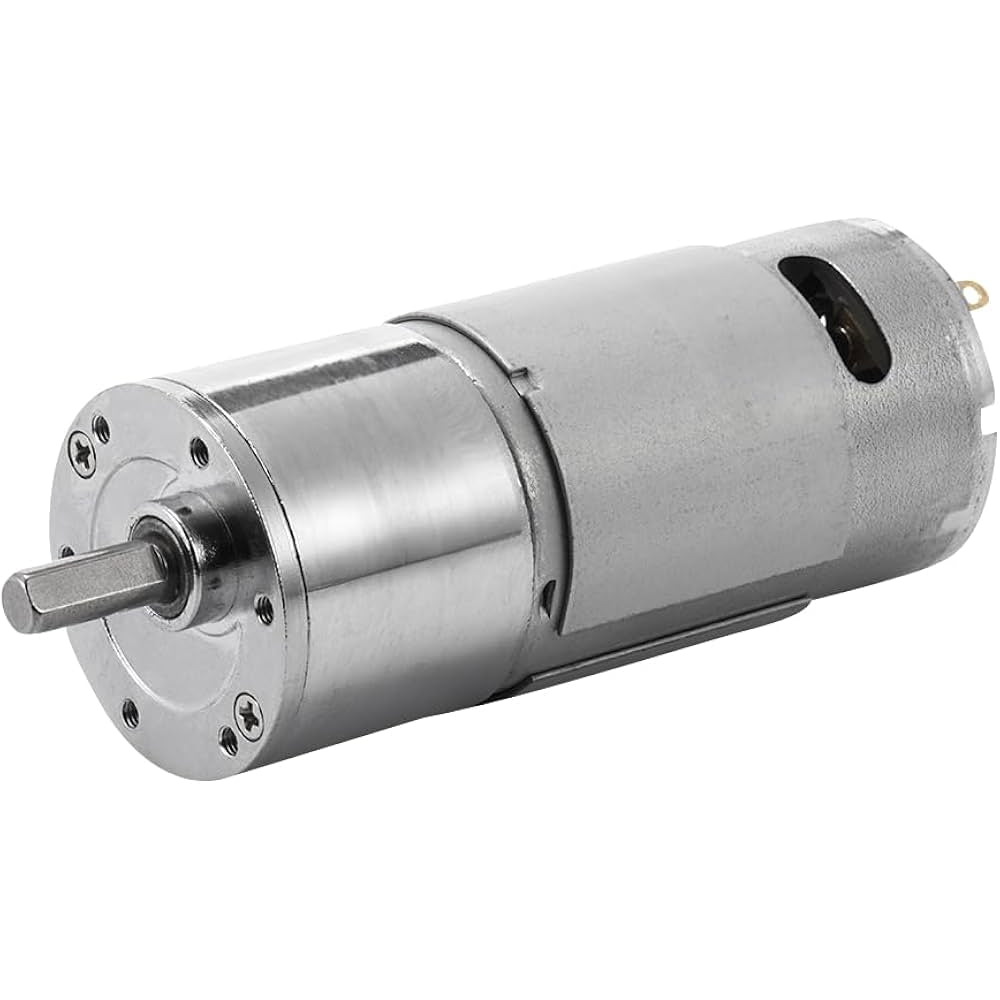

The DC 24V 150RPM 37mm GB37 Eccentric Shaft Geared Motor is a highly reliable, industrial-grade motor that features a full copper construction for superior performance. Designed for demanding applications, this motor offers a balance between speed and torque with its 51:1 gearbox ratio. It is equipped with a 6mm D-type eccentric side shaft, providing secure coupling for various mechanical systems. The motor’s counterclockwise rotation and robust design make it suitable for continuous operation in industrial environments.

Key Features:

Full Copper Construction: Provides enhanced durability, heat dissipation, and overall reliability, making it ideal for heavy-duty applications.

High Torque Output: Delivers 6 Kgf. cm of torque, ensuring sufficient power for tasks requiring consistent force.

Gearbox Ratio: The 51:1 gearbox ratio offers a balance between speed (150 RPM) and torque, making it versatile for a variety of uses.

Eccentric Shaft: The 6mm D-type eccentric shaft ensures secure attachment, reducing slippage in mechanical systems.

Compact Design: Despite its powerful performance, the motor has a compact 37mm diameter, allowing it to fit into tight spaces.

Applications:

Industrial Automation: Ideal for automated systems such as conveyor belts, machine tools, and packaging machinery.

Robotics: Suitable for robotic arms, drive systems, and mechanisms requiring precise control.

Actuation Systems: Can be used in actuators for lifts, doors, and mechanical components that need reliable torque at controlled speeds.

Precision Machinery: Ideal for equipment requiring both power and accuracy, such as CNC machines and other precision devices.

Conveyor Systems: Works well in conveyor applications where high torque is needed to drive components at a moderate speed.


Technical Details

  • Operating Voltage: 24V DC
  • No-Load Speed: 150 RPM
  • Load Speed: 130 RPM
  • Rated Torque: 6 Kgf. cm (Kilogram-force centimeter)
  • Gearbox Ratio: 51:1
  • Gearbox Length: 30mm
  • Motor Diameter: 37mm
  • Shaft Type: 6mm D-Type (Eccentric side shaft design for secure coupling)
  • Rotation Direction: CCW (Counterclockwise)
  • Current Rating: Approx. 1A under load

Dimensional Drawing

DC 12V 120RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

Package Includes

  • 1 x DC 24V 150RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor
