DC 24V 13RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 24V 13RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

930.02
1,299.00 930.02
Sale Sold out
Shipping calculated at checkout.

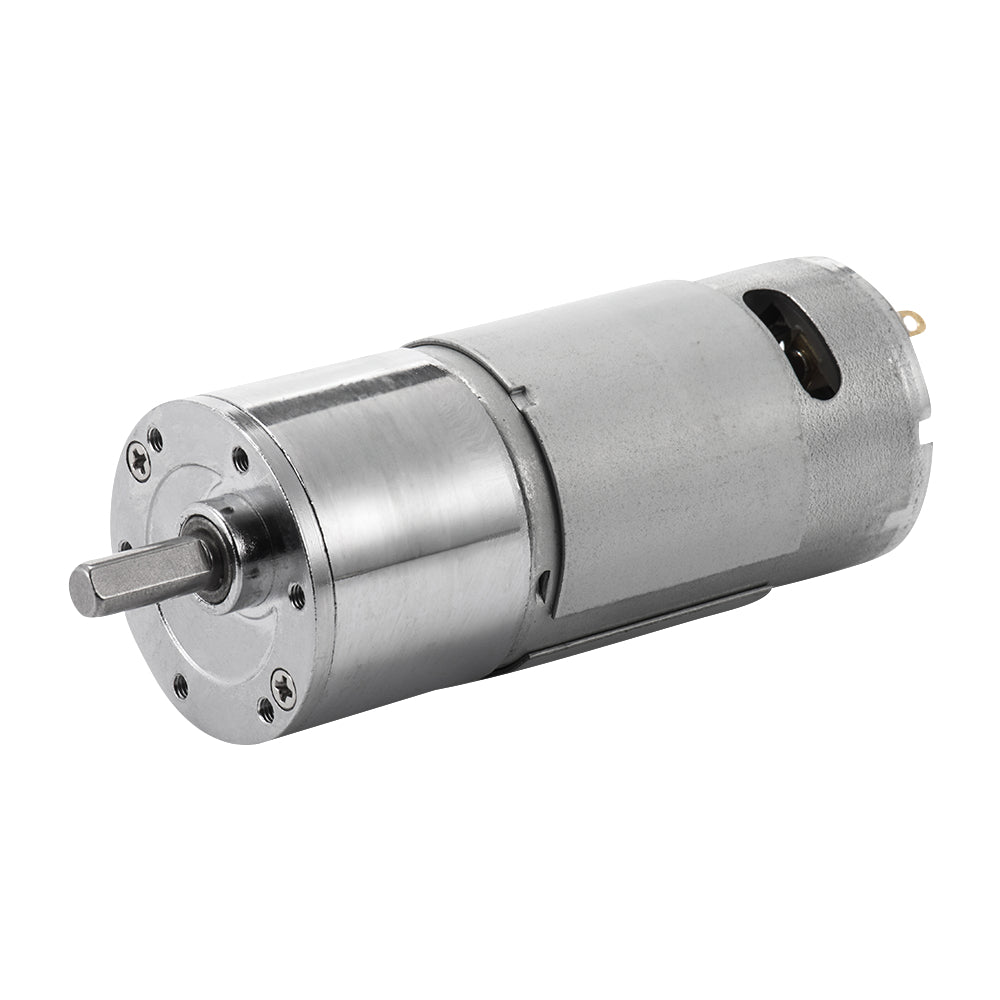

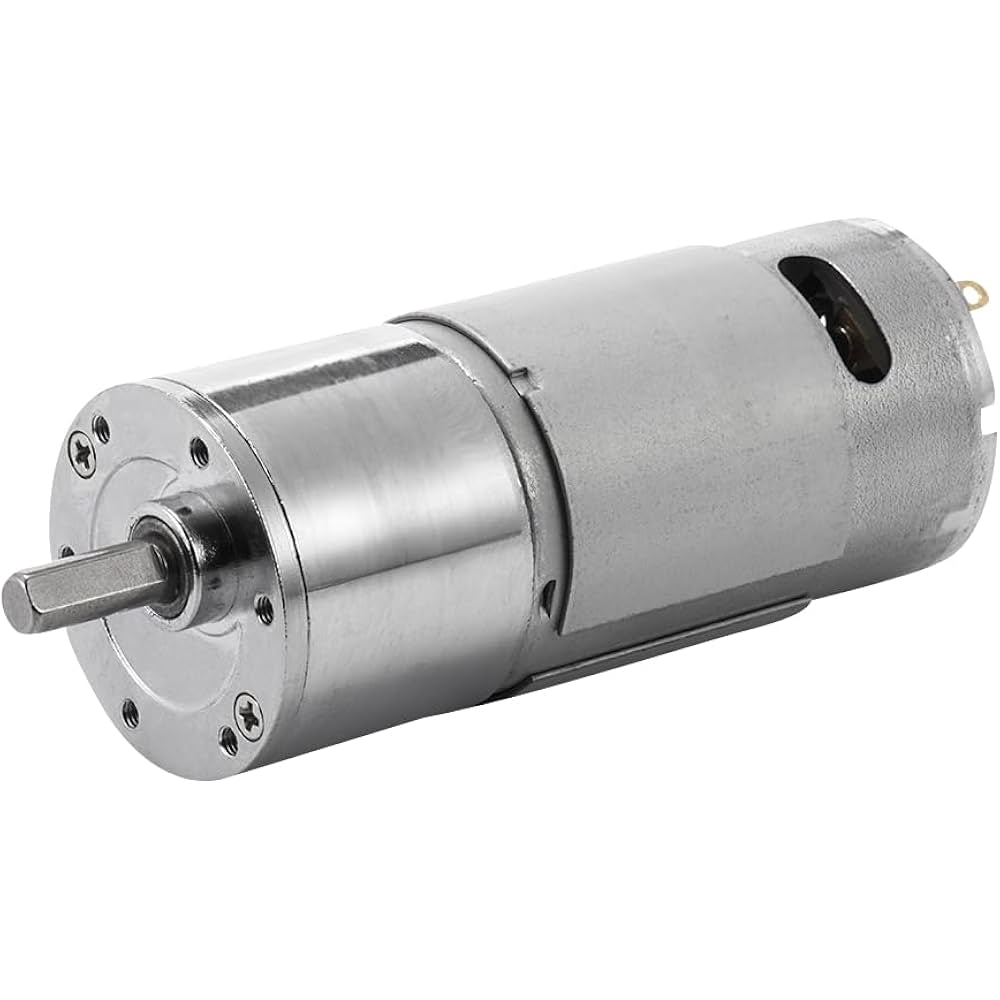

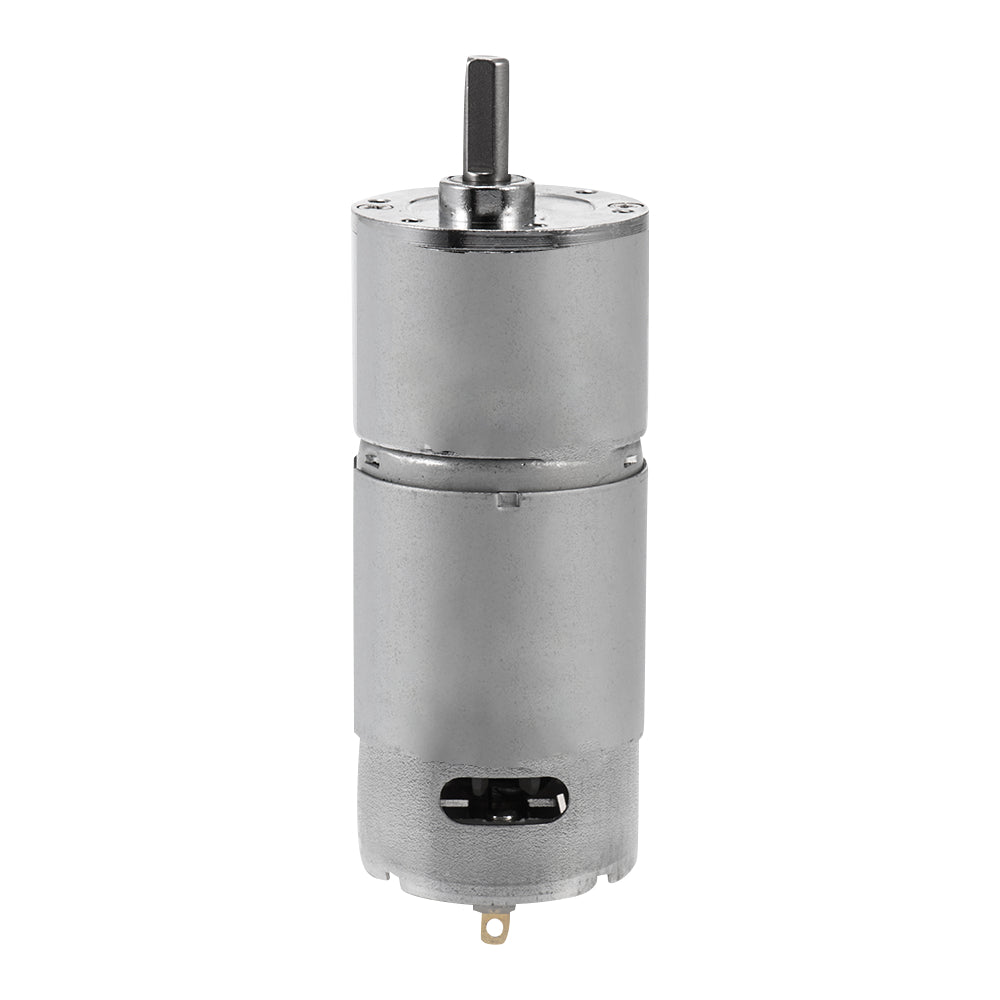

The DC 24V 13RPM 37mm GB37 Eccentric Shaft Geared Motor is a heavy-duty industrial-grade motor designed for applications that require low-speed operation with high torque. Constructed from full copper, this motor ensures durability and efficient heat dissipation. With a significant gearbox ratio of 399:1, it provides an exceptional torque output of 10 kg. cm, making it ideal for applications where high power is needed at low speeds. The motor features a 6mm D-type eccentric side shaft, ensuring secure attachment and precise rotational control.

Key Features:

Full Copper Construction: Ensures long-lasting durability and excellent heat management, making it suitable for continuous operation in demanding environments.

High Torque Output: Delivers a robust torque of 10 Kgf.cm, ideal for applications requiring strong force at low speeds.

399:1 Gearbox Ratio: Provides exceptional torque while maintaining a very low operational speed, perfect for specific industrial applications.

Eccentric Shaft Design: The 6mm D-type shaft allows for secure and accurate coupling, reducing the risk of slippage in mechanical systems.

Compact Dimensions: With a diameter of 37mm, this motor is designed to fit in tight spaces while providing powerful performance.

Applications:

Industrial Automation: Suitable for slow-moving conveyor systems, assembly lines, and heavy-duty machinery requiring precise control and high torque.

Robotics: Ideal for applications in robotics where low speed and high torque are essential for operations such as lifting and positioning.

Mechanical Actuators: Can be utilized in actuators for doors, hatches, and other devices that require significant force with controlled motion.

Precision Equipment: Works effectively in equipment requiring low-speed operation and precise control, such as CNC machines and automated test rigs.


Technical Details

  • Operating Voltage: 24V DC
  • No-Load Speed: 13 RPM
  • Load Speed: 11 RPM
  • Rated Torque: 10 Kg. cm (Kilogram-force centimeter)
  • Gearbox Ratio: 399:1
  • Gearbox Length: 36mm
  • Motor Diameter: 37mm
  • Shaft Type: 6mm D-Type (Eccentric side shaft for secure coupling)
  • Rotation Direction: CCW (Counterclockwise)
  • Current Rating: Approx. 2A under load

Dimensional Drawing

LGGE130

Package Includes

  • 1 x DC 24V 13RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor
