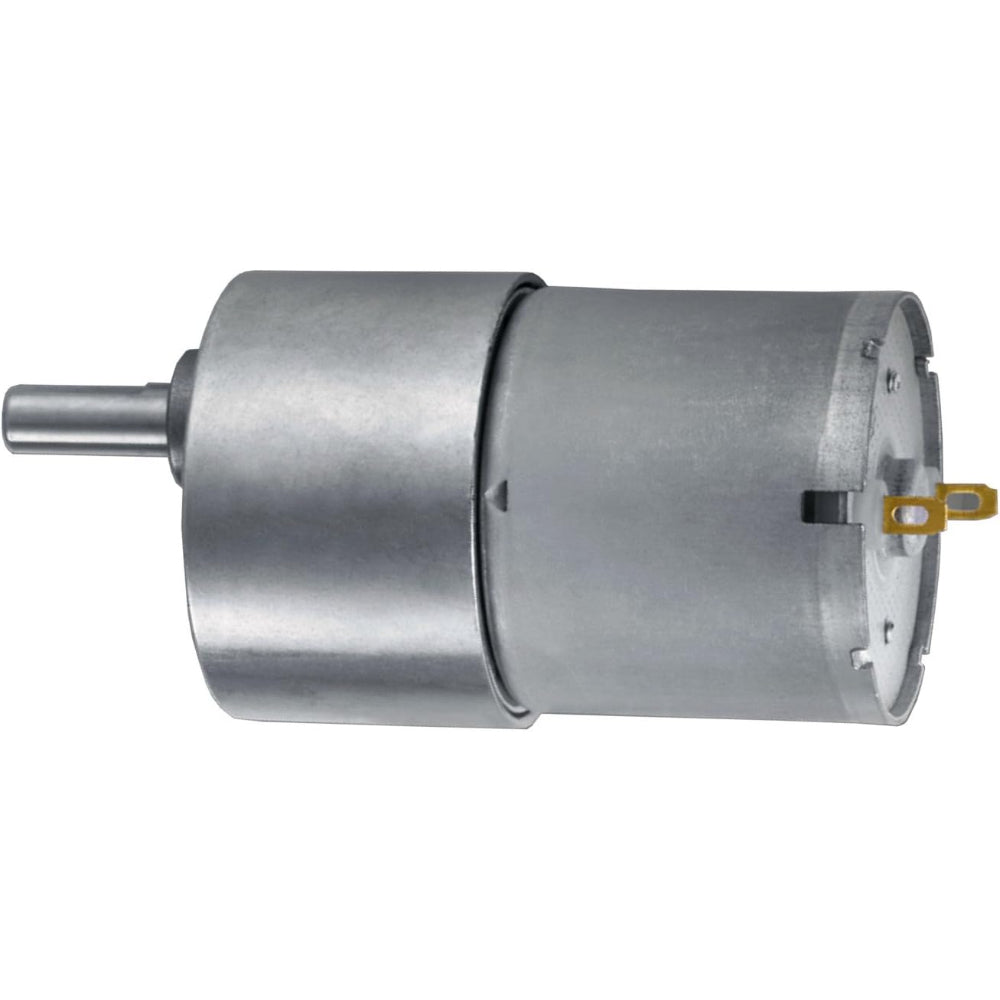

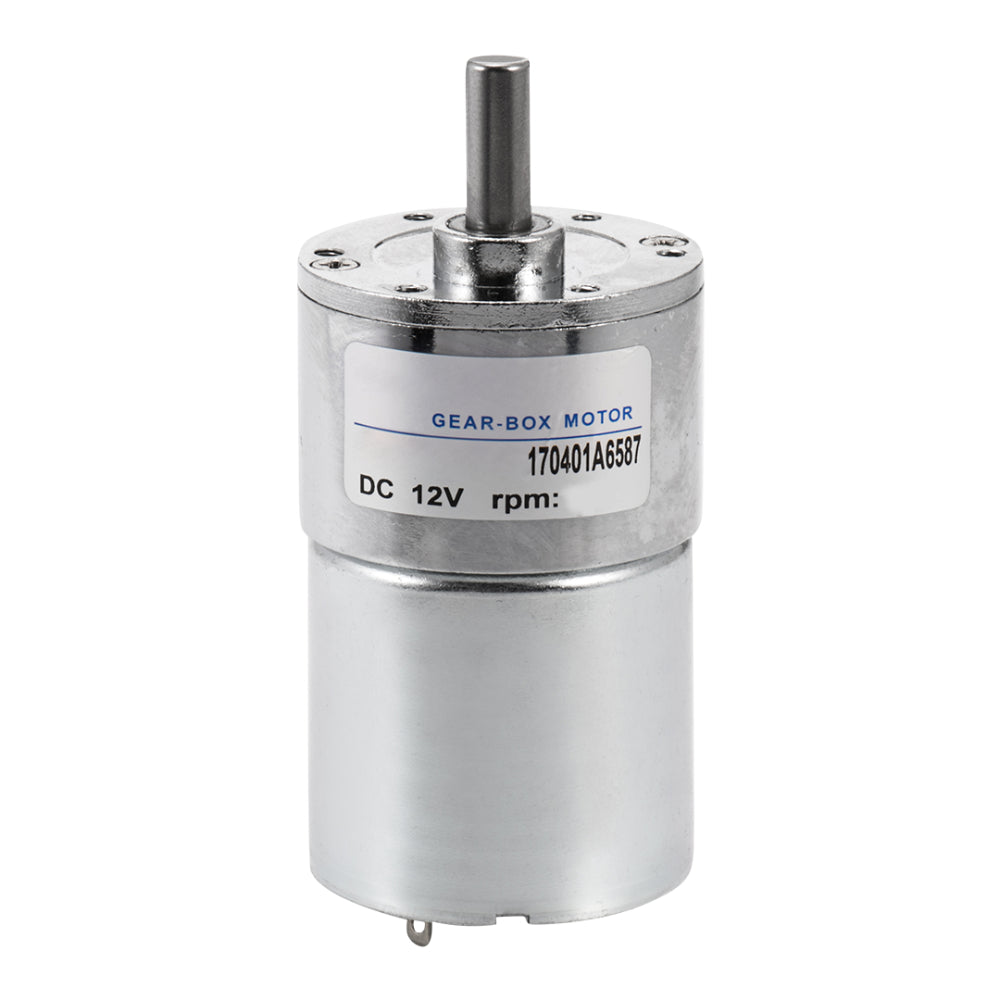

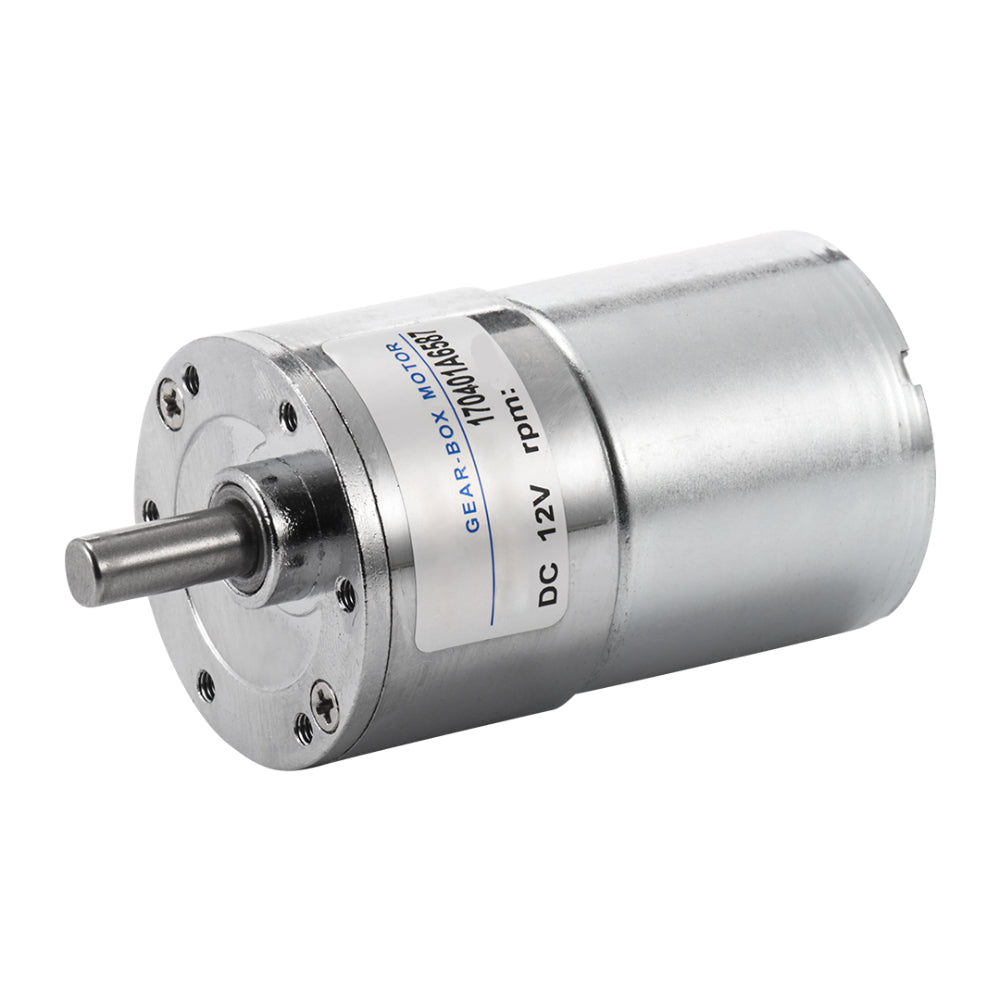

DC 24V 105RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 24V 105RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

832.02
1,199.00 832.02
Sale Sold out
Shipping calculated at checkout.
The DC 24V 105RPM GB37 Eccentric Shaft Geared Motor is engineered for applications requiring reliable performance at moderate speeds. Operating on a 24V DC power supply, this motor achieves a no-load speed of 105 RPM, which decreases to 88 RPM under load conditions, with a rated torque of 1.8 KGF.CM and a gearbox ratio of i47.5, it strikes an excellent balance between speed and torque, making it suitable for a variety of industrial tasks. The D-type side shaft design facilitates seamless integration into mechanical systems, enhancing versatility. Constructed with full copper windings and robust metal housing, this motor is built to withstand demanding environments while maintaining high efficiency, operating in a clockwise (CW) direction.

Features:

High Torque Performance: Delivers a rated torque of 1.8 KGF.CM, making it ideal for applications that require significant force.

Durable Construction: Full copper windings enhance durability and reliability, while the sturdy metal housing resists wear and tear.

Versatile Shaft Design: The D-Type side shaft design allows for easy integration into various applications, improving flexibility.

Controlled Motion: The moderate speed enables precise and controlled movements suitable for diverse mechanical applications.

Clockwise Rotation: Specifically designed for clockwise operation, compatible with setups requiring this direction.

Applications:

Robotics: Ideal for robotic systems that need precise motion control at moderate speeds.

Automated Machinery: Perfect for applications such as conveyor systems, assembly lines, and other machinery requiring consistent speed and torque.

Home Automation: Effective for devices like automatic doors, window actuators, and other automated mechanisms.

Hobby Projects: A great choice for hobbyists working on projects like model vehicles or robotic kits.

Testing Equipment: Useful for laboratory devices that need reliable and repeatable motion at specified speeds.


Technical Details

  • Voltage: 24V DC
  • No-Load Speed: 105 RPM
  • Load Speed: 88 RPM
  • Rated Torque: 1.8 KGF.CM
  • Gearbox Ratio: i47.5
  • Gearbox Length: 25mm
  • Motor Diameter: 37mm
  • Shaft Type: D-Type Side Shaft (typically 6mm diameter)
  • Motor Type: 520 Motor
  • Brush Type: Metal Carbon Brushes
  • Rotation: Clockwise (CW)
  • Weight: Approximately 195g
  • Current Draw (No Load): Approximately 200mA
  • Current Draw (Max Load): Approximately 1.0A under heavy load

Dimensional Drawing

DC 12V 175RPM 37mm Diameter GB37 eccentric Shaft Geared full copper industrial grade motor

Package Includes

  • 1 x DC 24V 105RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor
