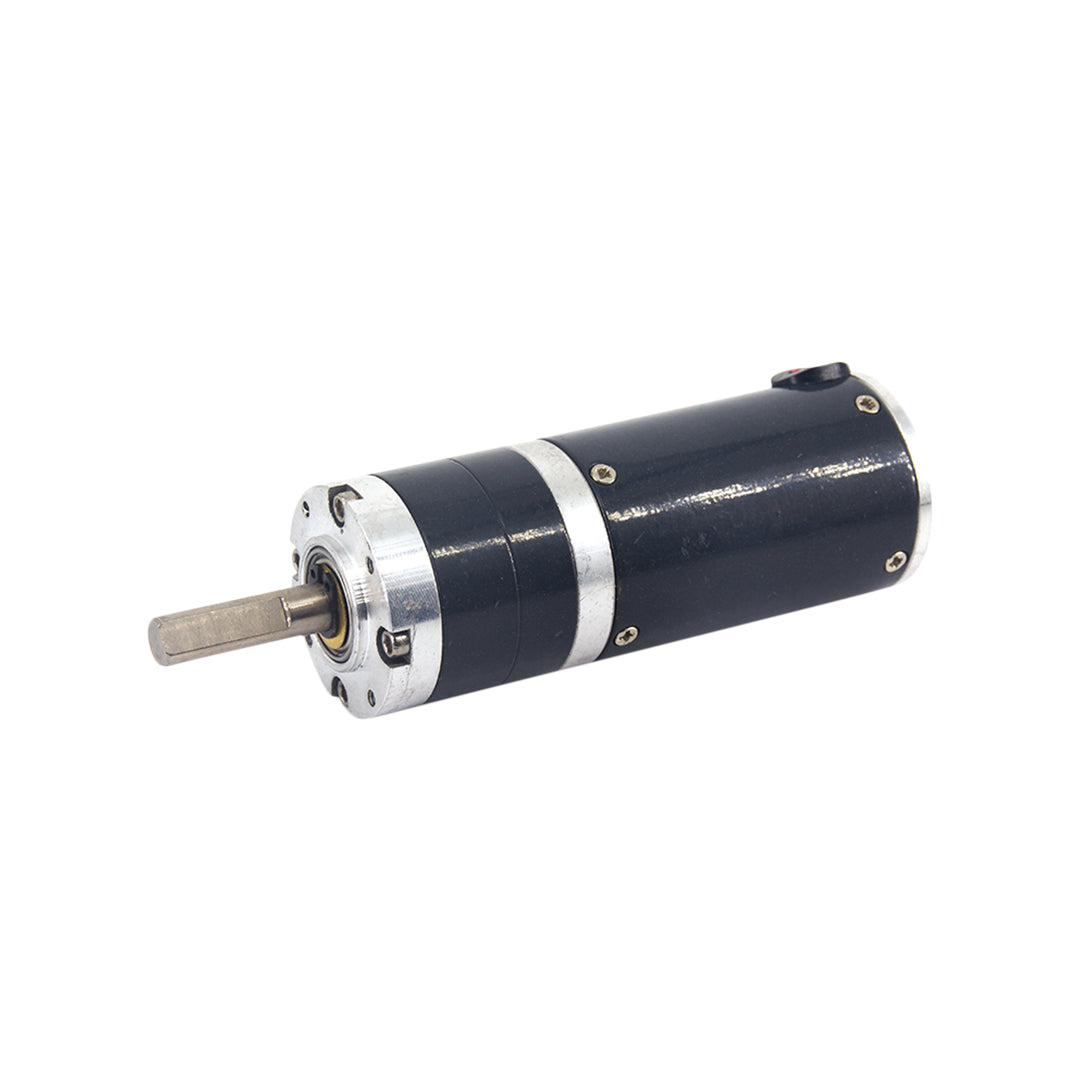

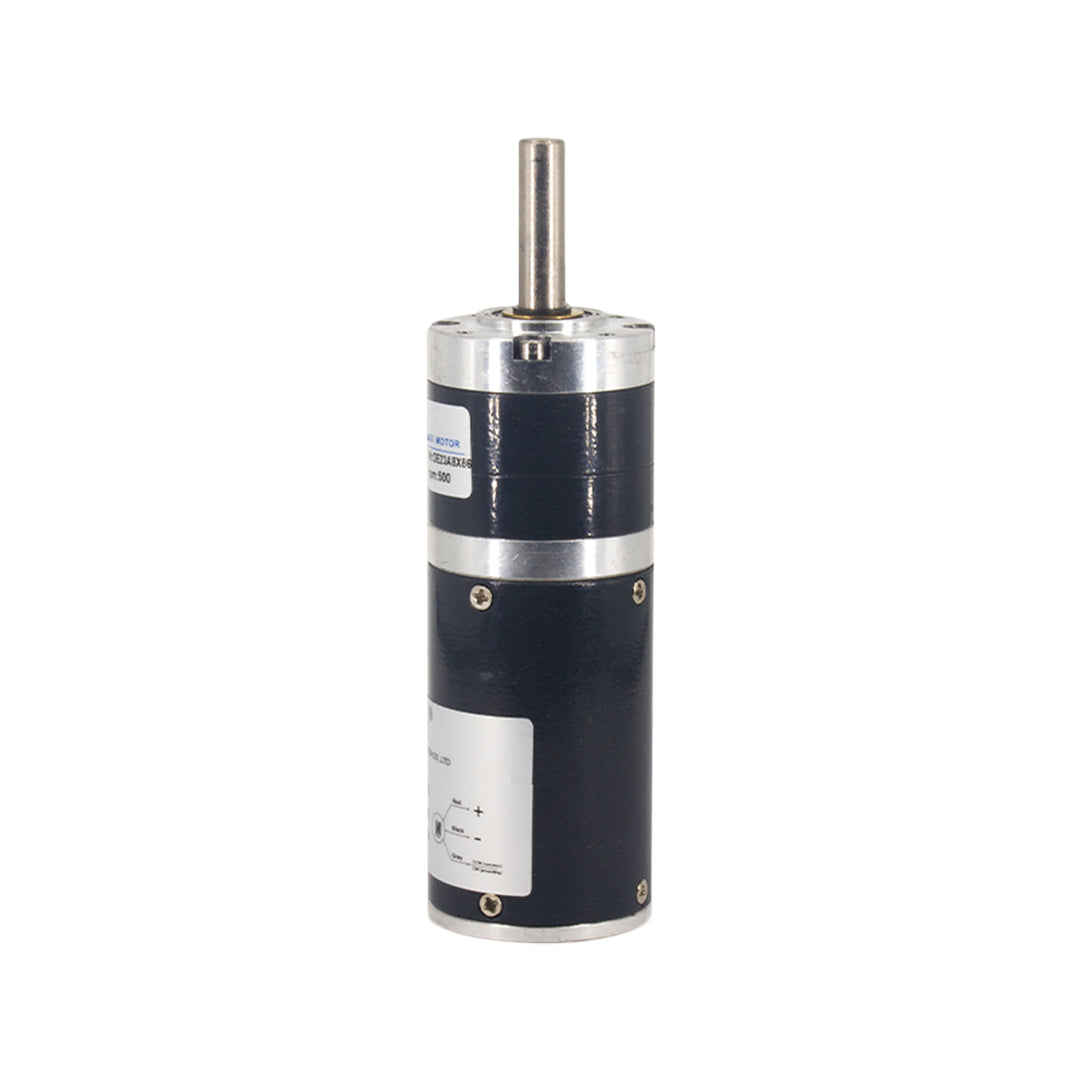

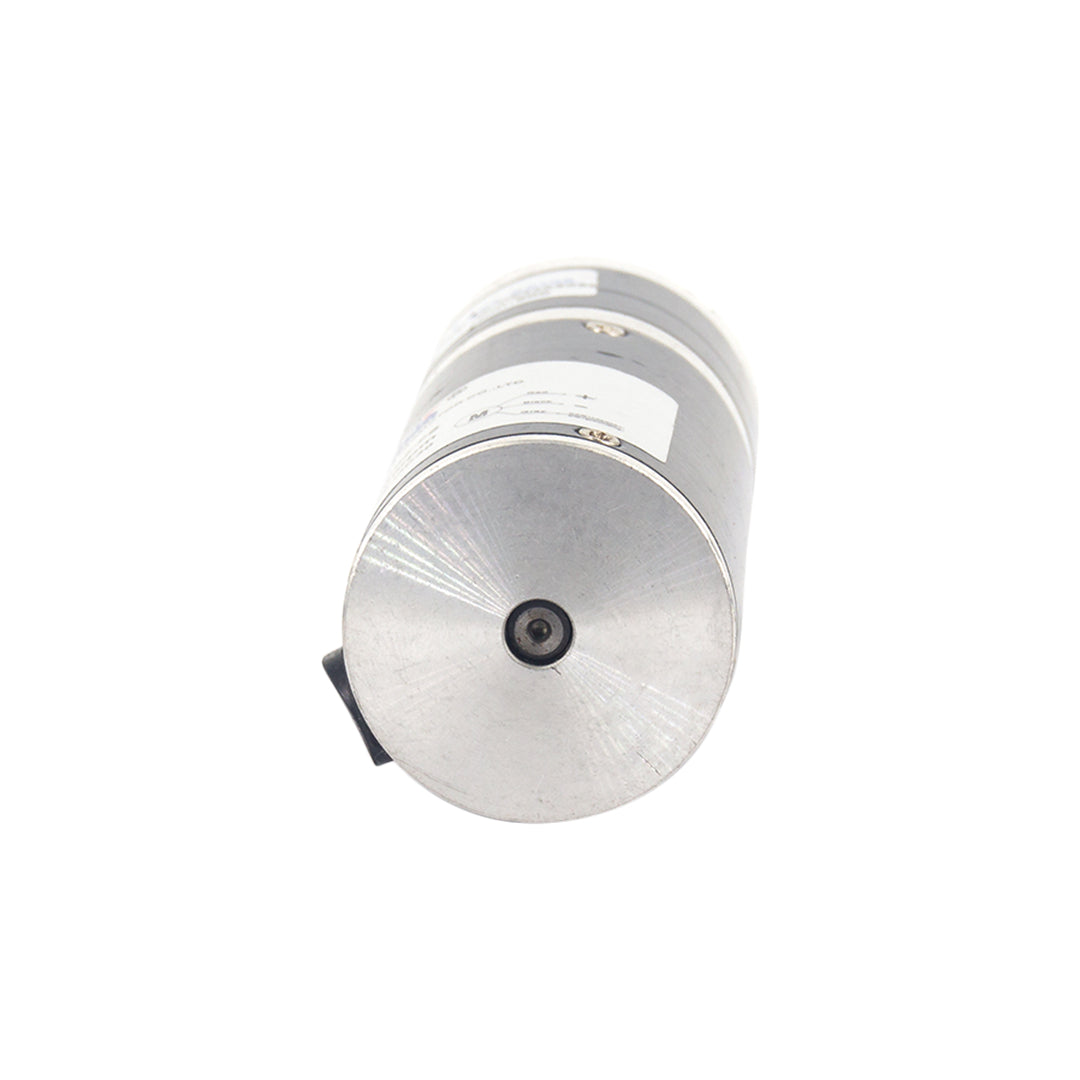

DC 24V 100RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

DC 24V 100RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

First Come First Serve Offer (T&C Apply )

3,135.02
3,999.00 3,135.02
Sale Sold out
Shipping calculated at checkout.

The DC 24V 100RPM 38GX Planetary Geared Motor is engineered for applications requiring moderate speed and significant torque. Operating at a no-load speed of 100 RPM and a load speed of 90 RPM, this motor provides reliable performance for various industrial applications. With a rated torque of 10 KGF.CM, is well-suited for tasks that require consistent power output and efficiency. The full copper construction ensures durability and enhanced performance over time.

Key Features:

Balanced Speed and Torque: Designed to deliver a steady 100 RPM under no-load conditions and 90 RPM under load, providing versatility in speed control.

Robust Torque Capacity: Features a rated torque of 10 KGF.CM, making it ideal for applications requiring reliable power.

Efficient Gearbox Ratio: The i49 gearbox ratio ensures a balance between speed and torque, optimizing performance for various tasks.

Compact Dimensions: With a diameter of 38mm and a gearbox length of 32.7mm, this motor fits easily into constrained spaces.

Durable Build: Constructed with full copper windings, enhancing heat resistance and motor longevity.

Applications:

Industrial Automation: Ideal for conveyor systems, robotic arms, and other machinery requiring precise control and power.

CNC Equipment: Well-suited for CNC applications that demand reliable low-speed operation and stability.

Medical Devices: Applicable in medical equipment where precise movements are critical.

Specifications

  • Operating Voltage: 24V DC
  • No-Load Speed: 100 RPM
  • Load Speed: 90 RPM
  • Rated Torque: 10 KGF.CM
  • Gearbox Ratio: i49
  • Motor Diameter: 38mm
  • Gearbox Length: 32.7mm
  • Motor Length: 68mm

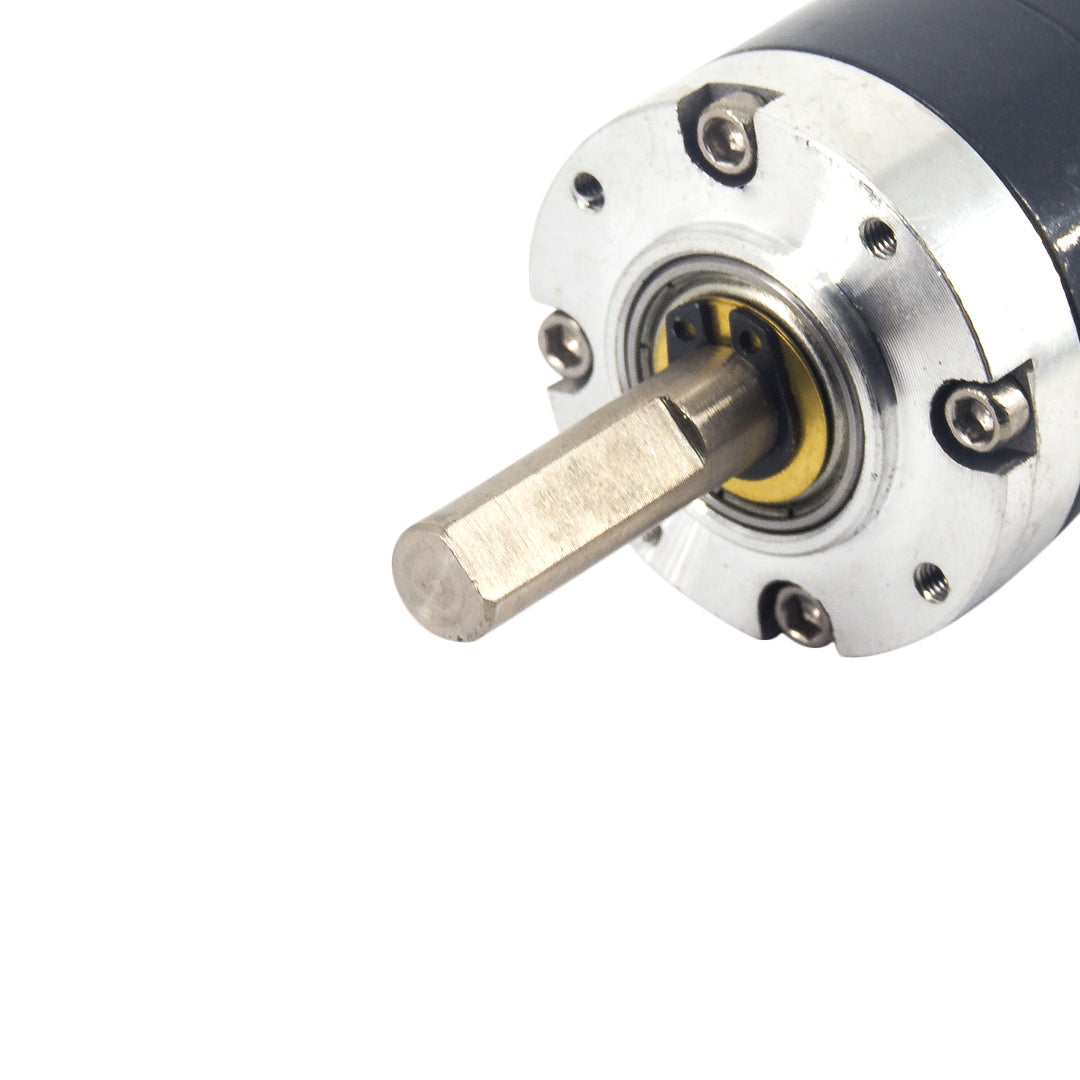

  • Shaft Type: Center Shaft (D-Type), M3*4 Mounting
  • Shaft Diameter: 8mm
  • Motor Type: 385 motor

Dimensional Drawing

DC 24V 500RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

Package Includes

  • 1 x DC 24V 100RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
