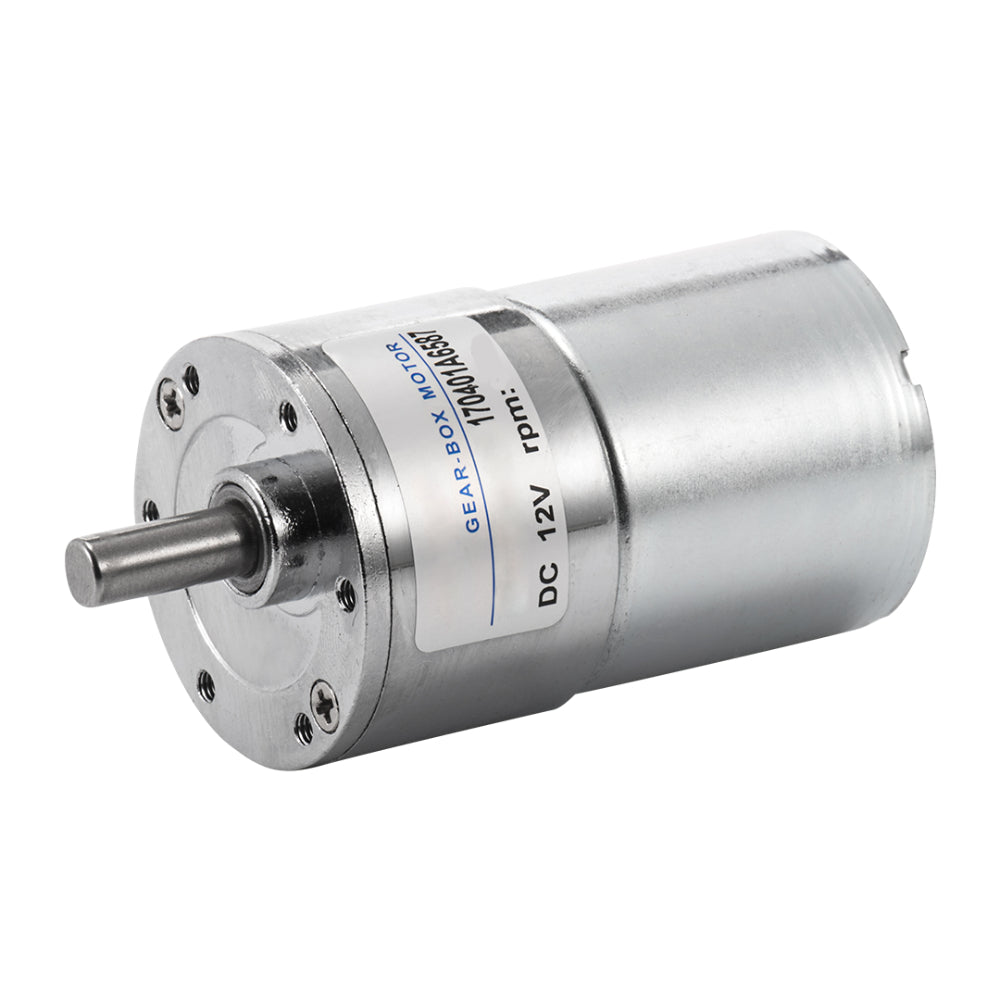

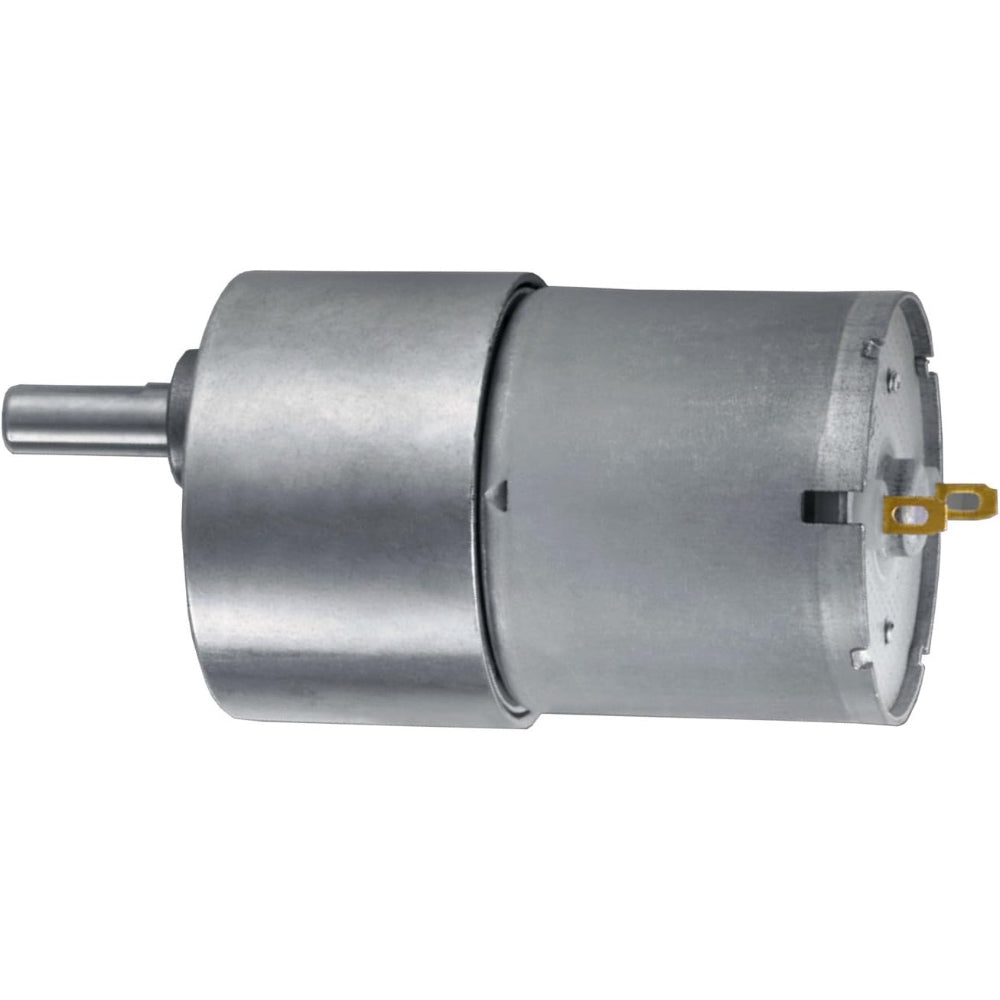

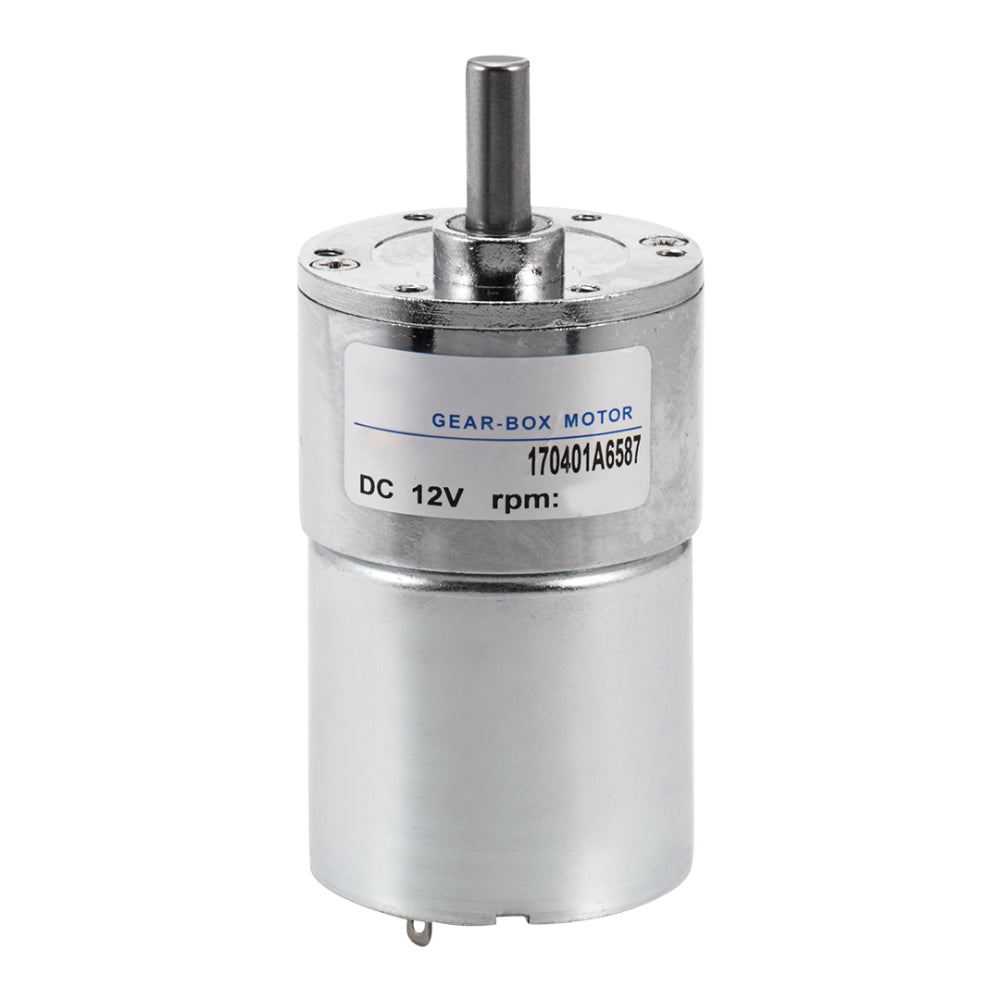

DC 24V 230RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 24V 230RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

832.02
1,199.00 832.02
Sale Sold out
Shipping calculated at checkout.
The DC 24V 230RPM GB37 Eccentric Shaft Geared Motor is engineered for industrial-grade performance, making it suitable for a wide range of applications. Operating at 24V DC, this motor provides a no-load speed of 230 RPM and a load speed of 200 RPM, delivering consistent and reliable rotational power. The gearbox ratio of i22 allows it to achieve a rated torque of 0.65 KGF.CM, ensuring it can handle various loads efficiently. Featuring a D-type eccentric side shaft, the motor allows for easy integration into various mechanical systems. Constructed with full copper windings and sturdy metal housing, it is designed for durability and longevity. The motor's clockwise (CW) rotation is ideal for numerous industrial and automation applications.

Features:

High Reliability: The motor's construction with full copper windings and durable metal housing ensures a long lifespan and dependable performance.

Eccentric D-Type Shaft: Allows for smooth and precise rotational movement, suitable for various mechanical applications.

Compact Size: At a diameter of 37mm, this motor is designed to fit into tight spaces while delivering ample power.

Consistent Performance: With a well-balanced gearbox ratio and torque, this motor is perfect for applications requiring steady rotational speeds.

Clockwise Rotation: The CW rotation direction is ideal for various applications designed for this type of movement.

Applications:

Industrial Automation: Suitable for use in machinery and equipment that require reliable and precise motor functions.

Robotics: Ideal for robotic systems needing consistent movement and torque control.

Home Automation: Can be used in systems such as motorized blinds, automated doors, or other devices requiring a smooth and reliable operation.

DIY Projects: Perfect for hobbyists and engineers constructing custom projects that necessitate dependable motor performance.

Medical Devices: Utilized in medical equipment that demands accuracy and reliability for operational movements.

Technical Details

  • Voltage: 24V DC
  • No-Load Speed: 230 RPM
  • Load Speed: 200 RPM
  • Rated Torque: 0.65 KGF.CM
  • Gearbox Ratio: i22
  • Gearbox Length: 25mm
  • Motor Diameter: 37mm
  • Shaft Type: D-Type Eccentric Side Shaft (typically 6mm diameter)
  • Motor Type: 520 Motor
  • Brush Type: Metal Carbon Brushes
  • Rotation: Clockwise (CW)
  • Weight: Approximately 270g
  • Current Draw (No Load): Approximately 100-200mA
  • Current Draw (Max Load): Approximately 1A to 1.5A under heavy load

Dimensional Drawing

DC 12V 420RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

Package Includes

  • 1 x DC 24V 230RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor
