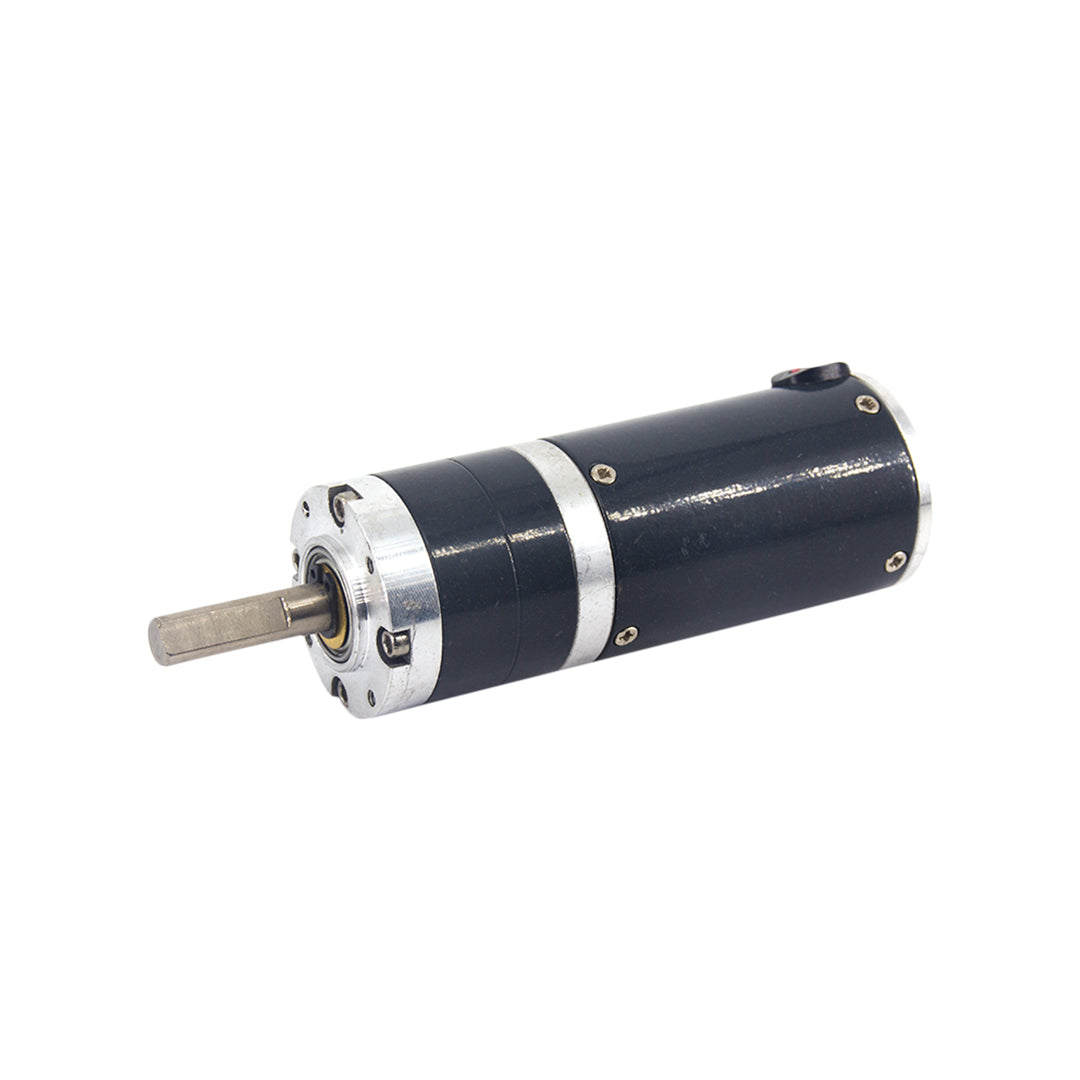

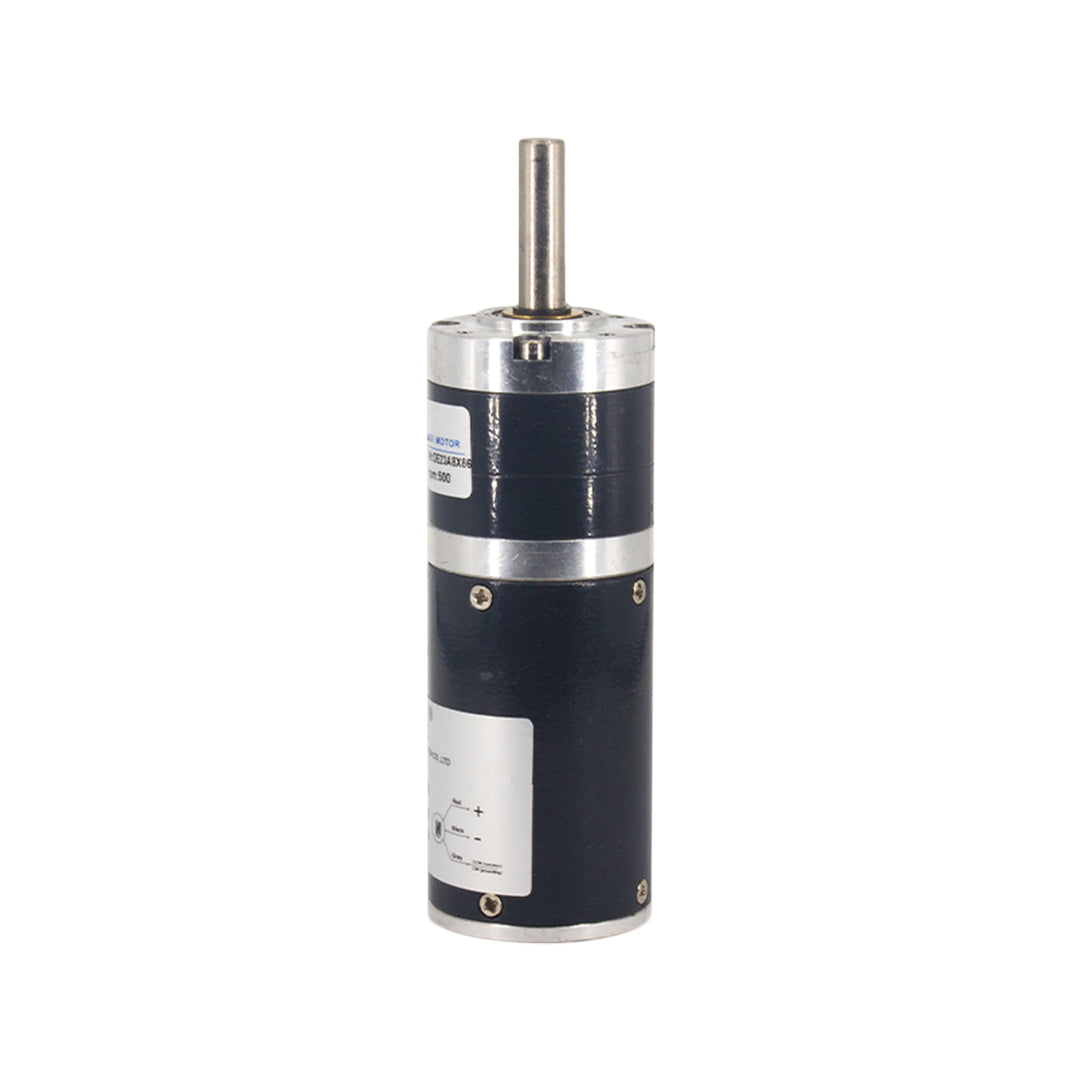

DC 12V 20RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

DC 12V 20RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

First Come First Serve Offer (T&C Apply )

3,919.02
4,999.00 3,919.02
Sale Sold out
Shipping calculated at checkout.

The DC 12V 20RPM 38GX Planetary Geared Motor is designed for applications requiring very low-speed operation with high torque output. With a no-load speed of 20 RPM and a load speed of 18 RPM, this motor is perfect for precise control in tasks where slow movement is crucial. The gearbox features an impressive gear ratio of i256, enabling it to deliver a rated torque of 50 KGF.CM, making it highly effective for applications that need significant power at low speeds. Its full copper construction enhances durability and thermal efficiency, ensuring reliable performance in demanding environments.

Key Features:

Low-Speed Operation: Ideal for applications needing very slow and controlled motion, with a no-load speed of 20 RPM.

Exceptional Torque Output: Rated torque of 50 KGF.CM allows for heavy-duty applications requiring substantial power.

High Gear Ratio: An i256 gearbox ratio provides superior torque amplification and smooth operation at low speeds.

Compact Design: With a motor diameter of 38mm and a gearbox length of 50.7mm, it fits well in limited spaces.

Durable Construction: Full copper windings ensure longevity, heat resistance, and efficient power transfer.

D-Type Center Shaft: The 8mm D-type shaft allows for secure mechanical connections and easy integration.

Reliable 380 Motor: Equipped with a robust 380 motor known for its efficiency and effectiveness in industrial applications.

Mounting Flexibility: M3*4 mounting holes ensure easy installation across various configurations.

Applications:

Robotic Systems: Suitable for robotic applications that require precise movement control.

Industrial Automation: Ideal for automation systems needing low-speed and high-torque performance.

CNC Machinery: Perfect for CNC applications where controlled, slow movements are essential.

Conveyor Systems: Effective in conveyor belts that require low-speed transport of heavy loads.

Specifications

  • Operating Voltage: 12V DC
  • No-Load Speed: 20 RPM
  • Load Speed: 18 RPM
  • Rated Torque: 50 KGF.CM
  • Gearbox Ratio: i256
  • Motor Diameter: 38mm
  • Gearbox Length: 50.7mm
  • Motor Length: 68mm
  • Shaft Type: Center Shaft (D-Type), M3*4 Mounting
  • Shaft Diameter: 8mm
  • Motor Type: 380 motor

Dimensional Drawing

LGGE155

Package Includes

  • 1 x DC 12V 20RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
