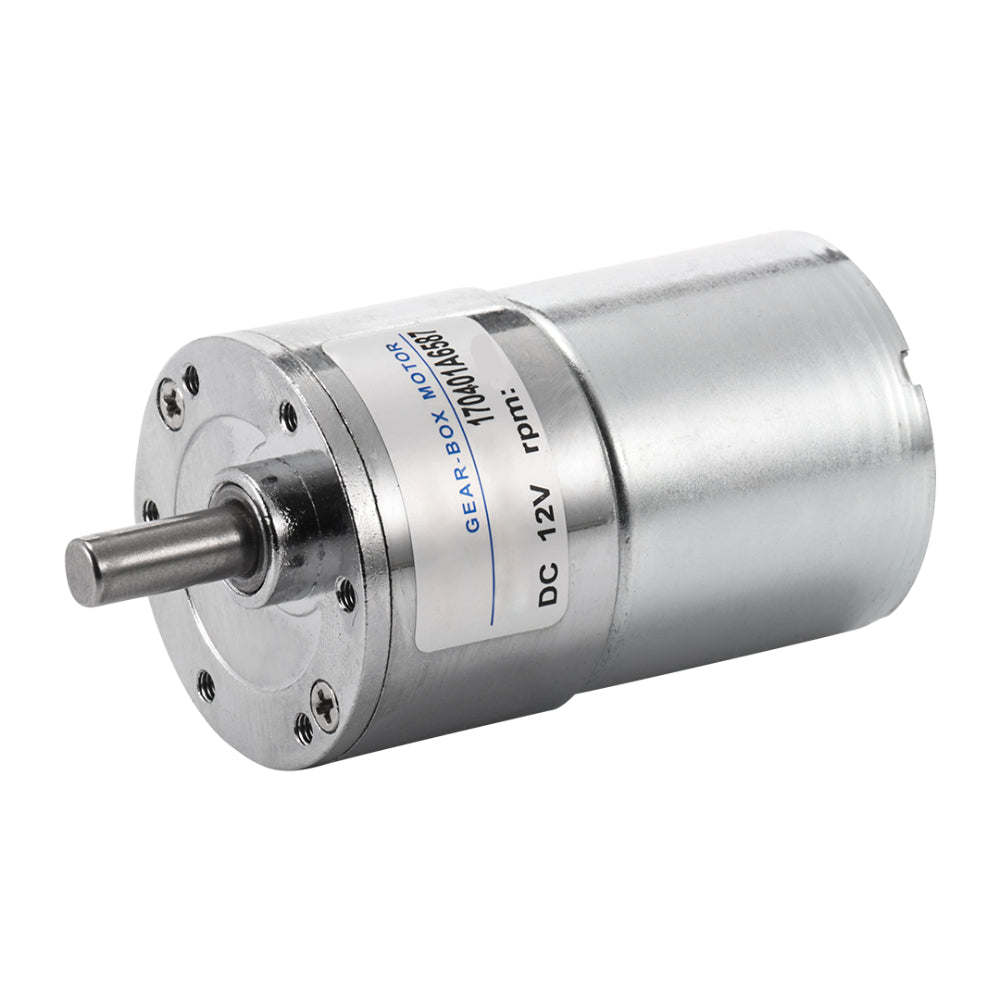

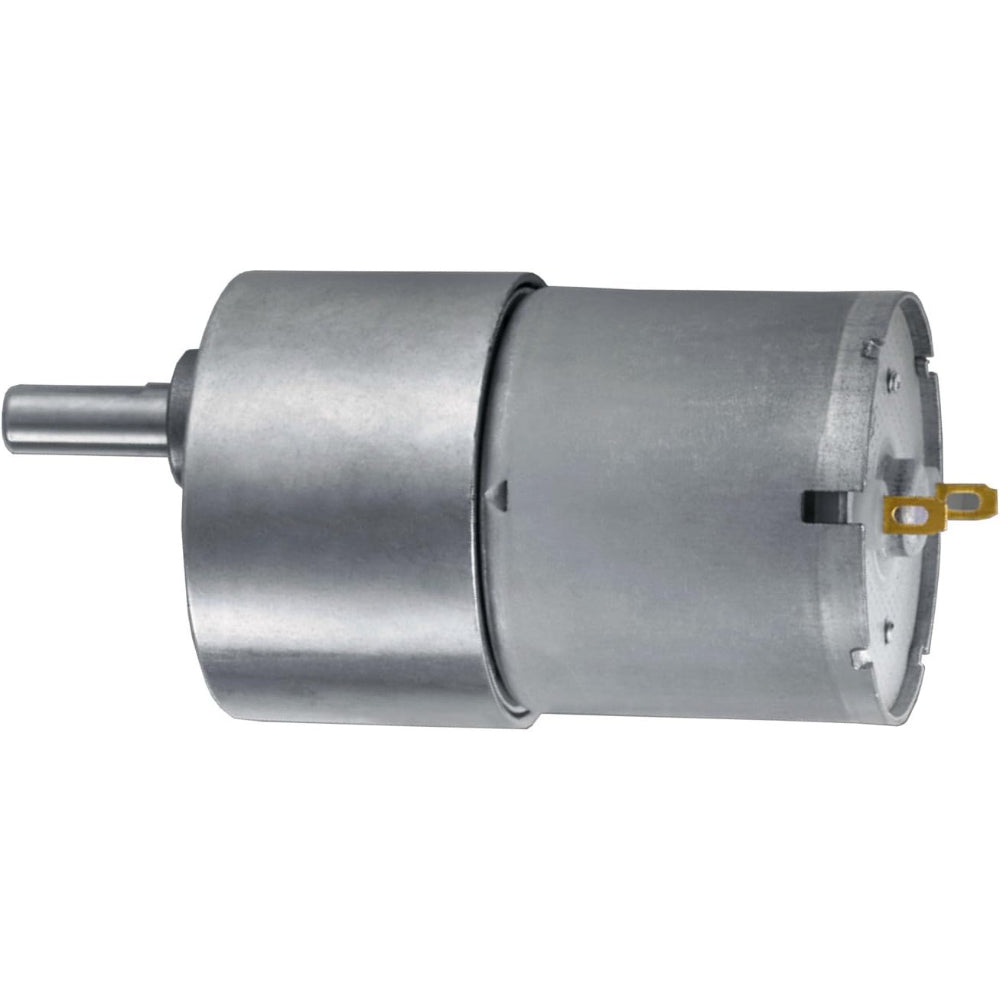

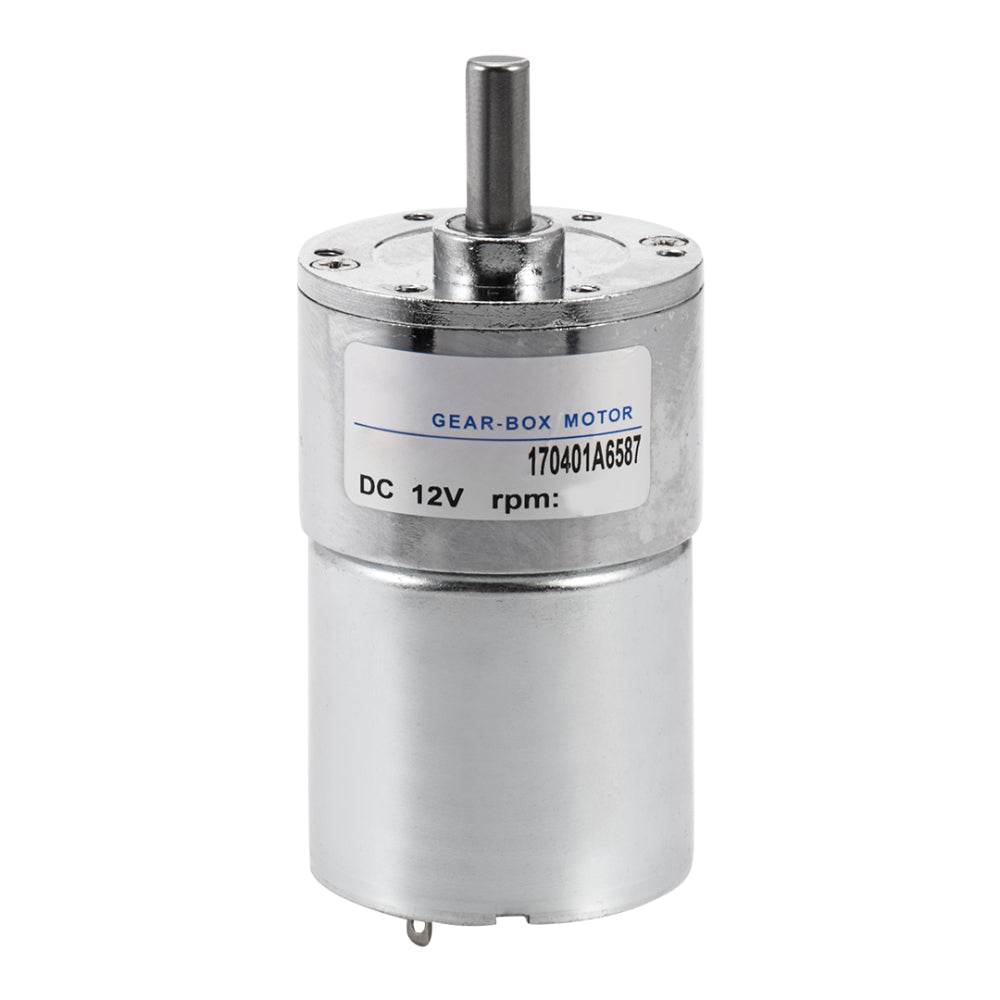

DC 12V 16RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

DC 12V 16RPM 37mm Diameter GB37 eccentric Shaft Geared Industrial Grade Highly Reliable and Full Copper Motor

First Come First Serve Offer (T&C Apply )

832.02
1,199.00 832.02
Sale Sold out
Shipping calculated at checkout.
The DC 12V 16RPM GB37 Eccentric Shaft Geared Motor is engineered for low-speed applications requiring high torque and reliable performance. Operating at a voltage of 12V DC, this motor achieves a no-load speed of 16 RPM, reducing to 14 RPM under load conditions, while providing a substantial torque output of 8 KGF.CM. With a gearbox ratio of i314, it delivers excellent mechanical advantage for applications that demand precision in movement. The D-Type eccentric side shaft design facilitates easy integration into various mechanical assemblies. Constructed with full copper windings and rugged metal housing, this motor is built for durability and efficiency in industrial settings. It operates in a clockwise (CW) direction, making it suitable for numerous applications across different sectors.

Features:

High Torque Output: The motor's rated torque of 8 KGF.CM makes it capable of handling applications requiring significant force at low speeds.

Durable Construction: Featuring full copper windings, this motor offers excellent electrical efficiency and longevity, housed in a robust metal casing for protection.

Versatile Shaft Design: The D-Type eccentric side shaft allows for easy connection to various devices, enhancing compatibility with a wide range of applications.

Precision Control: The low operational speed ensures precise control over motion, ideal for applications that require careful positioning.

Clockwise Rotation: Specifically designed for clockwise rotation, making it a perfect fit for systems that require this direction of motion.

Applications:

Industrial Automation: Suitable for conveyor systems, robotic arms, and assembly machinery that require controlled low-speed operation.

Model Engineering: A favorite among hobbyists for model making and DIY projects where precise low-speed rotation is necessary.

Home Appliances: Ideal for use in household devices such as automated curtains or robotic cleaners that require reliable low-speed motors.

Agricultural Machinery: Can be used in feed mixers and other agricultural equipment that benefit from consistent low-speed operation.

Testing Equipment: Useful in laboratory settings for testing and demonstration purposes where slow, controlled movement is required.


Technical Details

  • Voltage: 12V DC
  • No-Load Speed: 16 RPM
  • Load Speed: 14 RPM
  • Rated Torque: 8 KGF.CM
  • Gearbox Ratio: i314
  • Gearbox Length: 30mm
  • Motor Diameter: 37mm
  • Shaft Type: D-Type Eccentric Side Shaft (typically 6mm diameter)
  • Motor Type: 520 Motor
  • Brush Type: Metal Carbon Brushes
  • Rotation: Clockwise (CW)
  • Weight: Approximately 213g
  • Current Draw (No Load): Approximately 100-150mA
  • Current Draw (Max Load): Approximately 1.2A under heavy load

Dimensional Drawing
