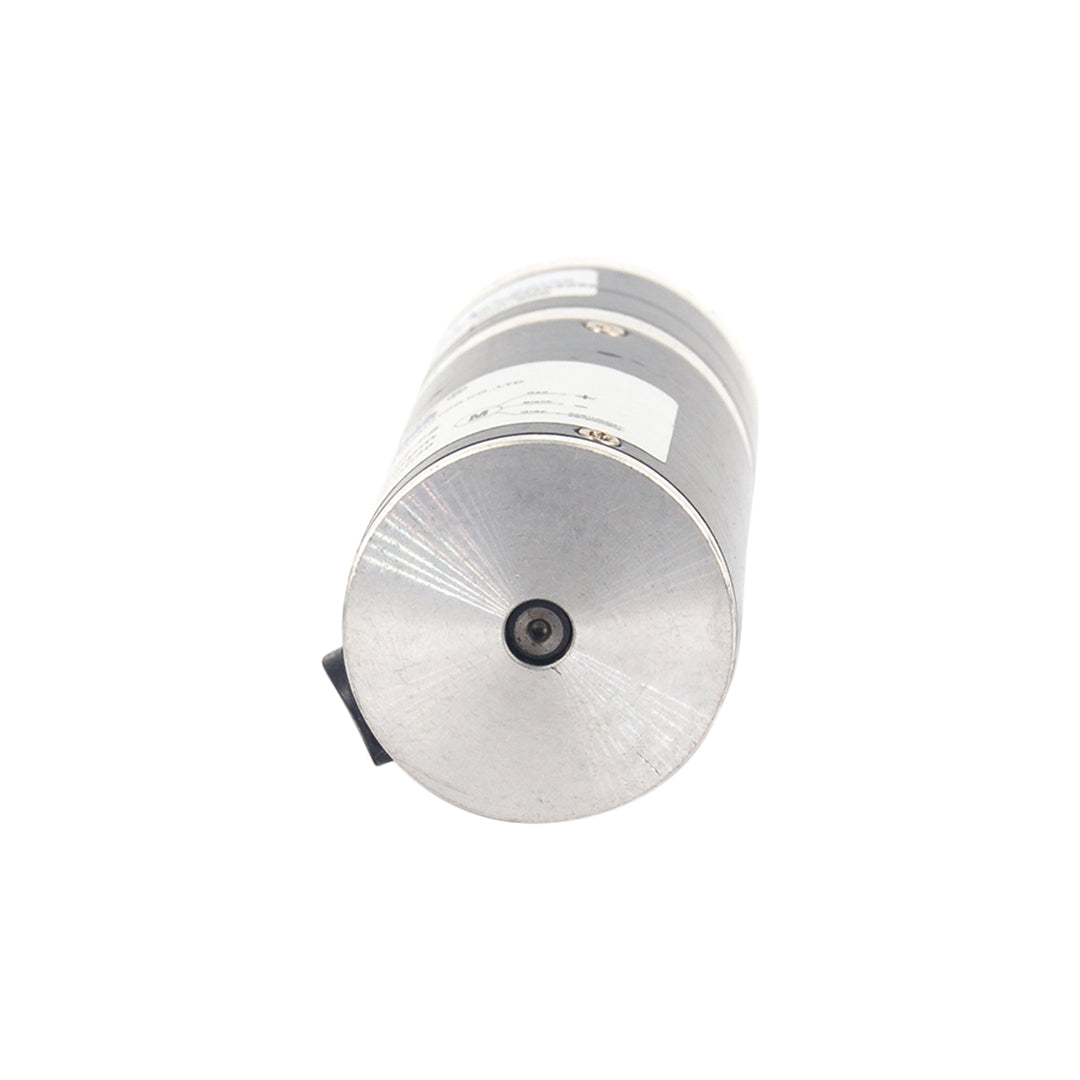

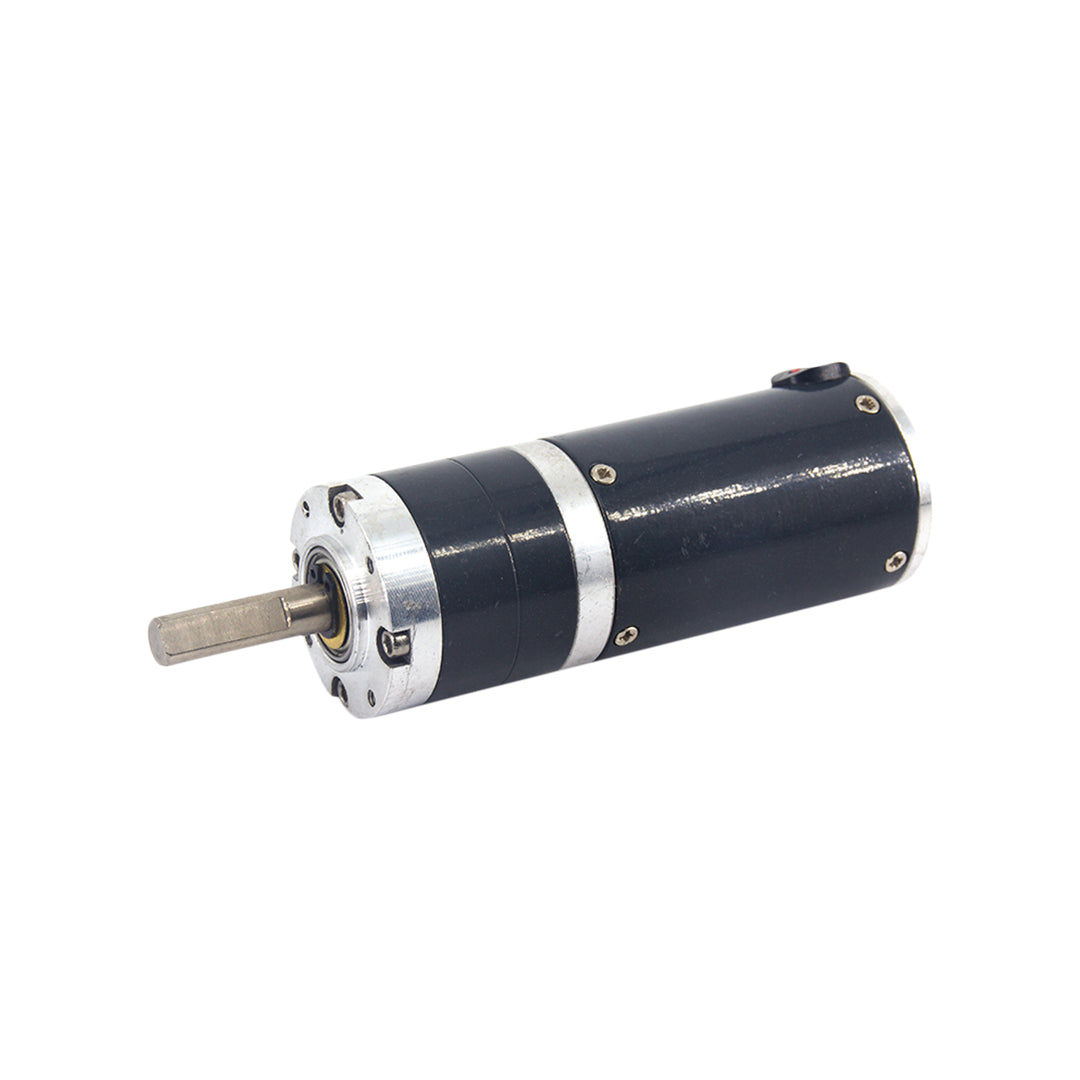

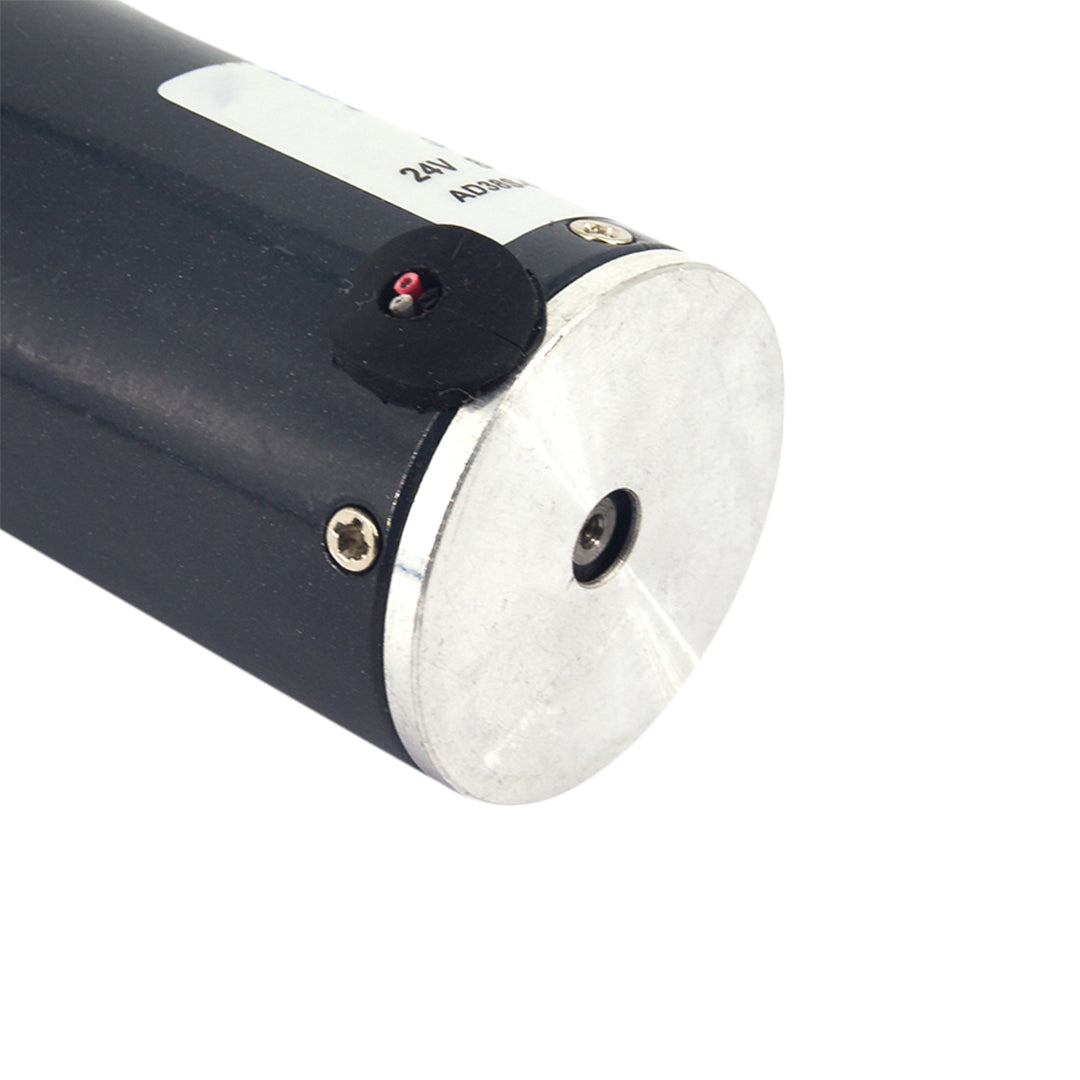

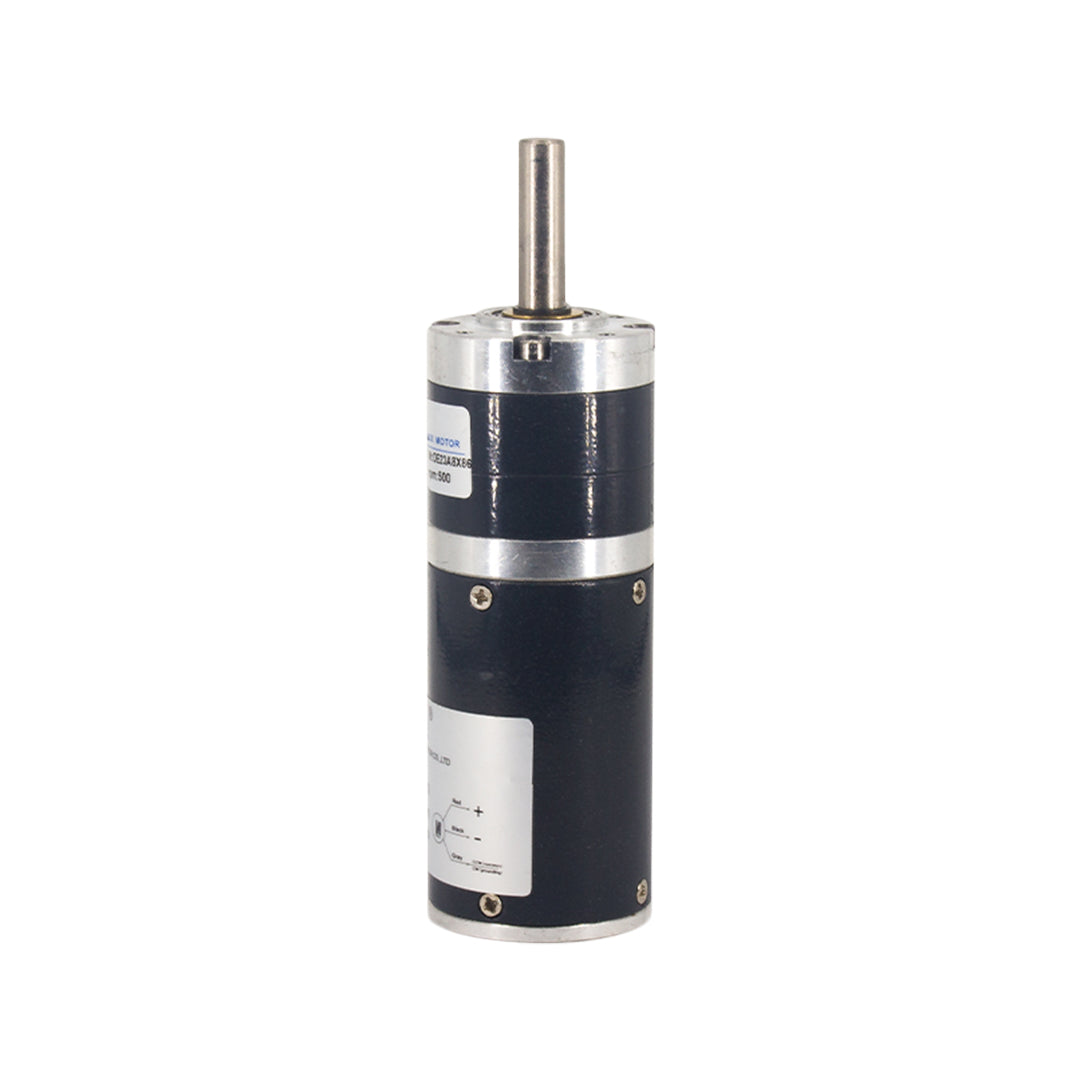

DC 12V 100RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

DC 12V 100RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

First Come First Serve Offer (T&C Apply )

3,135.02
3,999.00 3,135.02
Sale Sold out
Shipping calculated at checkout.
The DC 12V 100RPM 38GX Planetary Geared Motor is engineered for high reliability and performance in industrial applications. With a no-load and load speed of 100 RPM, this motor provides consistent operation, making it suitable for applications requiring reliable speed control. The motor delivers a rated torque of 10 KGF.CM and features a gearbox ratio of i30.25, ensuring excellent torque output and efficiency. Its full copper construction guarantees durability and effective heat dissipation, enabling long-term use in demanding conditions.

Key Features:

Reliable Performance: Maintains a steady speed of 100 RPM under load conditions, ensuring consistent operation.

Adequate Torque Output: Delivers a rated torque of 10 KGF.CM is suitable for various industrial applications.

Balanced Gear Ratio: An i30.25 gearbox ratio offers a good balance between speed and torque, making it versatile for multiple uses.

Compact Design: With a motor diameter of 38mm and a gearbox length of 32.7mm, it is easy to integrate into space-constrained environments.

Durable Construction: Full copper windings provide enhanced thermal efficiency and longevity.

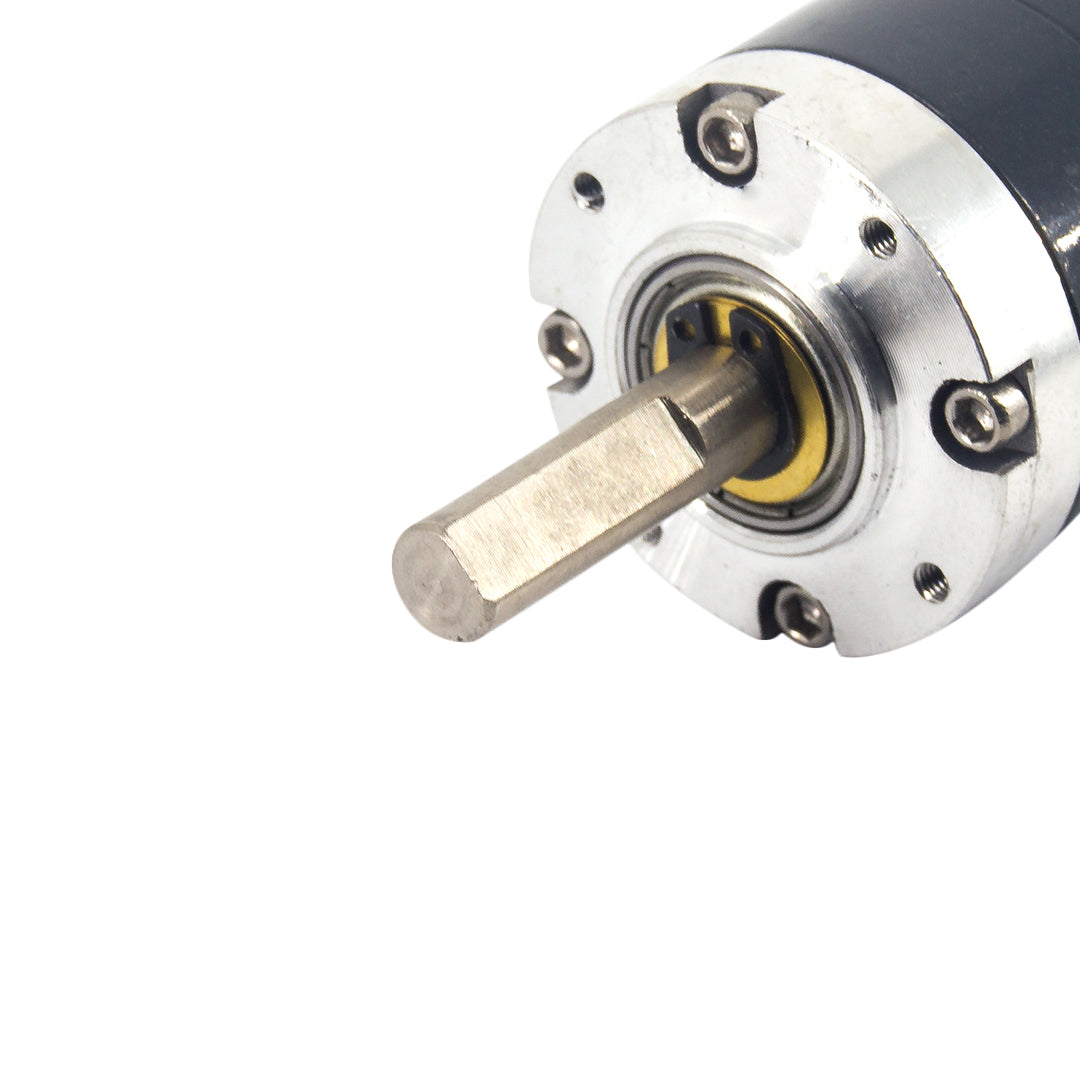

D-Type Center Shaft: The 8mm D-type shaft allows for secure mechanical connections and straightforward integration into systems.

Reliable 380 Motor: Incorporates a 380 motor known for its robustness and efficiency, ideal for various applications.

Easy Mounting: M3*4 mounting holes allow for straightforward installation across different configurations.

Applications:

Robotic Mechanisms: Ideal for robotics applications requiring precise movement at moderate speeds.

Automated Systems: Suitable for various automation tasks where consistent torque and speed are needed.

CNC Machines: Effective for CNC machinery where steady speeds and reliable torque are critical.

Specifications

  • Operating Voltage: 12V DC
  • No-Load Speed: 100 RPM
  • Load Speed: 100 RPM
  • Rated Torque: 10 KGF.CM
  • Gearbox Ratio: i30.25
  • Motor Diameter: 38mm
  • Gearbox Length: 32.7mm
  • Motor Length: 68mm
  • Shaft Type: Center Shaft (D-Type), M3*4 Mounting
  • Shaft Diameter: 8mm
  • Motor Type: 380 motor

Dimensional Drawing

DC 24V 500RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor

Package Includes

  • 1 x DC 12V 100RPM 38mm Diameter 38GX Planetary Geared Industrial Grade Highly Reliable and Full Copper Center Shaft motor
