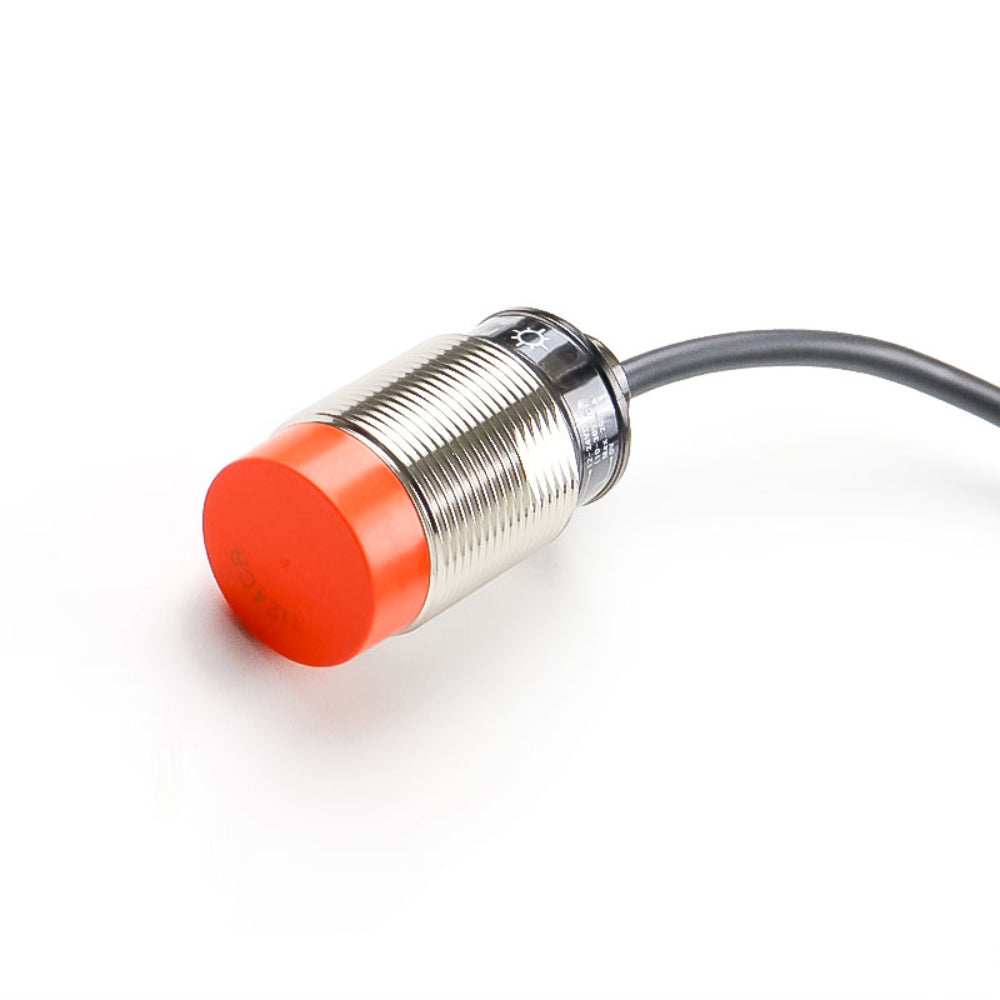

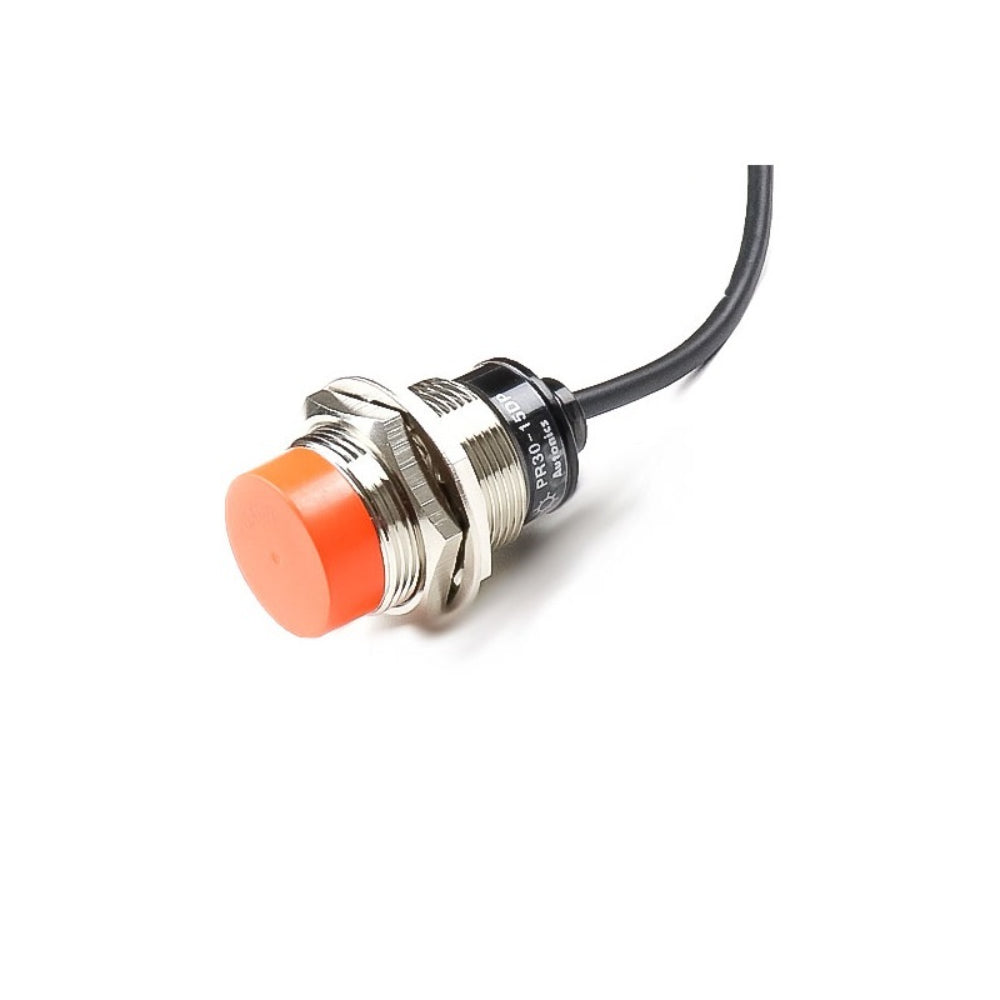

Autonics Original PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO (Shielded)

Autonics Original PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO (Shielded)

First Come First Serve Offer (T&C Apply )

881.02
1,299.00 881.02
Sale Sold out
Shipping calculated at checkout.

Autonics Original PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO (Shielded)

This is Autonics PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of a diverse range of line-ups in terms of size and sensing distance.

This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive.

This limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesn’t need to be conductive. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.

Technical Details

  • Model: Autonics M30 PNP-NO
  • Inductive Proximity Sensor
  • Operating Voltage: 10-30 VDC
  • Detection Distance: 15mm
  • Outer Thread Size: M30
  • Output Type: PNP Normally Open (3-Wire)
  • Installation: Flush (Shielded)
  • Max Output Current: 200mA
  • Setting Distance: 0 ~ 10.5mm
  • Insulation Resistance: 50MΩ
  • Frequency Response: 200Hz
  • Storage Temperature: -30 to 80°C
  • Cable: Ø5, 3-Wire, 2m
  • Weight: 206g

Feature

  • Noise-resistant dedicated IC
  • Reverse polarity protection (DC 3-wire)
  • Surge protection circuit
  • Overcurrent protection (DC type)
  • Long life & high reliability
  • Simple operation
  • IP67 protection (IEC standard)
  • Replaces micro & limit switches

Applications :

  • Industrial Automation: Detects metal objects in conveyor systems, assembly lines, and automated machinery.
  • Metal Detection: Ideal for sensing ferrous and non-ferrous metals in manufacturing and processing industries.
  • Robotics: Enables precise positioning and motion control in robotic arms and automated systems.
  • CNC Machines: Detects metal tools and workpieces in milling, lathe, and grinding machines.
  • Automotive Manufacturing: Used in vehicle assembly lines for detecting parts and ensuring proper alignment.
  • Security & Access Control: Integrated into automated gates, doors, and access control systems for non-contact sensing.
  • Smart Warehousing: Assists in inventory management by detecting metallic storage bins and automated equipment.
  • Heavy Machinery: Used in large-scale industrial equipment for position sensing and safety monitoring.
  • Construction Equipment: Applied in construction and earthmoving machines for detecting metal components and preventing collisions.

Drawing (mm)

Physical Attributes

  • Cable Diamensions : Ø5, 3-Wire, 2 Meter
  • Weight (gm): 162

Package Includes

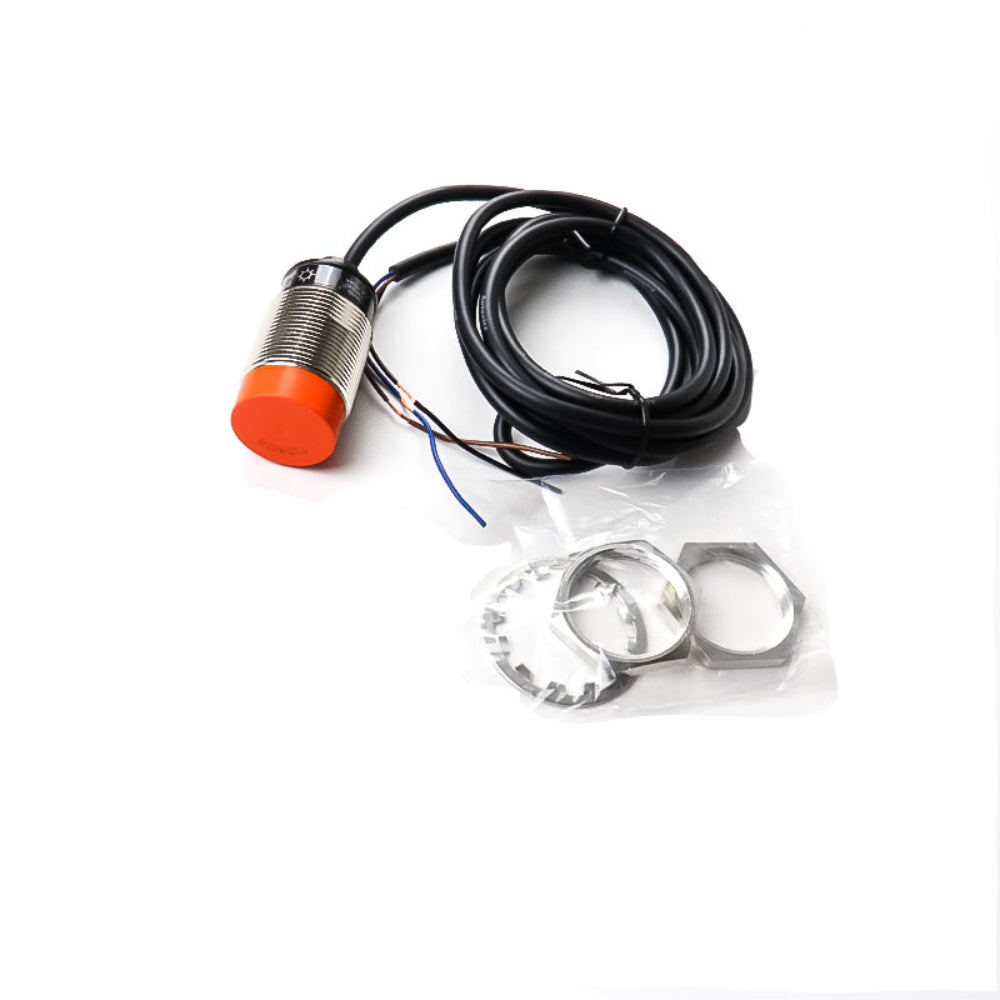

  • 1 x Autonics Original PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO (Shielded)
