Arduino Mega 2560 + DHT11 Sensor Module

Arduino Mega 2560 + DHT11 Sensor Module

First Come First Serve Offer (T&C Apply )

1,263.22
0.00 1,263.22
Sale Sold out
Shipping calculated at checkout.

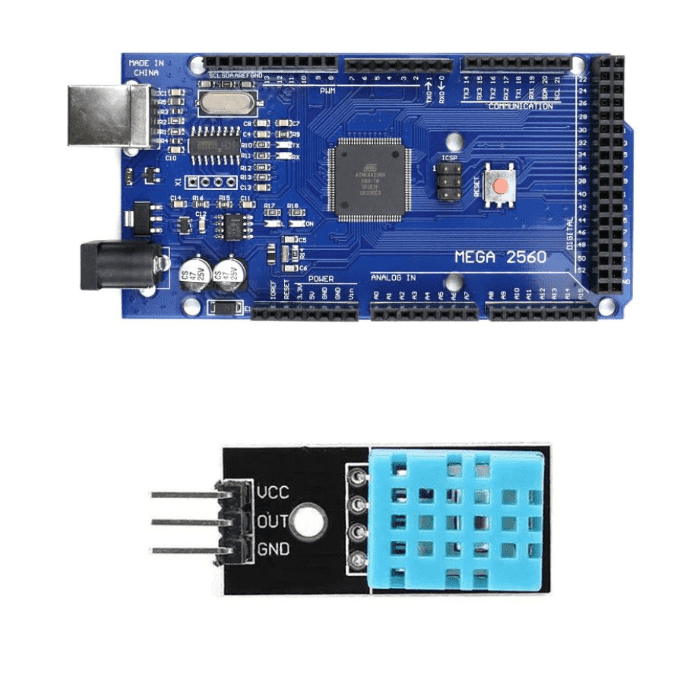

MEGA 2560 Board compatible with Arduino + DHT11 Humidity and Temperature Sensor Module

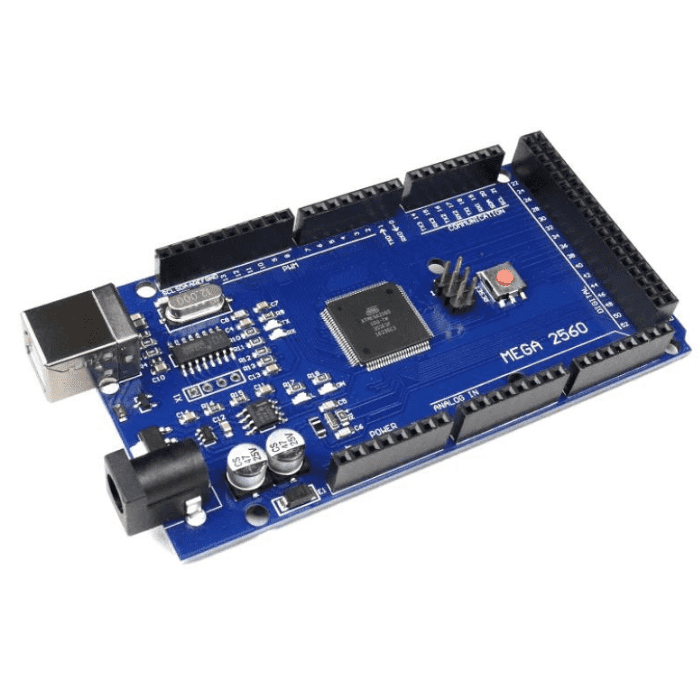

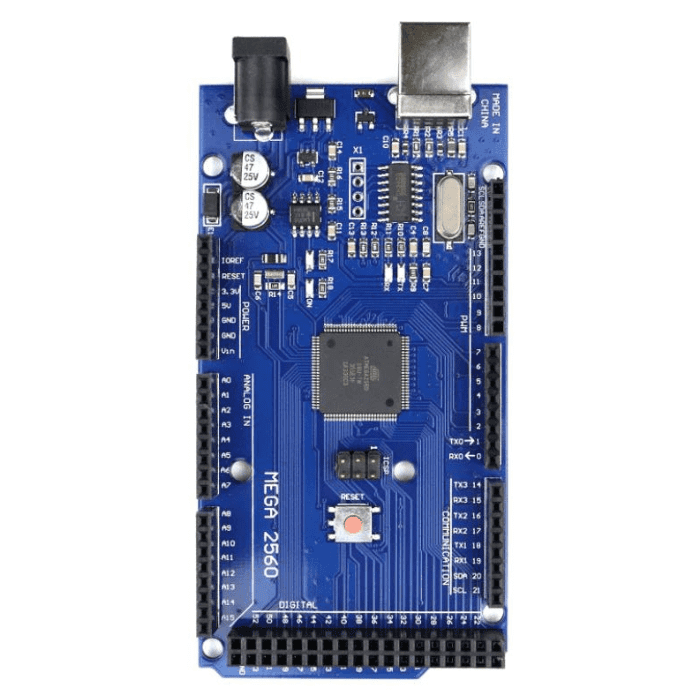

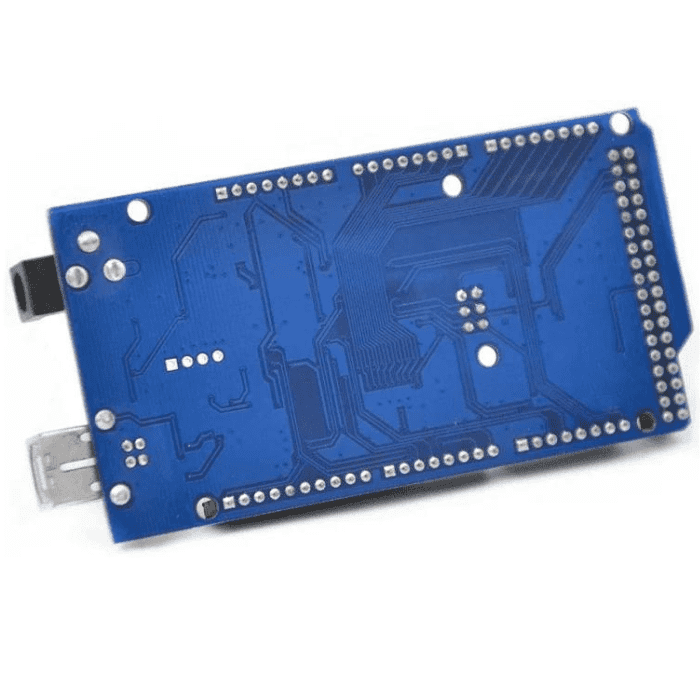

The MEGA 2560 R3 CH340G Board is a microcontroller board base on the ATmega2560. It has a USB host interface to connect with Android-based phones, based on the MAX3421e IC.

The At Mega2560 has 54 digital input/output pins (of which 15 can be used as PWM outputs); 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator; a USB connection, a power jack, an ICSP header, and a reset button. The MEGA ADK is based on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega8U2 program as a USB-to-serial converter. Revision 3 of the Mega ADK board has a resistor pulling the 8U2 HWB line to the ground, making it easier to put into DFU(Device Firmware Upgrade) mode.

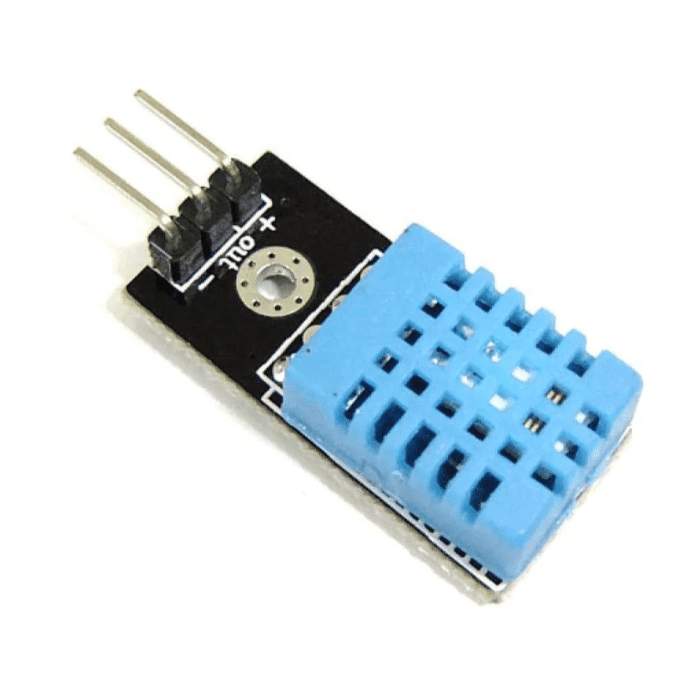

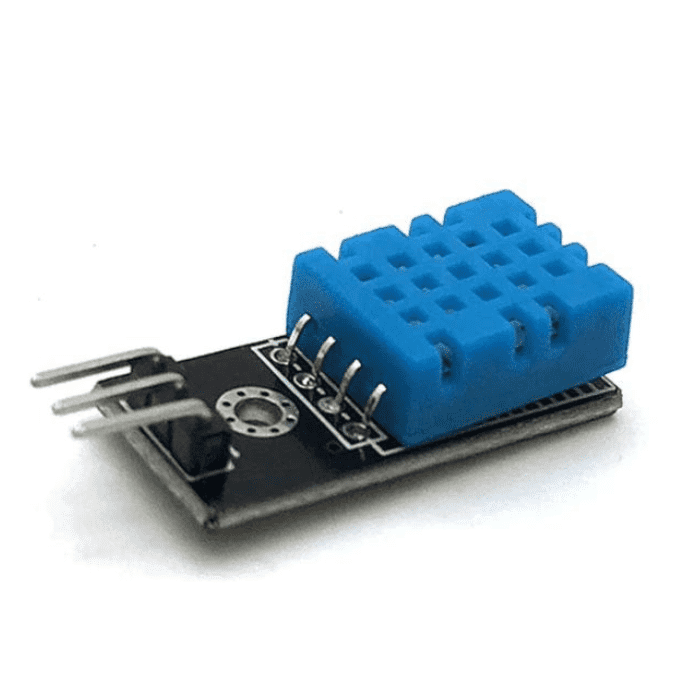

The DHT11 Humidity and Temperature Sensor Module is capable of sensing both temperatures as well as humidity. This makes it ideal for projects as well as automation. The board is also equipped with a high-performance 8-Bit microcontroller connected to the DHT11 sensor module.

The output of the DHT11 Temperature Sensor Module is in the form of a digital signal on a single data pin. The sensing update frequency is to be measured every 2sec (0.5Hz). The DHT11 Sensor Module can be interfaced with any microcontroller like Arduino, Raspberry Pi, etc. This Sensor module integrates the DHT11 sensor and other required components on a small PCB.

NEW FEATURES OF THE MEGA2560 R3 BOARD

  • The Mega2560 R3 board features a 1.0 pinout with an added SDA and SCL pins near the AREF pin. It also features two new pins located near the RESET pin. They allow mega2560 shields to adapt to the voltage provided by the board.
  • The At Mega2560 development board also features a stronger RESET circuit.

APPLICATIONS:

  • Embedded Design & Development
  • Industrial, Communications & Networking
  • Sensing & Instrumentation
  • Automation & Process Control
  • Measure temperature and humidity
  • Local Weather station
  • Automatic climate control
  • Environment monitoring
  • Home Automation

PACKAGE INCLUDES:

  • 1 x MEGA2560 Board compatible with Arduino
  • 1 x DHT11 Humidity and Temperature Sensor Module

SPECIFICATIONS OF MEGA2560 BOARD:

Microcontroller

ATmega2560

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limit)

6-20V

Digital I/O Pins

54 (of which 15 provide PWM output)

Analog Input Pins

16

DC Current per I/O Pin

20 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

256 KB of which 8 KB used by bootloader

SRAM

8 KB

EEPROM

4 KB

Clock Speed

16 MHz

LED_BUILTIN

13

Dimensions

101.52 x 53.3 x 2 mm

Weight

37 g

SPECIFICATIONS OF DHT11 SENSOR MODULE:

Operating Voltage

3.3VDC to 5.5VDC

Temperature measuring range

0~+50degree

Humidity measurement accuracy

±5.0%RH

Humidity measuring range

20%~90%RH

Temperature measurement accuracy

±2.0degree

 Dimensions

3 x 3 x 1cms

Weight

5 grams
