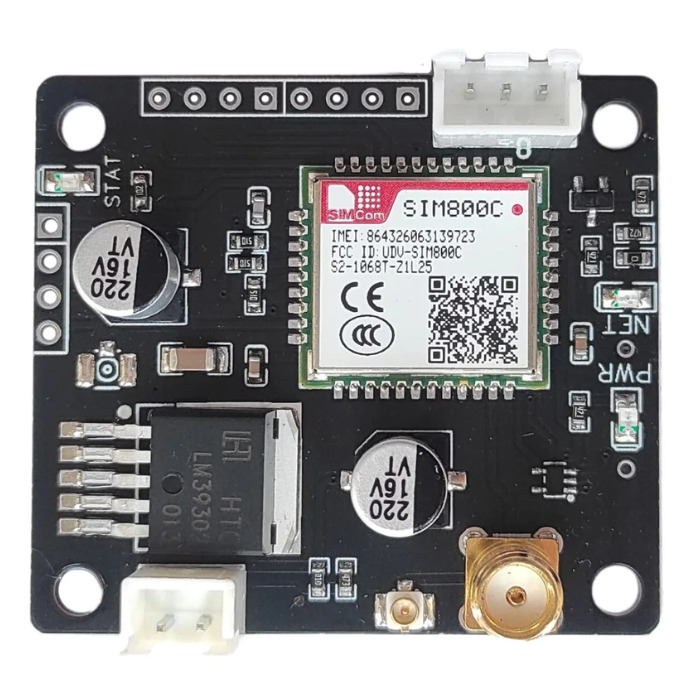

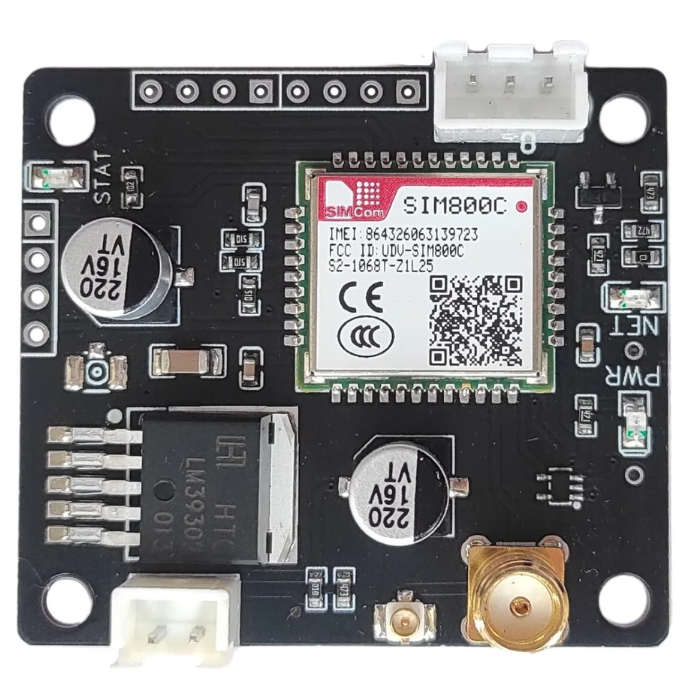

Adiy SIM800C LM39302 TTL Board

Adiy SIM800C LM39302 TTL Board

First Come First Serve Offer (T&C Apply )

Regular price 854.00
Regular price 1,049.00 Sale price 854.00
Sale Sold out
Shipping calculated at checkout.

Adiy SIM800C LM39302 TTL Board

ADIY SIM800C LM39302 TTL BOARD is your go-to solution for enhanced communication needs. Built with the Quad-Band GSM/GPRS engine-SIM800C, this module guarantees reliable connectivity on frequencies 850/900/1800/1900MHz. The configurable baud rate empowers you to customize communication speed through simple AT commands.

Featuring LM39302R-ADJ 3.0A for low-dropout linear voltage regulation, this board provides a stable and high-current output with minimal external components. Its versatility is evident with applications ranging from industrial automation to health monitoring. The onboard regulated power supply accommodates a wide range of unregulated power inputs, ensuring adaptability to various setups.

The module's robust design, including ESD compliance, push-push Nano SIM card holder, and antennas with UFL and SMA connectors, makes it suitable for diverse scenarios. Whether you're in industrial automation, data logging, home automation, or health monitoring,

ADIY SIM800C is designed to meet your communication demands. Suitable for a wide voltage range and featuring advanced technology, it ensures reliable performance in diverse applications.

Pin Description:

Adiy SIM800C LM39302 TTL Board Pinout
  • VCC : Input range is 5-20V
  • GND: power supply ground
  • TXD: send pin serial port module.
  • RTS: Request to send
  • CTS: Clear to send
  • BT_A: BLE Antenna
  • RF_S: RF_Sync
  • ADC: Analog-to-digital Convertor
  • STAT: Status
  • RXD: receive pin serial port module.
  • SPKP: Speaker pin (+)
  • SPKN: Speaker pin(-)
  • MICN: Mic pin (-)
  • MICP: Mic pin (+)
  • RI: Ring core pin tips

Features:

  • Quad-Band GSM/GPRS 850/900/1800/1900MHz.
  • Configurable Baud Rate.
  • Power controlled using LM39302 IC.
  • ESD Compliance.
  • Enable MIC and Speaker socket.
  • push-push Nano sim card holder.
  • With UFL and SMA connector Antennas.
  • Input Voltage: 5-20V.

Applications:

  • Industrial automation.
  • GPRS based data logging.
  • GPRS and BLE application.
  • Home automation.
  • Health monitoring.
  • Agriculture automation.
  • Vehicle tracking.
  • Remote monitoring and controlling.
  • GPRS based Weather report logging.
  • GSM GPRS based Security alert.
  • GPRS based remote terminal for file transfer.
  • Bulk SMS sending.

Package Includes:

  • 1 x Adiy SIM800C LM39302 TTL Board

Specifications:

Quad-Band Connectivity GSM/GPRS frequencies 850/900/1800/1900MHz
Configurable Baud Rate Yes, adjustable through AT command
LM39302 Power Control Yes, low-dropout linear voltage regulation
Versatile Connectivity Nano SIM card holder, UFL and SMA connector antennas
Wide Voltage Input 5-20V
