AC220V 40W 10 RPM 70KTYZ Permanent Magnet Side shaft Synchronous Motor

AC220V 40W 10 RPM 70KTYZ Permanent Magnet Side shaft Synchronous Motor

First Come First Serve Offer (T&C Apply )

1,959.02
2,499.00 1,959.02
Sale Sold out
Shipping calculated at checkout.

The XD-70KTYZ-B AC synchronous motor is engineered for applications requiring low-speed operation with high torque. Delivering 40W of power at a speed of 10 RPM, this motor provides a robust torque output of 38 Kgf. cm, making it suitable for demanding industrial and commercial uses. It operates efficiently across a voltage range of 100 to 240V AC, allowing flexibility for various power sources, and supports both clockwise and counterclockwise (CW/CCW) rotation.

Features:

High Torque at Low Speed: The motor’s ability to deliver 38 Kgf.cm of torque at just 10 RPM makes it ideal for applications requiring strong force without high-speed operation.

Wide Voltage Compatibility: Capable of operating between 100 and 240V AC, this motor can seamlessly integrate into various systems.

Low Noise Emission: Operating below 45 dB, it is suitable for environments where quiet operation is essential.

Versatile Rotation Direction: Offers the flexibility of CW and CCW rotation, allowing for diverse applications.

Reliable Insulation: Features Class E insulation for enhanced durability and performance in challenging conditions.

Applications:

Industrial Machinery: Perfect for applications requiring consistent low-speed and high-torque performance, such as conveyors and mixing equipment.

Automated Equipment: Suitable for automated systems that need reliable, controlled motion.

Robotics: Commonly used in robotic applications where precise and strong movement is necessary.

Home Appliances: Useful in appliances like rotary tools and mixers that operate at low speeds.

Specifications

  • Voltage Range: 100–240V AC
  • Max Power: 40W
  • Max Current: ?120 mA
  • Frequency: 50–60 Hz
  • Speed: 10 RPM
  • Torque: 38 Kgf.cm
  • Temperature Rise: 65 K
  • Noise Level: <45 dB
  • Insulation Class: E
  • Dimensions: 70 x 70 mm

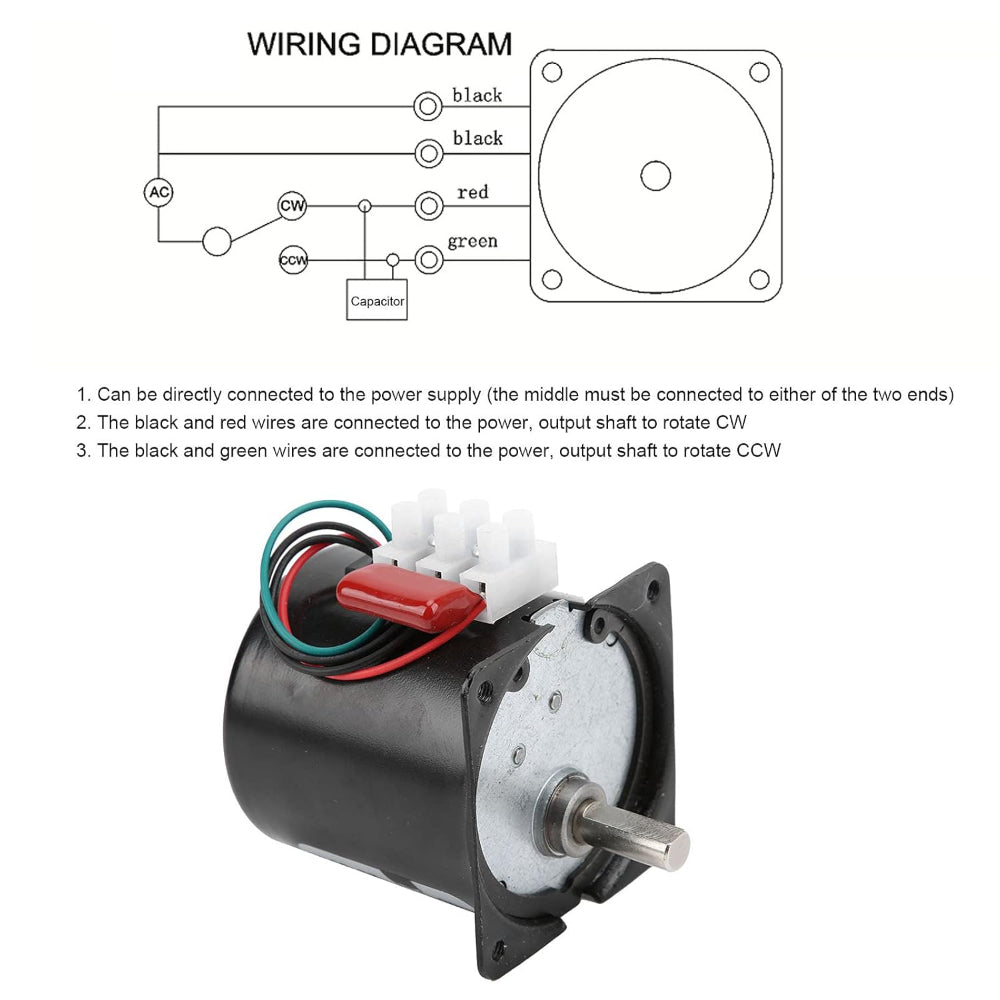

Drawing

AC Synchronous motor, XD-70KTYZ-B, 40W 10rpm

Package Includes

  • 1 x AC220V 40W 10 RPM 70KTYZ Permanent Magnet Side shaft Synchronous Motor
