AC220V 28W 80 RPM 68KTYZ Permanent Magnet center shaft Synchronous Motor

AC220V 28W 80 RPM 68KTYZ Permanent Magnet center shaft Synchronous Motor

First Come First Serve Offer (T&C Apply )

1,175.02
1,499.00 1,175.02
Sale Sold out
Shipping calculated at checkout.

The XD-68KTYZ-A AC synchronous motor offers a robust performance with a power rating of 28W at a speed of 80 RPM. With a torque output of 2 Kgf.cm, this motor is engineered for applications where high speed is essential while maintaining a moderate torque level. It operates efficiently across a voltage range of 100 to 240V AC and supports both clockwise and counterclockwise (CW/CCW) rotation for versatile installation options.

Features:

High-Speed Operation: Delivers 80 RPM with a torque of 2 Kgf.cm, making it ideal for applications requiring swift movement.

Wide Voltage Compatibility: Functions effectively within a voltage range of 100–240V AC, enhancing adaptability for different setups.

Quiet Performance: Operates at less than 45 dB, suitable for noise-sensitive environments.

Bidirectional Rotation: Capable of CW and CCW rotation, providing flexibility in design and application.

Reliable Construction: Features Class E insulation for durability and long-term performance.

Applications:

Fan Systems: Suitable for ventilation fans that require high speeds for effective air movement.

Automation Equipment: Commonly used in automated systems where quick and consistent rotation is needed.

Textile Machinery: Effective in processes that demand high-speed operations with lower torque.

Medical Devices: Ideal for medical equipment requiring precision and low noise. The XD-68KTYZ-A motor is designed for efficiency and reliability, making it a versatile choice for a wide range of industrial and mechanical applications.

Specifications

  • Voltage Range: 100–240V
  • AC Max Power: 28W
  • Max Current: ?120mA
  • Frequency: 50–60 Hz
  • Speed: 80 RPM Torque: 2 Kgf. cm
  • Temperature Rise: 65 K
  • Noise Level: 45 dB

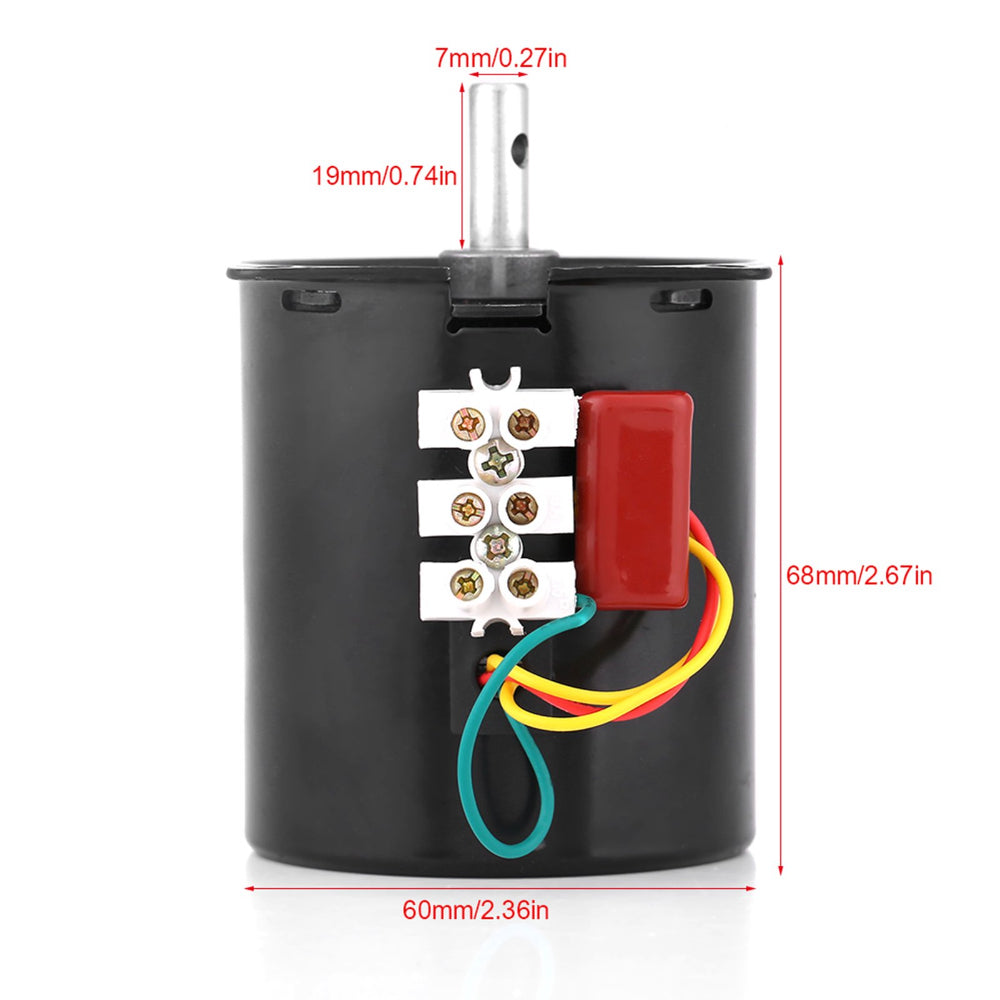

  • Insulation Class: E Dimensions: 60 x 68 mm

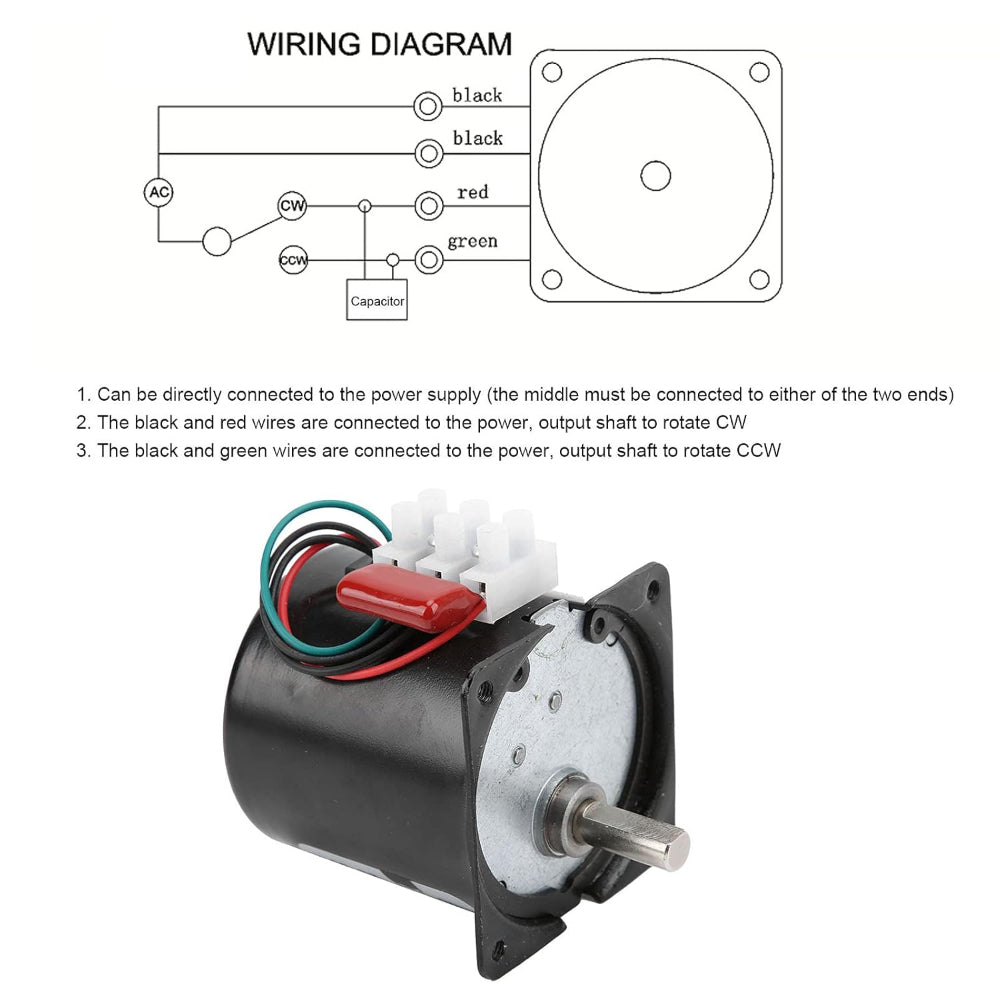

Drawing

AC Synchronous motor, XD-68KTYZ-A 28W 2.5rpm

Package Includes

  • 1 x AC220V 28W 80 RPM 68KTYZ Permanent Magnet center shaft Synchronous Motor
