Hall Effect Two Channel Magnetic Rotary AB Encoder for DC motors

The Hall Effect Two-Channel Magnetic Rotary AB Encoder is designed for precise rotation sensing in DC motors. It utilizes a two-channel Hall effect sensor to detect the movement of a magnetic disk attached to the rear protrusion of the motor shaft. This quadrature encoder provides a resolution of 7 counts per revolution of the motor shaft when counting both edges of both channels. To determine the counts per revolution at the gearbox output, simply multiply the gear ratio by 48.

Operating with an input voltage range of 3.3V to 5V and drawing a maximum current of 10mA, the encoder delivers square wave outputs (A and B) that oscillate between 0V and Vcc, with a 90° phase shift between them. The frequency of transitions indicates motor speed, while the order of transitions determines the rotation direction.

By capturing both rising and falling edges of the A and B outputs, the system achieves precise position tracking. The encoder comes as a complete package with essential mounting accessories, including a magnet and connecting cable, making it easy to integrate into various motor control applications.

Technical Details

  • Type: Magnetic Rotary Encoder
  • Sensing Technology: Hall Effect
  • Channels: Two-Channel (A & B)
  • Operating Voltage: 3.3V - 5V
  • Output Signal: Quadrature AB
  • Resolution: Depends on the pole count of the magnetic disk
  • Connector: 5-6 pin JST connector
  • Mounting: Hollow Shaft / Through-Hole

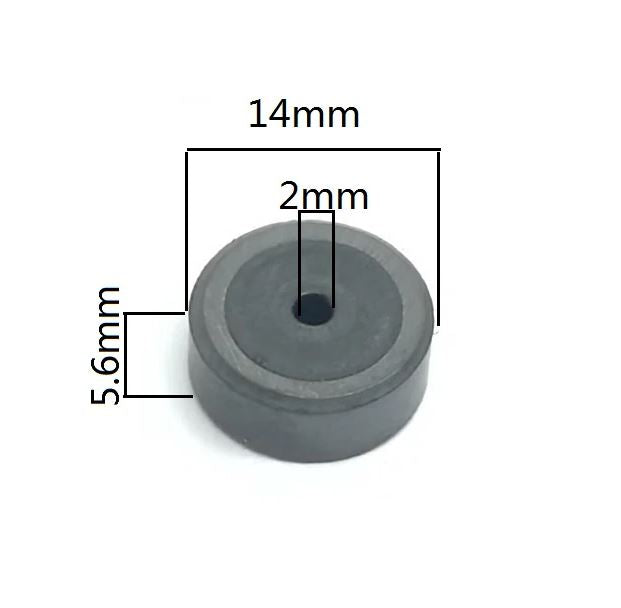

  • Magnetic Disc Diameter: Varies (typically 14mm)

Features

  • Contactless Sensing: Reduces wear and tear
  • Compact Design: Ideal for small DC motors
  • High Precision: Provides accurate speed and position feedback
  • Wide Voltage Compatibility: Works with microcontrollers like Arduino, Raspberry Pi, ESP32, etc.
  • Quadrature Output: Enables direction and speed detection

Applications :

  • Robotics: Precise motion control
  • CNC Machines: Position tracking
  • Electric Vehicles: Motor feedback
  • Automation Systems: Industrial motor control
  • 3D Printers: Stepper and servo motor monitoring

Physical Attributes

  • Dia x H mm : 26 x 12
  • Weight (gm) : 3

Package Includes

  • 1 x Hall Effect Two Channel Magnetic Rotary AB Encoder for DC motors
