9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V

9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V

First Come First Serve Offer (T&C Apply )

935.90
935.90
Sale Sold out
Shipping calculated at checkout.

9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V

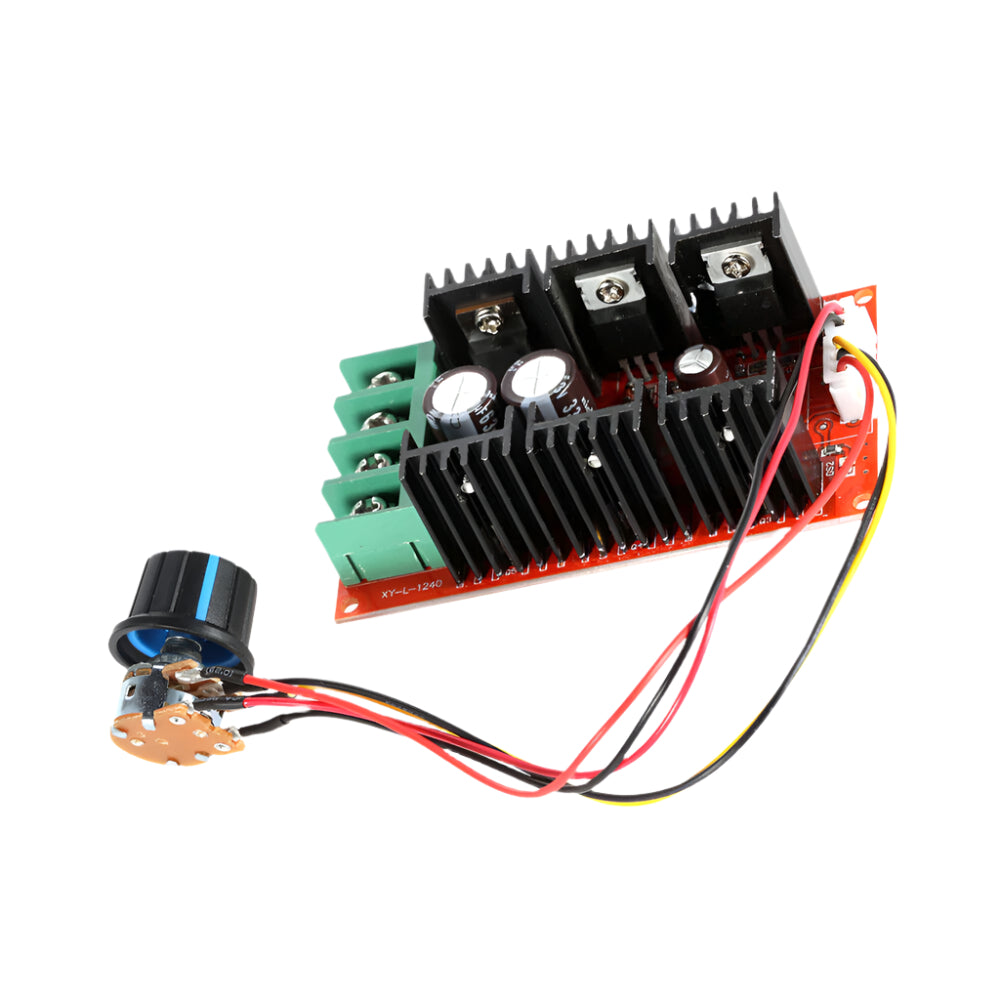

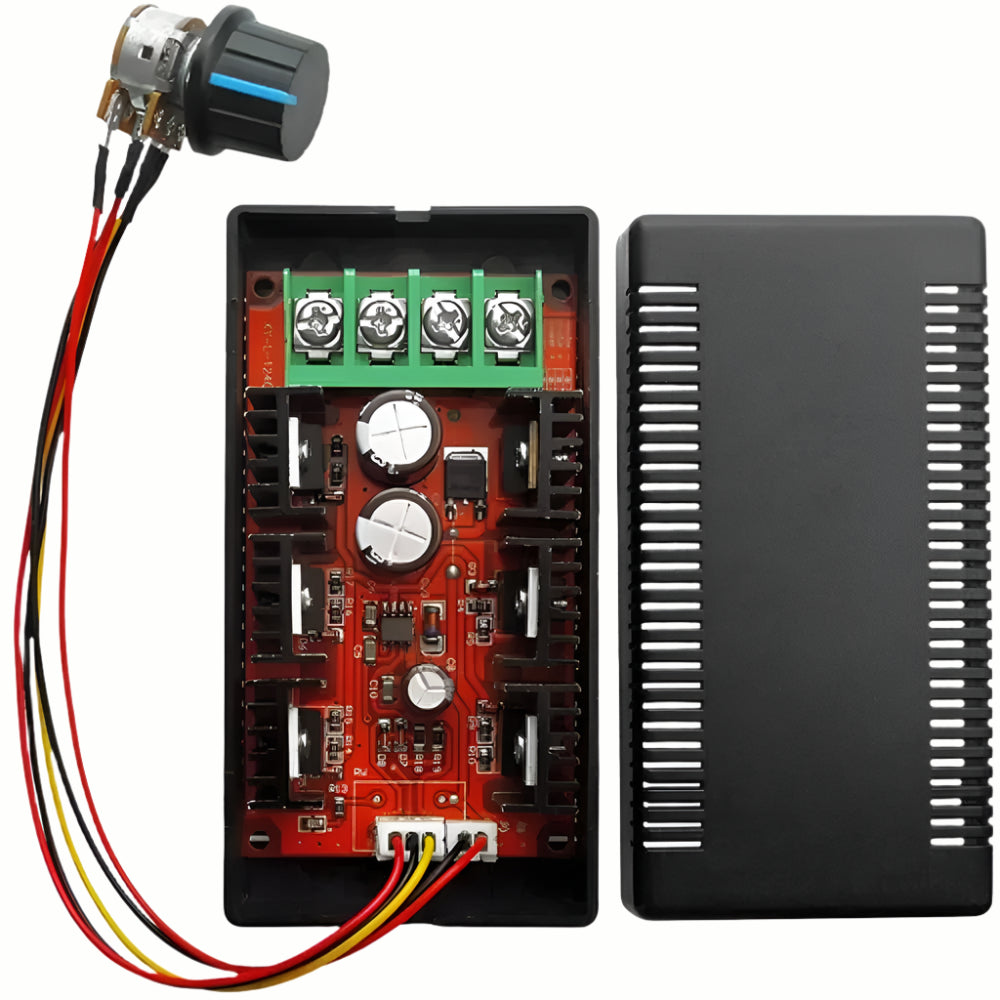

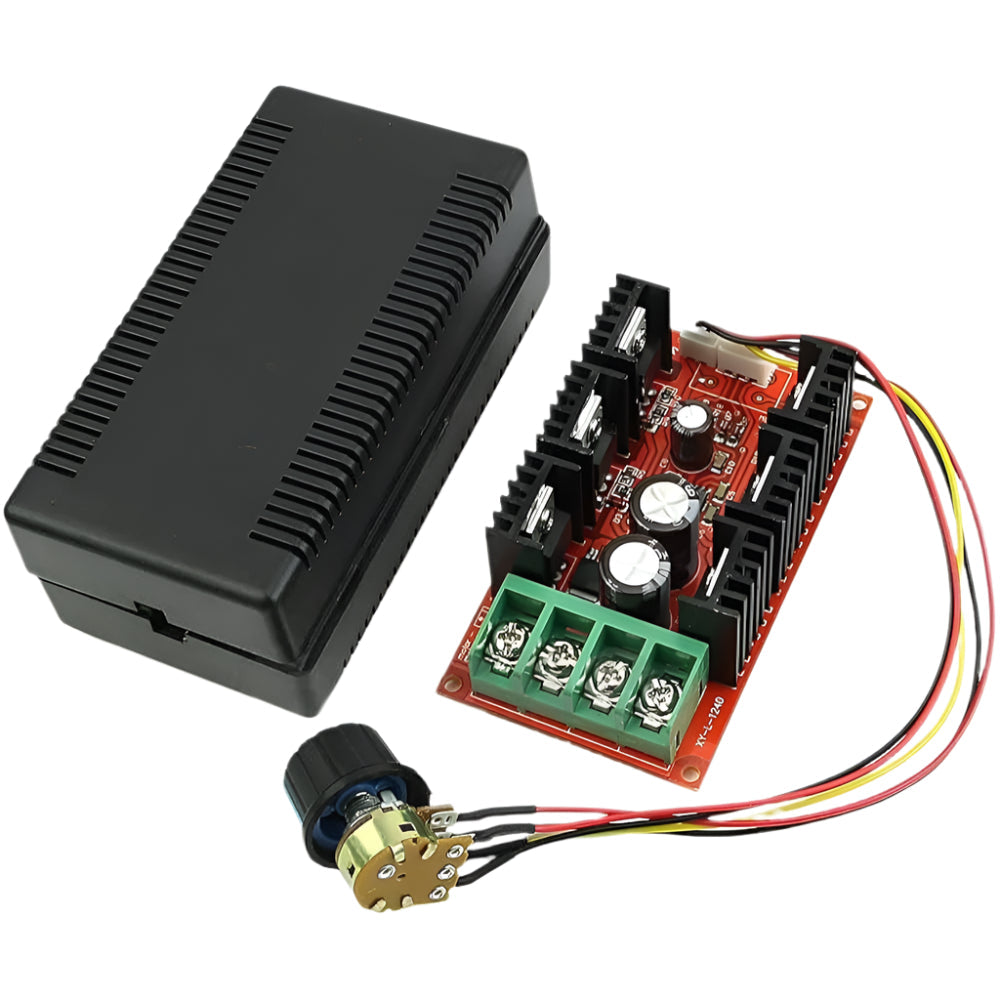

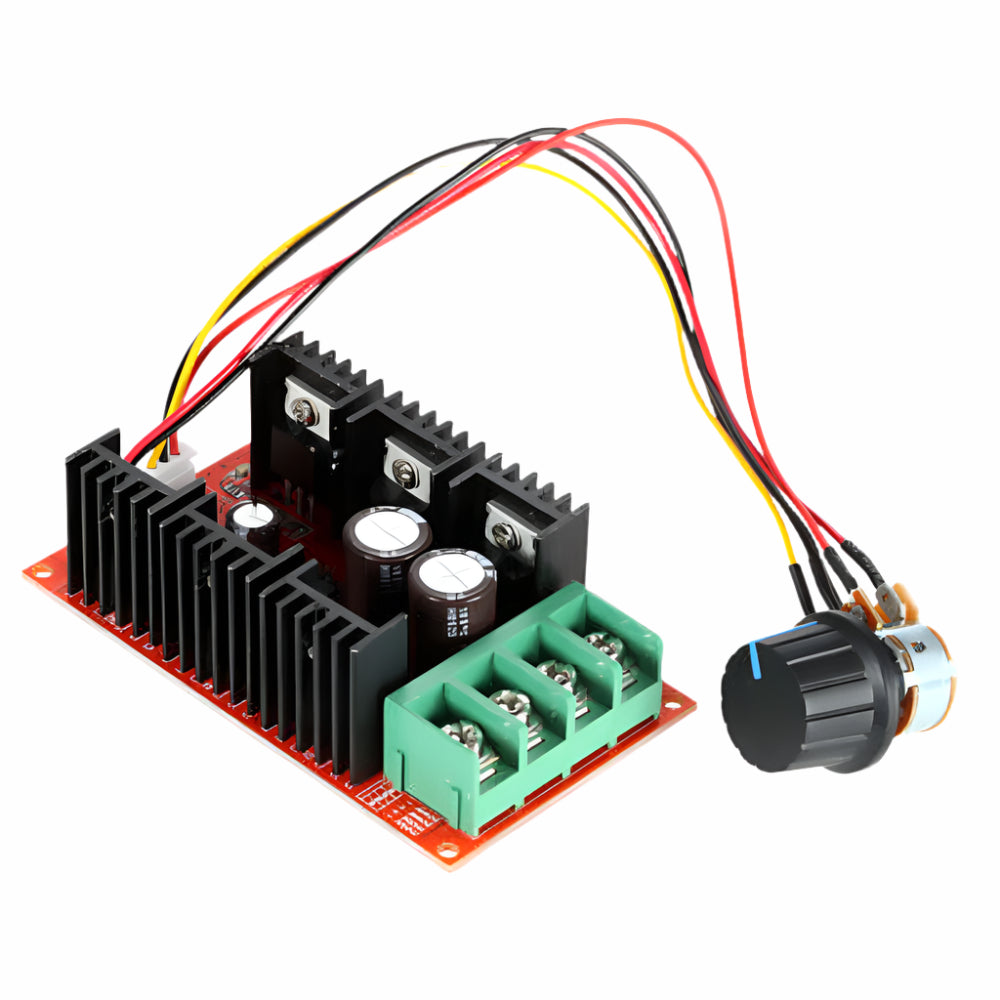

This 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V is used to control the speed of DC motors from 9V to 50V with a maximum power of 2000W this controller can provide up to 40A of current depending on the power supply. The board comes with a protective housing made from ABS plastic. The controller has 6 high-quality NCE7190A MOSFET’s which are connected to the individual heatsinks.

Technical Details

  • Item Type: PWM Speed Regulator
  • Current Rating: 40A
  • Voltage Rating: 12 to 50V
  • PWM Frequency: 12000Hz
  • Control Voltage Range: 0.01-2000W
  • Rated Current: 40A (Max Output)
  • Regulation Range: 5-100%
  • Length: 90 mm
  • Width: 51 mm
  • Height: 30 mm
  • Weight: 93 g

Features

  • Industrial Quality Board
  • Max Output Current: 40A
  • Max Output Power: 2000W
  • Working Voltage: 9V to 50V

Applications :

  • Electric Motors: Controls the speed of DC motors in various industrial and automotive applications.
  • Electric Vehicles (EVs): Used in electric vehicles for efficient motor speed control.
  • Robotics: Helps regulate motor speed in robotic arms and systems.
  • Pumps and Fans: Suitable for regulating the speed of DC-powered pumps and fans in HVAC or water systems.
  • Treadmills and Exercise Equipment: Controls the motor speed in fitness machines like treadmills.
  • Battery-Powered Tools: Used to manage speed in battery-operated power tools like drills and saws.
  • Renewable Energy Systems: Controls motors in wind turbines or solar tracking systems.

Package Includes

  • 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller 12/24/36/50V
