5V USB Output Converter 7V-24V To 5V / 3A, DC DC Step-Down Buck KIS3R33S Module

5V USB Output Converter 7V-24V To 5V / 3A, DC DC Step-Down Buck KIS3R33S Module

First Come First Serve Offer (T&C Apply )

234.22
349.00 234.22
Sale Sold out
Shipping calculated at checkout.

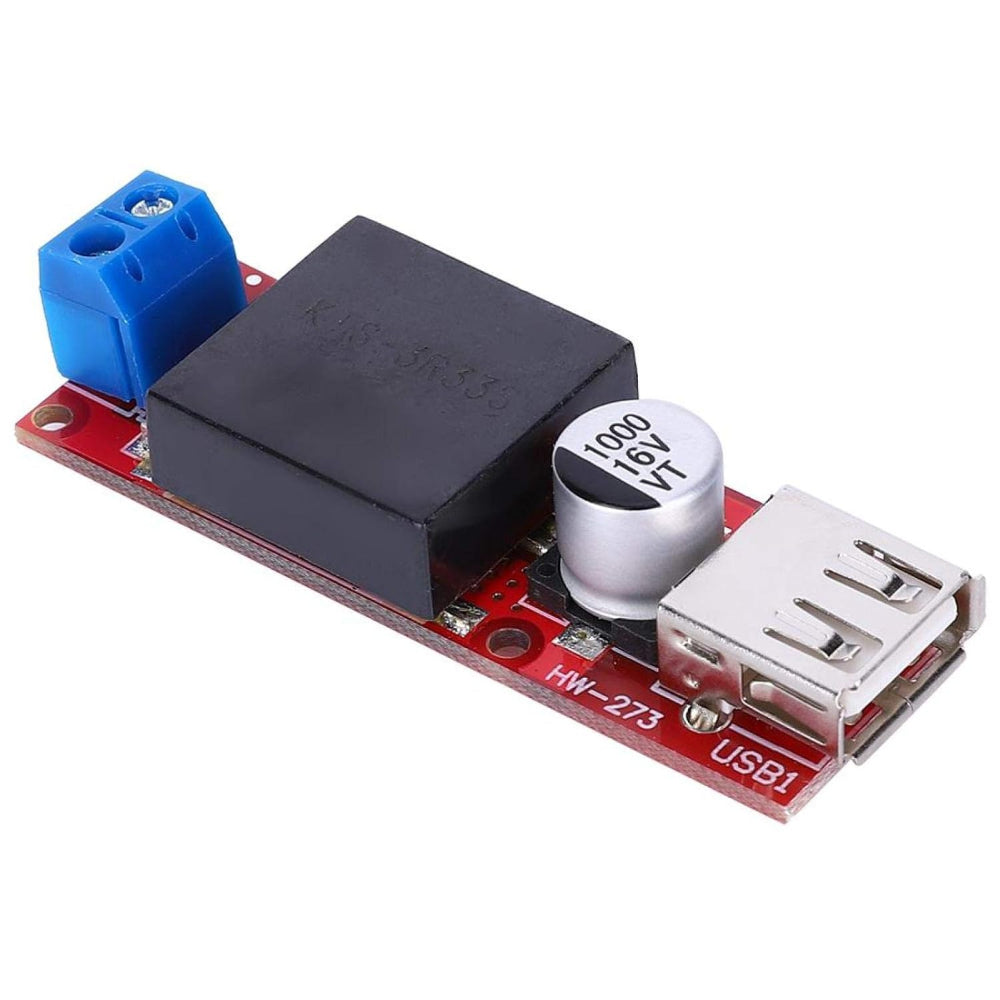

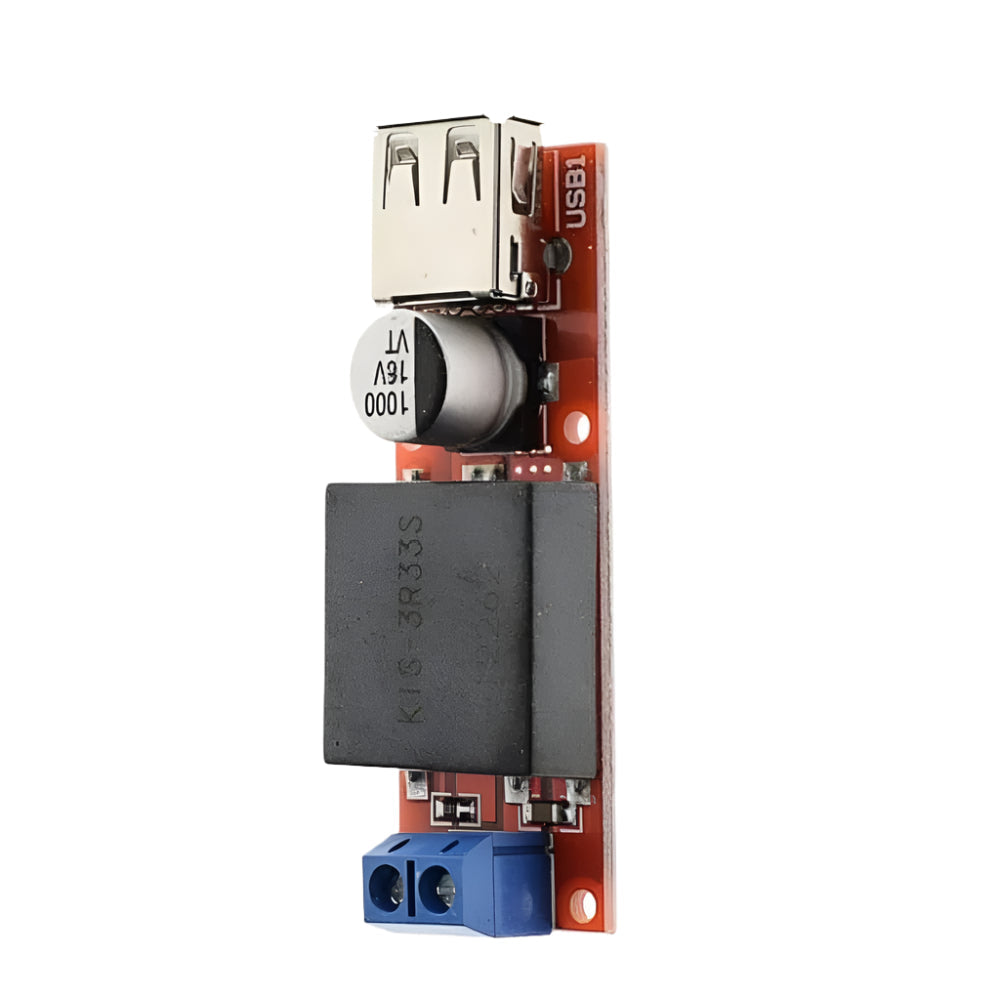

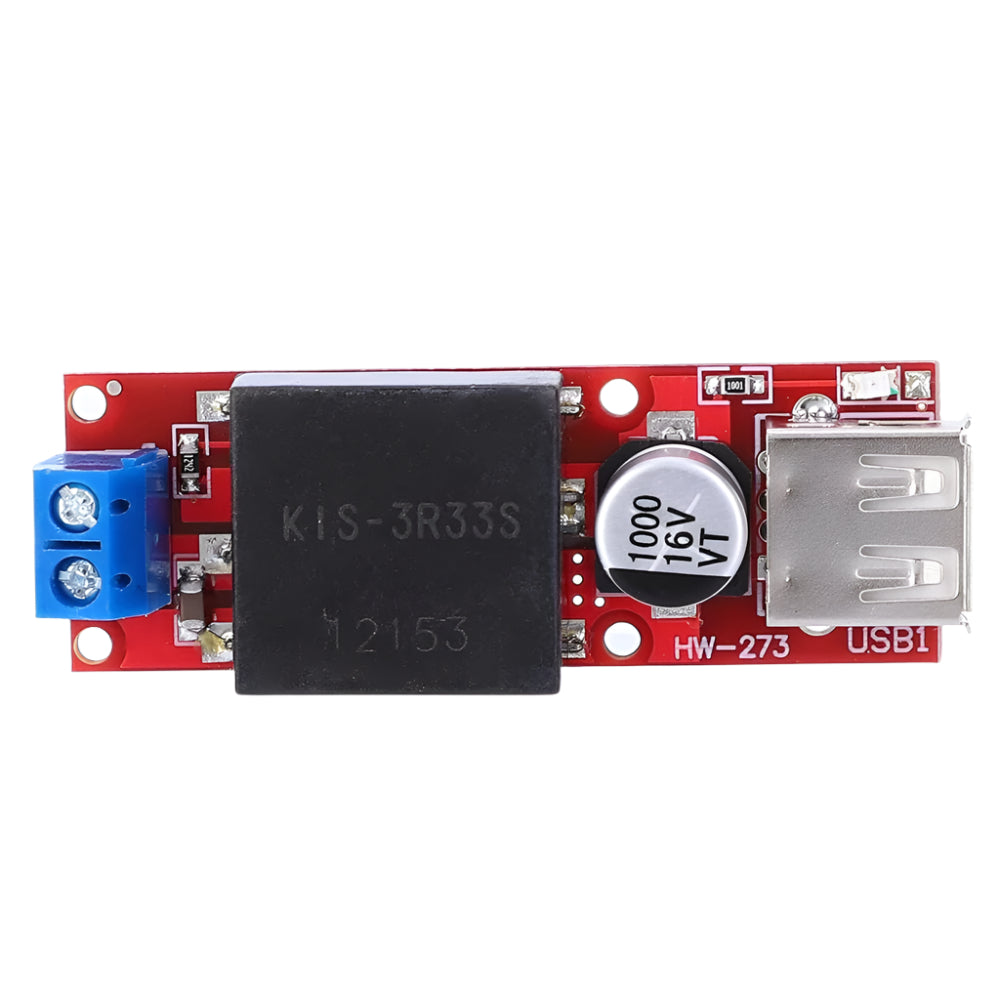

5V USB Output Converter 7V-24V To 5V / 3A, DC DC Step-Down Buck KIS3R33S Module

This 5V USB output converter module is based on the KIS3R33S module specific design, with an input voltage of 7V to 24V, and an output voltage of 5.01V 2.5A peak output current of 4A continuous output. Able to provide 3A continuous load current. The majority of players' professional testing, with high efficiency, ultra-low loss characteristics, beyond perfect lm2596 power module. This module has a USB recognition. This module uses the original Sanyo low ESR filter capacitor voltage as low as possible so that the ripple 30mV, is fully capable and linear power comparable. IN-(input negative), IN + (positive input), OUT-(negative output), and OUT + (positive output) must be connected to the right, otherwise may cause damage to the module

Technical Details

  • Modules Nature: Non-isolated Buck
  • Rectification: Non-synchronous rectification
  • Input Voltage: DC 7-24V
  • Output Voltage: DC 5V
  • Output Current: 3A (max)
  • Conversion Efficiency: 96% (MAX)
  • Switching Frequency: 340KHz
  • Output Ripple: 30mV (max)
  • Load Regulation: ±0.5%
  • Voltage Regulation: ±2.5%
  • Operating Temperature: -40°C to +85°C (with overcurrent protection)
  • Dimension: 63.9 x 20.7 x 10mm (L x W x H, approx)

Features

  • DIY Mobile Power Supply, 5V output for charging Phone, MP3, MP4, PSP, etc.
  • Modules Nature: Non-isolated Buck
  • With Overcurrent Protection
  • Rectification: Non-synchronous rectification

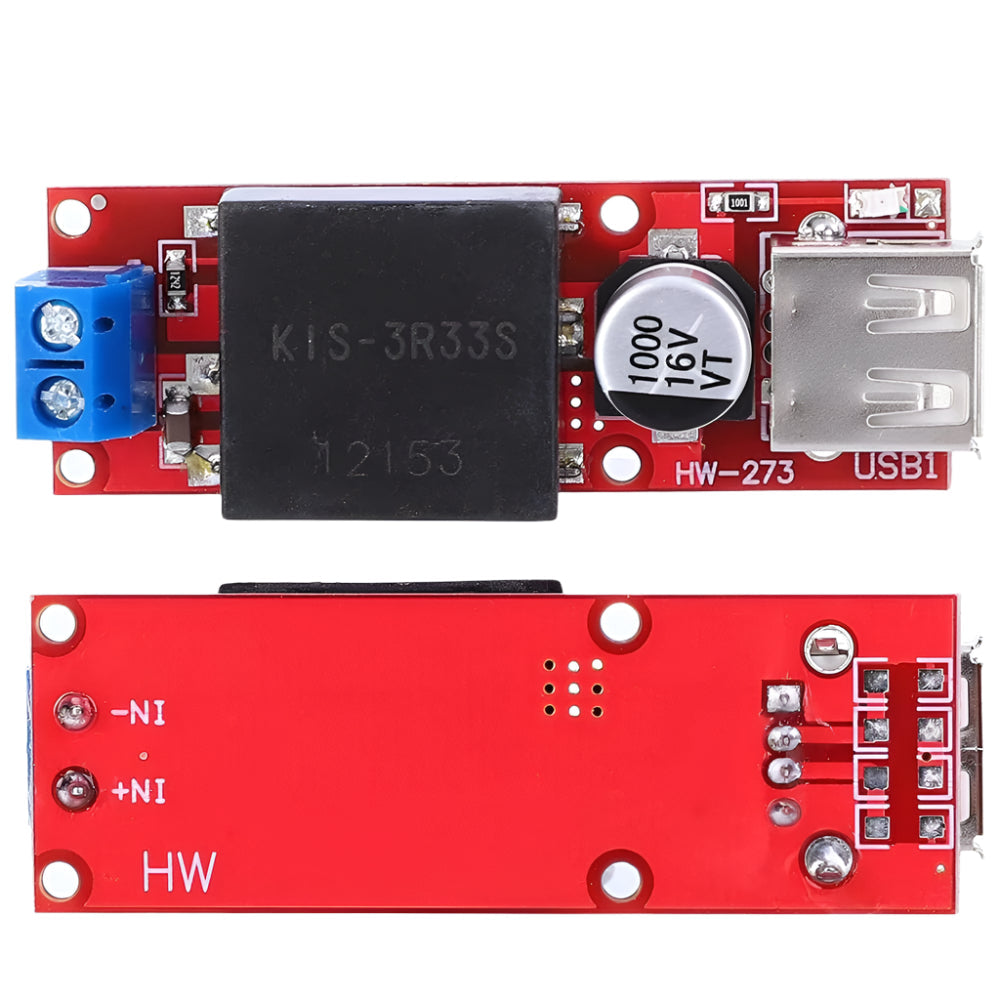

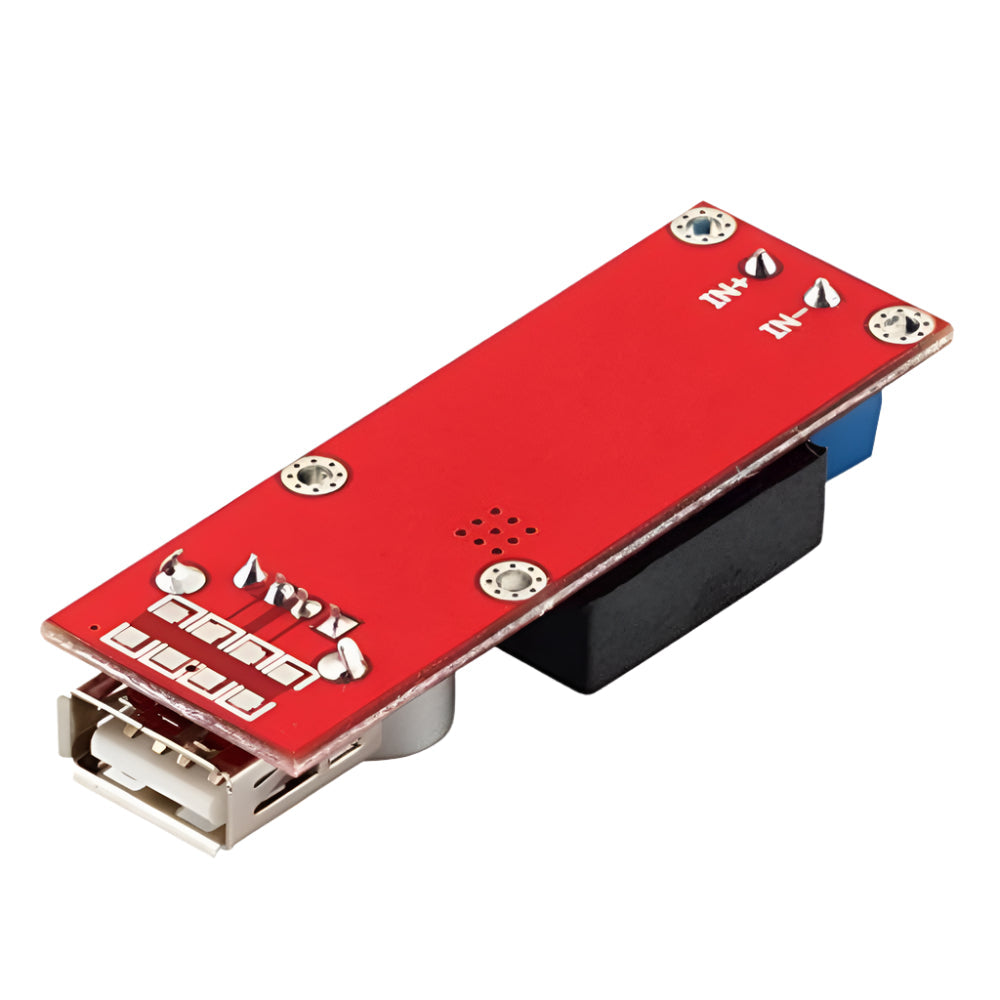

  • Note: Please connect correctly as printed (N-, IN+, OUT-, OUT+), or the module may be damaged.

Applications :

  • DIY Power Supply: Provides a stable 5V output for various electronic projects.
  • USB Device Charging: Powers smartphones, MP3 players, and other USB-powered devices.
  • Embedded Systems: Supplies power to microcontrollers and development boards.
  • Automotive Applications: Converts car battery voltage (12V/24V) to 5V for USB accessories.

Physical Attributes

  • Dimension: 63.9 x 20.7 x 10mm (L x W x H, approx)
  • Weight: 15 g

Package Includes

  • 1 x 5V USB Output Converter 7V-24V To 5V / 3A, DC DC Step-Down Buck KIS3R33S Module
