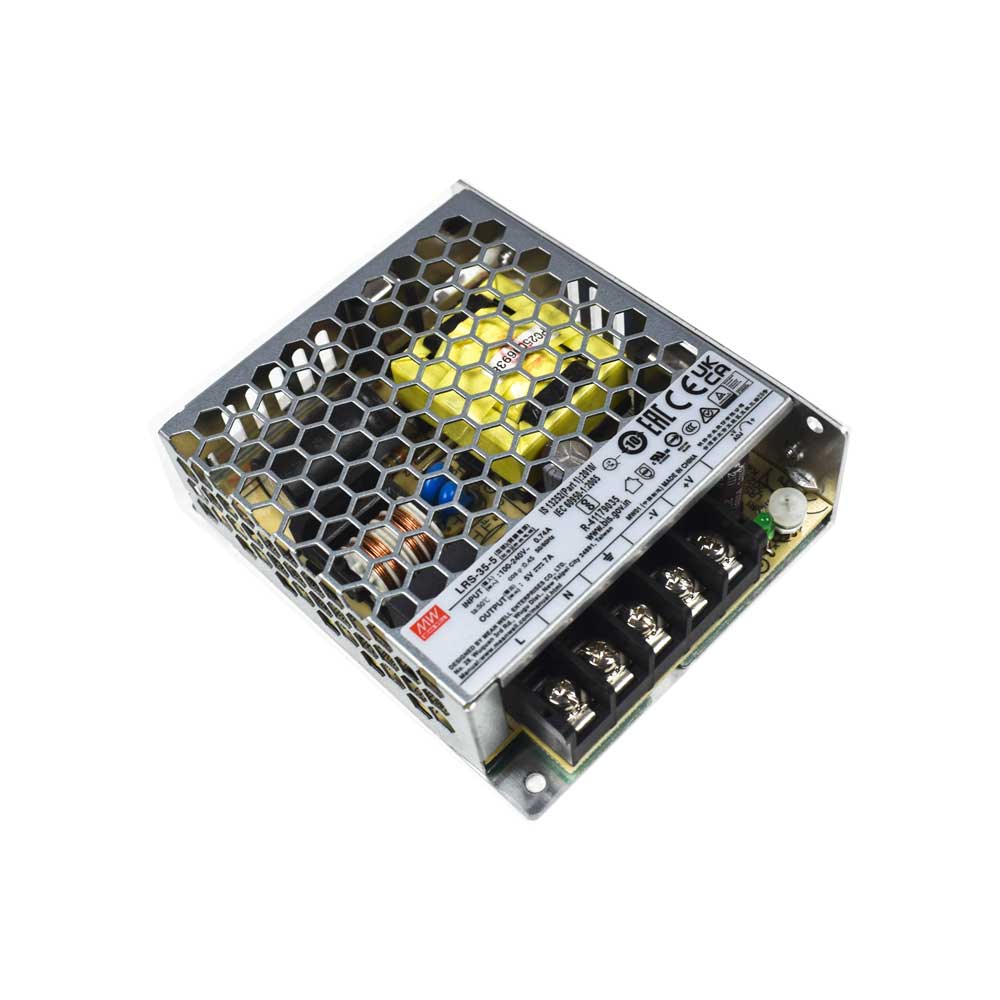

LRS-35-5 5V 7A 35W Metal Meanwell SMPS

LRS-35-5 5V 7A 35W Metal Meanwell SMPS

First Come First Serve Offer (T&C Apply )

734.02
0.00 734.02
Sale Sold out
Shipping calculated at checkout.

Meanwell's LRS-35-5 series is a 35W single-output switching power supply. The AC input is 100~240V AC which could be directly supplied from the house-supplied voltage. The output from SMPS will be 5V. The SMPS has high efficiency of up to 87.5%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-35-5 and the whole series operates from -30°C through 70°C under air convection without a fan. Meanwell's 5V 35W LRS-35-5 has complete protection functions; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series can be used for many purposes with the best performance from it.

Pinout:

Pin No. Pin name Description
 1, 2 AC/L&N Supplied AC Voltage (100 ~ 240VAC)
 3 G GND
 4 V- DC OUTPUT -V
 5 V+ DC OUTPUT +V (5V)



Features

  • Universal AC Input Range
  • Operating Temperature Upto 70 Degrees C
  • Protections: Short Circuit/ Overload/ Over Voltage
  • LED Indicator on Power On
  • High efficiency, long life, high reliability

Applications

  • Industrial Automation Machinery
  • Electronics Instrument & Equipment
  • Household Appliances
Specifications
Input Voltage 100V~240V AC
Output Voltage 5V DC
Maximum Output Current 7A
Rated Power 35W
Efficiency 82%
Operating Temperature -30°C to 70°C
Voltage Adj Range 4.5-5.5V
Noise and Ripple (Max) 80mvp-p
Size 99x82x30mm
Country of Origin China
