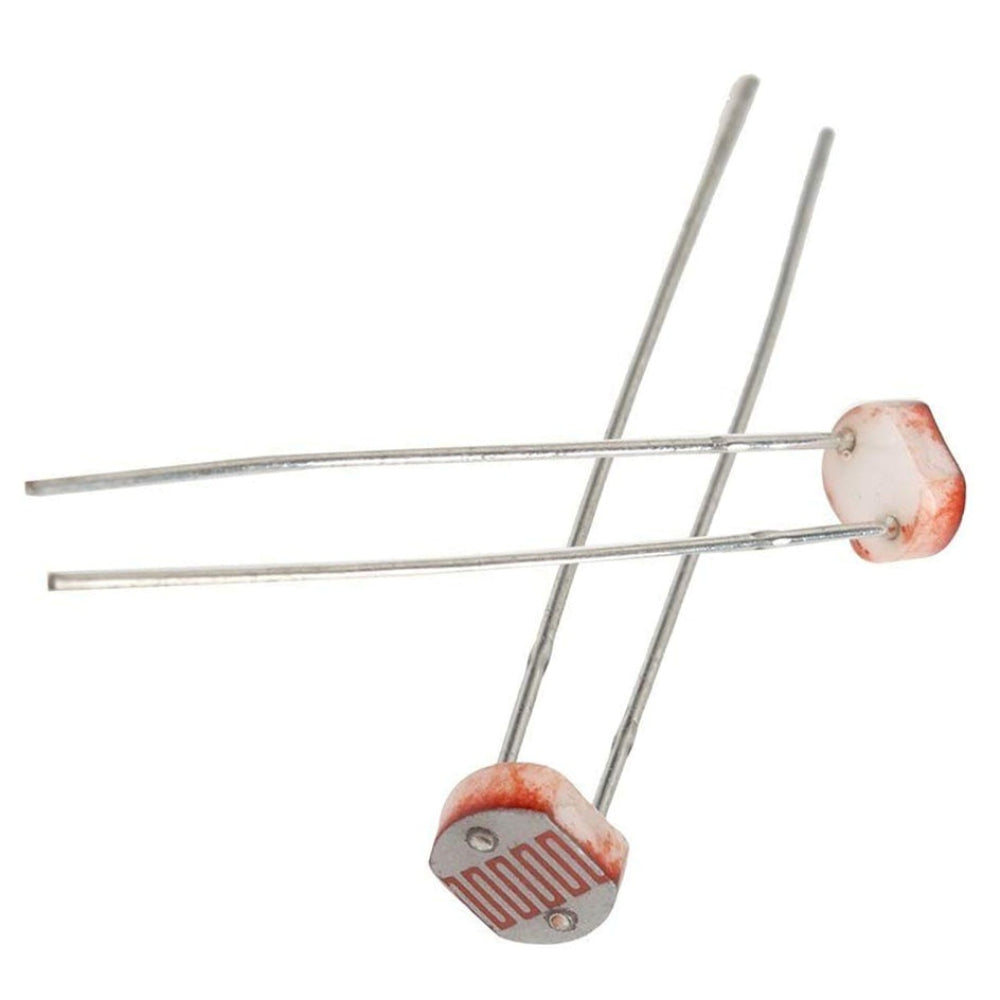

5MM 5516 LDR Photosensitive Resistor
This 5mm LDR changes resistance with the change in the ambient light exposure on the surface of the sensor. LDR (Light Dependent Resistor) is a type of photocell which finds excellent use in light sensing device application, whether it is automatic outdoor light ON/OFF switch or Indoor automatic light switch.The LDR 5mm sensor works best in both Light and dark regions. Light-dependent resistors or photoresistors are a staple of electronics. If you need a way to sense the level of ambient light then there is no easier way to do it. As the light on the sensor increases then the resistance across the two leads decreases.
Two Cadmium Sulphide (CDs) PhotoConductive Cells with spectral responses similar to that of the human eye. Cell resistance falls with increasing light intensity. Applications of this product include smoke detection, Automatic lighting control, batch counting, and burglar alarm systems.
Technical details
- Mount: Through Hole
- Number of Pins: 2
- Light Resistance (10Lux): 5-10 kΩ
- Maximum Voltage: 150V
- Maximum Power: 90mW
- Spectrum Peak Value: 540nm
- Dark Resistance: 0.5MΩ
- Response Time Increase: 30ms
- Response Time Decrease: 30ms
- Diameter: 5mm
- Model: 5516
Analog Applications:
- Camera Exposure Control
- Auto Slide Focus – Dual Cell
- Photocopy Machines – Toner Density
- Colorimetric Test Equipment
- Densitometer
- Electronic Scales – Dual Cell
- Automatic Gain Control – Modulated Light Source
- Automated Rear View Mirror
Digital Applications:
- Automatic Headlight Dimmer
- Nightlight Control
- Oil Burner Flame Out
- Streetlight Control
- Absence / Presence (Beam Breaker)
- Position Sensor
Features
- Can be used to sense Light
- Easy to use on Breadboard or Perf Board
- Easy to use with Microcontrollers or even with normal Digital/Analog IC
- Small, cheap, and easily available
- Fast response speed and high safety performance
- Green and environmentally friendly
- Good reliability
Applications
- Automatic streetlight control
- Camera exposure control
- Nightlight automation
- Flame detection
- Position and presence detection
- Light-sensitive alarms
- Electronic toy applications
- Solar-powered lighting systems
- Industrial light control systems
- Brightness adjustment in displays
Specifications
| Model | Max Pressure(VDC) | Max Pwr(MW) | Ambient temp(°C) | Spectral Peak (Nm) | Bright Resistor (Ω) | Dark Resistor (MΩ) | Response Time (ms) |
|---|---|---|---|---|---|---|---|
| 5506 | 150 | 100 | -30~+70 | 540 | 4-7 | 0.5 | Rise:30 Fall:30 |
| 5516 | 150 | 100 | -30~+70 | 540 |
5-10 | 0.5 | Rise:30 Fall:30 |
| 5528 | 150 | 100 | -30~+70 | 540 | 10-20 | 1 | Rise:20 Fall:30 |
| 5537 | 150 | 100 | -30~+70 | 540 | 20-30 | 2 | Rise:20 Fall:30 |
| 5549 | 150 | 100 | -30~+70 | 540 | 100-200 | 10 | Rise:20 Fall:30 |
Drawing(mm)
Package Includes
- 1 x 5MM 5516 LDR Photosensitive Resistor
