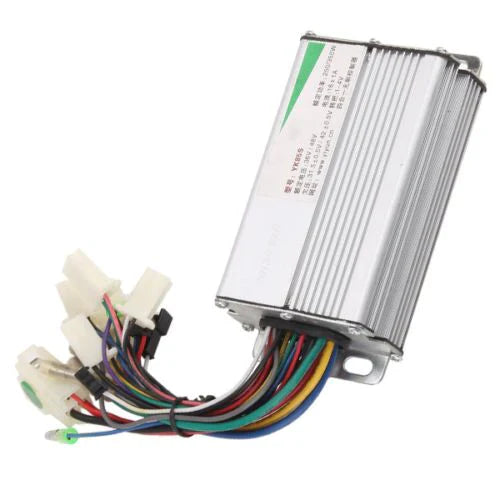

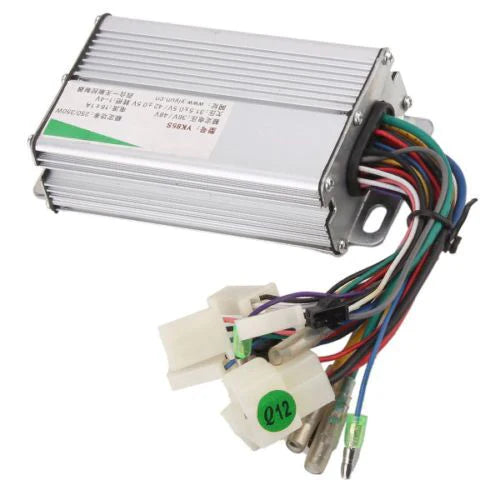

48V 350W Electric Bicycle E-bike Scooter Brushless DC Motor Controller

48V 350W Electric Bicycle E-bike Scooter Brushless DC Motor Controller

First Come First Serve Offer (T&C Apply )

1,558.20
0.00 1,558.20
Sale Sold out
Shipping calculated at checkout.

The 48V 350W electric bicycle e-bike scooter brushless DC motor controller is a crucial component for efficient and smooth operation of electric vehicles. With a power rating of 350 watts and a voltage of 48 volts, this controller delivers optimal performance for e-bikes and scooters. Its brushless design ensures durability and low maintenance, while the DC motor provides efficient power delivery for enhanced speed and torque. The controller is equipped with safety features such as overcurrent protection and overvoltage protection to safeguard the motor and battery. Its compact size and easy installation make it suitable for various electric vehicles, providing a reliable and enjoyable riding experience.

Specifications:

  • Voltage: 48V
  • Wattage: 48V 350W
  • Throttle : 1-4V
  • Short voltage protect :31.5±0.5V/42±0.5V
  • Color: silver
  • Dimension: 105 x 65 x 32mm/4.13 x 2.56 x 1.26"
  • Casing material: Aluminum

Operation:

  • Blue/Black: Used for cruise control or grounding.
  • White wire: Self-learning function (connect two white wires together).
  • White/Black: Connects to the brake for low-level braking.
  • Purple: Connects to the brake for high-level braking.
  • Red/Black/Green: Throttle wires for positive, negative, and signal connections.
  • Red/Black/thin Yellow/thin blue/thin green - +5V//Earthing/Motor Hall lines
  • Thin Blue - instrument
  • Red/Blue/Black - +5V/Signal/Earthing (Pedal Assistant)
  • Thick Blue/thick Yellow/Thick Green - Motor phase lines
  • Thick Red/thick Black/thin red - power positive/power negative/power lock
