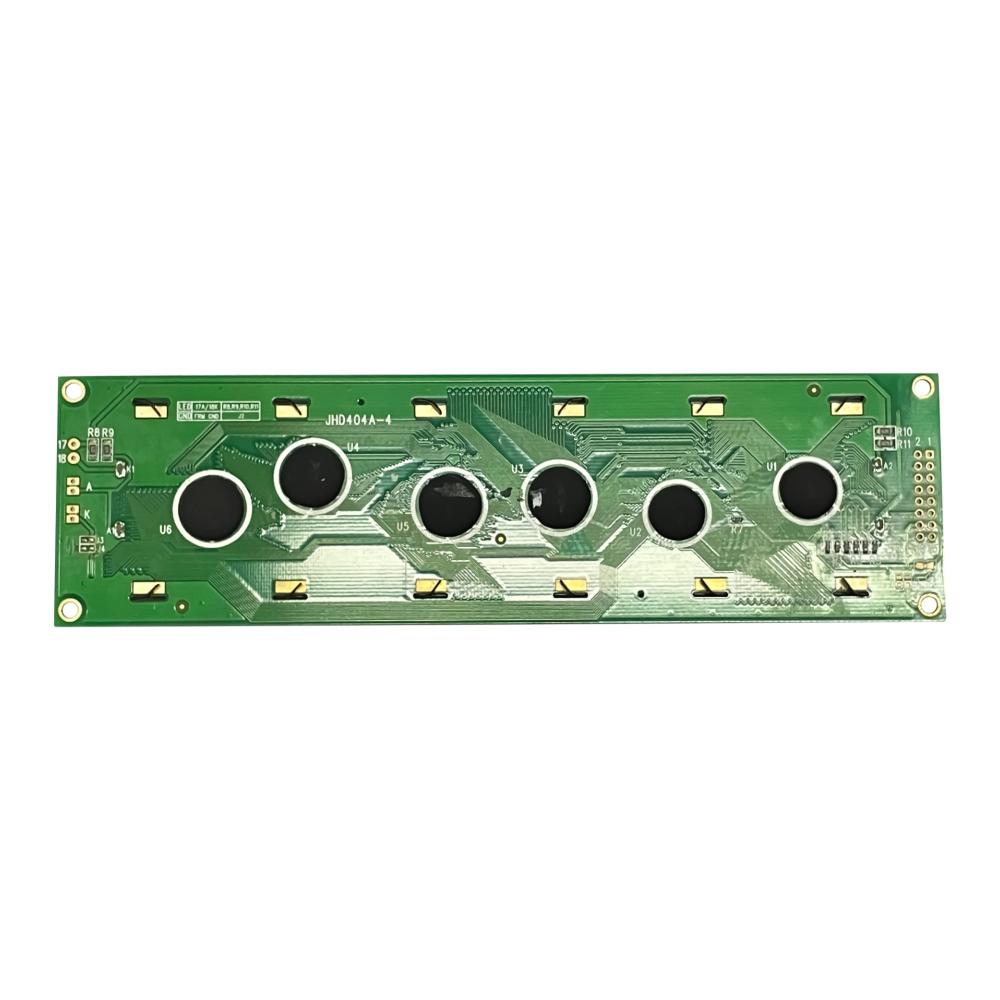

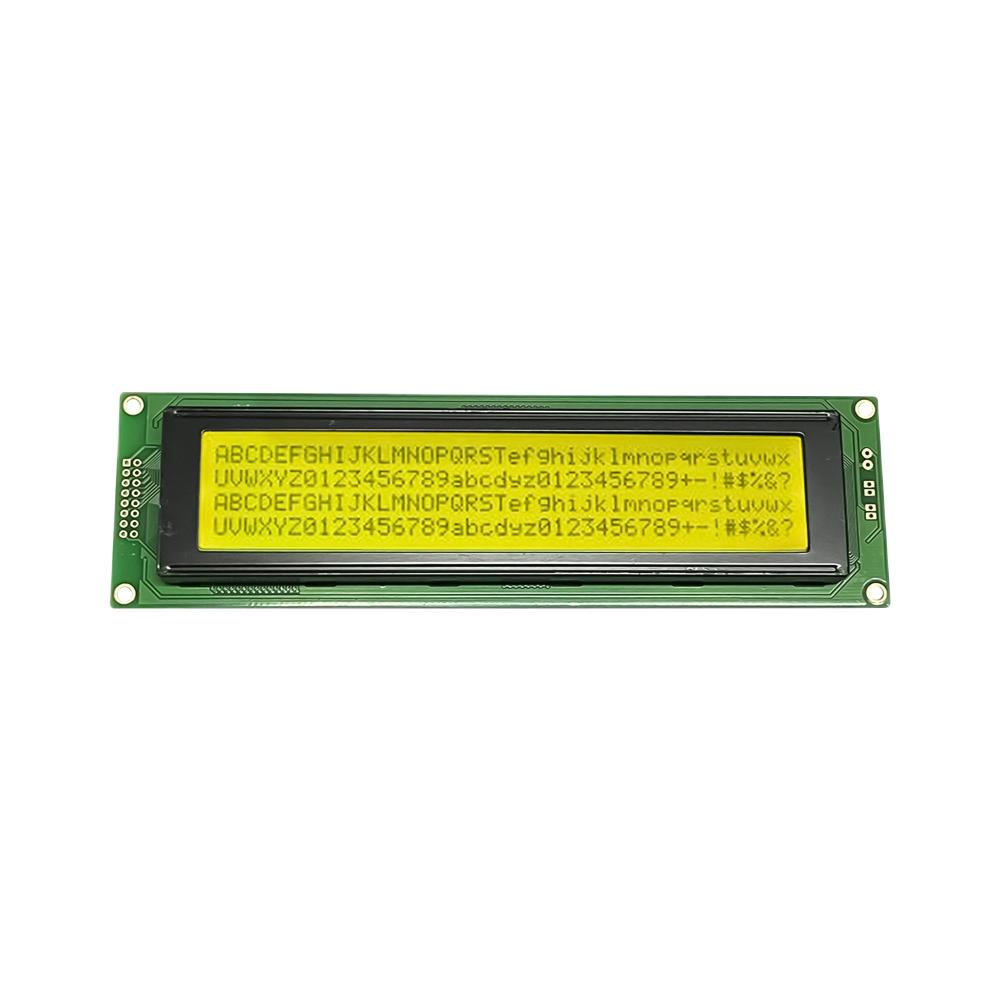

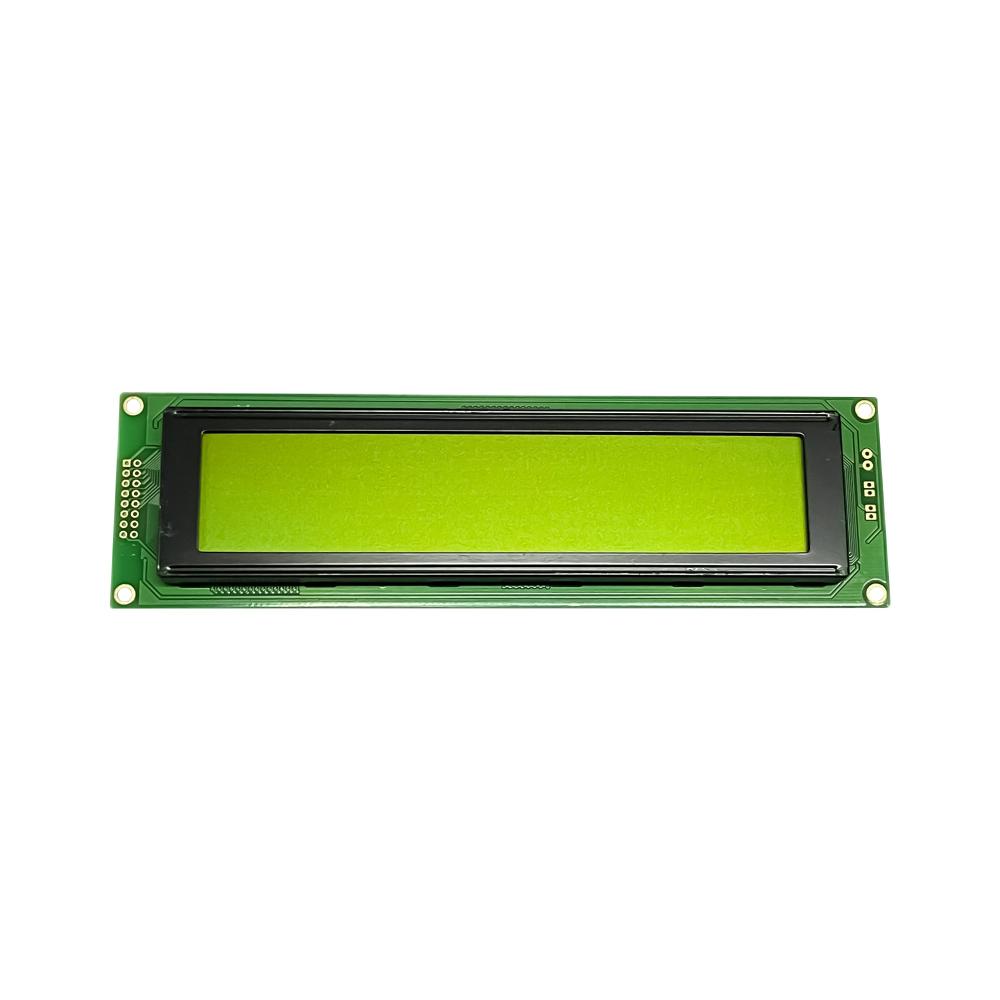

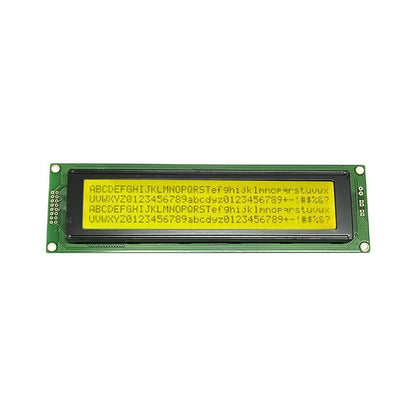

40x4 4004 JHD Original Character LCD Display Green Color

40x4 4004 JHD Original Character LCD Display Green Color

First Come First Serve Offer (T&C Apply )

1,371.02
2,199.00 1,371.02
Sale Sold out
Shipping calculated at checkout.
The 40x4 4004 JHD Original Character LCD Display with a Green background and black text is a versatile and reliable display module designed for embedded systems and DIY electronics. It features a 40-character wide by 4-line display, allowing for a large amount of information to be shown at once. The display is powered by an HD44780 compatible controller, supporting both 4-bit and 8-bit parallel interfaces for easy integration with microcontrollers like Arduino. Ideal for projects requiring clear, readable text output, this LCD module also includes LED backlighting for improved visibility in low-light environments.

Features:

Display Construction: 40 Characters * 4 Lines.

Display Mode: STN.

Display Type: Positive, Transmissive.

Backlight: LED/5.0V.

Operating Temperature: -20 to 70℃.

Storage Temperature: -30 to 80℃.

Controller: SPLC780D or Equivalence.

Driving Voltage: Single power.

Driving Method: 1/16 duty, 1/5 bias.

Type: COB (Chip On Board).

Number of Data Lines: 4/8-bit parallel.

Connector: Pin.

Technical Details

  • Model Type: Original JHD LCD
  • Character display: 40x4 (40 characters per line, 4 lines)
  • Green background with Black text (LED backlighting)
  • HD44780 or compatible driver
  • 4-bit or 8-bit parallel interface
  • Operating voltage: 5V DC
  • Current consumption: Typically 100-200mA (depends on backlight brightness)
  • Physical dimensions: 190mm (L) x 53mm (W) (approx. size)
  • Viewing area: 40 characters per row, 4 rows
  • 5x8 dot matrix characters
  • Operating temperature range: 0°C to 50°C, Storage range: -20°C to 70°C
  • Built-in potentiometer for contrast adjustment
  • 8-bit or 4-bit parallel communication (RS, RW, E pins)
  • Character update speed: Up to 5ms per character
  • Standard ASCII and custom characters
  • Used in embedded systems, Arduino projects, robotics, industrial displays, and home appliances

Outline Drawing

40x4 4004 JHD Original Character LCD Display Blue Color

Applications:

  • Embedded systems
  • Arduino projects
  • Robotics
  • Industrial displays
  • Home appliances
  • Digital signage
  • Consumer electronics
  • Medical devices
  • Point of sale (POS) systems
  • Automotive dashboards
  • Control panels for machinery
  • Temperature and humidity monitoring
  • DIY electronics projects
  • Communication interfaces for microcontrollers
  • Home automation systems

Package Includes

  • 1 x 40x4 4004 JHD Original Character LCD Display Green Color
