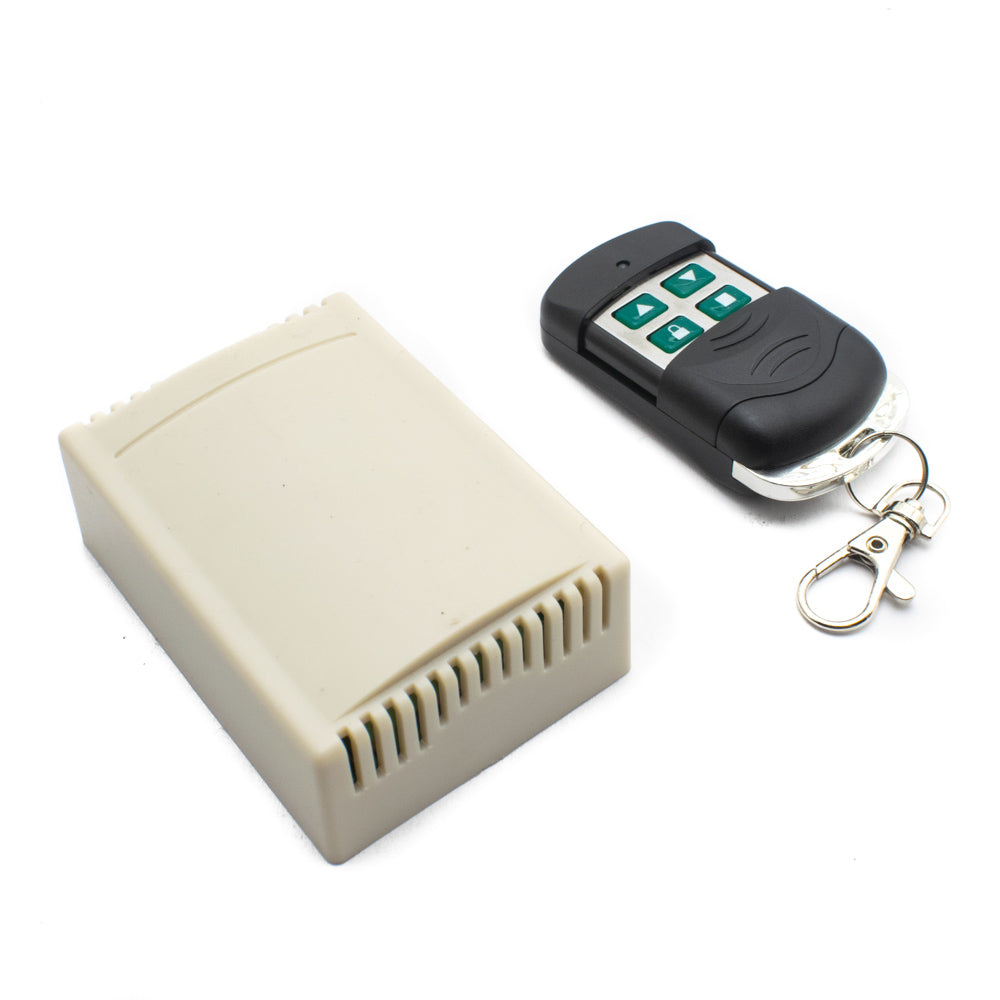

4 Channel RF Wireless ON/OFF Smart Switch with RF Remote Control

4 Channel RF Wireless ON/OFF Smart Switch with RF Remote Control

First Come First Serve Offer (T&C Apply )

884.94
0.00 884.94
Sale Sold out
Shipping calculated at checkout.

A Four-channel relay board with a wireless RF interface that can be controlled by a wireless remote. The relays can regulate 250 V/ 10A appliances, motors, and other electrical circuits, etc. When the remote is in line of sight, the board has a range of 100 meters and roughly 25 meters indoors.
This board's RF connection operates at a frequency of 433MHz. Both the transmitter and the receiver have an inbuilt antenna and are easy to use.

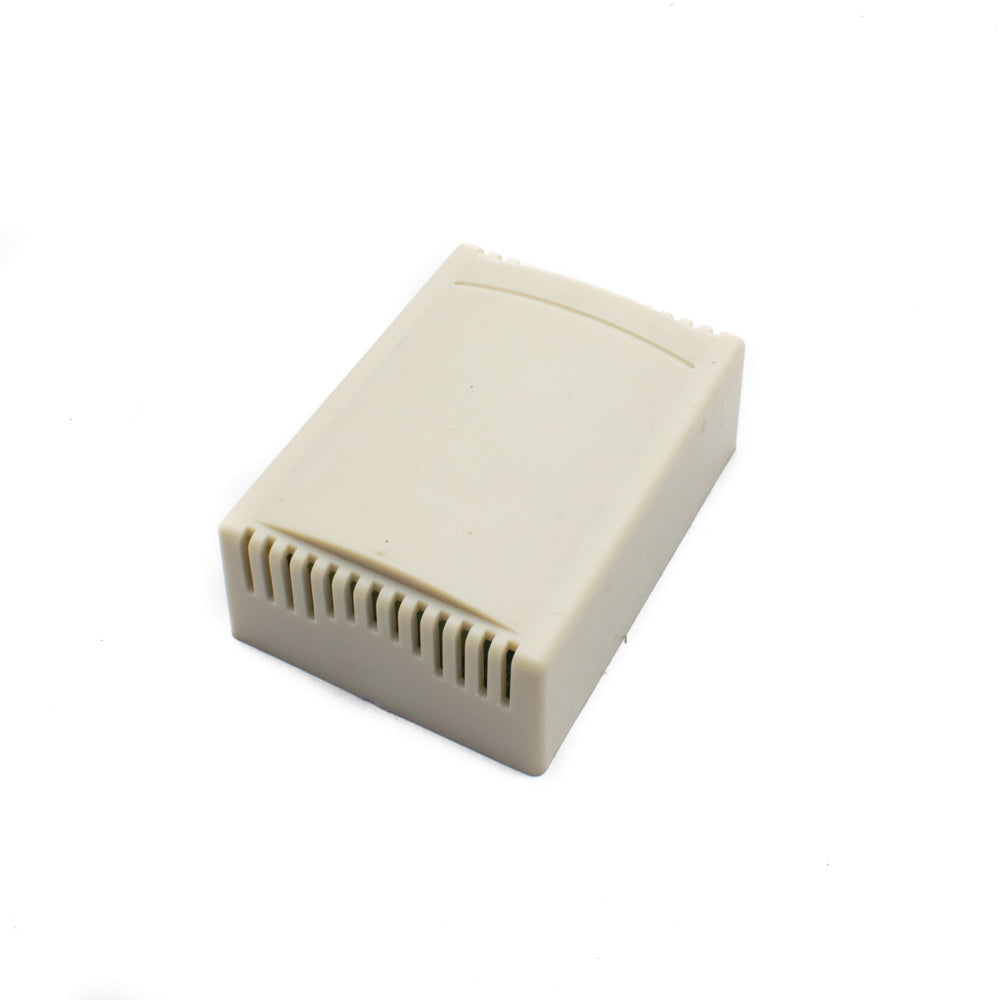

Receiver

  • Operating voltage: 12V
  • Operating current: 30mA (per relay)
  • Quiescent Current: 5mA
  • Working temperature: -40°C ~ 80°C
  • Receive sensitivity: more than -104dBm
  • Working frequency: 433MHz
  • optional Relay: 10A AC250V 10A DC30V.
  • Maximum load: Relay 10A, resistive load <8A, inductive load< 3A
  • PCB size: 68.5x48x16 mm
  • Box size: 78 x 53.3x28.7 mm

 Function

  1. Momentary: Press and hold = on, release = off
  2. Toggle / Self-lock: Press 1 button = on, press the same button again = off
  3. Latched / inter-lock: Press 1 button = on, press another button = off

Clear code and learn code

  1. Learn Press the learning button 1 time, the learning LED lights up, then press the transmitter key to learn. The learning led blinks and turns off. It means learning correctly.
  2. Clear Press the learning button for 5 seconds, the learning LED flashes and turns off, which means the code has been cleared.

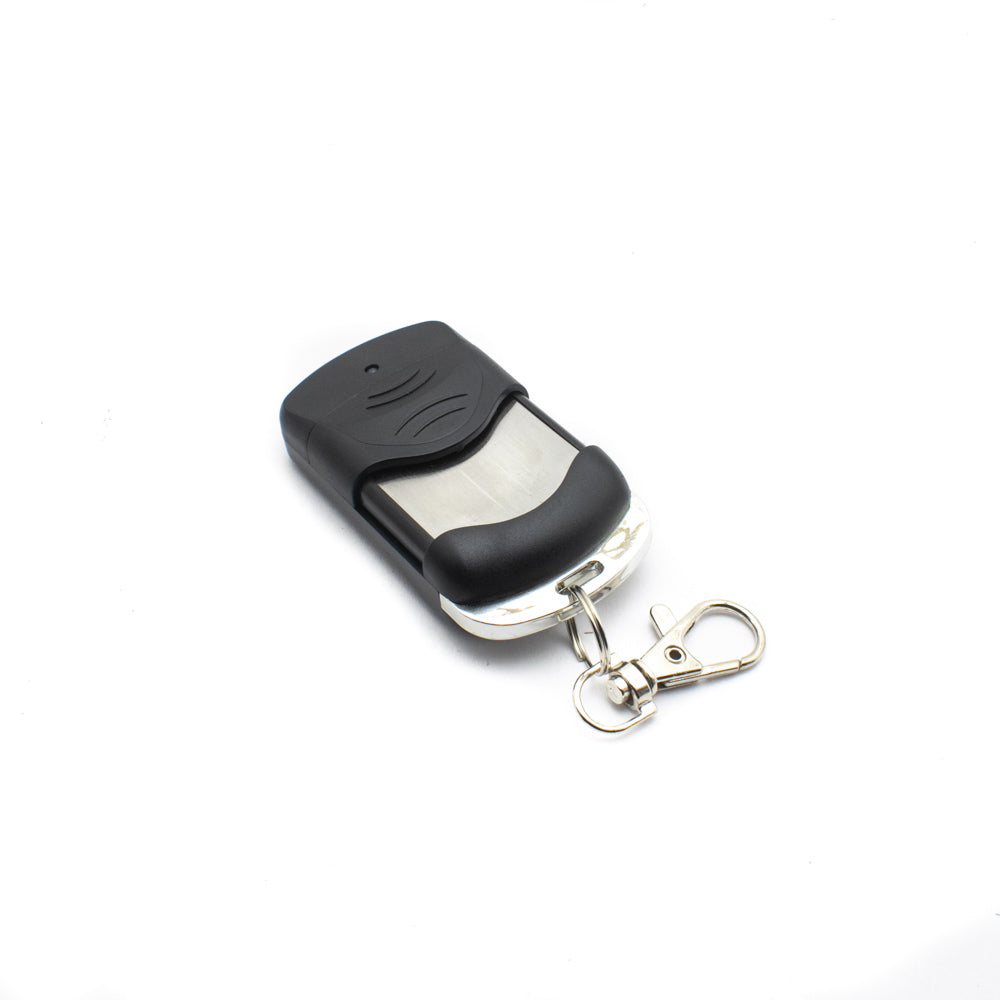

Transmitter

  • Channel: 4 CH Remote Control
  • Distance: 0-100M (Ideal distance without any blocking or signal interference, it would go up and down around 10% -90% with block and signal interference).
  • Encode: PT2262 Frequency: 433 MHz
  • Size: 66.2mm x 35.2mm x 17mm
  • Power supply: 1 X 12V / 23A battery (without battery)
