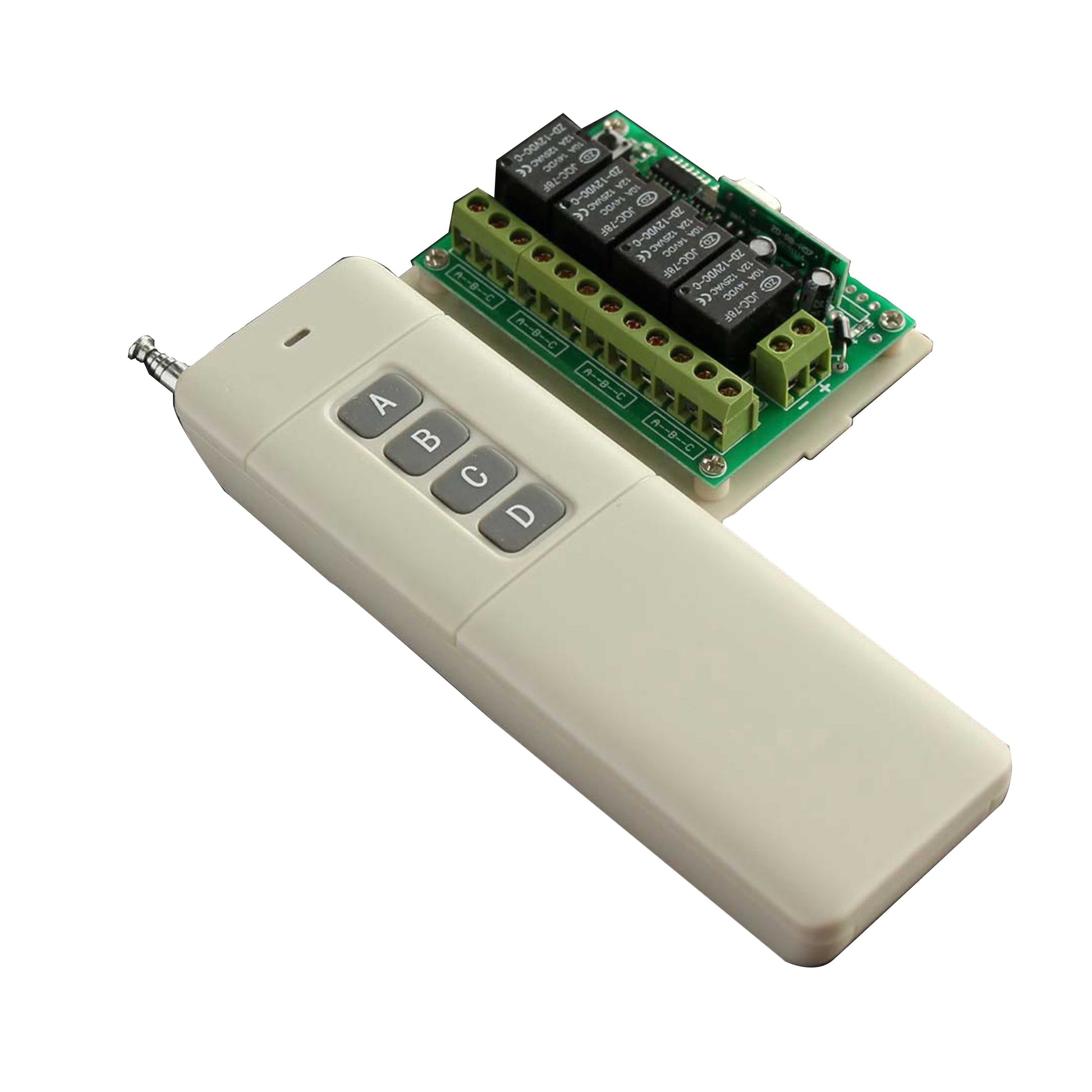

4 Channel 12v DC wireless relay Remote control Switch Long Range 1000Meter 433MHz

4 Channel 12v DC wireless relay Remote control Switch Long Range 1000Meter 433MHz

First Come First Serve Offer (T&C Apply )

1,578.78
0.00 1,578.78
Sale Sold out
Shipping calculated at checkout.

Wireless module using a remote control to control relays using a remote. It can be used as a 4 channel wireless switchboard. It's Applications: Garage Door, Household Electrical Appliances, RGB lights.

Specifications

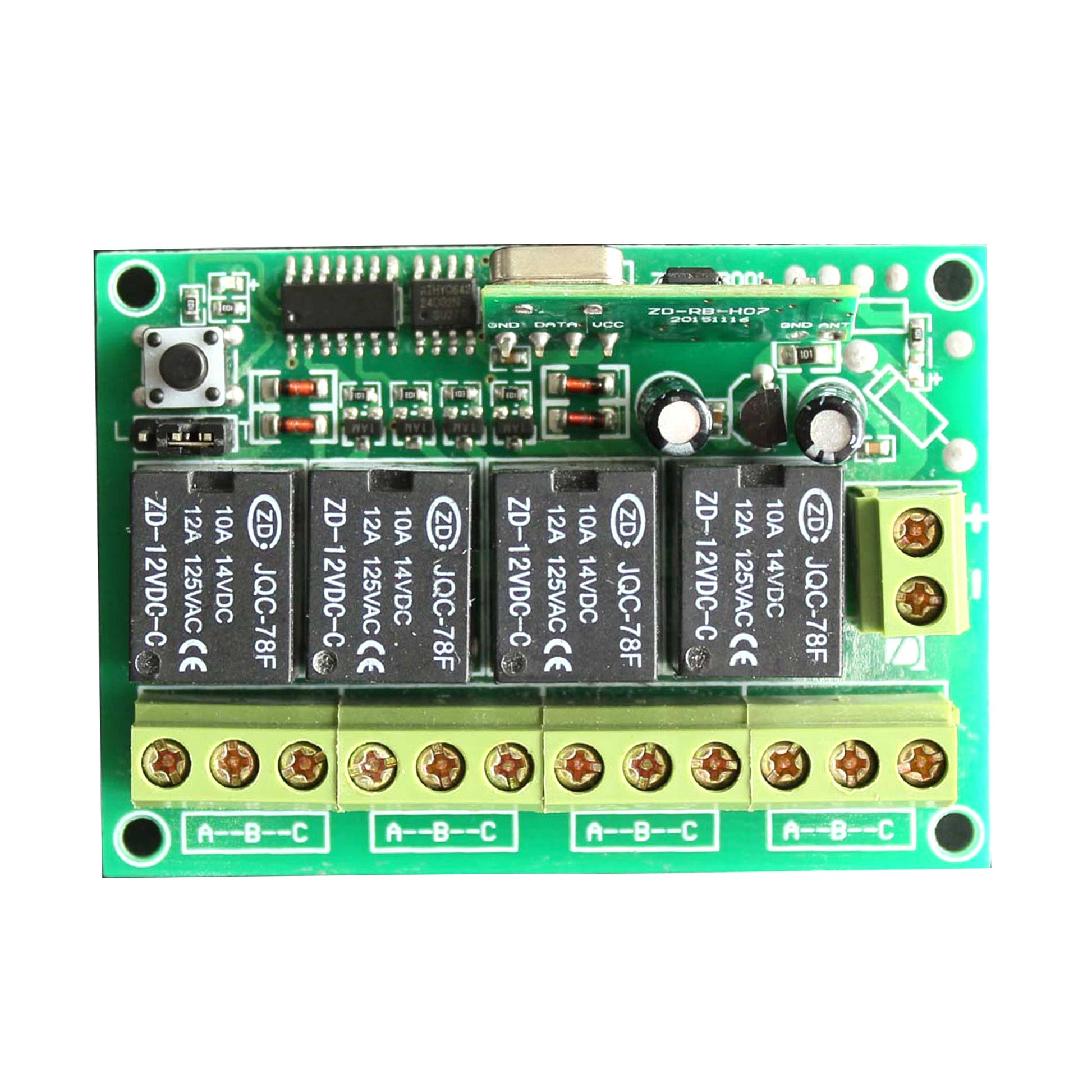

 Receiver
Power Supply 12V DC
Relay Rating 10A/250V AC, 10A/125VAC, 10A/30V DC, 10A/28V DC
Current ≤7mA
Sensitivity -107dBm
Operating Temperature -10°C~70°
Frequency 433 MHz
Size 75x58x30mm
Transmitter
Number of Channels 4
Frequency 433MHz
Remote Distance Maximum up to 3000 Meter
Encode PT2262
Size 150x42x26mm
Power Supply 9V Battery
Country of Origin China



Clearing All Stored Transmitters:
Push the learning button on the receiver 8 times, and the codes will be cleared.
After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.

  • Learning the transmitter :(momentary Mode) Press the learning key on the receiver 1 time, Wait for a moment, the LED will be off, and it comes into a learning state.
  • Press the remote button, LED indicator on the receiver board will flash and then come off. After 3 seconds, the LED indicator will be on again, learning successfully.
  • Learning the transmitter : ( Toggle Mode ) Press the learning key on the receiver 2 times, Wait for a moment, the LED will be off, and it comes into a learning state.
  • Press the remote button, LED indicator on the receiver board will flash and then come off.
  • After 3 seconds, the LED indicator will be on again, learning successfully.
  • Learning the transmitter : ( Latched Mode )
  • Note: When you choose Interlocking mode, in order to learn more remote control, you need to learn two different buttons, the first time learn is for “ON”, and the second time learnt it for “OFF”.


For example : button A = ON , button B = OFF
Push the learning key on the receiver 3 times, and the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flashes 3 times . Push the remote button B, Led flash 3 times. After 3 seconds, the LED indicator will be off, Learning to succeed.

Package Included

  • 1 x Receiver (with cover)
  • 1/2/3 x Transmitter ( without Battery)
