3W Micro USB Wireless Charging Qi PCBA Circuit Board With Qi-Standard
3W Micro USB Wireless Charging Qi PCBA Circuit Board With Qi-Standard
First Come First Serve Offer (T&C Apply )
Couldn't load pickup availability
3W Micro USB Wireless Charging Qi PCBA Circuit Board With Qi-Standard

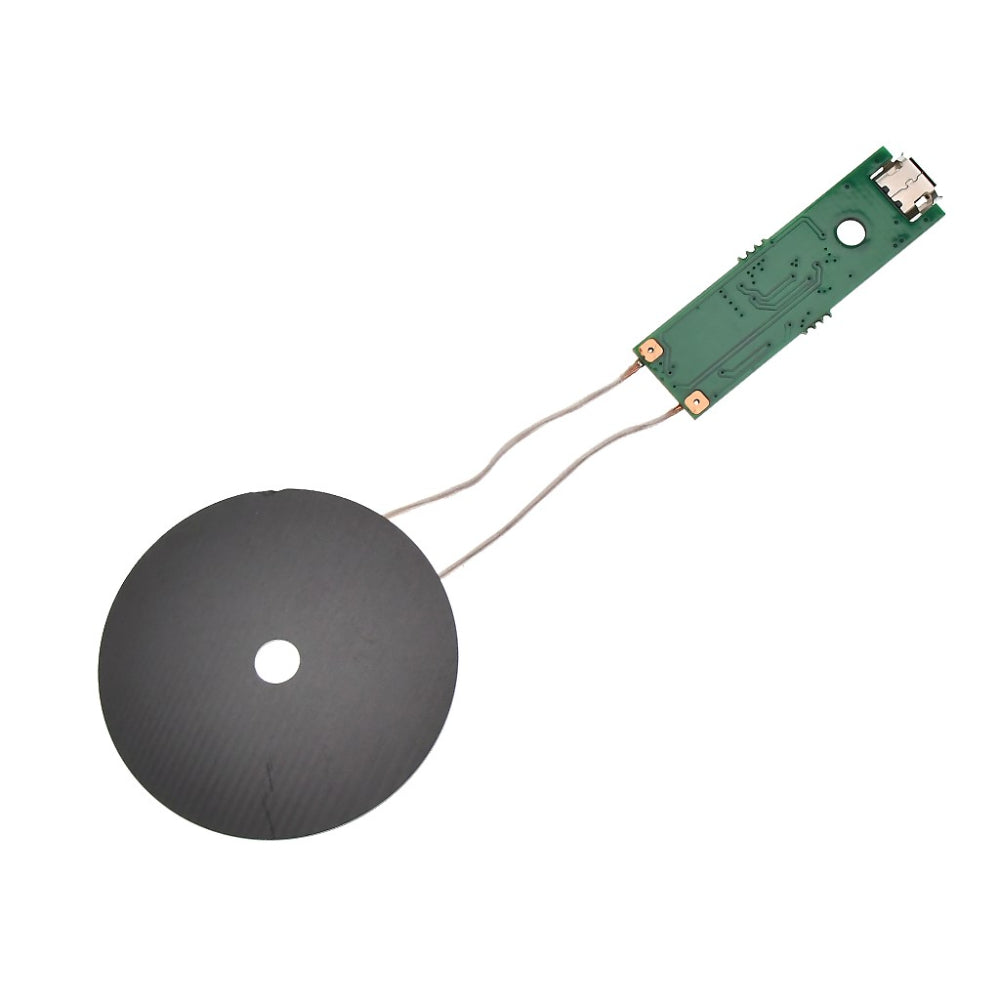

It is a wireless charging transmitter module for small electronic devices that work with the Qi standard. It is used to transfer energy wirelessly with a charging card and coil for devices that can be charged wirelessly, such as phones. The module is powered via the micro USB 5V power supply socket. It has power and charging status indicator LEDs.It is suitable for use in many applications with its very thin structure of the coil. It is suitable for contactless charging from a distance of 5 mm. It can be used under non-metallic materials such as furniture, glass, plexiglass. It can transfer energy at 75% efficiency. It can provide fast charging support with 1A/2A charging current.
Technical Details
- Micro USB DC 5V, 1.5A/2A max
- Charging: 500mA/1000mA, 5W
- Distance: 5mm (tested 10mm)
- Efficiency: ≥75%
- LED Indicators: Blue (Charge), Red (Power)
- Plug & Play
- Temp: -20°C to 65°C
- Mounting holes on board & coil
- Coil: 44mm diameter, 4cm wire
- Size: 12mm × 43mm, Weight: 8g
Features
- 3W Wireless Charging (Qi-Standard)
- Micro USB Input: 5V, 1A
- Charging Distance: 5mm (tested 10mm)
- Efficiency: ≥75%
- LED Status: Power (Red), Charging (Blue)
- Safe & Reliable: Overcurrent, Overvoltage Protection
- Compact & Lightweight Design
- Easy Plug & Play Setup
Specifications
| Item | Power(W) | Voltage | USB Types | Transmission Distance | PCB Size(mm) |
|---|---|---|---|---|---|
| 12V 22W | 22 | 12 | C-Types | 0-10mm | 45*45*4.5 |
| 9V 10W | 10 | 9 | C-Types | 0-8mm | 80*70*2.5 |
| 12V 15W | 15 | 12 | C-Types | 0-10mm |
45*30*2.7 |
| 5V 3W | 3 | 5 | B-Types | 0-5mm | 43*10*2.5 |
Applications
- Mobile phone charging
- GPS locator
- Electric toothbrush
- Earphone charging Electric storage
- Wireless charging mouse
- Electronic cigarette
Package Includes
- 1 x 3W Micro USB Wireless Charging Qi PCBA Circuit Board With Qi-Standard
