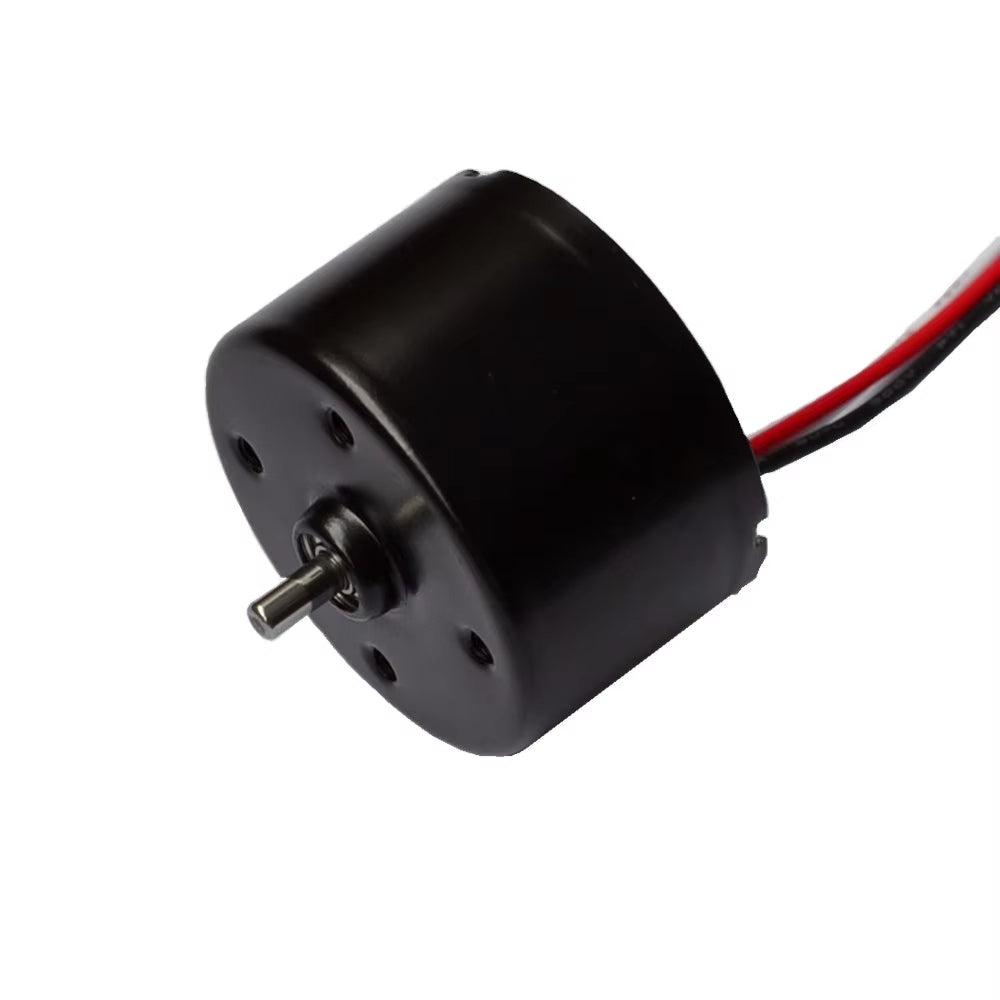

3625 BLDC Micro Brushless DC Speed Regulating Motor 24V DC

3625 BLDC Micro Brushless DC Speed Regulating Motor 24V DC

First Come First Serve Offer (T&C Apply )

1,299.00
1,499.00 1,299.00
Sale Sold out
Shipping calculated at checkout.

3625 BLDC Micro Brushless DC Speed Regulating Motor High Speed Motor 24V DC

The 3625 BLDC (Brushless DC) Micro Speed Regulating Motor is a high-speed motor designed for precision applications that require efficient and reliable performance. Operating at a voltage of 24V DC, this motor is engineered to provide smooth and consistent operation, making it ideal for various industrial, robotic, and automotive applications. The brushless design minimizes wear and tear, offering a longer lifespan and enhanced durability compared to traditional brushed motors. It features a compact size, with the model number "3625" referring to its physical dimensions, making it suitable for use in small-scale machines where space is limited. This motor is also equipped with advanced speed regulation capabilities, allowing for fine adjustments in motor speed, providing better control over the system it powers. Its high-speed performance combined with the ability to regulate speed efficiently makes it a versatile choice for demanding tasks, ensuring both reliability and high performance under continuous operation.

Technical Details

  • Rated Voltage: 24 VDC
  • No-Load Speed: 6035 RPM
  • No-Load Current: 60 mA
  • Rated Speed: 4829 RPM
  • Rated Torque: 97 g.cm
  • Rated Current: 300 mA
  • Rated Power: 4.8 W
  • Stall Torque: 485 g.cm
  • Stall Current: 1.27 A
  • Wire Length: 300mm
  • Weight: 79g
  • Motor Diameter: 35mm
  • Shaft Length: 6.2mm

Features

  • Rated Power: 4.8 W, low no-load current: 60 mA.
  • Stall Torque: 485 g.cm, Rated Torque: 97 g.cm.
  • No-load Speed: 6035 RPM, Rated Speed: 4829 RPM.
  • Compact: 35mm diameter, 6.2mm shaft length.
  • Stall Current: 1.27 A for heavy-duty tasks.
  • Lightweight: 79g for easy integration.
  • 300mm wire length for flexible setup.
  • Rated for 24 VDC, suitable for various applications.

Motor Function Interface

  • P1 Red: VCC: 8.5 to 15.2 V DC
  • P2 Yellow: FG: 0.6V Max
  • P3 White: CCW/CW: 0.6V Max
  • P4 Black: GND: Ground
  • P5 Blue : PWM: 10KHz to 30KHz
  • P6 Green: Braek: 0.6V Max

Applications :

  • RC Models: Ideal for RC cars, boats, and planes requiring high-speed motors.
  • Drones: Used in lightweight UAVs and quadcopters for propulsion.
  • Medical Devices: Suitable for precision tools like pumps and diagnostic instruments.
  • Portable Electronics: Powers cooling fans, CD drives, and small gadgets.
  • Industrial Automation: Used in small actuators, sorting systems, and conveyors.
  • Home Appliances: Found in electric toothbrushes, vacuum cleaners, and air purifiers.
  • Robotics: Drives small robotic mechanisms and movement systems.

Drawing

3625 BLDC Micro Brushless DC Speed Regulating Motor High Speed Motor 12V DC

Physical Attributes

  • Wire Length: 300mm
  • Weight: 79g
  • Motor Diameter: 35mm
  • Shaft Length: 6.2mm

Package Includes

  • 1 x 3625 BLDC Micro Brushless DC Speed Regulating Motor High Speed Motor 24V DC
