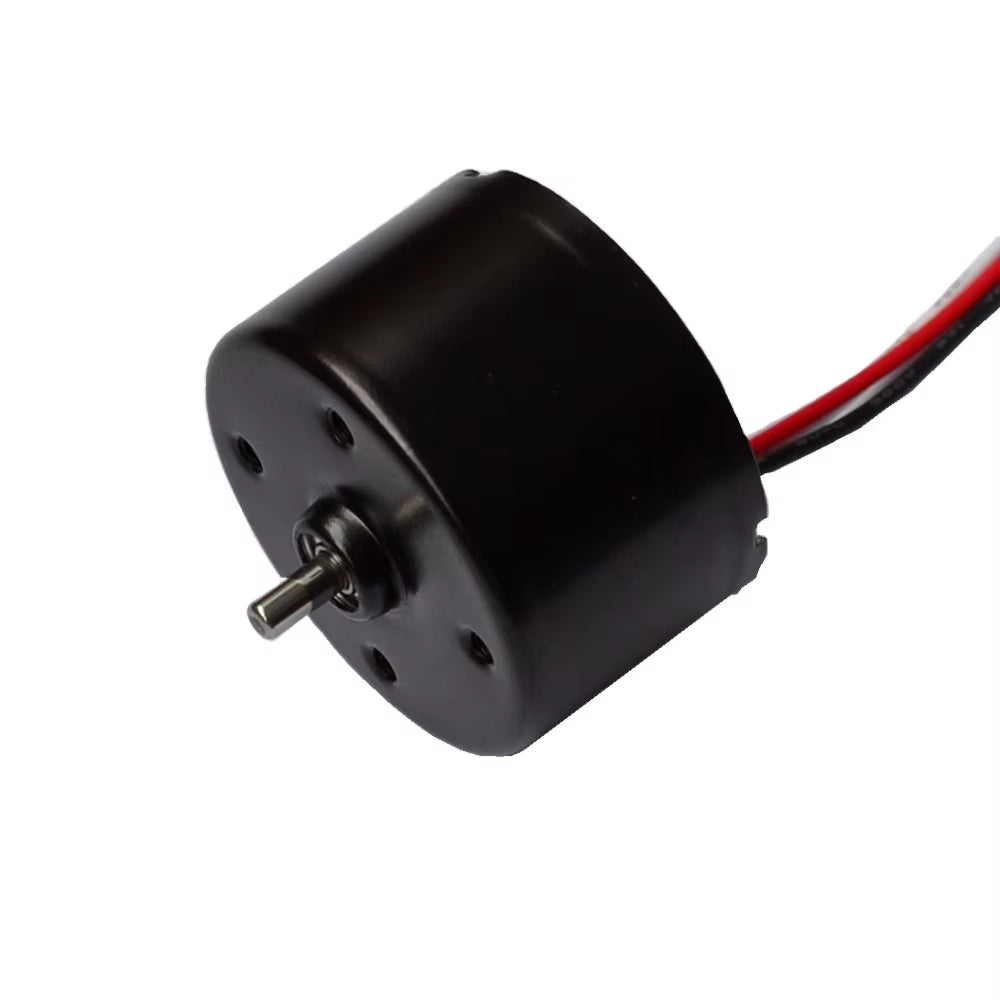

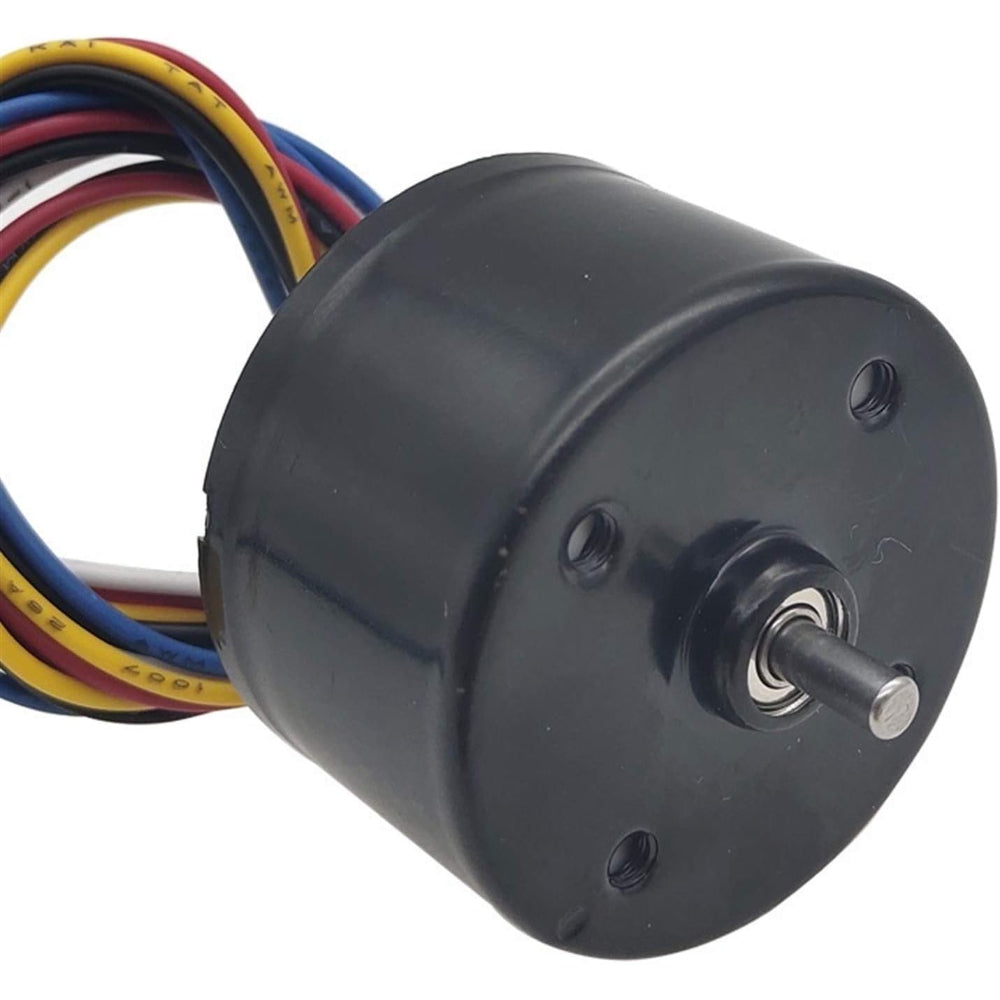

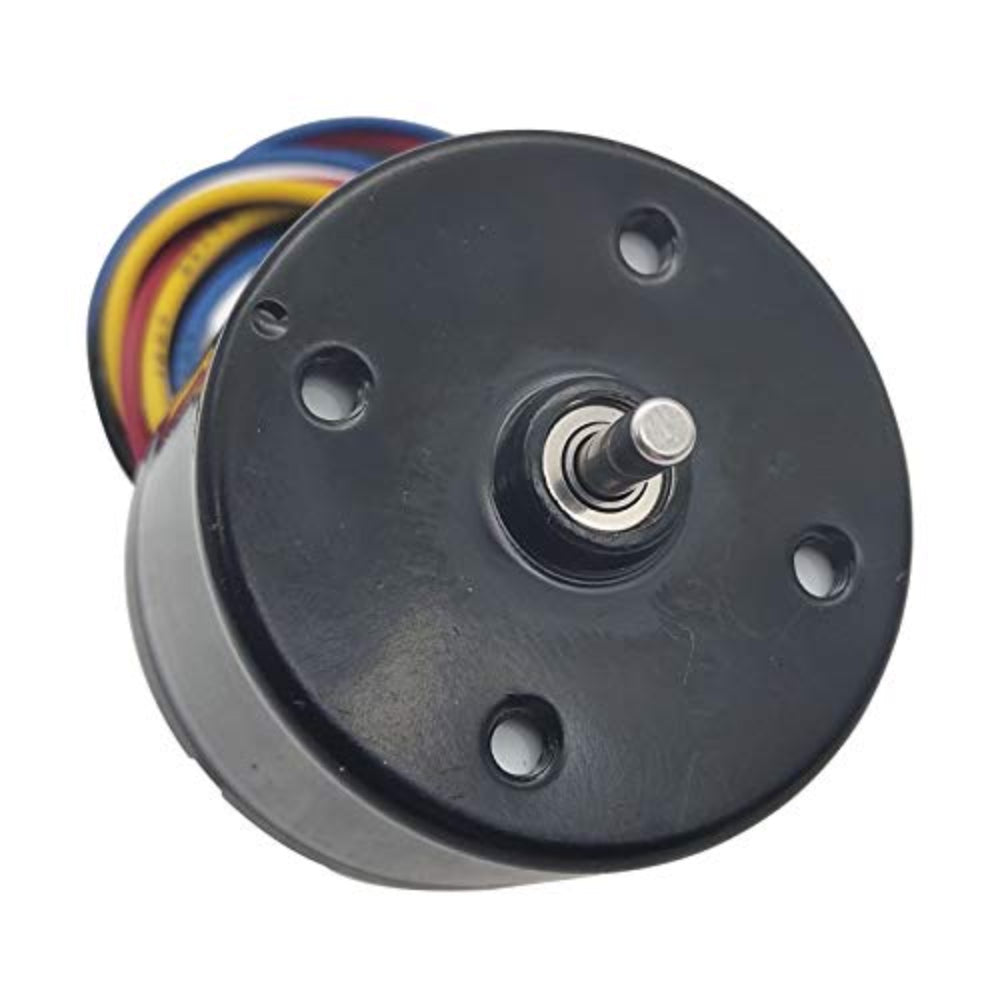

3625 BLDC Micro Brushless DC Speed Regulating Motor 12V DC

3625 BLDC Micro Brushless DC Speed Regulating Motor 12V DC

First Come First Serve Offer (T&C Apply )

1,299.00
1,499.00 1,299.00
Sale Sold out
Shipping calculated at checkout.

3625 BLDC Micro Brushless DC Speed Regulating Motor High Speed Motor 12V DC

The 3625 BLDC Micro Brushless DC Speed Regulating Motor is a compact, high-speed motor designed for precision and efficiency. Operating at 12V DC, this motor offers exceptional speed and smooth performance, making it ideal for a variety of small-scale applications. Its brushless design ensures minimal maintenance, quieter operation, and a longer lifespan compared to traditional brushed motors.

With a compact 3625 form factor (36mm diameter and 25mm length), this motor is lightweight and versatile, suitable for use in tight spaces where efficiency and performance are critical. Its speed-regulating capabilities allow for precise control, making it perfect for applications such as robotics, small machinery, cooling fans, medical devices, and other systems requiring high speed and reliability. The combination of its high performance, durability, and compact design makes the 3625 BLDC motor an excellent choice for both professional and hobbyist projects.

Technical Details

  • Rated Voltage: 12 VDC
  • No-Load Speed: 6005 RPM
  • No-Load Current: 105 mA
  • Rated Speed: 4804 RPM
  • Rated Torque: 63 g.cm
  • Rated Current: 430 mA
  • Rated Power: 3.1 W
  • Stall Torque: 318 g.cm
  • Stall Current: 1.71 A
  • Wire Length: 300mm
  • Weight: 74g
  • Motor Diameter: 35mm
  • Shaft Length: 6.2mm

Features

  • Compact motor with 35mm diameter.
  • Delivers high speed of up to 6005 RPM.
  • Rated torque for precise applications: 63 g.cm.
  • Sturdy build with a weight of 74g.
  • Energy-efficient with a rated power of 3.1W.
  • 300mm wire length for flexible installation.
  • Ideal for robotics, RC vehicles, and industrial devices.

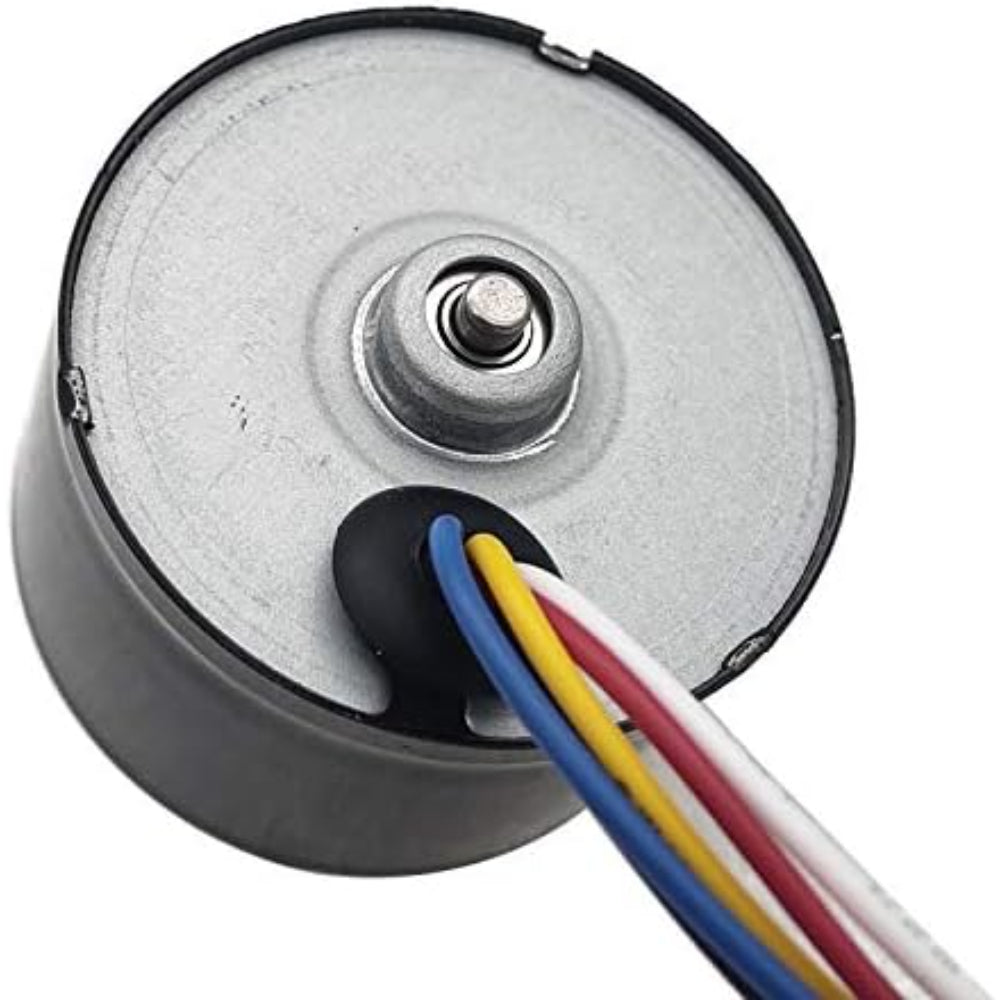

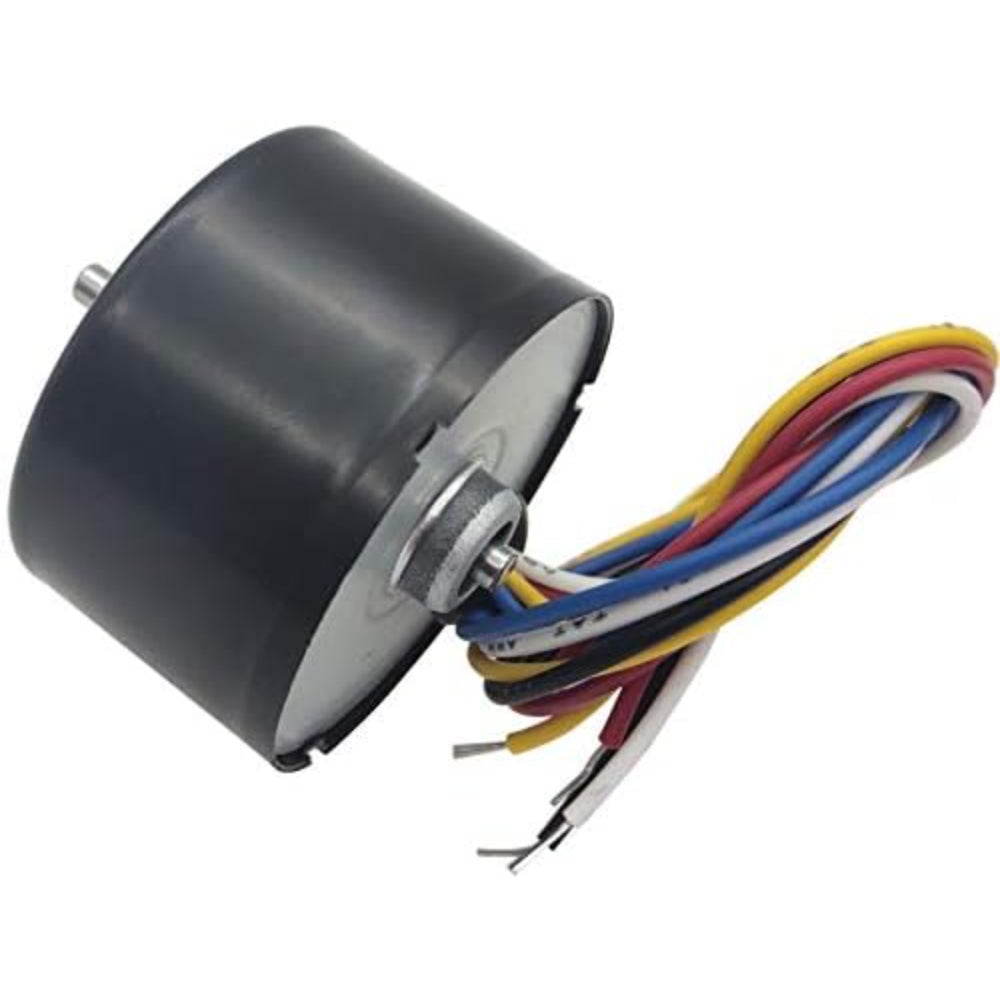

Motor Function Interface

  • P1 Red: VCC: 8.5 to 15.2 V DC
  • P2 Yellow: FG: 0.6V Max
  • P3 White: CCW/CW: 0.6V Max
  • P4 Black: GND: Ground
  • P5 Blue : PWM: 10KHz to 30KHz
  • P6 Green: Braek: 0.6V Max

Applications :

  • RC Models: Ideal for RC cars, boats, and planes requiring high-speed motors.
  • Drones: Used in lightweight UAVs and quadcopters for propulsion.
  • Medical Devices: Suitable for precision tools like pumps and diagnostic instruments.
  • Portable Electronics: Powers cooling fans, CD drives, and small gadgets.
  • Industrial Automation: Used in small actuators, sorting systems, and conveyors.
  • Home Appliances: Found in electric toothbrushes, vacuum cleaners, and air purifiers.
  • Robotics: Drives small robotic mechanisms and movement systems.

Drawing

3625 BLDC Micro Brushless DC Speed Regulating Motor High Speed Motor 12V DC

Physical Attributes

  • Wire Length: 300mm
  • Weight: 74g
  • Motor Diameter: 35mm
  • Shaft Length: 6.2mm

Package Includes

  • 1 x 3625 BLDC Micro Brushless DC Speed Regulating Motor High Speed Motor 12V DC
