ELECROW 3.5" SPI TFT Touch Display with ESP32 Terminal & OV2640 Camera
ELECROW introduces the ESP32 Terminal, a groundbreaking solution for IoT innovation and development. This handheld device integrates a 3.5-inch SPI TFT capacitive touch display with an OV2640 camera, powered by the robust ESP32-S3 module.
Engineered to deliver exceptional computing and processing capabilities, this terminal supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), ensuring seamless connectivity for a wide range of IoT applications. Designed for versatility, the ESP32 Terminal is compatible with popular development platforms such as Arduino, LVGL, PlatformIO, and Micropython.
Whether you're a seasoned developer or a beginner, this terminal offers mature software support and encourages skill development in the realm of IoT. The ESP32 Terminal boasts an innovative design, featuring Crowtail interfaces for easy plug-and-play connectivity with various Crowtail sensors.
Its scalability allows for the integration of multiple interfaces, including digital ports, analog ports, UART, IIC, MEMS microphone, camera interface, and buzzer function.

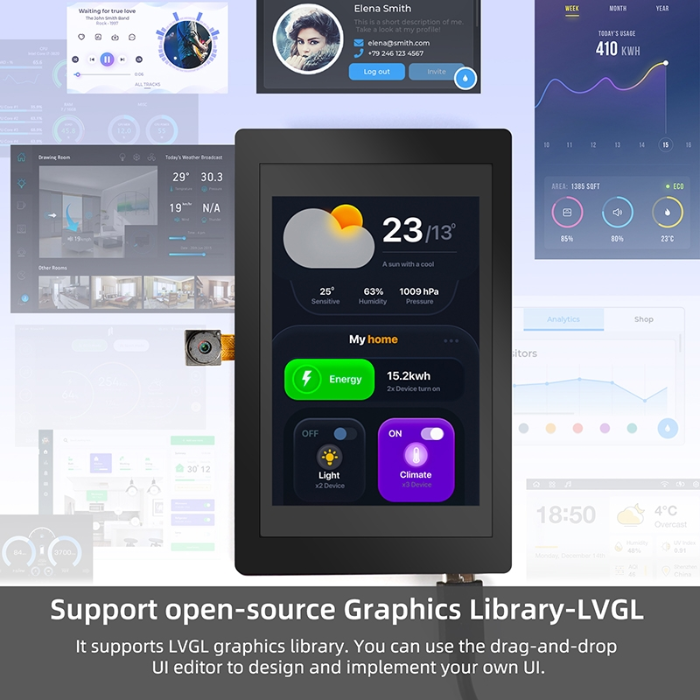

With support for ESP-IDF and Arduino IDE development, along with compatibility with Micropython and LVGL, this terminal empowers users to create stunning UIs and embark on cutting-edge projects such as face/object/scene recognition and speech recognition/voice control.
The 3.5-inch SPI TFT display offers a resolution of 320x480, providing crisp visuals for enhanced user experience. With a frame rate of up to 20FPS, it meets the demands of various application scenarios.
Additionally, the terminal features an acrylic shell for durability and aesthetics, along with mounting options for versatile deployment.

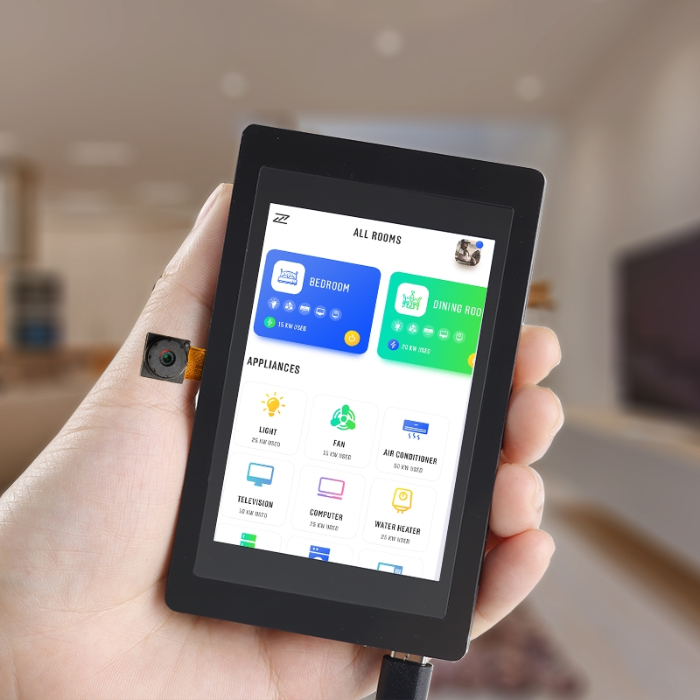

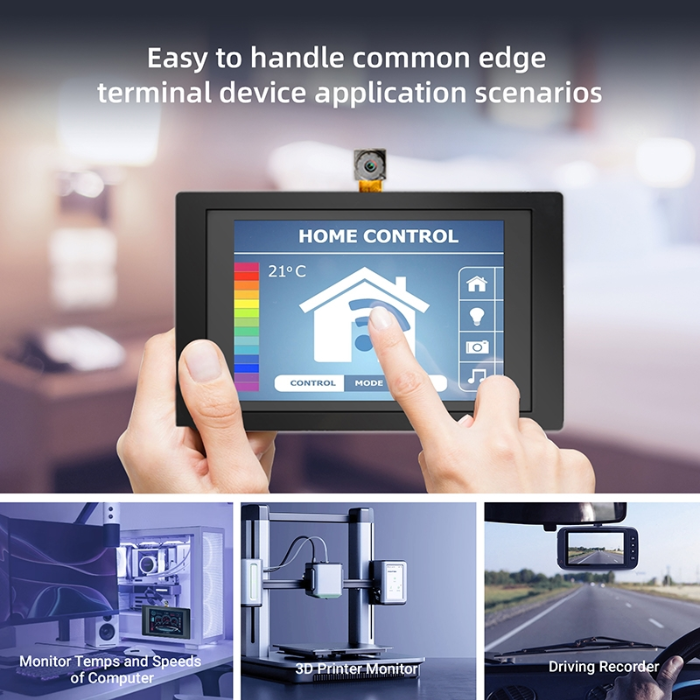

The ESP32 Terminal serves as a central control screen for smart home applications, enabling video surveillance and face recognition for enhanced security and monitoring.
Its compatibility with Crowtail sensors opens up a world of possibilities, allowing users to embark on diverse and exciting projects.
For those looking to customize their GUI, ELECROW offers support and guidance, ensuring a seamless experience. Whether you're a hobbyist, a student, or a professional, the ESP32 Terminal is your gateway to IoT innovation and creativity.
Features:
- Integrated ESP32-S3 module, which is support 2.4 GHz Wi-Fi and Bluetooth 5 (LE)
- 5 inch TFT 320*480 resolution touch LCD display with 2M Pixel OV2640 camera
- Support, USB, UART, SPI, I2C, PWM, and I2S communication protocols
- Supports 1T1R mode, data rate up to 150 Mbps, Wireless Multimedia (WMM)
- Compatible with Arduino/LVGL/Esphome-homeassistant/PlatformIO/Micropython
- Supports hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)

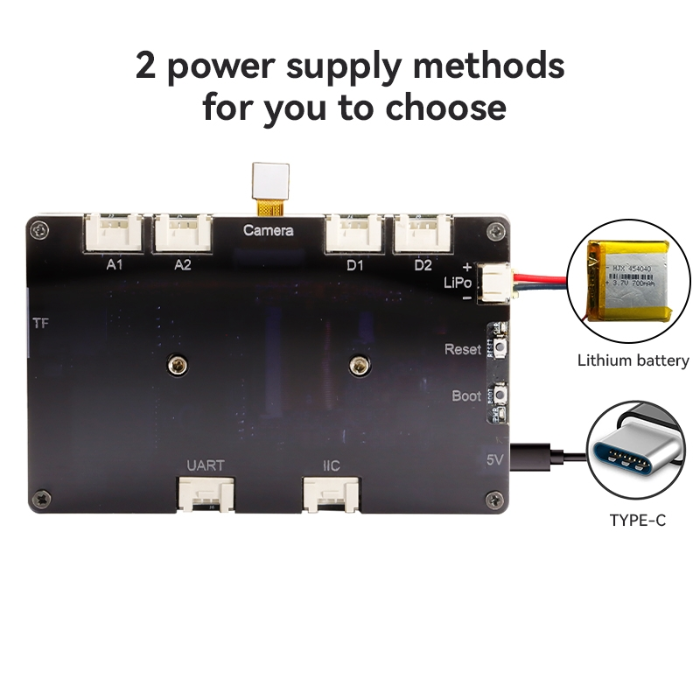

- Support TYPE-C USB power supply and polymer lithium battery power supply with 6 Crowtail interfaces (4P 2.0 connector), plug and play with various Crowtail sensor

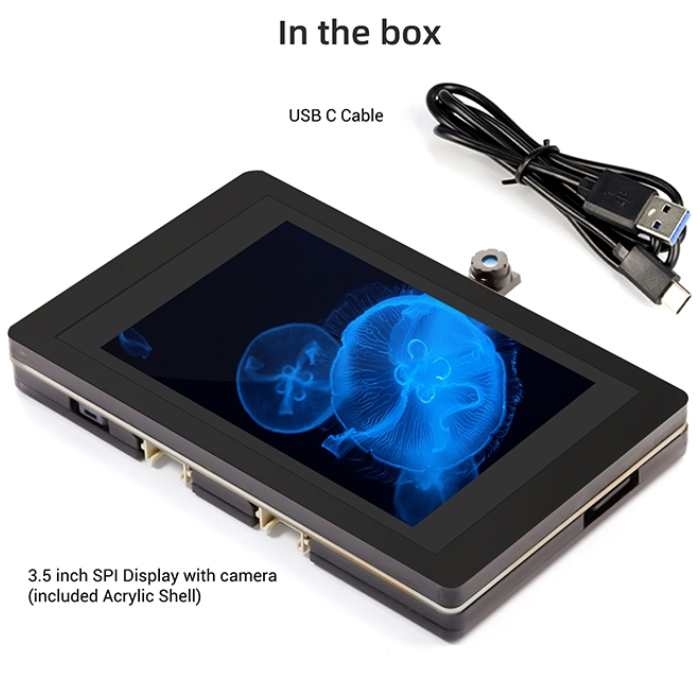

Package Includes:
- 1x 3.5 inch ESP32 SPI Display with camera (included Acrylic Shell)
- 1x USB C Cable
Specifications:
| Main Chip | Integrated ESP32-S3 module |
| Core Processor | Xtensa® 32-bit LX7 |
| Memory | 16MB Flash, 8MB PSRAM |
| Maximum Speed | 240Mhz |
| Wi-Fi | 802.11 a/b/g/n 1x1, 2.4 GHz |
| Bluetooth | BLE 5.0 |
| LCD Screen | Resolution: 320x480 |
| Display Size: 3.5 inch | |
| Drive IC: ILI9488 | |
| Touch | Capacitive Touch |
| Interface | SPI |
| Other Modules | Camera: OV2640, 2M Pixel |
| Microphone: MEMS Microphone | |
| SD Card: Onboard SD Card Slot | |
| USB | 1x USB C |
| UART | 1x UART |
| I2C | 1x I2C |
| Analog | 2x Analog |
| Digital | 2x Digital |
| Button | RESET Button, BOOT Button |
| Operating Voltage | USB DC5V, lithium battery 3.7V |
| Operating Current | Average current: 83mA |
| Operating Temperature | -10°C to 65°C |
| LiPo Battery Interface | PH 2.0 |
| Active Area | 73.63(L) x 49.79mm(W) |
| Dimension Size | 106(L) x 66mm(W) x 13mm(H) |
