2MBI100N-060 IGBT 600V 100A

2MBI100N-060 IGBT 600V 100A

First Come First Serve Offer (T&C Apply )

2,449.02
0.00 2,449.02
Sale Sold out
Shipping calculated at checkout.

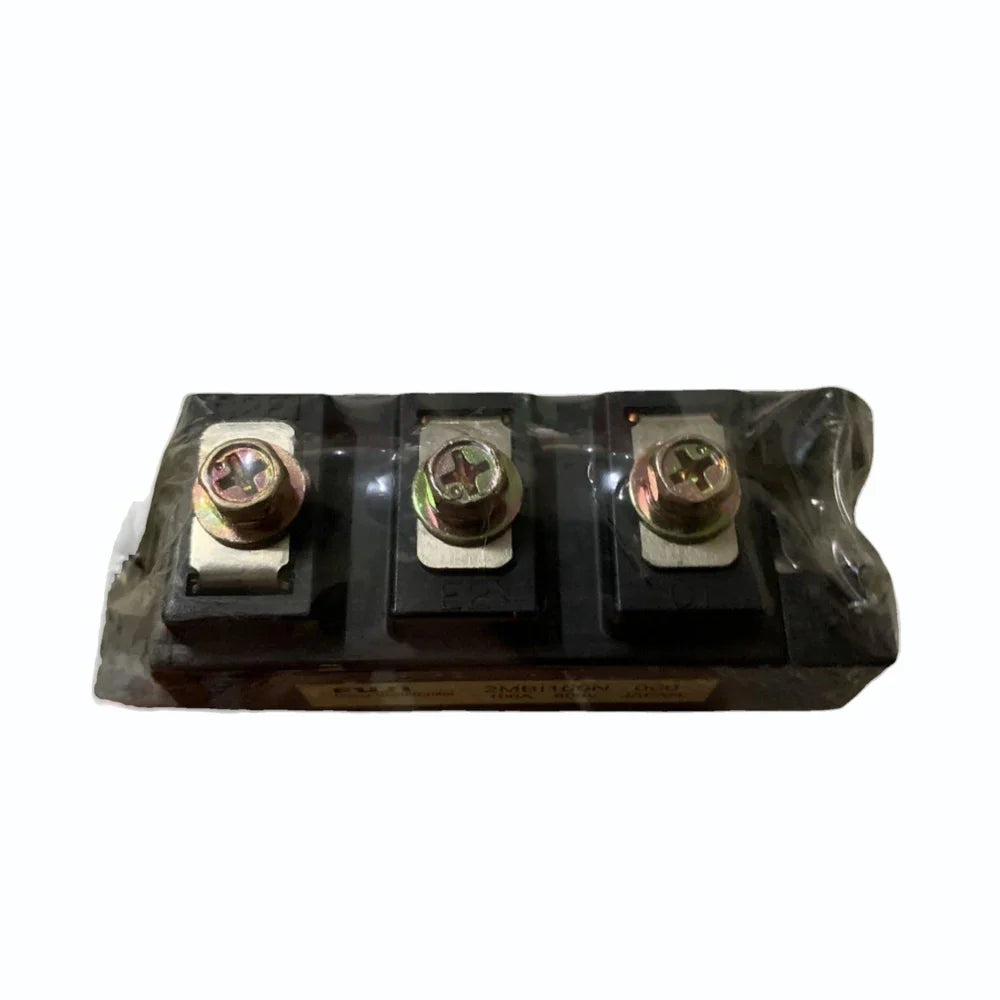

The 2MB100N-060 is a IGBT module designed for high-efficiency power switching applications. It features a 600V, 100A rating and is commonly used in industrial inverters, motor drives, and power supplies. This module offers low power loss and high-speed switching capabilities.

Specifications:

  • Collector-Emitter Voltage (VCE): 600V
  • Collector Current (IC): 100A
  • Gate-Emitter Voltage (VGE): ±20V
  • Maximum Power Dissipation (Ptot): 312W
  • Collector-Emitter Saturation Voltage (VCE(sat)): Typically 2.2V at 100A
  • Isolation Voltage: 2500V AC (1 minute)
  • Operating Junction Temperature (Tj): -40°C to +150°C
  • Storage Temperature (Tstg): -40°C to +125°C
  • Module Weight: Approximately 150g
  • Package: Dual-in-line package
