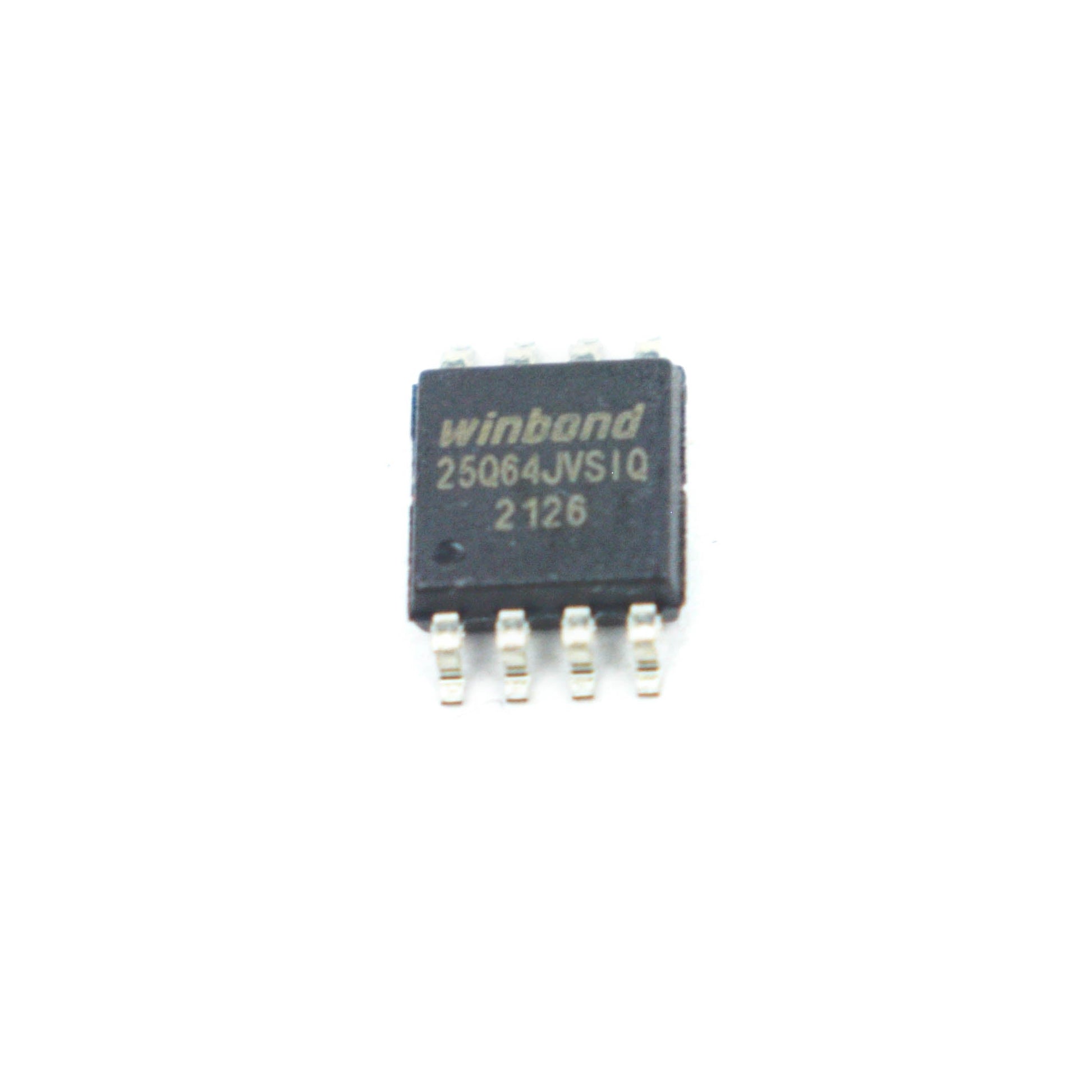

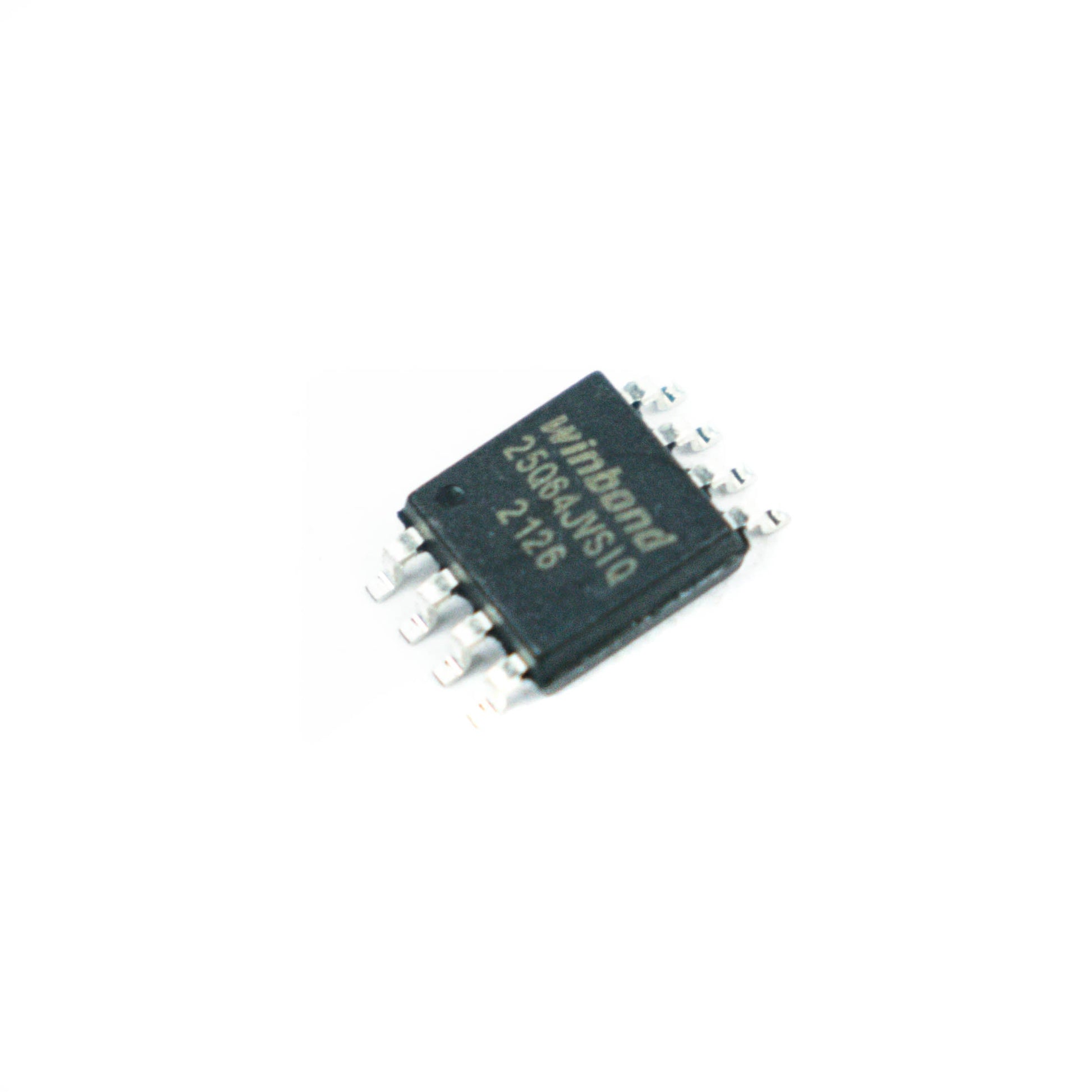

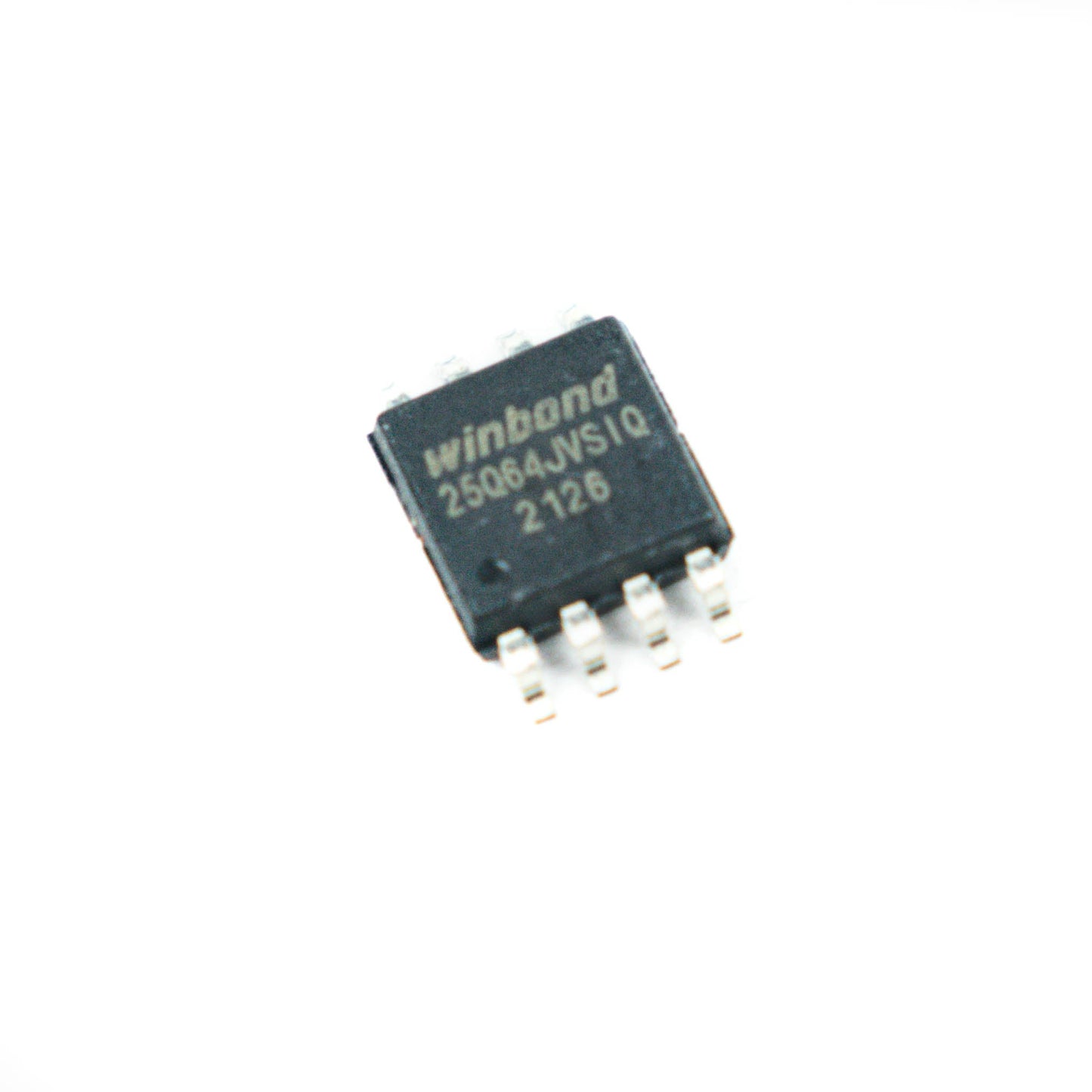

25Q64 64M-bit SMD Flash Memory IC

25Q64 64M-bit SMD Flash Memory IC

First Come First Serve Offer (T&C Apply )

41.16
0.00 41.16
Sale Sold out
Shipping calculated at checkout.

The 25Q64 (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q64 offers flexibility and performance well beyond ordinary Serial Flash devices. The device operates on a single 1.65V to 1.95V power supply with current consumption as low as 4mA active and 1ยตA for power-down.ย The 25Q64 array is organized into 32,768 programmable pages of 256-bytes each. Up to 256 bytesย  can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q64 has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage.

Features

  • 50MB/S continuous data transfer rate
  • More than 100,000 erase/program cycles
  • More than 20-year data retention
  • Low Power, Wide Temperature Range
  • Single 2.7 to 3.6V supply
  • 4mA active current, <1ฮผA Power-down
  • -40ยฐC to +85ยฐC operating Temperatureย
  • Flexible Architecture with 4KB sectors
  • Advanced Security Features
  • Software and Hardware Write-Protect
  • Space Efficient Packaging
Specification
Model 25Q64
Memory type
Flash
Memory size 64 M- bit
Operating voltage 2.7 V to 3.6 V
Operating Temperature -40ยฐC to +85ยฐC
Packaging type SMD
Data transfer speed Upto 50 MB/s

Current consumption -ย

ย ย ย ย ย ย ย ย ย ย Active current

ย ย ย ย ย ย ย ย ย Power down ย  ย

ย

ย 4mAย

ย <1ฮผA
Country of Origin China
