24V DC Motor PCB Controller Circuit Control Board for Boom Barrier

24V DC Motor PCB Controller Circuit Control Board for Boom Barrier

First Come First Serve Offer (T&C Apply )

6,859.02
0.00 6,859.02
Sale Sold out
Shipping calculated at checkout.

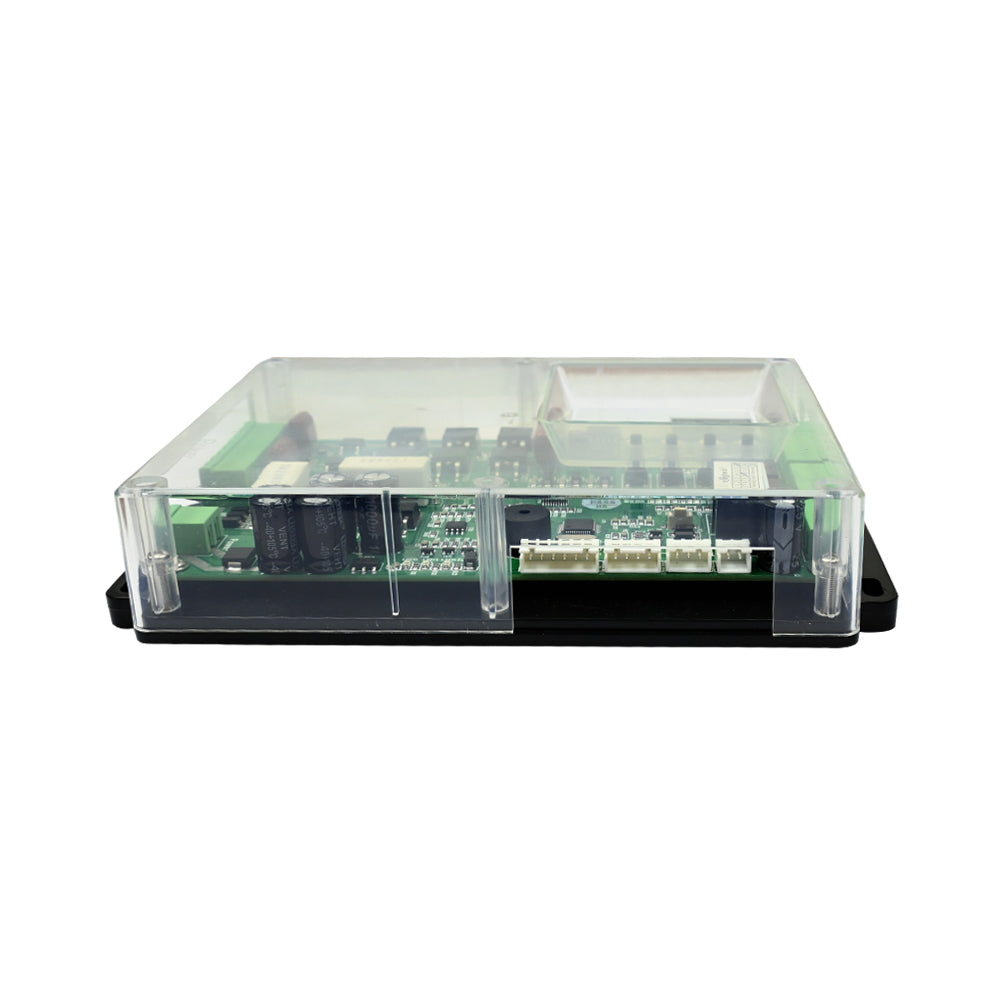

This is a PCB Controller Circuit Card Plate Boom Barrier Control Board for a 24V DC Brushless Electric Parking Gate Motor. Designed for self-developed parking systems, four-layer board design, signal and power layering line, integration, high reliability, rich interface, to adapt to a wide range of voltage, pulse shockproof, ensure the safety and reliability of the entire surface patch process, anti-corrosion treatment protects the circuit board from erosion, very suitable for the use of the parking lot to the environment.

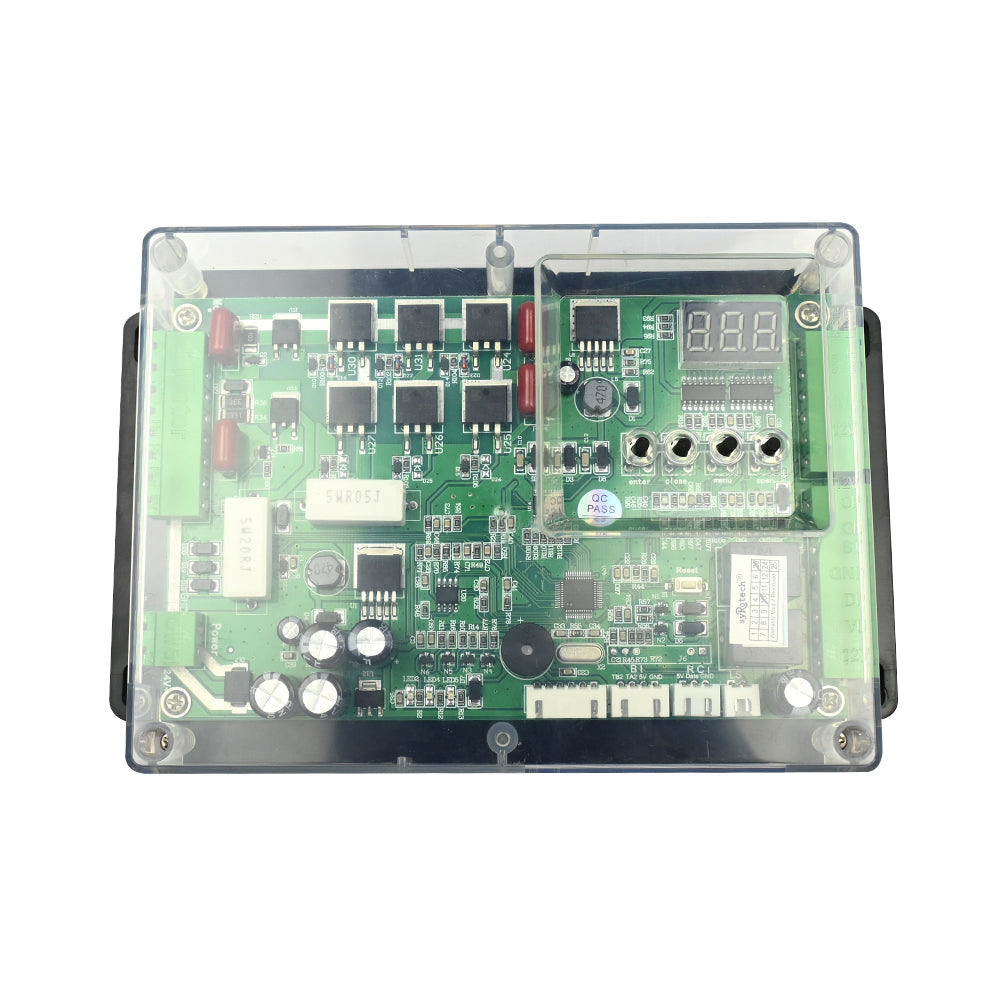

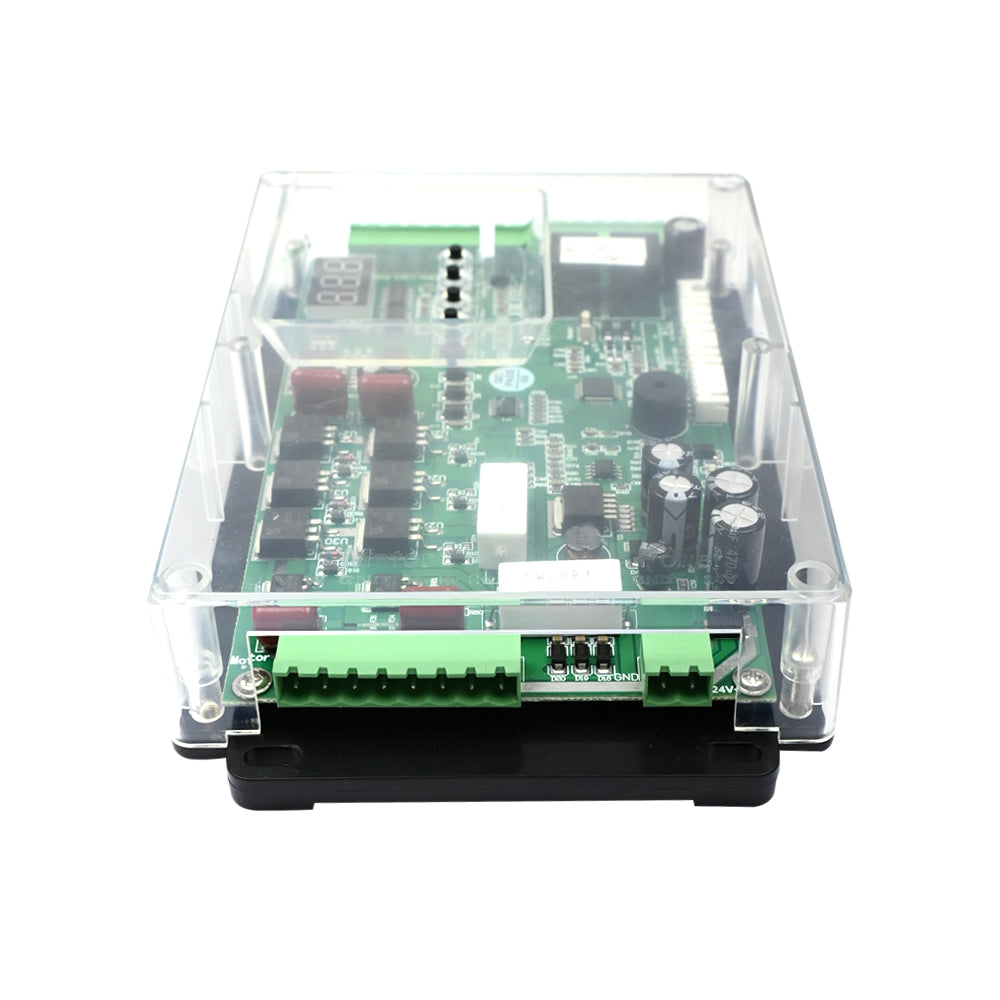

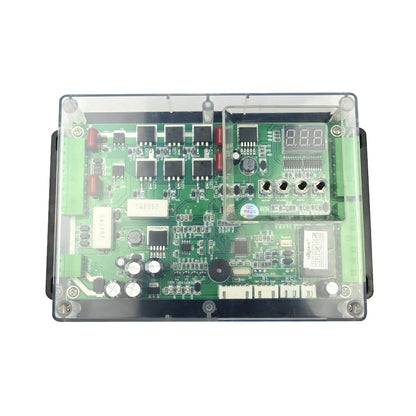

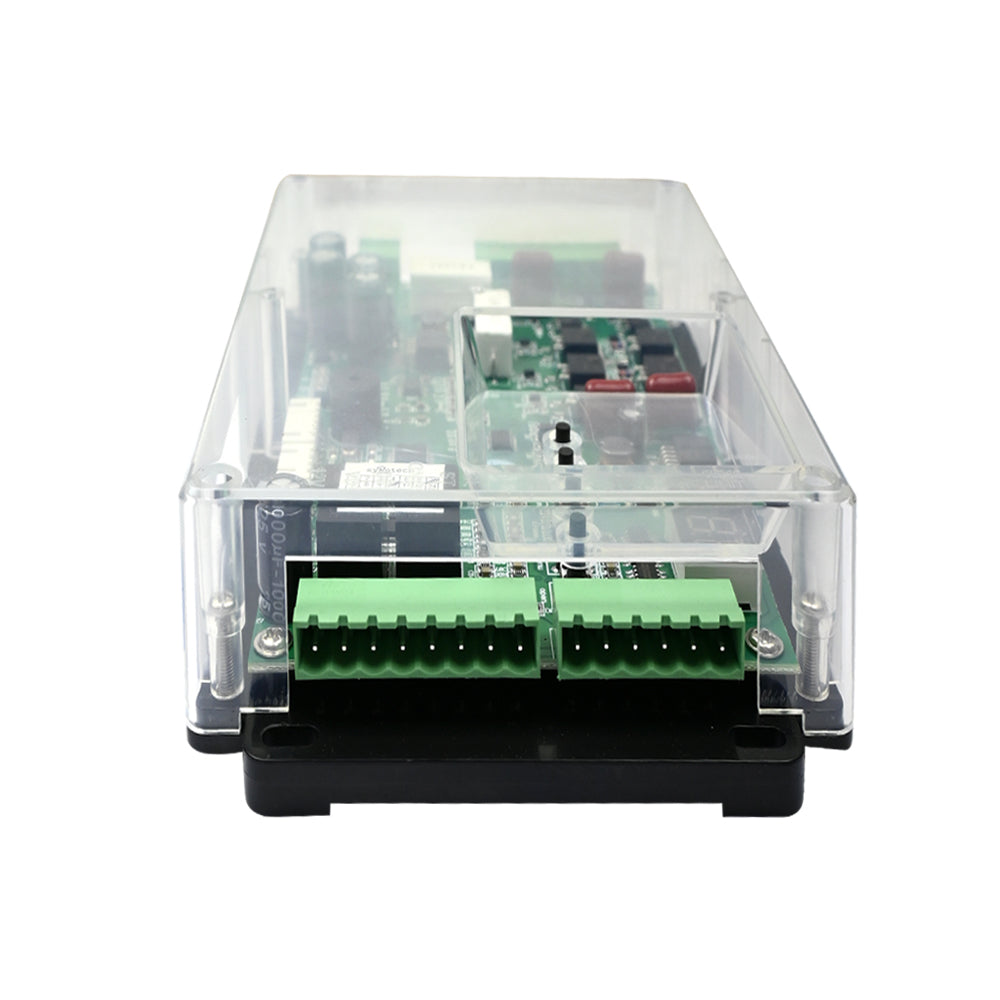

Its 24V  control panel is a collection of electrical components that work together to regulate the various mechanical operations of machinery or industrial equipment using electricity. Panel structure and electrical components are the two primary categories of an electrical control panel. It has three female pluggable connectors 8 Pin, 6 pin, and 2 pin. It has 3 Digits 7 Segment Display. It has two male pluggable connectors which are 2 Pin and 8 Pin. It has a Buzzer. It has four tactile push buttons each buttons have a different purpose like confirm, close, open, and menu.

Features:

  • Motor Drive Power Capacity = 140 W
  • Input Voltage (Typical) = 24VDC
  • Parameter Setting Interface = Push Button Interface
  • Display Requirement = Yes (Segmented or LCD)
  • Photocell Interface = Required
  • Traffic Light Interface = Required
  • Protocol Interface = RS485
Technical Specification
Display Interface Segment
Input Voltage 12V DC
Type Gate Controller
Mounting Type Panel
Dimension 175 x 135 mm
Country of Origin China
