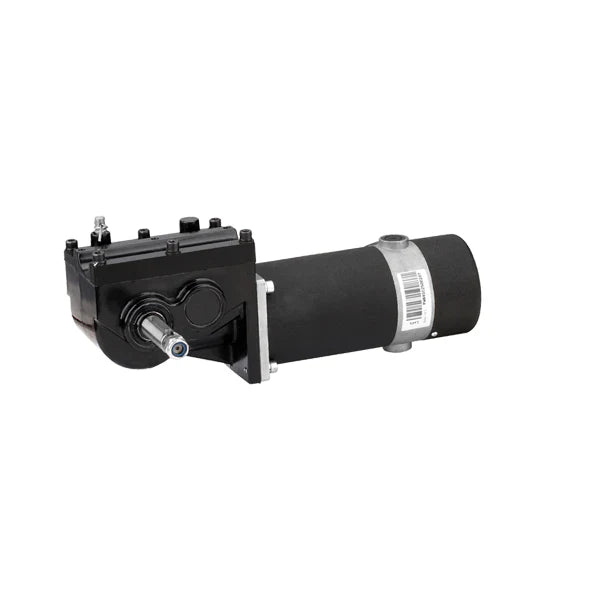

24V 200W 4400RPM Electric Wheelchair Powertrain PMDC Motor - SCD2-B

24V 200W 4400RPM Electric Wheelchair Powertrain PMDC Motor - SCD2-B

First Come First Serve Offer (T&C Apply )

10,770.20
0.00 10,770.20
Sale Sold out
Shipping calculated at checkout.

The 200W 4400RPM Electric Wheelchair Powertrain PMDC Motor, designated as SCD2-B, is a compact and powerful motor designed specifically for electric wheelchair applications. With its high RPM rating of 4400, this motor provides efficient and smooth operation, ensuring a comfortable and responsive driving experience for wheelchair users. The PMDC (Permanent Magnet DC) design offers reliability and durability, making it suitable for long-term use. Its 200W power rating strikes a balance between performance and energy efficiency, ideal for electric wheelchair powertrains. The SCD2-B motor is engineered to meet the demanding requirements of wheelchair mobility, delivering dependable performance and ease of use.

Specifications:

  • Operating Voltage (VDC): 24
  • Output Power (W): 200

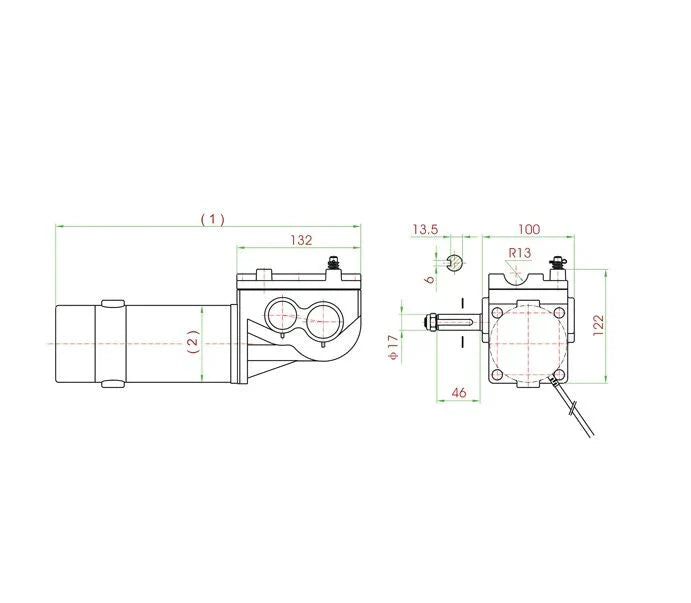

  • Dimensions (1) : 325mm
  • Dimensions (2) : 82mm
  • No-load Current (A): 3.6
  • Motor Speed ±5% (RPM): 4400
  • No-load Output Speed (RPM): 135
  • Gear Ratio: 32 : 1
  • Sound Level (dB(A)): 60
  • Brake Torque (Nm): 33.4
  • Gear Motor Rated Torque (Nm): 16.95
  • Motor OD (mm): 79
  • Output Shaft OD (mm): 17 (with 6mm keyway and key)
  • Weight: 15.5lbs per motor
  • Efficiency : 80%
