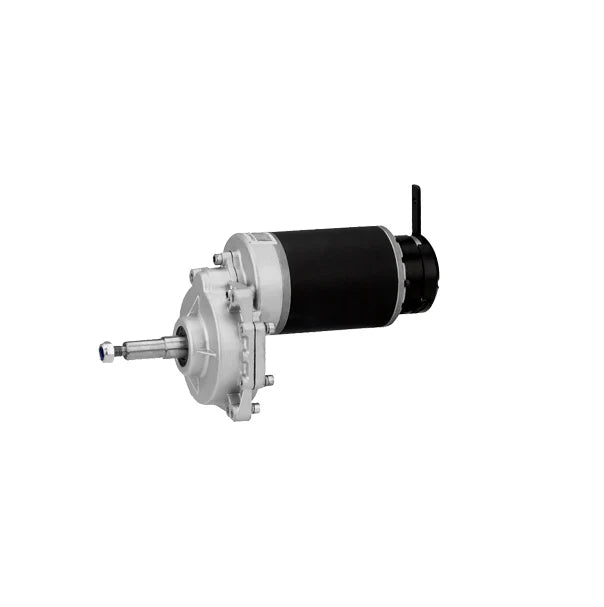

24V 200W 3250RPM Electric Wheelchair Powertrain PMDC Motor - SCD1

24V 200W 3250RPM Electric Wheelchair Powertrain PMDC Motor - SCD1

First Come First Serve Offer (T&C Apply )

9,790.20
0.00 9,790.20
Sale Sold out
Shipping calculated at checkout.

The 24V 200W 3250RPM Electric Wheelchair Powertrain PMDC Motor - SCD1 is designed to provide efficient and reliable performance for electric wheelchair systems. With its 24V voltage rating, 200W power output, and high-speed operation at 3250 RPM (Revolutions Per Minute), this motor offers sufficient torque and speed for wheelchair mobility. The PMDC (Permanent Magnet DC) design ensures smooth operation and precise control, enhancing the overall user experience. Its compact size and lightweight construction make it suitable for integration into wheelchair powertrains without adding excessive bulk or weight. Overall, the SCD1 motor is a versatile and dependable choice for electric wheelchair applications.

 Specifications:

  • Operating Voltage (VDC): 24
  • Output Power (W): 200
  • No-load Current (A): 3.6
  • Motor Speed ±5% (RPM): 3250
  • No-load Output Speed (RPM): 190
  • Gear Ratio: 19 : 1
  • Sound Level (dB(A)): 70
  • Brake Torque (Nm): 33.4
  • Gear Motor Rated Torque (Nm): 16.95
  • Output Shaft OD (mm): 17 (with 6mm keyway and key)
  • Weight: 15.5lbs per motor
  • Efficiency : 80%
