24 Channel Digital Servo Controller

The 24 Channel Digital Servo Controller is designed with a low voltage alarm and a simple wiring structure, ensuring ease of use and reliability. It features a built-in power switch and a high-performance CPU, making it highly efficient for various applications. With support for a wireless handle and 16M high-capacity memory, it can store up to 230 action groups, providing extensive functionality. Additionally, it is compatible with Bluetooth/MP3 modules and supports TTL serial communication for seamless integration.

All 24 servo interfaces come with overcurrent protection, minimizing the risk of damage due to a locked rotor. The controller utilizes a high-performance STM32 single-chip microcomputer with an ARM Cortex-M3 core, enabling not only precise servo movement control but also speed adjustment. To further enhance usability, PC software is provided, supporting online graphical debugging, allowing users to control all 24 servo channels simultaneously.

Technical Details

  • Weight: 54g
  • Dimensions: 52mm × 61.5mm
  • Mounting Hole Position: 44.5mm × 53.5mm
  • Communication Interface: Mini USB
  • Control Channels: 24
  • Remote Control Handle: Supports external
  • Bluetooth Module: Supports extension
  • MP3 Module: Supports extension
  • WIFI Module: Supports extension
  • Wireless Module: Supports extension
  • Ultrasonic Module: Supports extension
  • Angle Detection: Support
  • Power Switch: On-board
  • Voltage Alarm: Support
  • Secondary Development: Support
  • Serial Communication: Support
  • Local Storage: Support
  • Run Offline: Support

Features

  • Supports external PS remote control handle for calling actions
  • On-board angle sensor with detection mode and auto execution
  • Supports ultrasonic module for obstacle distance detection
  • Supports Bluetooth, WiFi, and MP3 module extensions
  • Supports secondary development with reserved serial interface
  • Automatic low-voltage detection, alarm, and action storage
  • Multiple voltage regulation, signal isolation, and overload protection
  • Includes detailed electronic information and video tutorials

Interface Diagram

Drawing

Power Supply connection

power supply

Secondary Development

Development

Detailed Display:

display

Applications :

  • Robotics: Controls multiple servos in complex robotic systems like arms, legs, and drones.
  • Automation: Used in automated systems for precise control of servo motors in machines and devices.
  • Modeling and Simulation: Ideal for controlling servos in model vehicles, robots, or animations.
  • Prototyping: Facilitates the rapid prototyping of robotic projects requiring multi-axis control.
  • 3D Printing: Can be used in 3D printers for controlling multiple extruders or movable parts.
  • STEM Education: A valuable tool for teaching students about electronics, robotics, and servo control.
  • Industrial Applications: Used in manufacturing, especially in systems needing precise movement or positioning.
  • Entertainment: Can control servos in animatronics for theme parks, film sets, or robotic displays.

Physical Attributes

  • Tyre lxwxh mm: 61 × 52 x 12
  • Weight: 54g

Package Includes

  • 1 x Servo Controller 24 channel

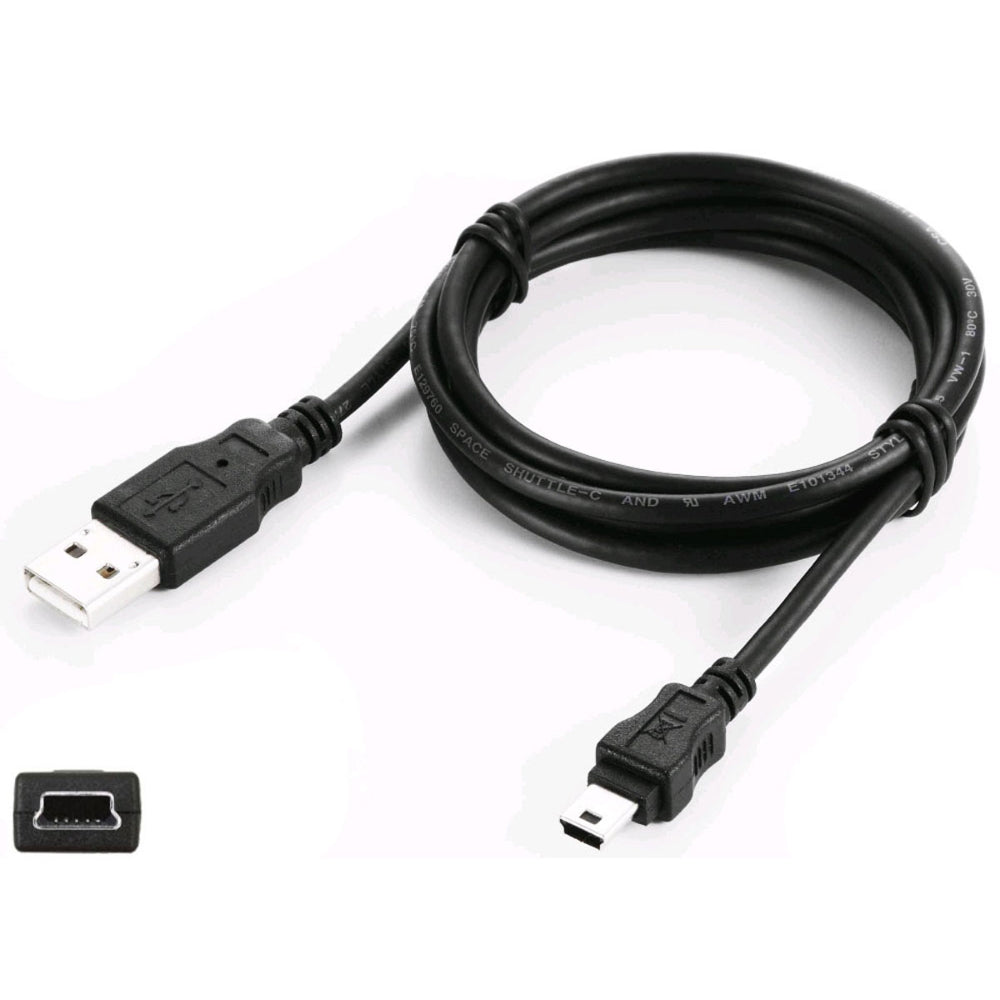

  • 1 x Mini-USB Cabel
