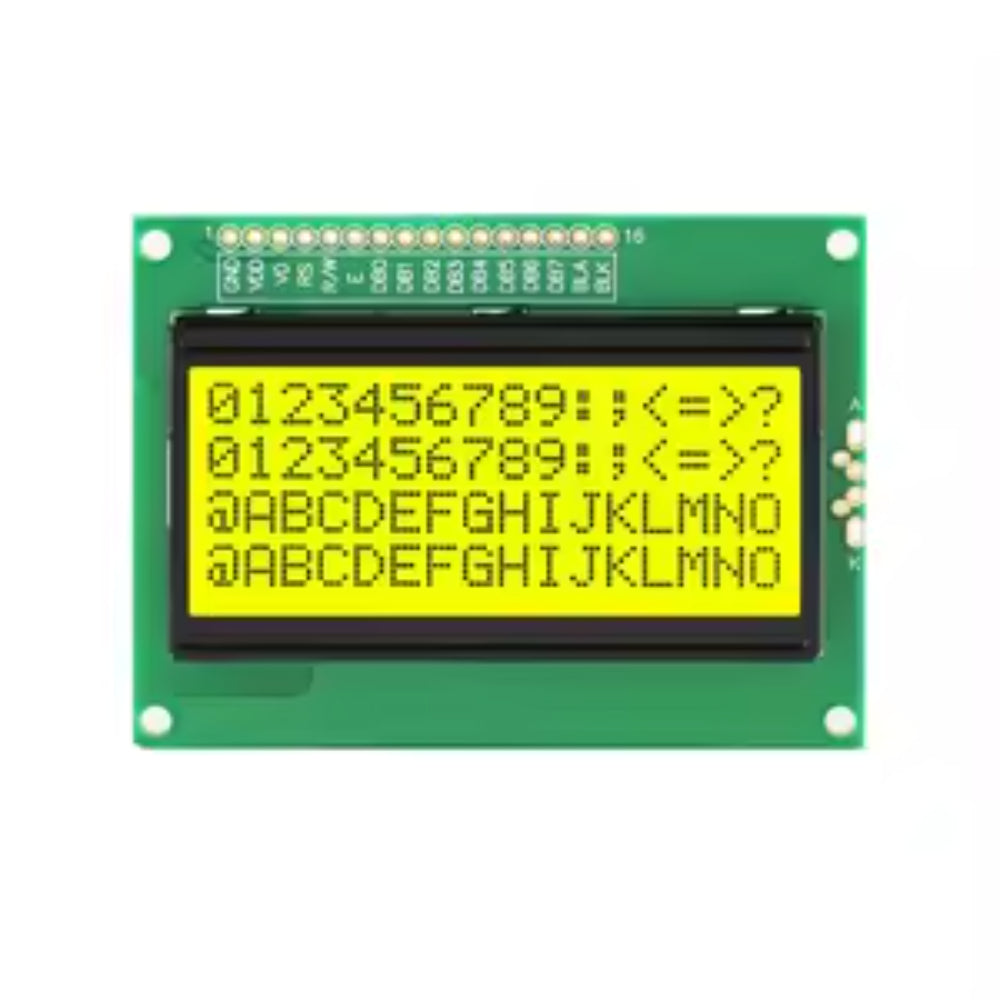

16X4 1604 Character Lcd Display Green Color

16X4 1604 Character Lcd Display Green Color

First Come First Serve Offer (T&C Apply )

343.00
499.00 343.00
Sale Sold out
Shipping calculated at checkout.
The LCD1604 Green Backlight is a 16×4 character LCD (Liquid Crystal Display) module featuring a vibrant Green backlight. This module offers a clear and easy-to-read display with 16 characters per line and 4 lines in total, providing ample space for presenting text and basic graphics. The Green backlight enhances visibility, making it suitable for use in various lighting conditions. Typically controlled using microcontrollers or other embedded systems, the LCD1604 Green Backlight is commonly utilized in electronic projects, DIY gadgets, instrumentation, and industrial applications where real-time data display is required. Its compact size, low power consumption, and compatibility with standard interfaces make it a popular choice for integrating visual output into electronic devices and systems.

Features:

Display Construction: Supports 16 characters × 4 lines for comprehensive text display.

Display Mode: Available in TN/STN technologies for clear and sharp visuals.

Display Type: Positive Transflective display ensures visibility in various lighting conditions.

Backlight: Integrated LED backlight with 4.2VDC operation for enhanced illumination.

Viewing Direction: Optimized for 6 o’clock viewing angle, suitable for downward-facing applications.

Operating Temperature: Designed for indoor applications, ensuring reliable performance in controlled environments.

Driving Voltage: Operates with single power supply, simplifying integration.

Driving Method: Features 1/16 duty and 1/4 bias for efficient operation.

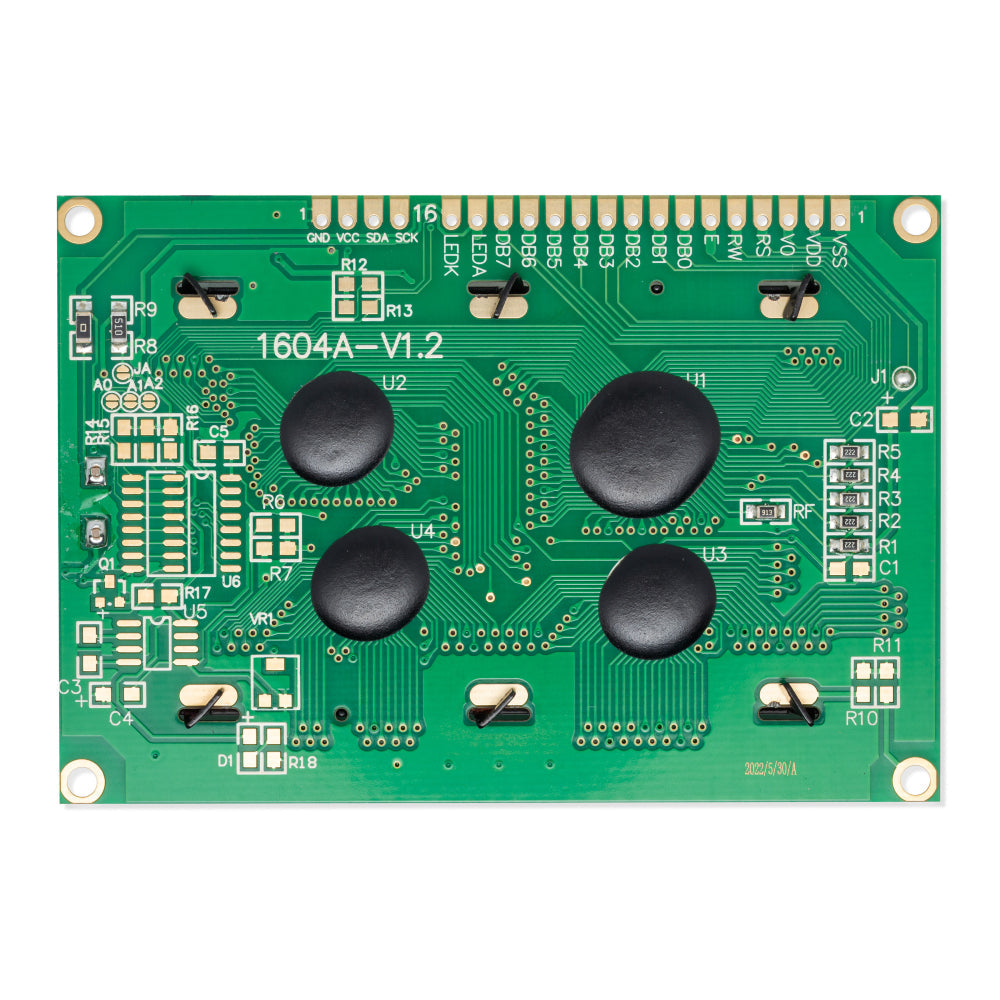

Type: COB (Chip On Board) construction for compact and durable design.

Number of Data Lines: 8-bit parallel interface for fast and reliable communication.

Connector: Supports Pin or ZEBRA connectors for flexible installation options.

Technical Details

  • Connection: Pin Header
  • Display Format: 16×4 Character
  • Touch Panel Optional: No
  • Outline Dimension: 87.0(W) x 60.0(H) x 13(T) mm
  • Visual Area: 61.70 x 27 mm
  • Active Area: 56.20 x 21.80 mm
  • Character Size: 2.95 x 4.75 mm
  • Dot (Pixel) Size: 0.55 x 0.55 mm
  • Dot Pitch: 0.60 x 0.60 mm
  • IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780, ST7066
  • Interface: 6800 4-bit Parallel, 6800 8-bit Parallel
  • Display Type: STN-LCD Green
  • Viewing Direction: 6:00
  • Appearance: Black on Green
  • Backlight Color: Green
  • Backlight Current (Typ): 45mA
  • Power Supply (Typ): 5.0V
  • Supply Current for LCM (Max): 1800uA
  • Operating Temperature: -20°~70°
  • Driver IC: KS0066 (compatible with HD44780)
  • Storage Temperature: -30°~80°

Applications:

  • Display system status, settings, or operational data in industrial or consumer electronics.
  • Show real-time data collected from sensors or devices in scientific or engineering projects.
  • Display device statuses, settings, or alerts in smart home setups.
  • Use in Arduino-based projects to show information like sensor readings, system status, or user inputs.
  • Provide operational feedback, sensor data, or instructions in robotic systems.
  • Implement in embedded systems for simple text-based user interfaces.
  • Display time, date, and alarms in digital clocks or timers.
  • Use in development and testing to visualize outputs, settings, or real-time performance of prototypes.
  • Teach students and hobbyists about interfacing displays with microcontrollers in learning kits.
  • Display readings for physical parameters like temperature, humidity, or pressure in measurement setups.

Physical Attributes of oled display module

  • Outline Dimension: 87.0(W) x 60.0(H) x 13(T) mm
  • Visual Area: 61.70 x 27 mm
  • Active Area: 56.20 x 21.80 mm
  • Character Size: 2.95 x 4.75 mm
  • Dot (Pixel) Size: 0.55 x 0.55 mm
  • Dot Pitch: 0.60 x 0.60 mm
  • Weight (g): 57

Outline Drawing

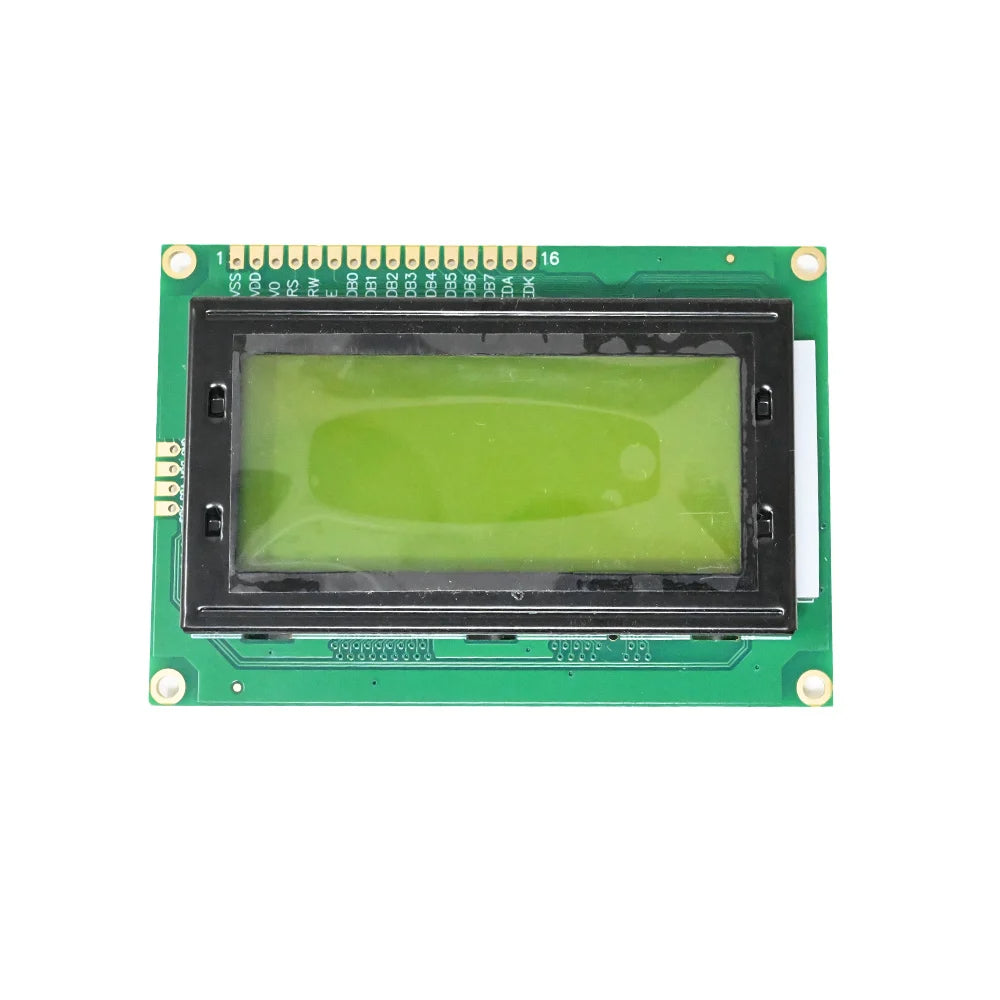

1604 16X4 LCD Blue Screen Display

Package Includes

  • 1 x 16X4 1604 Character Lcd Display Green Color
