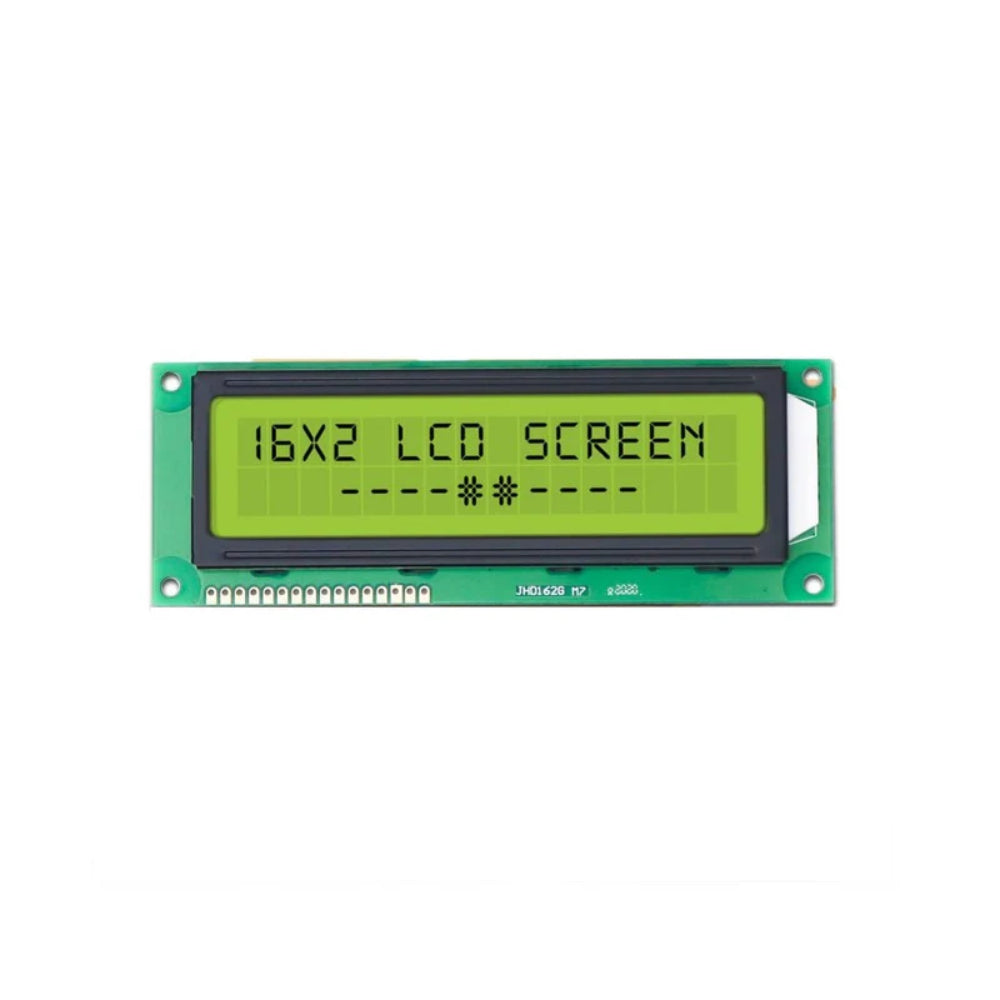

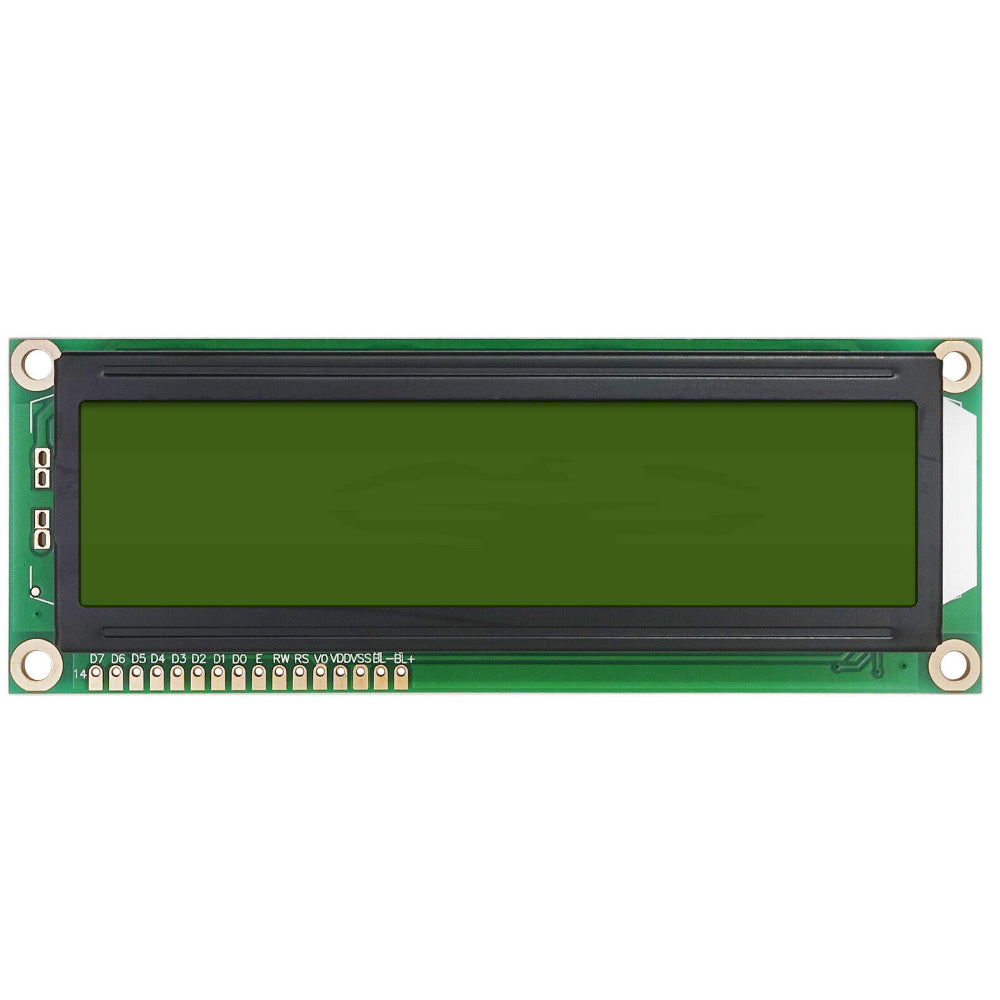

16X2 1602 Jumbo Character Lcd Display Green Color

16X2 1602 Jumbo Character Lcd Display Green Color

First Come First Serve Offer (T&C Apply )

342.02
499.00 342.02
Sale Sold out
Shipping calculated at checkout.
16x2 LCD Display in a captivating Green hue, perfect for your electronics projects. This versatile and reliable LCD screen features a 16x2 character layout, allowing for clear and crisp text display. Its compact design and easy-to-use interface make it ideal for a wide range of applications. Whether you're a hobbyist or a professional, this high-quality LCD display with a soothing Green backlight will enhance your projects and captivate your audience. Explore the possibilities today
This 16x2 Green Jumbo Display, featuring the same captivating Green color but with a larger font size for enhanced visibility. This display offers 2 lines, each with 16 characters, capable of displaying both alphanumeric characters and numbers. Its versatile functionality makes it perfect for applications such as data scanners and meters, providing clear and easy-to-read indications of critical information.

Features:

Display Mode: STN technology with Green Negative Transmissive design for sharp and clear visuals.

Color:
Display Dots: Black
Background: Green

Display Format: 16 characters × 2 lines, suitable for text-based applications.

Integrated Circuit (IC): IC: 7066 and 7065 for robust functionality and control.

Interface Input Data: 8-bit data input for seamless and fast communication.

Driving Method: 1/16 Duty and 1/4 Bias for efficient and stable operation.

Viewing Direction: 6 O’clock optimized viewing angle for downward-facing displays.

Backlight: Black LED backlight for excellent illumination in low-light conditions.

Technical Details

  • Operating Voltage: 4.7V to 5.3V
  • Operating Current: 1mA (without backlight)
  • Can display: 16x2 (32 Alphanumeric Characters)
  • Custom Characters Support
  • Works in both 8-bit and 4-bit Mode
  • Display Mode: STN / Green, NEGATIVE, TRANSMISSIVE
  • Colour: Display
  • Dot: Black
  • Background: Green
  • Display Format: 16 (characters) × 2 (lines)
  • Version: Affordable Version

Applications:

  • Used in industrial equipment for status and information display.
  • Ideal for home appliances such as washing machines and microwaves.
  • Employed in medical devices for displaying critical parameters.
  • Common in educational kits and projects for learning microcontroller interfacing.
  • Suitable for point-of-sale (POS) systems for transaction details.
  • Used in automotive dashboards for essential vehicle data.
  • Perfect for DIY electronics and hobbyist projects requiring character displays.
  • Integrated into embedded systems for simple user interfaces.
  • Utilized in access control systems for showing instructions or status.
  • Suitable for vending machines for product and pricing information.

Mechanical Specifications

  • Module Size: 122.00(W) x 43.69(H) x 13.4(T) mm
  • Viewing Area: 99.00(W) x 23.99(H) mm
  • Effective Display Area: 95.02(W) x 20.18(H) mm
  • Number of Dots: 16 (characters) x 2 (lines)
  • Dot Size: 1.08(W) x 0.94(H) mm
  • Dot Pitch: 1.16(W) x 1.02(H) mm
  • Weight (g): 67

Outline Drawing

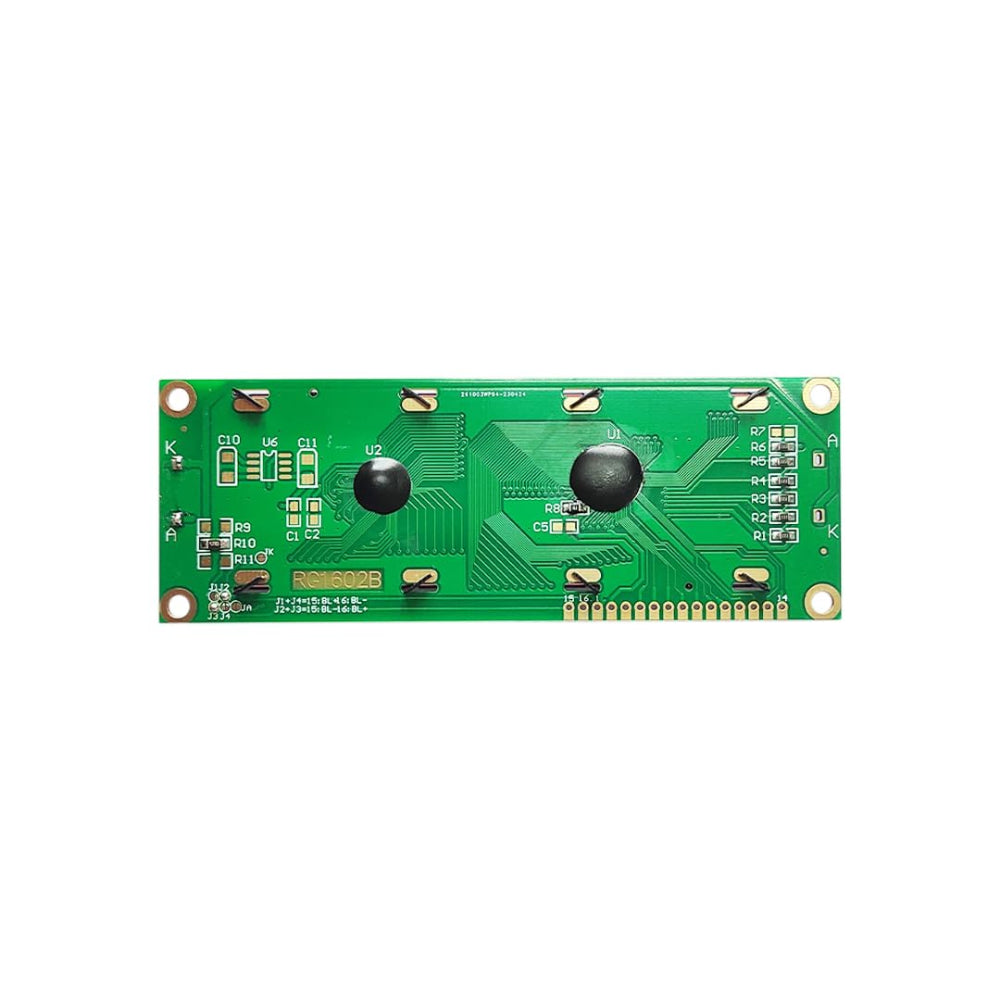

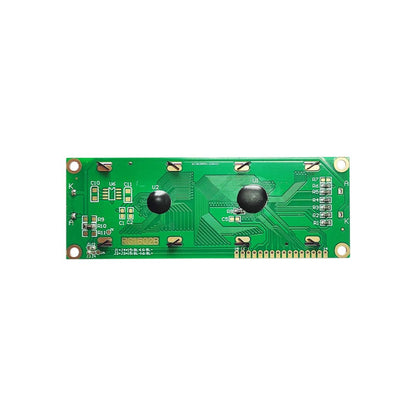

16X2 1602 Jumbo Character Lcd Display Blue Color

Package Includes

  • 1 x 16X2 1602 Jumbo Character Lcd Display Green Color
