16Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board

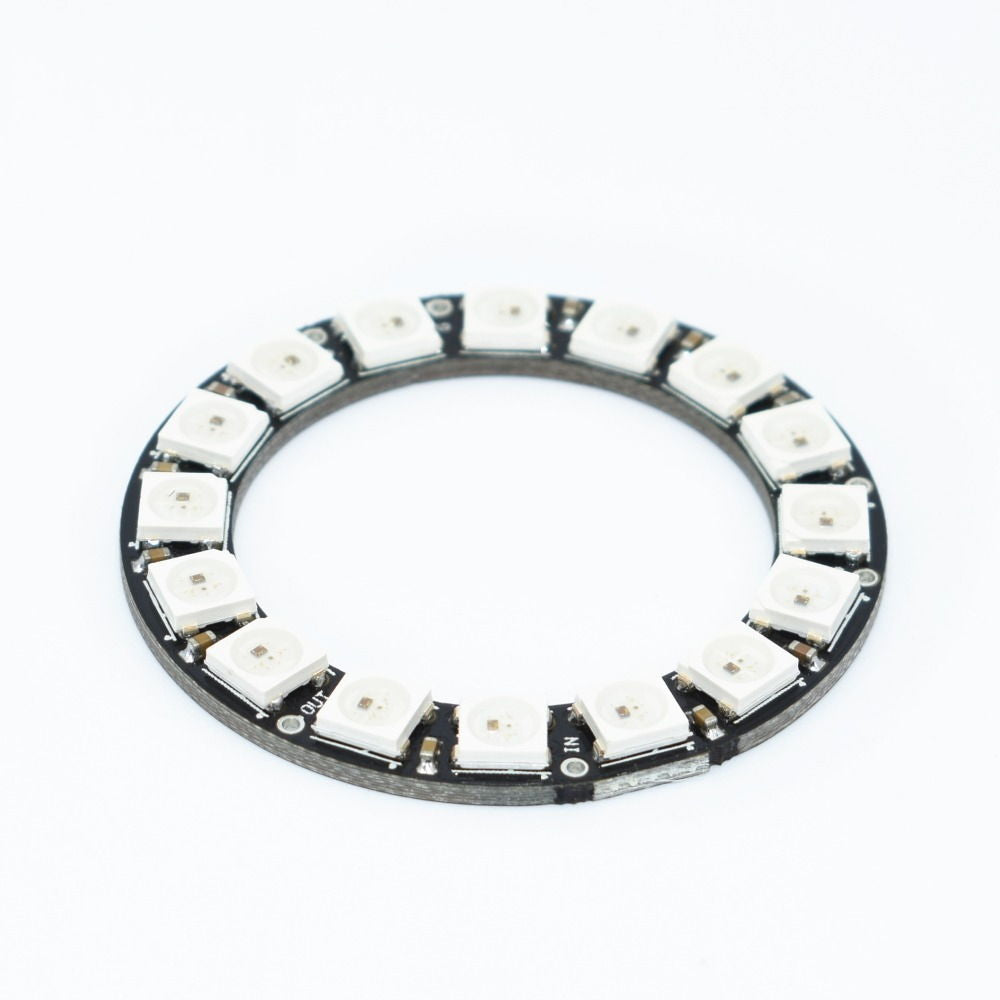

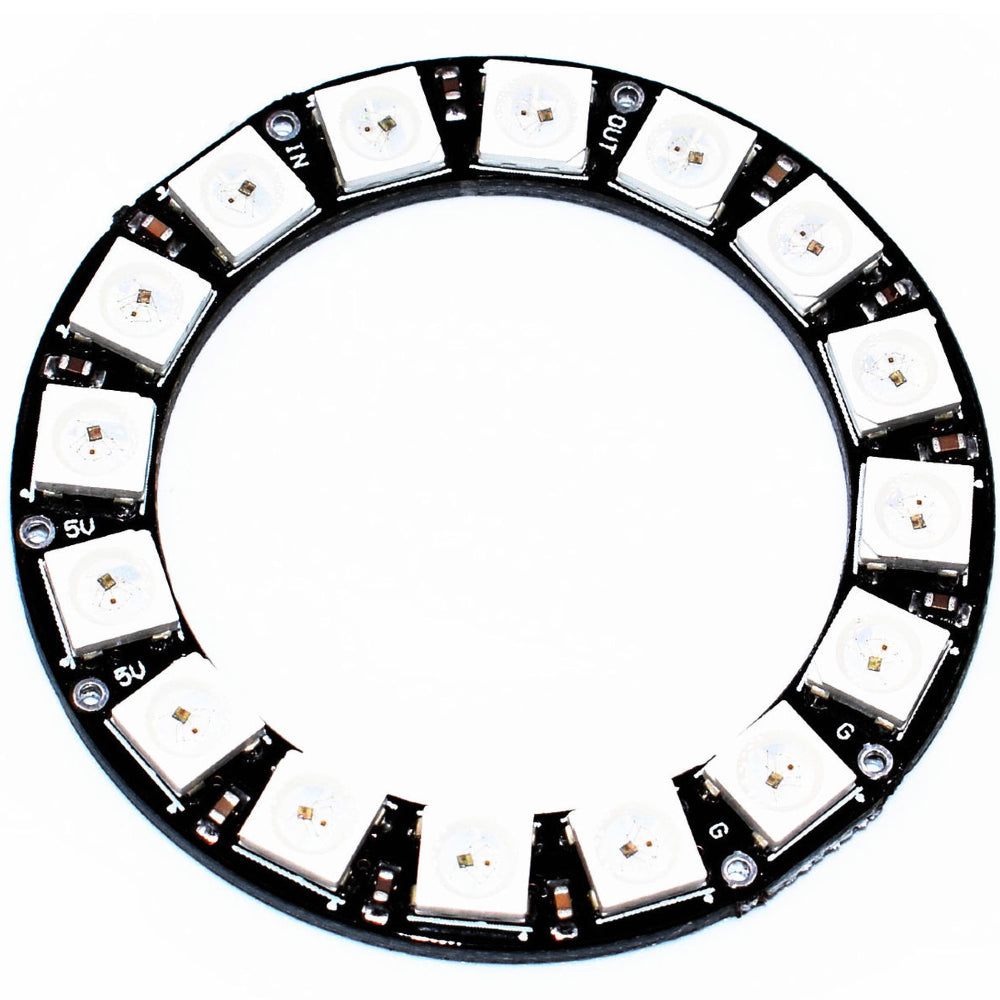

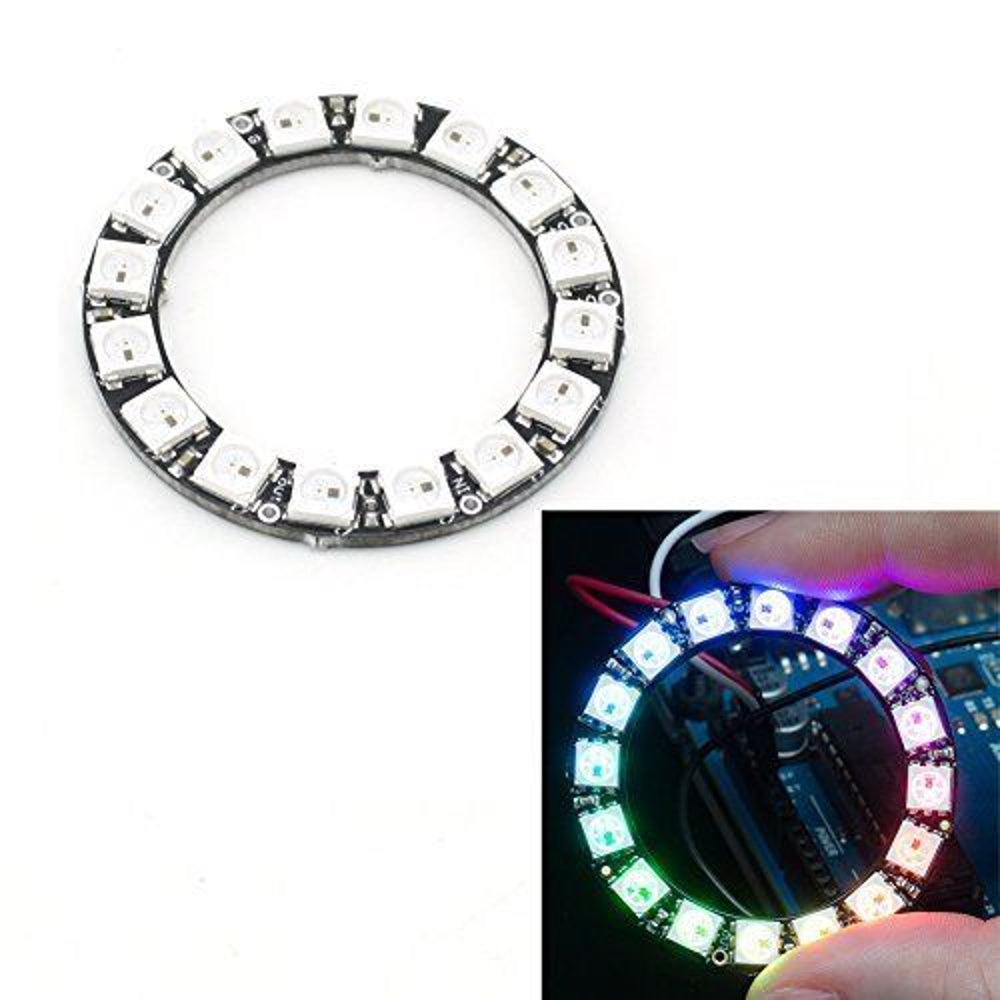

The 16Bit WS2812B 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board has a round black shape, let us be clear at a glance! 16 super bright smart NeoPixels LED arranged in a 68mm outside diameter circular PCB.These ring RGB lamps can be simply connected via the output pin cascade one to the other’s input pin (DI-DO). In this way, by using only one single chip you will be able to control as many LED lights as possible, each LED lamp is integrated with a driver chip so that our LED becomes intelligent and addressable.
Each has a -18mA constant current drive, so the LED color will be very uniform, even if the voltage change is the same, do not need an external resistor current limiting resistor to make the overall design of the RGB lamp ring to become slim, as you see so simple and easy to use. With a 5V power supply to drive the RGB lamp ring.
Characteristic : Single wire communication, to maximize the reduction of I/O port pressure, and the use of the RGB WS2812B driver chip, so that the peripheral circuit requires only a single capacitor can meet the needs of the circuit, give people the enjoyment of beauty, in addition, this RGB ring, but also through a simple Dout input port, and the other using the same chip RGB lamp cascade, without need considering the shape of the limit.
Technical Details
- Item Type: LED Board
- IC Chip: WS2812B
- Outer Diameter: 68mm
- Inner Diameter: 54mm
- Height: 3mm
Features
- The control circuit and LED share one power source
- Integrated RGB chip and control circuit in 5050 packages
- Built-in signal reshaping prevents waveform distortion
- Electric and power-loss reset circuits
- 256 brightness levels per color, 16M colors
- Scan frequency: ≥400Hz/s
- Single-line cascading port transmission
- Signal transmission over 5m without extra circuits
- Supports 1024+ pixels at 30fps
- Data transfer speed: 800Kbps
- Consistent color output
- Used in LED strips, decorative lighting, and video displays
Applications :
- RGB lighting effects for DIY projects
- Wearable technology and costume design
- Interactive LED displays and signage
- Smart home decorative lighting
- Customizable ambient lighting
- Arduino and Raspberry Pi projects
- Music and sound-reactive LED setups
- Robotics and automation indicators
Integration with Arduino
Physical Attributes
- Outer Diameter: 68mm
- Inner Diameter: 54mm
- Height: 3mm
- Weight (g): 4
Package Includes
- 1 x 16Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board
